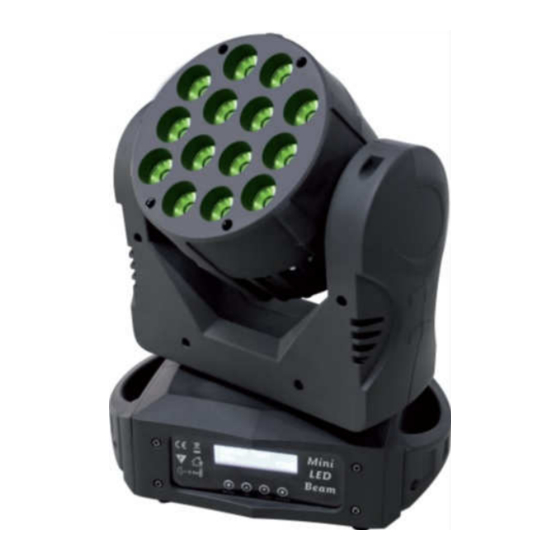

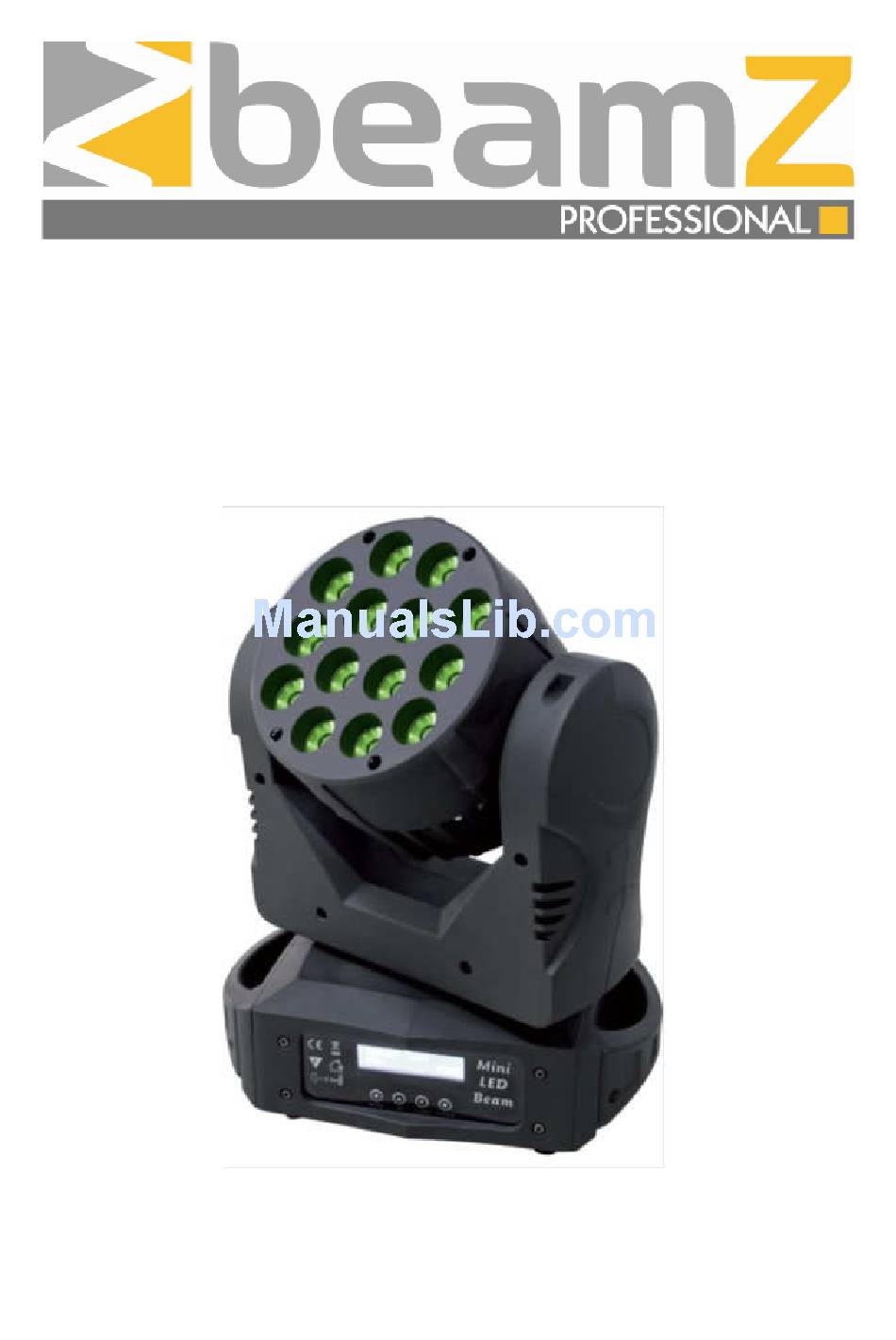

- Page 1 Ref. No.: 150.523 MHL-1410WISPOT 14X 10W QUAD DMX 2.4GHZ MANUAL...
-
Page 2: Table Of Contents
Thank you for purchasing one of our products. Before you use this product please read these instructions carefully to enjoy optimal performance and a longer service life. CONTENTS Contents .............................2 Unpacking Inspections ........................3 Unpacking instructions ........................3 Checking the contents of the box:....................3 Safety Instructions ..........................4 Product Overview..........................4 Functions Introductions ........................4... -
Page 3: Unpacking Inspections
UNPACKING INSPECTIONS Unpacking instructions Please unpack the carton and check the goods carefully when you receive it , if you discover • any packing damage, shortage or quality problems, please notify the shipper and reject the goods. Before using this product, please read the instructions carefully and store them in a safe place •... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Always connect this product to a grounded circuit to avoid the risk of electrocution. • Never put tiny metal objects such as a screwdriver, iron wire, etc. into this product in case of a • short circuit . Please make sure that the voltage of the outlet to which you are connecting this product is •... -
Page 5: System Menu
SYSTEM MENU 9 CH Channel Mode 12 CH DMX Start Address System Reset Firmware Version Fixture Time Blue White Balance Green Red test Green test Auto Test Blue test White test MENU All test Tilt inverse Pan inverse Angle 540° Pan angle Angle 630°... -
Page 6: System Setting
SYSTEM SETTING Channel mode Select the desired channel mode Press the UP or DOWN button until “Channel mode” is displayed, press enter. “X Ch” will now be displayed, (“X” represents the displayed channel mode). Press the UP or DOWN button to find the desired channel mode. Press ENTER to confirm. DMX Address Set the DMX address Press the UP or DOWN button until “DMX address”... -
Page 7: Pan Invert
Pan invert Press the UP or DOWN button until “Pan Invert” is displayed, press ENTER. Press the UP or DOWN button until “Yes” is displayed, press ENTER to confirm. To deactivate select “NO”, press ENTER to confirm. Pan Angle Press the UP or DOWN button until “Pan Angle” is displayed, press ENTER. Press the UP or DOWN buttons to set your rotation Backlight LCD Press the UP or DOWN button until “Back LCD”... -
Page 8: Dmx Channel Settings
DMX Channel settings 12 Channel settings: DMX 12 Channel Description 000 – 000 Unused Dimmer 001 - 255 Dimmer 0 – 100% 000 – 009 Unused 010 – 014 Macro Color 1 015 – 019 Macro Color 2 020 – 024 Macro Color 3 025 –... -
Page 9: Channel Settings
203 – 207 Macro Color 41 208 – 212 Macro Color 42 213 – 217 Macro Color 43 218 – 222 Macro Color 44 223 – 227 Macro Color 45 Macro Color 228 – 231 Macro Color 46 232 – 236 Macro Color 47 237 –... -
Page 10: Maintenance
MAINTENANCE The unit should be cleaned periodically to ensure the optimal performance, smudginess can decrease the life of the light source and the output of light is affected by the dust which can make the machine overheat. It is advised to perform maintenance 2 times a month. Be sure to disconnect the unit from the power socket before cleaning.Do not clean until the unit recovers a normal temperature, use the lens tissue or soft cotton cloth with alcohol and wipe gently.The cleaning frequency depends on the environment in which this unit operates, damp, smoky or dirty surroundings can cause greater... - Page 11 CE & R&TTE Declaration of Conformity Importer: TRONIOS BV Bedrijvenpark Twente 415 7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 150.523 Product Description: MHL-1410Wispot14x 10W Quad, DMX 2.4Ghz Regulatory Requirement: EN 60598-1/-2-17 EN 55015 EN 61547 EN 61000-3-2/-3-3 EN 300 440-1/-2...
- Page 12 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2013 by TRONIOS the Netherlands...
