Summary of Contents for Falcon FALUC801

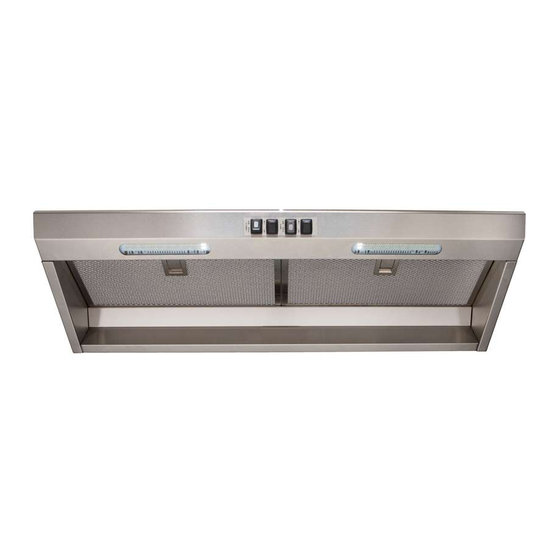

- Page 1 Falcon Undercupboard Rangehoods Installation Instructions & User Guide Falcon...
- Page 3 1. The installation of Falcon Rangehoods must comply with the information in this booklet. 2. Every Falcon Rangehood must be ducted to the outside atmosphere by the use of metal rigid or semi-rigid flexible ducting. Do not use of any type of plastic PVC piping. Rangehoods must not be vented into a wall cavity or a ceiling space.
-
Page 4: Mounting Options
FALUC801 & FALUC1002 MOUNTING OPTIONS CUPBOARD CUT OUT DIMENSIONS MODEL MOTOR BOX SIZE HOOD BASE SIZE CUT OUT SIZE CUPBOARD BASE MIN. FALUC801 235 x 780mm 275 x 800mm 290 X 810mm 245 x 785mm FALUC1002 235 x 980mm 275 x 1000mm... - Page 5 FALUC models. 2 3 5 1 5 0 3 5 0 2 7 5 Model FALUC801 FALUC1002 Model FALUC801 FALUC1002 3 7 9 m m x 1 5 7 m m Body Width Filter Size...
- Page 6 RANGEHOOD CLEANING FALCON rangehoods are made from type 304 stainless steel. This means that the stainless steel is made of 18% nickel and either 8% of chromium. Stainless steel gets its protective coating from the chromium oxidising in the air to form a protective surface of chromium oxide.
- Page 7 OPTIONAL Twin Motor Transition to 250mm diameter (suits FALUC1002 only) Code 414902 247 Twin Motor Transition to 250mm diameter (suits FALUC1002 only) Code 414902...
- Page 8 Andi-Co Australia Pty.Ltd. 1 Stamford Rd Oakleigh VIC 3166 FOR SERVICE: 1300 650 020 service@andico.com.au www.andico.com.au...
