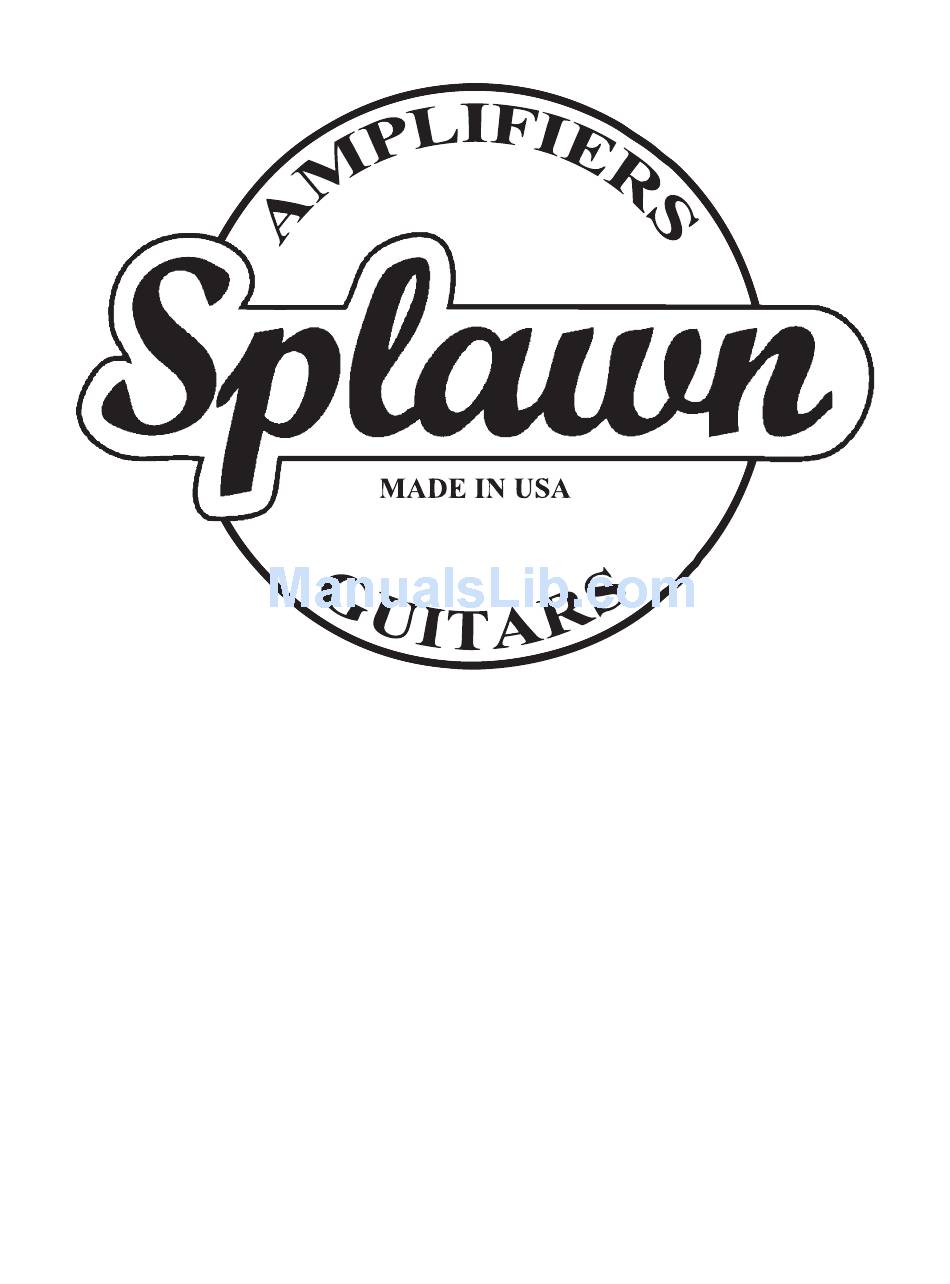

- Page 1 OMPETITION & TOCK Owners Manual...
- Page 2 3rd Gear 2nd Gear 1st Gear Competition & Pro Stock Front Panel Controls 1. Power Switch - Switches AC power on or off 2. Standby Switch - Switches the high voltage on or off 3. Presence Control - High frequency control on the output section 4.
- Page 3 EFFECTS LOOP MAINS INPUT SPEAKERS LOOP MASTER HT FUSE MAINS FUSE .5A Slow BLOW 4A 120V • • • OUT/+4db • • • • • • • • OUT/BYPASS IN/-10db IN/ACTIVE • • RETURN SEND OUTPUT VOLTAGE 2A 220/240V FOOTSWITCH Super Sport Rear Panel Controls 1.
- Page 4 Overdrive 1/ Overdrive 2 Solo Boost Splawn 3 Button Single Channel Amp Footswitch Available with the Competition, Pro Stock, and Super Comp 1. Mode Switch 2. Overdrive 1/Overdrive 2 Switch 3. Solo Boost Switch - LED on indicates Solo Volume Boost control activated...
- Page 5 Overdrive 1/ Overdrive 2 Solo Boost Clean/Overdrive Splawn Standard/C lassic 3 B utton F ootswitch Available with Street Rod 2. Overdrive 1/Overdrive 2 Switch 3. Solo Boost Switch - LED on indicates Solo Volume Boost control activated O D 1 / O D 2 Clean/Overdrive Mode Splawn Super Sport 3 Button Footswitch...
- Page 6 New Quick Rods since 2013 are shipped with a 4 button footswitch which includes the mode switch, which allows you to switch between two gears. If the front panel switch is set to 1st gear you can switch between 1st and 2nd gear, if the front panel switch is set to 3rd gear you can switch between 3rd and 2nd gear.
