Protocol Galileo 6182-5U Pilot's Handbook Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Galileo
TM
RADIO CONTROLLED
QUAD-COPTER
FEATURING:
1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use.
2. Built-in 6-axis Gyro ensures excellent stability.
3. Modular design for increased ease of maintenance.
4. 360-degree 3-dimensional stunt and tumbling function
5. Photo/Video
The materials and specifications stated in this instruction manual are for reference only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Galileo 6182-5U and is the answer not in the manual?

Questions and answers

Related Manuals for Protocol Galileo 6182-5U

Summary of Contents for Protocol Galileo 6182-5U

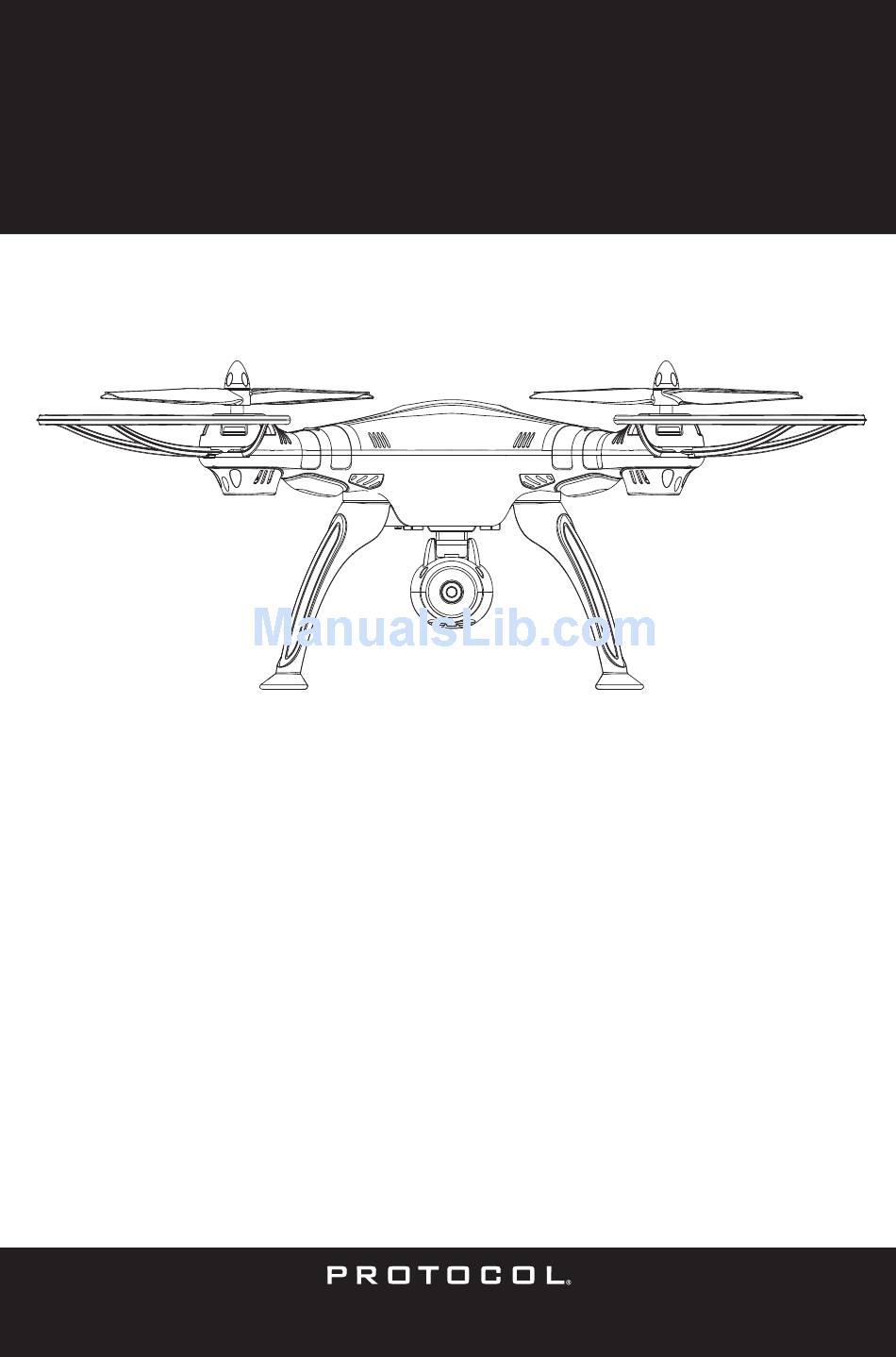

  • Page 1 Galileo RADIO CONTROLLED QUAD-COPTER FEATURING: 1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use. 2. Built-in 6-axis Gyro ensures excellent stability. 3. Modular design for increased ease of maintenance. 4. 360-degree 3-dimensional stunt and tumbling function 5.
