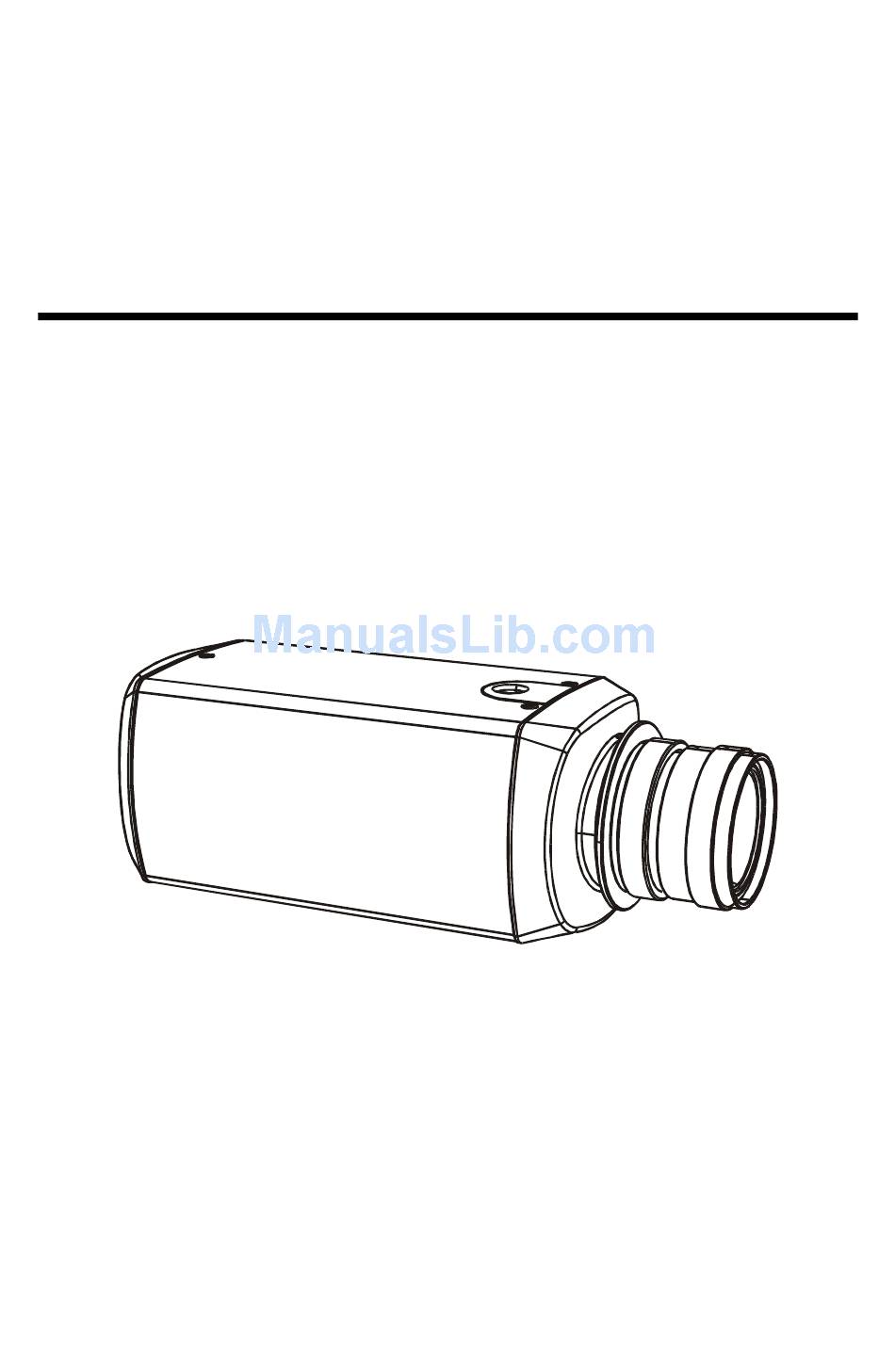

- Page 1 INSTRUCTION MANUAL DSP COLOR CAMERA 1/3" INTERLINE TRANSFER CCD STANDARD RESOLUTION HIGH RESOLUTION Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 2 ISSUE 1 – DECEMBER 2004...
- Page 3 WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 4 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL...
- Page 5 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS 8. GROUNDING OR POLARIZATION Equipment that is powered through a Read the instruction manual before operating the equipment. Retain the polarized plug (a plug with one blade wider than the other) will fit into the manual for future reference.
- Page 6 13. DAMAGE REQUIRING SERVICE 14. REPLACEMENT PARTS Unplug the equipment from the wall When replacement parts are required, outlet and refer servicing to qualified be sure the service technician uses service personnel under the following replacement parts specified by the conditions: manufacturer or that have the same characteristics as the original part.
-
Page 7: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................1 CAMERA OVERVIEW ................2 CONTENTS OF PACKAGE ..............6 MANUAL IRIS LENS ADJUSTMENT ............6 VIDEO-TYPE AUTO-IRIS LENS INSTALLATION AND ADJUSTMENT ................. 6 DC-TYPE AUTO-IRIS LENS INSTALLATION AND ADJUSTMENT ................. 8 BACKFOCUS ADJUSTMENT ..............10 ZOOM LENS BACKFOCUS ADJUSTMENT .......... - Page 8 THIS PAGE INTENTIONALLY LEFT BLANK. viii...
-
Page 9: Introduction
ABOUT THE 1/3" DSP COLOR CAMERA INTRODUCTION The 1/3" DSP color security camera provides SONY, true-color images especially for closed-circuit television (CCTV) and security surveillance applications. Features: • High-performance 1/3" SONY DSP color CCD technology • NTSC: 330 lines of resolution (Standard) 480 lines of resolution (High) •... -
Page 10: Camera Overview
CAMERA OVERVIEW SIDE VIEW C Mount Ring Back Focus Lock Screw ( C MOUNT LENS ) ( CS MOUNT LENS ) Camera Mounting Bracket Back Focus Ring BACK VIEW (12VDC / 24VAC) Power LED V. Phase Potentiometer Level potentiometer LENS (for DC type A/I lens) LEVEL PHASE PWR Auto Iris Lens... - Page 11 C/CS Back focus Adjust Ring – Allows the user to adjust the back focal length or picture focus by rotating this ring clockwise for C- mount and counter-clockwise for CS-mount lenses. Mounting Bracket Hole – This threaded ¼"-20 hole is used to mount the camera onto a mounting bracket or tripod.
- Page 12 the exposure is performed by the electronic iris and AGC control. Position the switch toward the back of the camera for manual exposure, whereby the shutter speed can be set by the shutter adjust. *Manual Exposure (SW1= Manual Exposure) Switch Switch Position SW1 2 3 4 Shutter Speed...
- Page 13 AGC Switch (off/on) – The auto gain control switch allows the • video signals to maintain a constant level. This switch is useful when using the camera at low-light levels and when lighting levels change over time. For best low light conditions, this switch should set to ON.
-
Page 14: Contents Of Package
Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The contents of the package includes: 1. - Page 15 Connector Cover Automatic Pin 3 Iris Lens Pin 1 Heat Pin 4 Shrinkable Tubes Iris Control Pin 2 Cable Connector NAME WIRE COLOR Voltage + Open Video White Ground Black Attach the video-type auto iris lens to the lens mount on the front of the camera.
-
Page 16: And Adjustment
To increase the speed of the lens reaction to the changing light, set the lens adjustment to PK so the lens will adjust to the brightest or peak object in the video. Use this setting if you want to see the brightest object and not the background objects. - Page 17 NAME WIRE COLOR Damp Coil - Blue Damp Coil + Drive Coil + White Drive Coil - Green Attach the DC-type auto iris lens to the lens mount on the front of the camera. Plug the connector into the auto iris jack on the back of the camera. The connector is polarized and can only be inserted into the jack one way.
-
Page 18: Backfocus Adjustment
BACK FOCUS ADJUSTMENT For best results, perform back focus adjustments at night or while using a #6 or #8 welders glass in front of the lens. The focus of the camera will change slightly if the camera iris was adjusted on a light scene, then changes to a dark scene. -
Page 19: Zoom Lens Backfocus Adjustment
ZOOM LENS BACK FOCUS ADJUSTMENT The objective of back focusing a zoom lens is similar to that of a fixed focal length camera except the back focus is also adjusted to maintain the focus when “zooming” the lens in and out on a scene. Choose an object at the farthest range set for viewing with a zoom lens. -
Page 20: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE TROUBLESHOOTING If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. PROBLEM AREA TO CHECK No Video... -
Page 21: Spcifications
SPECIFICATIONS * Standard Resolution DSP Color Camera * Power Power Source, Consumption : 24VAC +/-10%, 60(50)Hz +/-1Hz, 12VDC +/-10% 3.2Watts. Power Indicator : Green LED Sensor Information and General Processing Technology : Sony DSP Image Sensor : 1/3" interline transfer CCD (sony chip set) Picture Element :... - Page 22 Function Auto/Man Shutter Control(E.S.) : Auto(On), Man(Off) (Dip Switch) Manual Shutter Control : 1/60(1/50), 1/100(1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000(Dip Switch) Flickerless(F.F) : ON/OFF (Dip Switch) BLC : ON/OFF (Dip Switch) EI : ON/OFF (Dip Switch) Auto Iris Lens : DC/Video (Dip Switch) AGC Select : Normal/High (Dip Switch)
- Page 23 Power Power Source, Consumption : 24VAC +/-10%, 60(50)Hz +/-1Hz, 12VDC +/-10% 3.2 Watts. Power Indicator : Green LED Sensor Information and General Processing Technology : Sony DSP Image Sensor : 1/3" interline transfer CCD (sony chip set) Picture Element : 811(H) x 508(V), NTSC 795(H) x 596(V), PAL Chip Size :...
- Page 24 Manual Shutter Control : 1/60(1/50), 1/100(1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000(Dip Switch) Flickerless(F.F) : ON/OFF (Dip Switch) BLC : ON/OFF (Dip Switch) EI : ON/OFF (Dip Switch) Auto Iris Lens : DC/Video (Dip Switch) AGC Select : Normal/High (Dip Switch) AGC : ON/OFF (Dip Switch) White Balance :...
