Summary of Contents for FMUser FSN-301

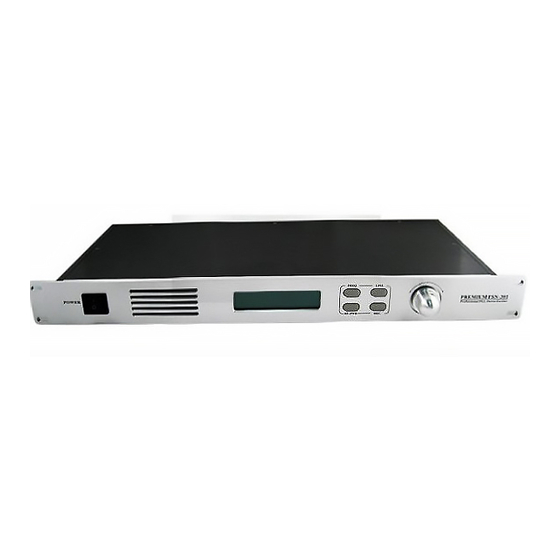

- Page 1 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 FSN-301 30W 1U FM Transmitter User Manual...
- Page 2 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 Outstanding Features: l 0~30W power adjustable l Dual reverb microphone input port l External encoder input (for external SCA or RDS encoder) l VSWR protection, and can set the start value of the standing wave protection.
- Page 3 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 The detailed look into the PCB...
- Page 4 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 Operation Attentions: 1. Make sure the antenna or the Load can be ground connected to transmitter 2. The power supply voltage must be within the allowed range. 3. Make sure the fan ventilation is good.
- Page 5 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 After POWER ON, the interface showing working status. There will be two pages to show the parameters: Page1: Page2: Page1 shows: l Working frequency l Actual internal temperature l Power output l Reflected Power: VSWR：...
- Page 6 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 l Frequency setting. When you see the mune page, switch to the first item”FREQ”. press the switch to confirm, then the system will go to frequency setting page(power forwarding will be temporarily closed), see picture below:：...
- Page 7 Contact: Rita Cai Email: rita@fmuser.net Web: www.fmuser.net skype: rita.cai87 l Temperature protection setting: On the menu page, turn the rotary swtich to selet the fifth item “TMPE SET”, press the switch to confirm. Now you can set the temperature protecton: Turn the switch to set the temperature you want to protect the machine from burned, the available range is from 50-70℃.
