1. Attention before use:
1) Make sure the supplied voltage is within the acceptable range.
2) Only professionals can do the maintenance.
3) Please make sure the antenna has lightening protection.
4) Please don't touch the antenna when the machine is connected with power supply.
5) Please don't power on the machine without connecting antenna.
6) Please don't use the transmitter in explosive environment(e.g. gas station, places with gas or steam)
7) Please don't use the transmitter in extreme dusty, damp, hot environment.
8) Please use the transmitter under the regulations by local wireless administration institutions.
2. Menu
1) Product features
2) Product configuration
3) Product user guide
4) Product specification
5) Troubleshoot
3. Product Features

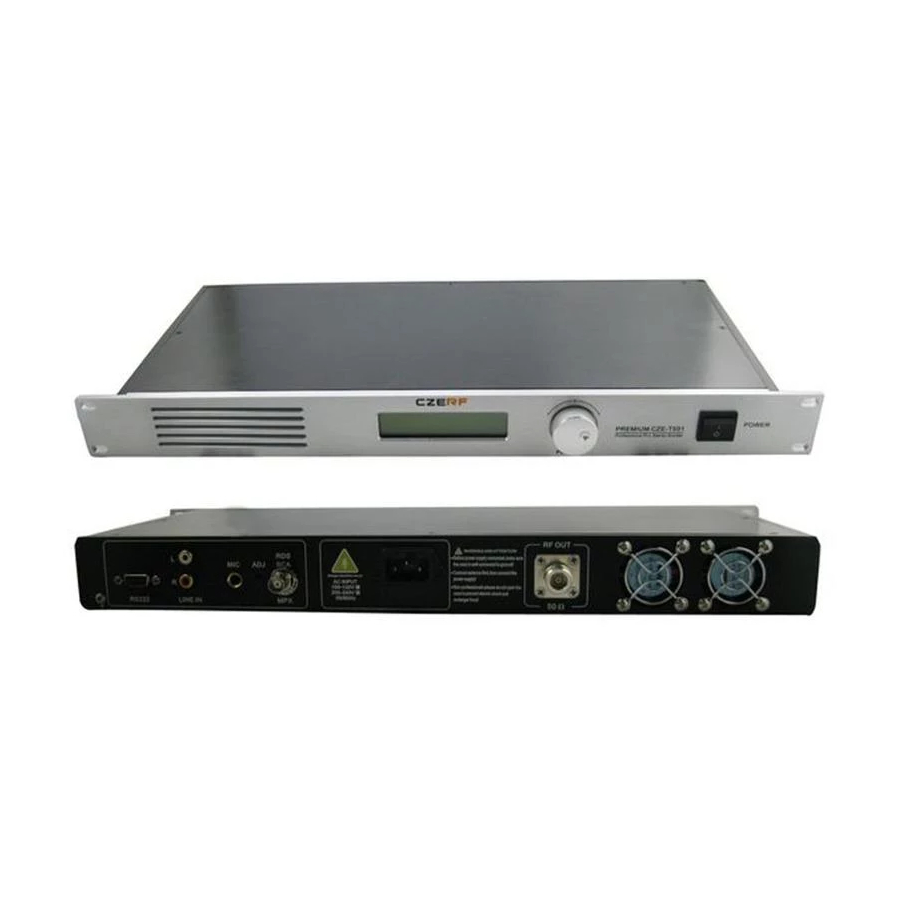

CZH-T501 is a multi-functional FM transmitter. It has stable structure, excellent appearance , super good sound
quality and is very easy to use.
*Main Features:
-Stereo/Mono optional
- RF output power is continuously adjustable from 0~50watt.
-One button controls all functions.
-Auto volume control function. It can detect and adjust volume automatically and ensure the
best modulation.
-SWR protection. When antenna is not well connected, the transmitter will turn to
protection mode automatically.
-Temperature protection. When the temperature of transmitter is too high, it will turn to
protection mode automatically.
- External encoder input interface (available for SCA or RDS encoder )
1 / 7
CZH-T501 USER MANUAL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FMUser CZH-T501
Summary of Contents for FMUser CZH-T501
- Page 1 3) Product user guide 4) Product specification 5) Troubleshoot 3. Product Features CZH-T501 is a multi-functional FM transmitter. It has stable structure, excellent appearance , super good sound quality and is very easy to use. *Main Features: -Stereo/Mono optional - RF output power is continuously adjustable from 0~50watt.
-
Page 2: Product Configuration
4. Product configuration NAME DESCRIPTION UNIT PORT FM transmitter CZH-T501 ALLUMINUM ANTENNA 1/4 OR 1/2 WAVE RF OUT AC POWER CORD THREE PHASE DC AC INPUT AUDIO CABLE 1 TO 2 - 3.5mm TO RCA LINE IN USER MANUAL ELECTRONIC VERSION 5. - Page 3 3) Operation Instruction a). Turn ON Check the antenna first, make sure it’s well connected. Then connect the power cord to home socket, press the power button to I position to turn ON the transmitter. O position means OFF. See picture on the right.
- Page 4 ，Volume range is 0~79。 Microphone Volume： Volume indicator： it shows real time display of the volume. b). Function and Parameter setting Press the knob to enter Menu page. Turn the knob to shift pages. There are 8 pages altogether. Frequency setting On the Menu page, turn the knob to page 1 FERQ setting, press the knob to enter setting.
- Page 5 RF output power setting On the Menu page, turn the knob to page 3 RF POWER setting, press the knob to enter setting. Turn the knob to adjust the output power within the range of 0~50w, then press the knob to confirm setting and exit. Sound mode setting On the Menu page, turn the knob to page 4 ST<OR>MO setting, press the knob to enter setting.
-
Page 6: Technical Specification
Exit setting On the Menu page, turn the knob to page 8 MENU EXIT, press the knob to exit setting and return to main page. 6. Technical Specification Item Specification AC110V/50Hz/60Hz（choose Manually） Working Voltage AC220V/50Hz/60Hz（choose Manually） ﹤1A Working Current Frequency Range 87~108MHz Frequency Stability ±10PPM... -
Page 7: Troubleshooting
7. Troubleshooting Problem description Possible Reasons 1）Socket is not connected with electricity Unable to Power ON 2）Power cord is not well plugged. 3）The fuse is not working properly in socket. 1）Antenna is not well connected. 2）SWR value is too high because antenna doesn’t SWR Alarm match transmitter 3) There are too many reflecting objects close to...
