ELECTROMAGNETIC LOCK

INSTALLATION OVERVIEW

PLEASE READ BEFORE INSTALLATING

Familiarize yourself with the gate and post conditions prior to installation. The lock must

rigidly mount to the gate post. The armature is designed to pivot slightly to compensate

for reasonable misalignment.

Due to the wide diversity of gate designs custom mounting brackets may be necessary to

facilitate the installation. An L-Z Bracket is included to accomodate the majority of gate

applications. The lock is mounted to the vertical gate post. The armature is mounted to

the leading edge of the gate.

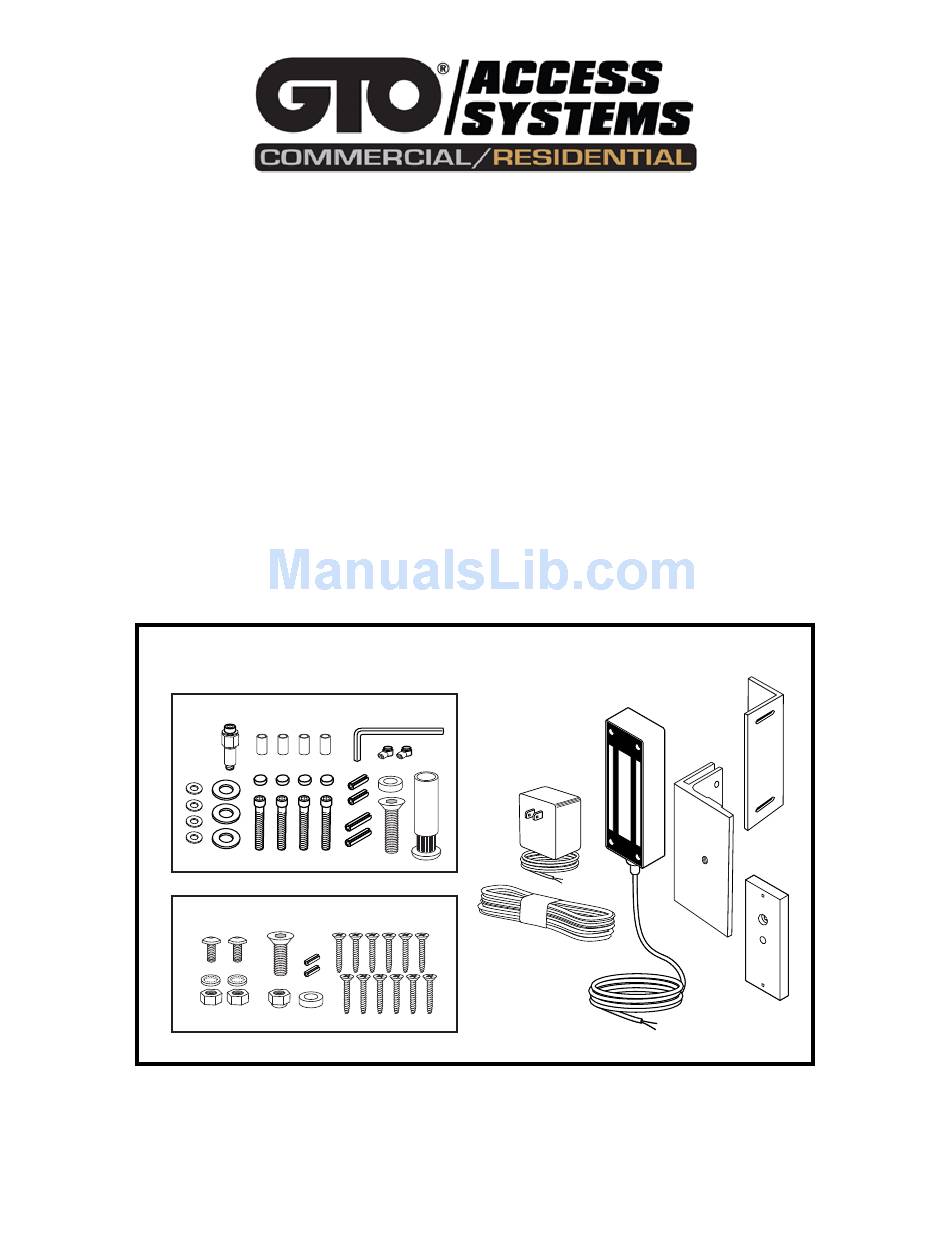

PARTS & HARDWARE

HARDWARE PACK 1

HARDWARE PACK 2

GTO Sales: (800) 543-GATE (4283) or (850) 575-0176 • Fax (850) 575-8912 or

GTO Technical Service (800) 543-1236 or (850) 575-4144

For 24 hour/day, 7 day/week Technical Service visit http://support.gtoinc.com/support/troubleshooter.aspx

2008 GTO, Inc.

rev- 08/25/08

Table of Contents

Need help?

Do you have a question about the R1200 and is the answer not in the manual?

Page 1 PARTS & HARDWARE HARDWARE PACK 1 HARDWARE PACK 2 GTO Sales: (800) 543-GATE (4283) or (850) 575-0176 • Fax (850) 575-8912 or GTO Technical Service (800) 543-1236 or (850) 575-4144 For 24 hour/day, 7 day/week Technical Service visit http://support.gtoinc.com/support/troubleshooter.aspx 2008 GTO, Inc.
Page 2 SURVEY THE INSTALLATION Inspect the gate and determine if supplemental brackets and/or special mounting hardware will be required for installation. If you are using the L-Z Bracket refer to the instructions furnished for spe- cific installation information. Fabricate/procure custom bracket(s), hardware, and/or attachments as necessary.
Page 3 MOUNTING THE ARMATURE Locate the two 3/16” dia. anti-spin pins from the hardware kit. Place the armature face-down on a soft surface and drive the anti-spin pins into the holes provided. Refer to the illustrations below to select the correct mounting hardware and mount the armature. Firmly tighten the armature mounting screw. MOUNTING THE MAGNET Mount the magnet assembly to the gate with the four selftapping screws provided.
Page 4 6. Anti-spin Pin 7. Steel Washer 8. Armature Bolt 9. Spacer 10. Sex Nut GTO Hours of Operation: Mon. – Fri., 8:00 A.M. - 7:00 P.M. (ET) Phone (800) 543-1236 • FAX (850) 575-8950 E-mail: techsupport@gtoinc.com • GTO Web site: www.gtoaccess.com...
