Summary of Contents for ECS E10IL1
- Page 2 Preface Copyright 2009 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...
-
Page 3: Table Of Contents
Table of Content ....2 TTENTION EACHERS ARENTS AND DULT UPERVISORS ............. 5 GENCY EGULATORY OTICES ................... 6 ODIFICATIONS ..........6 ONNECTIONS TO ERIPHERAL EVICES SAR E ................. 6 XPOSURE ............6 ECLARATION OF ONFORMITY ... - Page 4 ................43 DVANCED ETUP ..................45 ECURITY ..................46 ETUP ..................48 ETUP 3G C .................. 50 ONNECTION ..............56 AMERA PPLICATION ................57 UNCTION ..............57 ECONDARY UNCTION ................. 59 UNCTION ...
-
Page 6: Supervisors
Emphasize to student that this device is an educational tool and not a toy. The computer, power supply, battery pack or power cord should not be dropped, crushed, stepped on or otherwise abused. This product is intended for school age children, ages 6 and ... - Page 7 When cleaning the unit, clean only with a slightly damp soft cloth. Do not pour liquid onto the unit. Do not clean while computer is “on” or plugged into wall socket. Do not leave PC plugged in or “on” when enclosed in a non- vented container, such as a school backpack, as overheating may occur.
-
Page 9: Agency Regulatory Notices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio... -
Page 10: Modifications
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the Manufacture may void the user’s authority to operate the equipment. Connections to Peripheral Devices Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations. -
Page 11: Canadian Notice
IEC61000-4-3: 2006 ED. 3.0 IEC61000-4-4: 2004 ED. 2.0 IEC61000-4-5: 2005 ED. 2.0 IEC61000-4-6: 2006 ED. 2.2 IEC61000-4-8: 2001 ED. 1.1 IEC61000-4-11: 2004 ED. 2.0 EN 300 328-2, EN 300 328-1, EN 301 489-1, EN 301 489-17 (ETSI 300 328, ETSI 301 489) Electro-magnetic Compatibility and Radio Spectrum Matter. -
Page 12: Power Cord Requirement
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected... -
Page 13: Battery Pack Safety
The minimum specifications for the flexible cord are: (1) 0.75 conductors, (2) Type VCT or VCTF, and (3) 3-conductor. The cord set must have minimum rated current capacity of 7 The attachment plug must be a two-pole, grounded type with a Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration. - Page 14 Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention. ...
-
Page 15: Lithium Battery Warning / Bridge Battery Warning
Lithium battery warning / Bridge battery warning This computer contains a lithium battery to power the clock and calendar circuitry. Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt 70dB (A) oder weniger. Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden. -
Page 17: G T Ktb

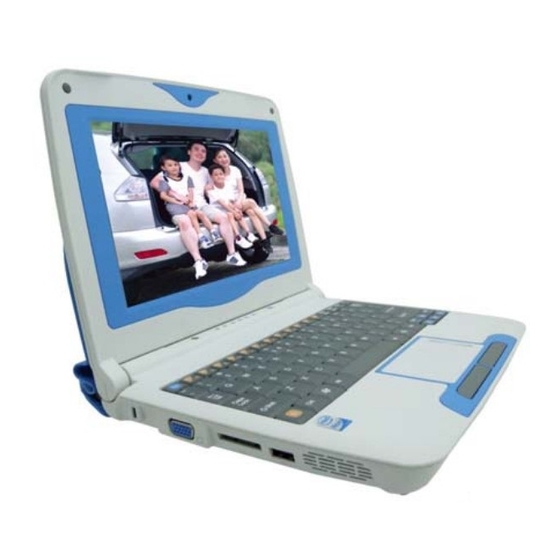

Congratulations on your purchase of Intel-powered classmate PC. Intel-powered clamshell classmate PC features the latest advances portable computing technology. Intel-powered clamshell classmate PC modular design provides maximum expandability without compromising portability. Opening the LCD Panel... -
Page 18: Front View
To avoid damage to the display panel: 1. Try not to slam the display upon closing it. 2. Try not to place any object on top when it is closed or open. 3. Be sure the system is turned off or in suspend mode before you close the display panel. -
Page 19: System & Power Status Indicators
LED Status Indicator The LED Status Indicator displays the operating status of your Intel-powered classmate PC. When a certain function is enabled, a LED will light up. The following section describes the indication. System & Power Status Indicators LED Graphic Indication Symbol Blue light indicates the WLAN module is active. - Page 20 Keyboard The keyboard is used to enter data. Touch Pad The touch pad is a built-in pointing device with functions similar to a mouse. The touchpad is also equipped with a scroll bar so you can move around in a large document. Scrolling Bar - Sliding a vertical presentation of content, such as text, drawings, or images, across a screen or display window.
-
Page 21: Left Views
Light Sensor The system provides a Light-to-voltage converter module which is a sensor directly proportional to the light intensity of your surrounding working environment. It will affect the backlight intensity (bright/dark) of your screen display. This mode will then function once the OSD (On Screen Display) application is installed in your system. -
Page 22: Right View
CRT Port Use to connect an external monitor. 4 in 1 Card Reader The 4-in-1 Card Reader supports SD/MMC/MS/MS Pro Card. You need to remove the outer jacket to access the card reader slot on the right side of the computer. USB 2.0 Port This port conforms to the latest USB2.0 plug-and-play standards. - Page 23 Stereo Headphone Jack The stereo headphone jack (3.5 mm diameter) is where you connect the headphones or external speakers. Microphone Jack The microphone jack (3.5 mm diameter) is where you connect a microphone. USB 2.0 Ports This port conforms to the latest USB2.0 plug-and-play standards.
-
Page 24: Bottom View
Bottom View Battery Release Latch Slide this latch to release the battery from its compartment. Battery Compartment This compartment contains the battery pack of your system. Battery Lock/Unlock Latch Slide this lock to lock or unlock the battery into its compartment. -
Page 26: Started
Connecting the AC Adapter A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source: Do not use inferior extension cords as this may result in damage to your Intel-powered... - Page 27 Whenever possible, keep the AC adapter plugged into the Intel- powered classmate PC and an electrical outlet to recharge the battery. Never turn off or reset your Intel- powered classmate PC while the hard disk is in use; doing so can result in loss or destruction of your data.
-
Page 28: To Install The Battery Pack
Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers. To Install the Battery Pack:... -
Page 29: To Remove The Battery Pack
To Remove the Battery Pack: Lithium-Ion Battery Your Intel-powered classmate PC uses a Lithium-Ion battery pack that provides power when you don’t have access to an AC outlet. -
Page 30: Battery Low-Power Warning
You must charge the battery pack for at least six hours before using it for the first time. In the Standby Suspend mode, a fully charged battery loses its power in roughly 1/2 day or less. When not being used, the battery’s power will deplete in one to two months. -
Page 31: Checking The Battery Level
When the battery is fully charged, the battery charge indicator becomes green. If system runs at heavy loads or in a high temperature environment, the battery may not be fully charged. You need to continue to charge it with the AC adapter plugged in until the charging LED turns green. -
Page 32: Standby Suspend
Then discharge the battery by entering the BIOS setup screen. (Press DEL key as soon as you turn on the computer. And let it remain at the setup screen until the battery runs out. Fully charge the battery again. Operating System Power Management provides basic power saving features. - Page 33 Intel-powered clamshell classmate PC power button can be set to turn off the system or activate the suspend mode.
-
Page 35: U I C C Pc
The LCD screen display can be adjusted by the following key combinations. - Changes Display Mode: LCD-only, CRT-only, LCD/CRT simultaneously - Decreases the brightness level. It also disables the auto brightness (Light Sensor) adjustment. - Increases the brightness level. It also disables the auto brightness (Light Sensor) adjustment. -
Page 36: Function Keys (Quick Keys)
Do not press on, or store any objects on the cover when it is closed. Doing so may cause the LCD to break. Function Keys (Quick Keys) Function Keys (Quick Keys) - WLAN on/off. - Enters the Suspend Mode. ... - Page 37 - Increases the brightness level of the screen. It also disables the auto brightness (Light Sensor) adjustment. - HSPA on/off - Auto brightness adjustment The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-sensitive panel of the touchpad and slit it to move the cursor.
-
Page 38: Touchpad Precautions
TouchPad Precautions The TouchPad is a pressure sensitive device. Please take note of the following precautions. Make sure the TouchPad does not come into contact with dirt, liquids or grease. Do not touch the TouchPad if your fingers are dirty. ... - Page 39 When using the Digital Pen, please refrain your child from biting or putting the pen into the mouth. Take an A4 size paper and attach it into the pen holder as shown on the illustration.
- Page 40 Sensor – Be sure the two sensors must be facing the paper or the flat surface. Paper Holder – Attach the paper into the holder as shown on the illustration. After clicking on the icon, a Note Manager will be displayed on your screen.
- Page 41 After the digital pen is attached into the connector on the computer, the Note Manager is shown on your screen.
-
Page 42: Function
Function Edit Note – You can edit on the description that you just written. Clear Note – Clear the whole note that you had just written. Undo – Erases the last change done to the document. Redo – Reverse or advance to the current state. Pen Style –... -
Page 44: Bios Setup And Security Feature
The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS contains manufacture’s default settings for the computer’s standard operations. - Page 45 Legend Alternate Function Displays the General Help window. It can be enabled from anywhere in the BIOS. Jumps to the Exit menu or returns to the Main menu from a submenu. Selects the menu item to the left. Selects the menu item to the right.
-
Page 46: Main Setup
Main Setup Under this menu, you may change time/date and view basic processor and system memory information. Due to various configurations on this model, your system may show different information. System Time: Type in the current time, in HH:MM:SS format. ... -
Page 47: Advanced Setup
Advanced Setup... - Page 48 Item Selections/Sub-menu Primary IDE Type [Auto] Master LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] S.M.A.R.T [Auto] 32Bit Date Transfer [Enabled] Third IDE Type [Auto] Master LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto]...
-
Page 49: Security
Security Supervisor Password: Install or Change the Password. User Password: Install or Change the Password. -
Page 50: Boot Setup
Boot Setup Boot Settings Configuration: See Below. - Page 51 Item Selections / Description Sub-menu Quick Boot Disabled [Enabled]: The system will quick boot in Enabled the POST messages. Quiet Boot Disabled When Enabled, the system will display Enabled OEM logo instead of the POST messages. When Disabled, the system will display POST messages (i.e.
-
Page 52: Exit Setup
Exit Setup Save Changes and Exit: After you have completed the BIOS settings, select this item to save all settings, exit BIOS Setup utility, and reboot. New system settings will take effect on next power-up. F10 key can be used for this operation. ... -
Page 54: Connection
3G is the third generation of mobile phone standards and technology. 3G enable users a wide range of more advanced service while achieving greater network capacity through improved spectral efficiency. - Page 55 Press the hot key combination of Fn + F9 to verify 3G card status (Enable or Disable?) if it is Enable, then click the 3G application icon to start executing the application. Procedures in installing the application Insert the SIM card into the SIM slot. ...
- Page 56 Double click on the “Profile Management” and click on the “New” tab Click on the “OK” tab.
- Page 57 On the next window, click on the “Connect” tab. All configuration setting was completed, please click save icon to save all setting. The HSPA is successfully connected...
-
Page 60: Web Camera Application
This application offers video conferencing capabilities to work and communicate in real-time with one or more participants through streaming video, from any location. Press the “Camera” icon key to display the “WebCam Companion” screen display. Click on the “Capture” icon to . -
Page 61: Main Function
Main Function Capture - Use this function to captured the image file of the other party when you are on video conferencing. Burst – Use this function to continue on capturing the current image that appears on your display to numerous pictures. - Page 62 Preview window for video file Preview window for photo file All the photos that you captured will be displayed alternately.
-
Page 63: Edit Function
Find Target – Use this function to locate the drive that you would like to save the file that you have currently captured. Email – Use this functio to mail the file that you have captured. Print – Use this function to print the file. Trash –... - Page 64 Rotate Right 90 degrees – Use this function to rotate the photo into clockwise direction. Flip – Use this function to flip the photo file from left to right angle. Undo – Use this function to switch back to the original angle. Redo –...
-
Page 66: Troubleshooting
Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter. -
Page 67: No Speaker Output
speakers and microphone will not work. If external devices such as USB camera, scanner or printer do not function correctly when connected to the system, it is usually the device’s own problem. Consult the device’s manufacturer first. Some software programs, which have not gone through rigorous coding and testing, may cause problems during your routine use. -
Page 68: The Hard Drive Is Making Abnormal Whining Noises
Check the hard disk indicator LED. When you access a file, the LED lamp should light up momentarily. The new HDD may be defective or is not compatible. If your computer has been subjected to static electricity or physical shock, you may have damaged the disk drive. -
Page 69: The Screen Flickers
The screen flickers It is normal if the display flickers a few times during shutting down or powering up processes. The built-in touch pad performs errotically Make sure there is no excess perspiration or moisture on your hand when using the touch pad. Keep the surface of the touch pad clean and dry. -
Page 70: The Ethernet Adapter Does Not Work
Close the application programs you’re not using and restart the system. The Ethernet adapter does not work Make sure the physical connections on both ends of the cable are good. The hub or concentrator may not be working properly. Check to see if other workstations connected to the same hub or concentrator is working. -
Page 71: The Usb Device Does Not Work
This may be normal for Operating System when it is processing other CPU-intensive programs in the background or when the system is accessing slow-speed devices such the floppy disk drive. You may be running too many applications. Try to close some applications or increase system memory for higher performance. -
Page 73: Specification
Intel® ATOM N270 processor 1.6GHz, 512K FSB@533MHZ Memory DDR2 400/533 SO-DIMM DRAM module 256/512 MB and 1GB SO DIMM 200-pin socket * 1 Core Logic Intel® 945GSE ICH7-M Audio Codec Realtek ALC269 Azalia integrated audio ... - Page 74 Single antenna C3/C4 support PCI-E interface Ralink solution Keyboard Integrated QWERTY keyboard W/ Hot key 84 KEY K/B Multi-languages Supported Pointing Device PS/2 Touch Pad with Left and Right Click Button and scrolling Camera (Optional) ...
- Page 75 AC-Adapter Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 40Watts 20V/40W Supports 2 pin and 3 pin power cord BIOS Support PnP & ACPI 2.0 Support external USB flash memory card boot up. Physical Outline ...
