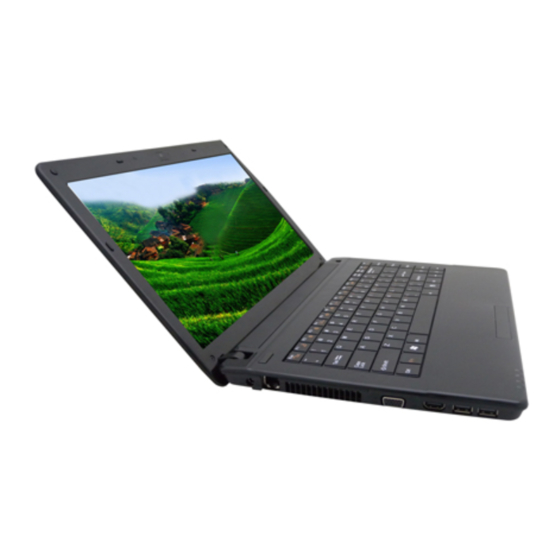

ECS BR40II7 User Manual
  1. Manuals
  2. Brands
  3. ECS Manuals
  4. Laptop
  5. BR40II7
  6. User manual

ECS BR40II7 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR40II7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECS BR40II7

Summary of Contents for ECS BR40II7

  • Page 2 Preface  Copyright 2011  All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...

  • Page 3: Table Of Contents

    Table of Content   ................2 EFORE YOU TART ............2   ONVENTIONS OF ANUAL ................ 2   AFETY RECAUTIONS LASS ASER RODUCT PPAREIL ASER LASSE ............6   ASERSCHUTZKLASSE RODUKT ............6   ICHTIGE ICHERHEITSHINWEISE ............... 9   ESURES DE SECURITE  ...

  • Page 5: Before You Start

    Before you Start Use this manual will help you get the most from your notebook computer. If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories. If you are a less experienced user, you should go through the manual carefully before using your system.
  • Page 6 Make sure to use the right voltage for the power source when connecting the equipment to the power outlet. Place the power cord in such a way that people can not step on it. Do not place anything on top of the power cord. All cautions and warnings on the equipment should be noted.
  • Page 7 The minimum specifications for the flexible cord are No. 18 AWG, (2) Type SPT-2, and (3) 2- conductor. For Japan: All components of the cord set must bear a “PSE” mark and in accordance with the Japanese Dentori Law. The minimum specifications for the flexible cord are .75m ㎡...
  • Page 8 during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Use only the power cord and batteries indicated in this manual.

  • Page 9: Class 1 Laser Product Appareila Laser D E Classe 1 Laserschutzklasse 1 Produkt

    Bitte lesen Sie diese Hinweis sorgfältig durch. Heben Sie dirse Anleitung für den späteren Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.
  • Page 10 Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.: Netzlabel oder Netzstecker sind beschädigt. Flüssigkeit ist in das Gerät eingedrungen. Das Gerät war Feuchtigkeit ausgesetzt. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
  • Page 11 Die Minimalanforderungen für das Kabel sind .75m ㎡ Leiter. (2) Type VCTF oder VCTFK, und (3) 2-conductor. Der Kabelsatz muss mindestens für eine Stromstärke von 7A geeignet sein. Der Wandstecker muss ein zweipoliger geerdeter Steckertyp gemäß dem Japanese Industrial Standard C8303 (15A, 125 VAC) sein. Für andere Länder: Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel derjenigen Stelle, die in dem...

  • Page 12: Mesures De Securite

    angegebenen Stromkabel und Batterien. Werfen Sie die Batterien nicht ins Feuer, sie könnten explodieren. Informieren Sie sich über die örtlichen Bestimmungen bezüglich der Entsorgung. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu Wasser oder anderen Flüssigkeiten. Gießen Sie nie Flüssigkeiten über das Netzteil.
  • Page 13 Si le matériel n'est pas utilisé pendant une longue période, débranchez-le de l'alimentation secteur afin d'éviter qu'il puisse être endommagé par d'éventuelles surtensions. Ne jamais verser de liquide dans les ouvertures, cela pourrait provoquer un incendie ou un choc électrique. N'ouvrez jamais le boîtier.
  • Page 14 Pour le Japon : Tous les éléments du jeu de cordon doivent  comporter le numéro d'enregistrement selon la loi japonaise Dentori. Les caractéristiques minimales pour le cordon  flexible sont des conducteurs de type 0.75mm², (2) Conducteur du type VCTF ou VCTFK, et (3) Le cordon doit avoir une capacité...

  • Page 15: Things You Must Remember Before Working On Your Computer

    gaz à proximité de la fuite. Utilisez uniquement le cordon d’alimentation et les batteries spécifiés dans ce manuel. Ne jetez pas les batteries au feu. Elles pourraient exploser. Reportez- vous à la règlementation locale pour d'éventuelles instructions particulières. N'utilisez pas l'adaptateur secteur à proximité d'une étendue d'eau ou d'autre liquide.

  • Page 16: Suitable Place To Work

    Heat, Cold, Humidity, and Glare  Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it hard to read the screen.  Try to avoid the computer components from being destroyed if it is overheated, so try to allow plenty of room for air to circulate around the case.

  • Page 18: Introduction

    Introduction Install the battery pack Connecting the AC adapter Opening the display panel Turning on your computer...

  • Page 19: Knowing Your Computer

    With the LCD screen open, you will see several features important for operating your notebook computer. Front View Internal Microphone Camera (Optional)
  • Page 20 LCD Display Power/Suspend Button Press for 1~1.5 seconds to turn on the system. Press and hold for at least 4 seconds to turn off the system. Press the power / suspend button again to return from the suspend mode. Keyboard Touchpad Touchpad Buttons 6-in-1 Card Reader...
  • Page 21 Battery Low (<6%): Blinking Red Left Views DC In Ethernet / LAN Port CRT Port HDMI Port USB 2.0 Ports...
  • Page 22 Right View USB 2.0 Port Stereo Headphone Jack Microphone/Audio Line-in Jack Optical Drive Kensington Lock...
  • Page 23 Bottom View Battery Lock Battery Compartment Battery Release Latch...

  • Page 25: Getting Started

    Getting Started Connecting the AC Adapter A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source:...

  • Page 26: Computer

    Whenever possible, keep the AC adapter plugged into the notebook and an electrical outlet to recharge the battery. ’ ’ Hold the button down for a second or two and release. The Power- On Self Test (POST) runs automatically. After the POST is completed, the computer reads the operating system from the hard disk drive into computer memory (this is commonly referred to as “booting”...

  • Page 27: I R B Pack

    ’ ’ To Install the Battery Pack: To Remove the Battery Pack:...

  • Page 28: Charging Battery Pack

    The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

  • Page 30: Using The Notebook Computer

    Using the Notebook Computer The LCD screen display can be adjusted by the following key combinations.  Fn + F4 Changes Display Mode: LCD-only, CRT/HDMI-only and simultaneous LCD&CRT/HDMI.  Fn + F7 Decrease the brightness level.  Fn + F8 Increase the brightness level.

  • Page 31: T N H K C

    You can switch between these display configurations by pressing the key combination [Fn] + [F4]. ’ ’  Fn + ESC Enable/Disable Bluetooth  Fn + F1 Enters Suspend Mode.  Fn + F2 Enable/Disable Silent mode (power management)  Fn + F3 Mute On/Off.

  • Page 32: The Touch Pad

    The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-sensitive panel of the touchpad and slit it to move the cursor. You can use the buttons below the touchpad as left and right mouse buttons. The TouchPad is a pressure sensitive device.

  • Page 33: Connecting An External Tracking Devices

    The system will only enable you to use one tracking device whether it is an internal or external tracking device. Data Storage and Retrieval Data storage and retrieval are two of the most fundamental tasks you will perform when working with your computer. The Notebook is equipped with a hard disk drive (HDD).

  • Page 34: Removing The Battery Pack

    To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the Battery Pack. Preparing the Battery Pack for Use (Battery Calibration) Before using the battery pack for the first time, battery pack should be calibrated in order to get accurate reporting of remaining battery life status..
  • Page 35 Battery Status Windows 7 has an applet in the Control Panel that will display an icon in the Windows taskbar indicating when the notebook is running on battery power or is attached to the AC adapter. This applet also displays a meter that indicates how much charge is remaining in the battery.

  • Page 36: Resetting The System

    After installing a software application package, you may be prompted to reset the system to load the changed operating environment. To reset the system, or “reboot,” press the [Ctrl]+[Alt]+[Delete] keys simultaneously. This is known as “warm boot.” This key combination acts as “software” reset switch when you encounter hardware or software problems, which lock up the notebook.

  • Page 37: Recycle Bin

    Desktop Desktop may vary differently on the software installed in your notebook with different or additional shortcuts. Recycle Bin Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”.
  • Page 38 The Start menu allows you to adapt and show the programs used most frequently. If you wish to keep an item, right click the item and click Pin to Start menu. Log Off will enable the current user to log off and allows a new user to log on.

  • Page 39: Control Panel

    It is in this area that you can change how Windows looks and works. Click Start  Control Panel dialog box. There are two interfaces – Classic View.

  • Page 43: Ebios S S

    The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS contains manufacturers default settings for the computer’s standard operations.

  • Page 44: Bios Action Keys

    Function Key Command Description Leaves a sub-menu to return to the Exit previous menu OR exits the BIOS setup while saving changes. Enter Go to Sub Screen Shows the Sub Menu General Help Shows the Help Screen Default Set as default Saves changes and reboots the Save and Exit computer.
  • Page 45 Info Setup Advanced...
  • Page 46 Security TPM State...
  • Page 47 Boot Setup Exit Setup...

  • Page 49: Troubleshooting

    Troubleshooting Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.
  • Page 50 If external devices such as USB cameras, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem. Consult the device’s manufacturer first. Some software programs, which have not gone through rigorous coding and testing, may cause problems during your routine use.

  • Page 52: Specification

    Specification O.S.  Supports Windows 7 Home Premium (32 bit)  Support Intel Dual Core CPU (32nm process)  Intel Turbo Boost Technology i5-2520M, i5-2540M, i5-2530UM i7-2620M (2.7GHz/ 1core-3.4GHz; 2core-3.1GHz)  TDP ( Thermal Design Power ) up to 35W Memory ...

  • Page 53: Wireless Lan

    Wireless LAN  Support Half-Mini Card (HMC) type only  IEEE 802.11 B/G/N (2x2)  PCI-E interface Camera CCD (Optional)  Support 1.3 and 1.3M HD camera Keyboard  US-300.8mm keys KB support G-Sensor  HDD protection Pointing Device  PS2 Touch Pad with 2 buttons ...
  • Page 54 Lite-On type: PA-1650-65/ PA-1650-68 Speaker/MIC  Build-in 2 speakers  Internal Microphone support BIOS  Supports PnP, ACPI 3.0  Support external USB flash memory card boot up.  With Phoenix BIOS and 4MB flash ROM Power Management (default: Silent mode) ...
