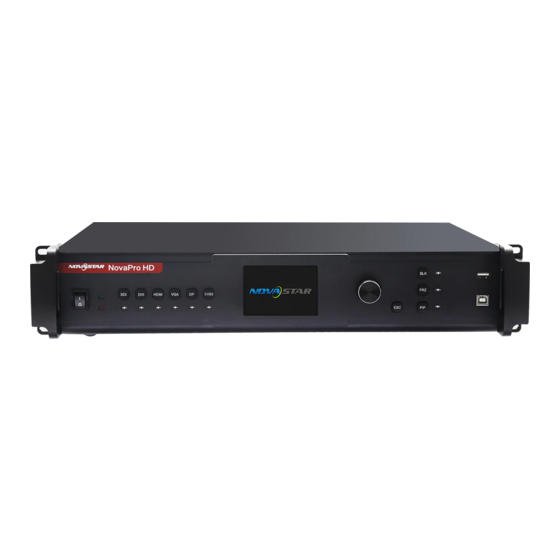

NovaStar NovaPro HD User Manual
  1. Manuals
  2. Brands
  3. NovaStar Manuals
  4. Network Router
  5. NovaPro HD
  6. User manual
NovaStar NovaPro HD User Manual

NovaStar NovaPro HD User Manual

Hide thumbs Also See for NovaPro HD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
NovaPro HD User Manual
2015
V1.2.0
XI'AN NOVASTAR TECH CO., LTD
2015/1/29

Advertisement

Table of Contents
loading

Related Manuals for NovaStar NovaPro HD

Summary of Contents for NovaStar NovaPro HD

  • Page 1 2015 NovaPro HD User Manual V1.2.0 XI'AN NOVASTAR TECH CO., LTD 2015/1/29...

  • Page 2: Table Of Contents

    4.7.3 Splicing load-carrying ..................27 4.7.4 Load cabinet files ....................28 4.7.5 Setting of monitoring threshold value ............31 4.7.6 Advanced attribute ....................32 4.7.7 Fixed into receiving card ..................32 Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 3 NovaStar Tech Co.,Ltd 4.7.8 Redundancy ................错误！未定义书签。 4.7.9 DMX512 channel setting ..................33 4.7.10 Factory reset ......................35 4.7.11 Hardware version ....................35 4.8 Communication Setting ....................35 4.9 Language setting ......................36 Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 4 4) Do not inset any object from vent hole of this equipment to avoid equipment damage or electric shock; 5) This equipment shall not be placed in the places near water or other wet places Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...
  • Page 5 Please carefully read the above precautions. If personal safety problem or product damage is caused due to misoperation because you do not follow this instruction, this company will assume no liability! Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 6: General

    With professional interfaces integrated, NovaPro HD meets the requirements of broadcast industry, in image quality and in control. 1) The inputs of the NovaPro HD include CVBS, VGA, SDI, DVI, HDMI and DP. They support input resolution up to 1080p@60Hz. Highest pixel clock is 165MHz.

  • Page 7: Port/Button

    NovaStar Tech Co.,Ltd 4) The NovaPro HD is the flagship product of our new generation controllers, powerful in processing, professional in control, and friendly in user-interface. Having a display to work has never been as easier and more enjoyable as with NovaPro HD.
  • Page 8 : Current luminance of display screen is 100%. : When current temperature of NovaPro HD exceeds threshold value (can be changed by users), temperature word is displayed in red and blinks. ：When current voltage of NovaPro HD exceeds threshold value (can be changed by users), voltage word is displayed in red and blinks.
  • Page 9 FRZ：Display screen picture freezing. Indicator light is blue in default when powered on and it is displayed in green when enabled; PIP：Display picture in picture. Indicator light is blue in default when powered on Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...

  • Page 10: Rear Panel

    Ethernet: Internet port can be connected with PC for communication through standard TCP/IP protocol. IN: Connected with PC for communication. USB Control OUT: Cascaded with the next NovaPro HD. DMX Control: Connect all consoles that support DMX512 interface protocol. Audio input: Audio. Input Video input: DP/HDMI/VGA/DVI/ CVBS /SDI.

  • Page 11: Description Of Operation Action

    AC Power: AC power interface. 3 Description of operation action All interface operations of NovaPro HD are finished through keys and knob. Knob: press the knob and enter into menu, adjust value or select submenu through turning the knob. At this time, enter into the submenu or confirm adjusted value by pressing the knob.

  • Page 12: Step 1 Hardware Connection

    Precondition of quick touching screen is: 1) Number of load-carrying cabinetes at each internet port must be the same (if number of cabinetes is not integer multiples of internet ports, the remaining Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...
  • Page 13 Cabinet Out1 Num. The device has some limitations on the cabinet quantity of network interfaces. For details, see precautions for screen setting c) Set the alignment of the screen. Pay attention to precautions for screen setting iii), iv) and v) below. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 14 The number of receiving cards for network number cabinet rows interface 3 must be smaller than or equal columns and be greater than or to cabinet out1 num equal to the number of cabinets Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 15: Step 3 Input Setting (Input Resolution Setting)

    Set resolution of input source signal. Resolution can be directly set and changed for digital input interfaces DVI, HDMI and DP on Pro. Resolution can only be modified for other input methods on input devices. Input resolution can be set in two ways: Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 16 Set user-defined width, height and refresh rate and then turn and rotate and select "apply" and press the knob for application. If the application is not confirmed, user-defined resolution is invalid. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 17: Step 4 Brightness Control

     The first type: Point to point display, namely zoom is disabled. Size of output image is the same as input image and it is output at original proportion. Horizontal and vertical shifts of picture are set as required and operation steps Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...
  • Page 18  The second type: Output picture is adjusted to the size of the display screen, namely it is adaptive to the size of display screen. Operation: enable zoom and automatic full screen zoom. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...
  • Page 19 Horizontal width (less than or equal to horizontal width of input source), vertical height (less than or equal to height of vertical source), horizontal and vertical starting points need to be set. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 20: Display Control

     Normal display  Picture freezing: it is the same as the role of FRZ button.  Picture blank screen: it is the same as the role of BLK button.  Test picture: Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 21  Channel Effect Right now we support three effects on switch sources, Quick switch, Fade in fade out and pop-up, if off is being selected that means there is no effects on source switch. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...

  • Page 22: Advanced Setting

    Several setting options of main functions are included in advanced setting, as shown in the figure below, including double picture setting, advanced touching screen and splicing load-carrying setting, etc. Operation of each function will be detailed for users in the following text. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 23: Picture In Picture

    PIP button and synchronous with it Main picture/picture in Input source switching of main picture and picture in picture input source picture is the same as the role of input source switching on the main panel Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 24: Advanced Config (Complex Rule Screen)

    If number of load-carrying cabinets is different and precondition of quick mapping screen is not met, advanced mapping screen can be used at this time, Operation steps of advanced mapping screen are shown as follows: Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website:...
  • Page 25 Pro advanced point is disabled in default and this function needs to be enabled. 2) Internet port setting Number of lines and columns, horizontal and vertical deviation and wiring method of load-carrying cabinets at each port are set based on actual configuration of cabinets. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 26 After finishing each port setting , select "Apply", and click the knob to apply the current settings, if you want to give up the current setting, choose “Return”. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 27: Splicing Load-Carrying

    NovaStar Tech Co.,Ltd 4.7.3 Splicing load-carrying When the display screen is huge, two or more NovaPro HD needs to be cascaded for load-carrying; so splicing load-carrying of each NovaPro HD needs to be set respectively. Fig. 4-1 4K Resolution large load-carrying scheme...

  • Page 28: Load Cabinet Files

    Total number of points is the sum of sizes of load-carrying areas of all cascaded NovaPro HD. 4.7.4 Load cabinet files NovaPro HD is connected with PC, NovaLCT-Mars runs on PC and cabinet setting file saved previously is imported into controller. 1) Save cabinet configuration file After receiving card is configured, click and save cabinet configuration file (.rcfg) to...
  • Page 29 NovaStar Tech Co.,Ltd Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 30 NovaStar Tech Co.,Ltd 2) Cabinet configuration file is imported into NovaPro HD Operation steps are shown in the figure below: 3) Load Cabinet Files Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 31: Setting Of Monitoring Threshold Value

    4.7.5 Setting of monitoring threshold value Set threshold values of temperature and voltage. When temperature or voltage of NovaPro HD exceeds the threshold value, temperature or voltage word is displayed on the home page of the screen in red and blinks.

  • Page 32: Advanced Attribute

    VGA automatic adjustment once. ADC calibration: when analog signal accesses, processors that ADC calibration is not made may have defects such as color cast or picture dark. NovaPro HD can automatically make ADC calibration based on input analog signal (including CVBS and VGA) to solve the above problems.

  • Page 33: Redundancy

    4.7.9 DMX512 channel setting Set the starting channel of DMX512. NovaPro HD currently selects 16 attribute channels, of which 8 attributes are defined and the rest is not temporarily defined. For example, if starting channel is set as 1, the controller will take 16 channels from the 1st channel as the channels with effective attributes.
  • Page 34 Attribute definitions of channels are shown in the table below: Channel serial number Attribute definition Globle Brightness Contrast Saturation Color temperature Red component luminance Green component luminance Blue component luminance Gamma Undefined Undefined Undefined Undefined Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...

  • Page 35: Factory Reset

    View hardware version of NovaPro HD. 4.8 Communication Setting Set Communication Mode and Network parameters of NovaPro HD. There are two methods for communication , one is USB, the other is LAN. The system will automatically identify the current communication mode, if both are inserted, there are two options: USB preferred and LAN preferred.

  • Page 36: Language Setting

    NovaStar Tech Co.,Ltd 4.9 Language setting NovaPro HD currently supports Chinese and English. Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
  • Page 37 NovaStar Tech Co.,Ltd Phone: NovaStar (Xi’an) 86-29-84507048 NovaStar (Shenzhen) 86-755-33592492 Website: www.novastar-led.com...
