Summary of Contents for Vonage VTA

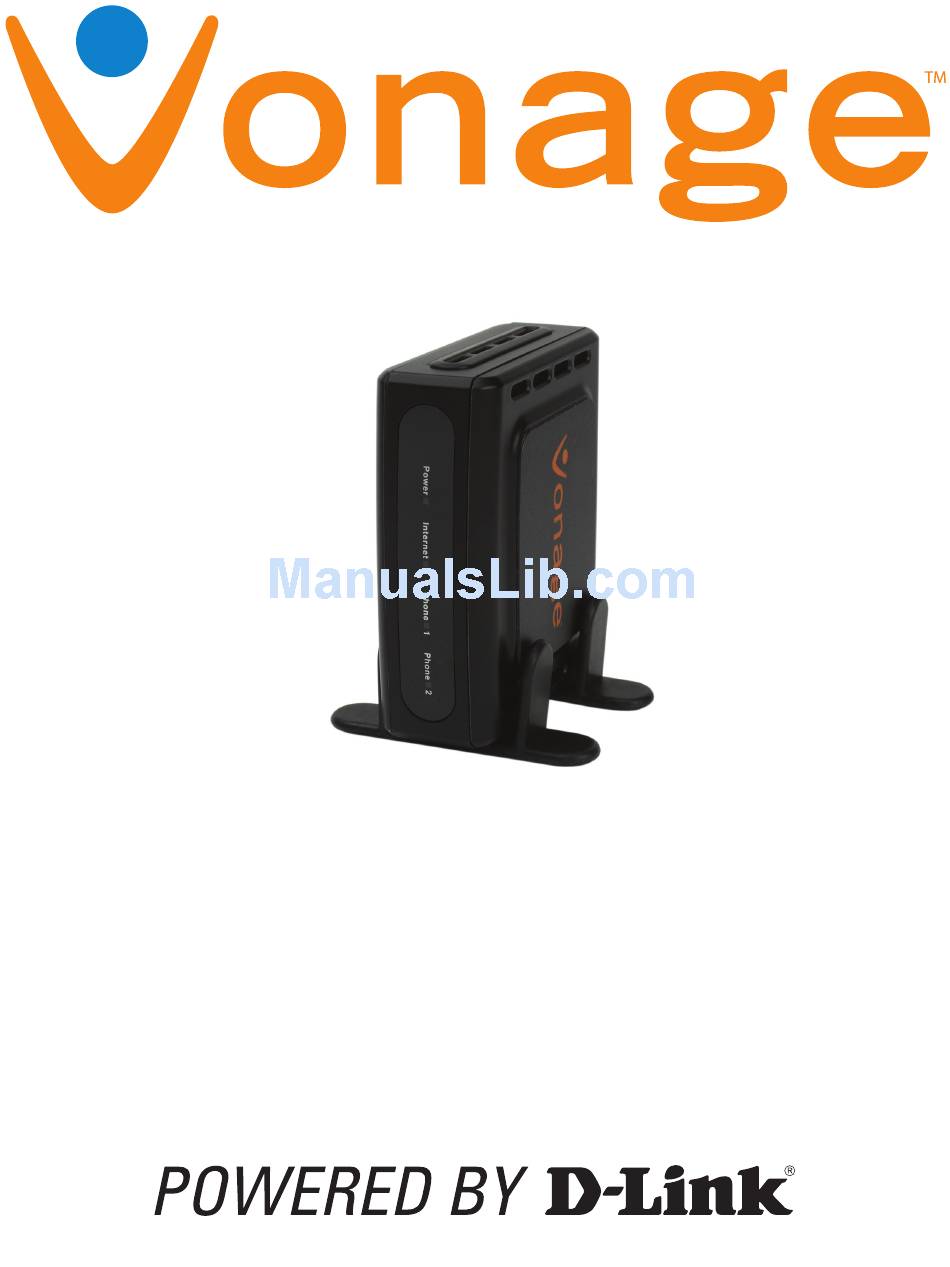

- Page 1 User Manual...
- Page 2 After activation, wait 30 minutes before checking for a dial tone. You will need your MAC D, which is located on your Vonage Telephone Adapter. The MAC D is a combination of twelve letters and numbers. Be sure to enter all of the characters. After you have chosen a plan and activated, please follow the step-by-step installation guide to set up your equipment.
-
Page 3: Table Of Contents
Find P Address ........................9 Login ..........................10 nternet ..........................11 Dynamic P Address ....................11 Static P Address ......................11 Password ..........................12 Status ..........................13 Save&Reboot ........................14 Logout ..........................14 Appendix A - Troubleshooting ................... 15 Appendix B - Technical Specifications ..............18 D-Link VTA User Manual... -
Page 4: Chapter 1 - Product Overview
Chapter 1 - Product Overview Chapter 1 - Product Overview Product Overview D-Link VTA User Manual... -
Page 5: Package Contents
Router A valid Vonage account* * If you purchased your Vonage Telephone Adapter from a retail location, you must first activate your Vonage phone service by visiting www.vonage. ca. After activation, wait 30 minutes before checking for a dial tone. -
Page 6: Front Panel
Connect to your network Press the reset button to Plug in the supplied #1 and if you’ve signed using the blue Ethernet reset the VTA back to the power adapter. up for a second Vonage cable. default settings. phone line, an optional phone or FAX machine into phone port #2. -
Page 7: Chapter 2 - Installation
Chapter 1 - Product Overview Installation D-Link VTA User Manual... -
Page 8: Network Overview
Chapter 2 - nstallation Network Overview Below is a common way to connect your VTA to your network. D-Link VTA User Manual... -
Page 9: Nstall The Hardware
Power, Phone 1, and nternet status lights should be solid green. The Phone 2 light will be a solid green if you have a second Vonage line. (The nternet light will blink whenever there is data activity.) D-Link VTA User Manual... - Page 10 Once you hear the dial tone, please call 8-22-0528 to complete the installation process. Then, you’re all set. Even if you are transferring your telephone number to Vonage, you can enjoy the great savings and super quality by using your Vonage phone service right NOW.
-
Page 11: Chapter 3 - Configuration
Chapter 3 - Configuration Chapter 3 - Configuration Configuration D-Link VTA User Manual... -
Page 12: Find P Address
User Manual for your router or DHCP server as necessary). The table will display all of your network clients (using DHCP) that are connected. Search for the Vonage VTA’s MAC address in the table and the P address will be listed next to it. The MAC address is on the bottom of the Vonage VTA device. -
Page 13: Login
Chapter 3 - Configuration Login Open a web browser such as nternet Explorer and enter the P address (e.g. 192.168.0.100) of the Vonage VTA adapter. Enter user for the username and user for the password. Click the Login button. D-Link VTA User Manual... -
Page 14: Nternet
Internet Dynamic IP Address By default, the Vonage VTA device is set to Dynamic IP Address. Simply connect the device to your network and the VTA will receive an P address from your router or DHCP server. Static IP Address f you want to statically assign an P address, click Static IP Address. -
Page 15: Password
Chapter 3 - Configuration Password You may change the User password on this page. Enter a new password and click Apply to save. D-Link VTA User Manual... -
Page 16: Status
Chapter 3 - Configuration Status The Traffic Statistics page will display traffic statistics of the Vonage VTA device. D-Link VTA User Manual... -
Page 17: Save&Reboot
Chapter 3 - Configuration Save&Reboot Click Reboot to restart the Vonage VTA device. Logout Click Logout to exit the configuration utility. Click OK to verify. D-Link VTA User Manual... -
Page 18: Appendix A - Troubleshooting
Appendix A - Troubleshooting Troubleshooting D-Link VTA User Manual... - Page 19 At this point, you should have dial tone. 4. Computer • f you are transferring your phone number from your current phone company to Vonage, you will be assigned a temporary Vonage phone number. Until the transfer has completed, most people calling your phone number will ring your old line.
- Page 20 Appendix A - Troubleshooting During the startup process you may notice that the Power light on the front of the VTA is blinking. These blinks indicate that the VTA is booting up with Vonage service. You may find the following...
-
Page 21: Appendix B - Technical Specifications
Appendix B - Technical Specifications Appendix B - Technical Specifications Technical Specs D-Link VTA User Manual... -
Page 22: Ethernet Port
• RTP Packets Fax Support • FAX Relay • PCM (G.11) • Power ON/OFF LEDs • LAN Link & Activity • Phone ON/OFF Hook & Ringing • External AC Power Adapter Power • Output: 12V AC, 1.2A D-Link VTA User Manual... - Page 23 Copyright ©2006 D-Link Corporation/D-Link Canada, nc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. D-Link VTA User Manual...
