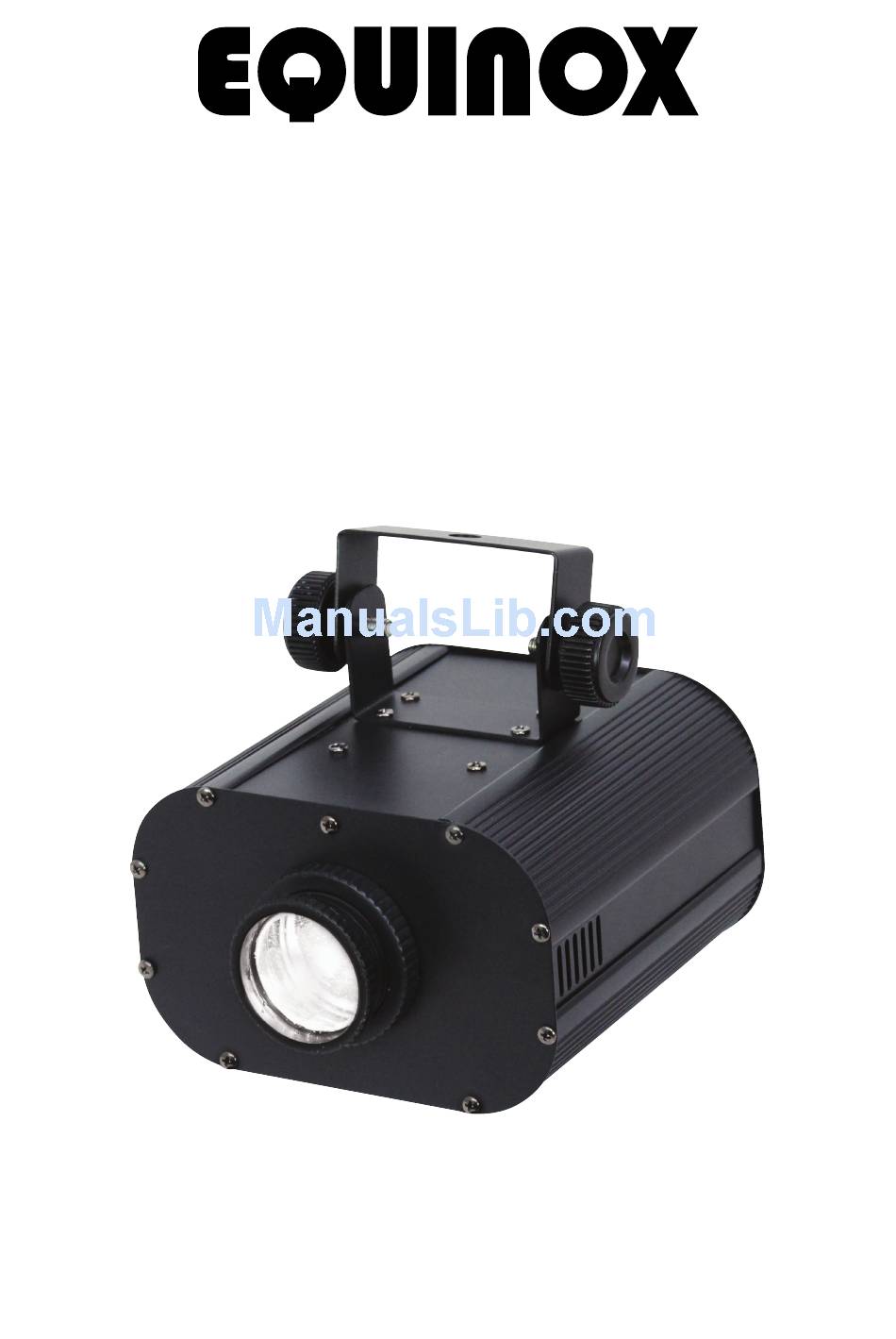

- Page 1 Promo Spot User Manual Order code: EQLED86...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Promo Spot The Equinox Promo Spot allows you to project a wide variety of gobo’s and logos adding an extra dimension to events and installations. Powered by a 25W LED, this high-output gobo projector comes with 11 easily replaceable, rotating gobos. The manual focus adjustment allows the user to create crisp imagery. • 1 x 25W LED • Beam angle: 17° • 2580 Lux @ 2m • 11 user replaceable, rotating gobos • Rotate, stop & reverse control • IEC power in socket • Fan cooled Specifications Power consumption Power supply 100~240V, 50/60Hz Fuse F3A 250V Dimensions 196 x 180 x 215mm Weight 1.7kg 17° - Lux 10810 2580 17° 180mm 215mm www.prolight.co.uk Promo Spot User Manual...
-
Page 4: Technical Specifications
Technical specifications POWER IN www.prolight.co.uk 100-240V~50/60Hz FUSE: F3A 250V ROTATION CONTROL 01 - Earth point 05 - Fan In the box: 1 x fixture, 02 - IEC power input 06 - Hanging bracket 1 x power cable & 03 - Fuse F3A 250V 07 - Replaceable gobo slot 1 x user manual 04 - Rotation control switch www.prolight.co.uk Promo Spot User Manual... -
Page 5: Operating Instructions
Operating instructions Gobo carriage Gobo replacement: The Promo Spot is supplied with 11 steel gobo’s. To replace the gobo first power off the fixture and leave to cool. Isolate the fixture from the mains voltage supply. On the underside of the unit remove the two Gobo Retaining clip thumbscrews and withdraw the gobo carriage from the fixture. Carefully remove the circlip holding the gobo in place, then remove the gobo and replace with the new gobo. Install the gobo retaining circlip and reinstall the gobo carriage into the fixture. Replace the thumbscrews taking care to tighten them fully. Power on the fixture and adjust focus as required. Securing thumbscrews Retaining clip Users may change the gobos supplied for a custom design of their own. Custom gobos can be made of metal, glass or user printed onto standard transparency film. The image size for custom gobos should be no greater than 23mmØ and the overall size of the gobo should be 28.5mmØ. Please note: Gobos printed using standard transparency film (up to 1mm) should be for temporary use only up to a maximum of 6-8 hours. Gobo’s printed with heavy black print may heat up faster and last for a shorter length of time before the gobo will require replacement. www.prolight.co.uk Promo Spot User Manual... - Page 6 Operating instructions Operating instructions Operation: Located on the rear panel of the unit is the rotation control switch (RED). In the “ON” position the gobo will rotate continuously at a fixed speed. Switch the rotation control switch to “OFF” stop the rotation. To reverse the direction of rotation change the switch from “ON” to “OFF” and back to “ON”. Please note: The speed of the rotation is fixed and cannot be adjusted. Focus: Manual focus adjustment is done by turning the lens assembly on the front of the fixture. Rotate the lens clockwise or anti-clockwise until the projected image is in focus. Included gobos: www.prolight.co.uk Promo Spot User Manual...
-
Page 7: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Promo Spot User Manual... - Page 8 www.prolight.co.uk Promo Spot User Manual...
