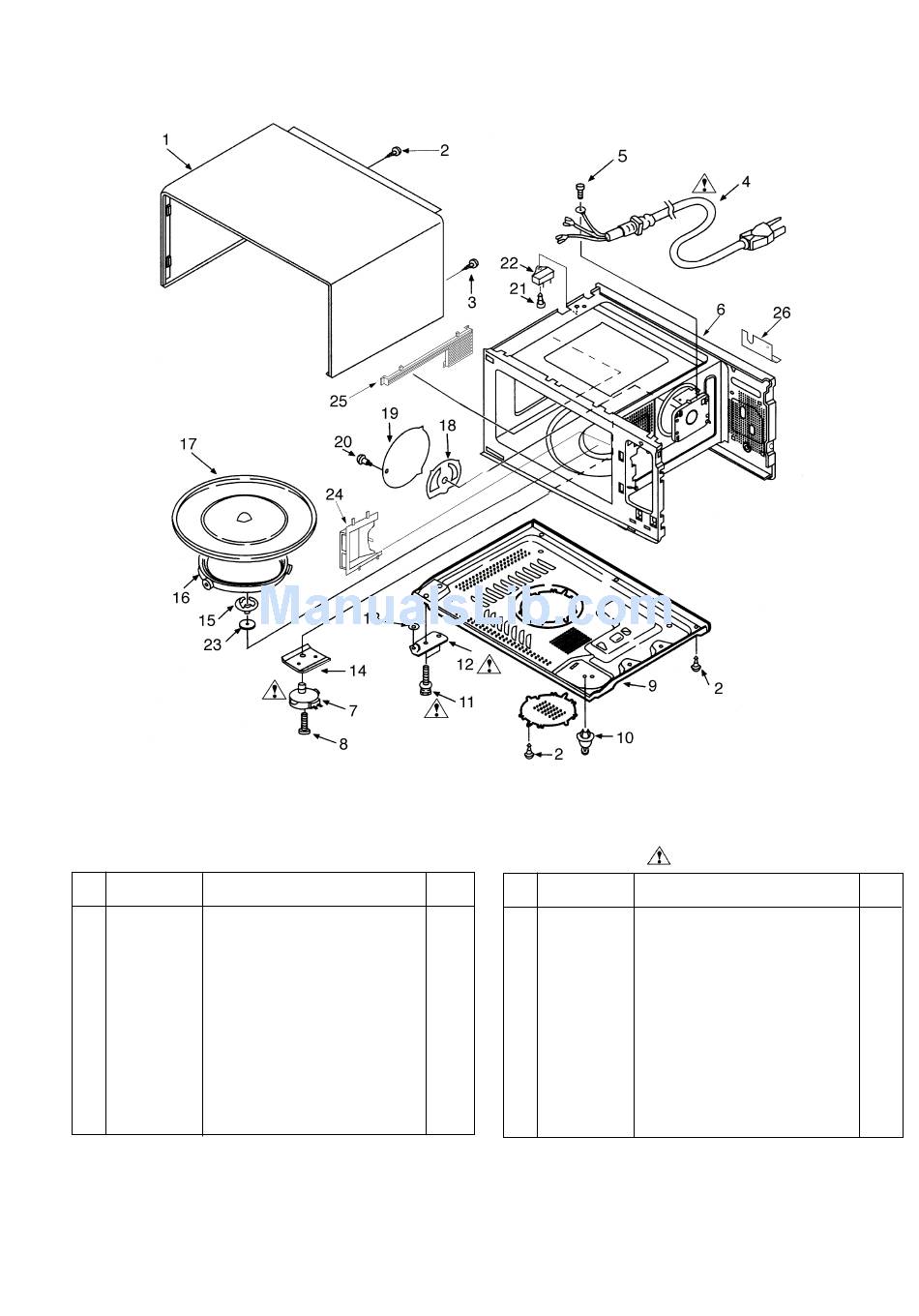

8. EXPLODED VIEW AND PARTS LIST

CAVITY PARTS
NOTE : All component have special characteristics for safety and must be replaced using parts listed in this manual.
All service on M/W ovens should be performed by a qualified technician using approved testing equipment.
Customers should not attempt replace component marked with a
Key
Part No. Description
No.
1 617 186 2072 Cabinet
2 411 082 5201 SCR TPG TRS 4 x 10 Z1
3 411 160 6007 SCR TPG TRS + SRT 4 x 10 Z1
4 617 182 7675 Power Cord
5 411 160 6106 SCR S-T PAN 4 x 10 Z1
6 617 224 3467 Oven Cavity (Not Service Part)
7 617 150 2657 Gear Motor
8 411 010 5808 SCR EVR PAN 4 x 10 Z1
9 617 138 5601 Bottom Plate (Not Service Part)
10 617 221 6096 Plastic Foot with Canoe Clip
11 411 011 0802 Bolt Hex + SW + W 5 x 14
12 617 180 6137 Hinge, Lower
13 411 089 2500 Washer F5 x 10 x 0.8
Key
Q'ty. Part No.
No.
1
14 617 120 8481
9
15 617 220 5052
1
16 617 199 1048
1
17 617 215 2714
1
18 617 181 4248
1
19 617 162 1938
1
20 411 069 1707
2
21 411 006 6604
1
22 617 200 0381
4
23 617 080 5315
2
24 617 224 1081
1
25 617 224 1098
1
26 617 225 2377
-- --
15
symbol.
Description
Washer
Receptacle
Rest
Turn Table
Antenna Complete
Protective Cover
SCR TPG TRS 4 x 6 DA
SCR TPG PAN 3 x 6 Z1
Thermal Fuse 167°C
Special Washer
Protective Cover
Protective Cover
Cover
Q'ty.
1
1
1
1
1
1
1
1
1
1
1
1
1
