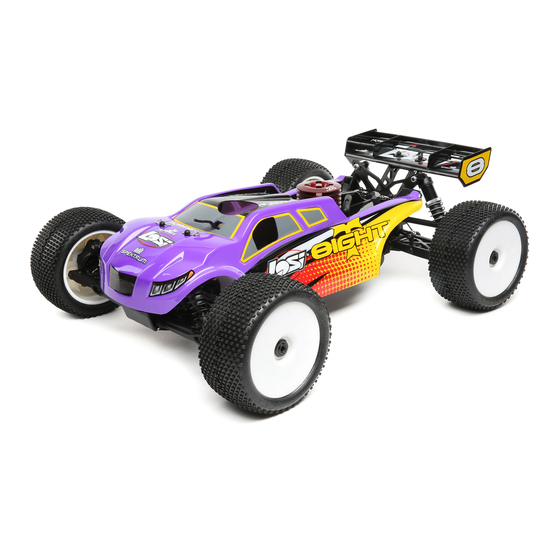

Team Losi 8IGHT-T 2.0 Setup Sheet

Racing truggy
Hide thumbs Also See for 8IGHT-T 2.0:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , User Manual

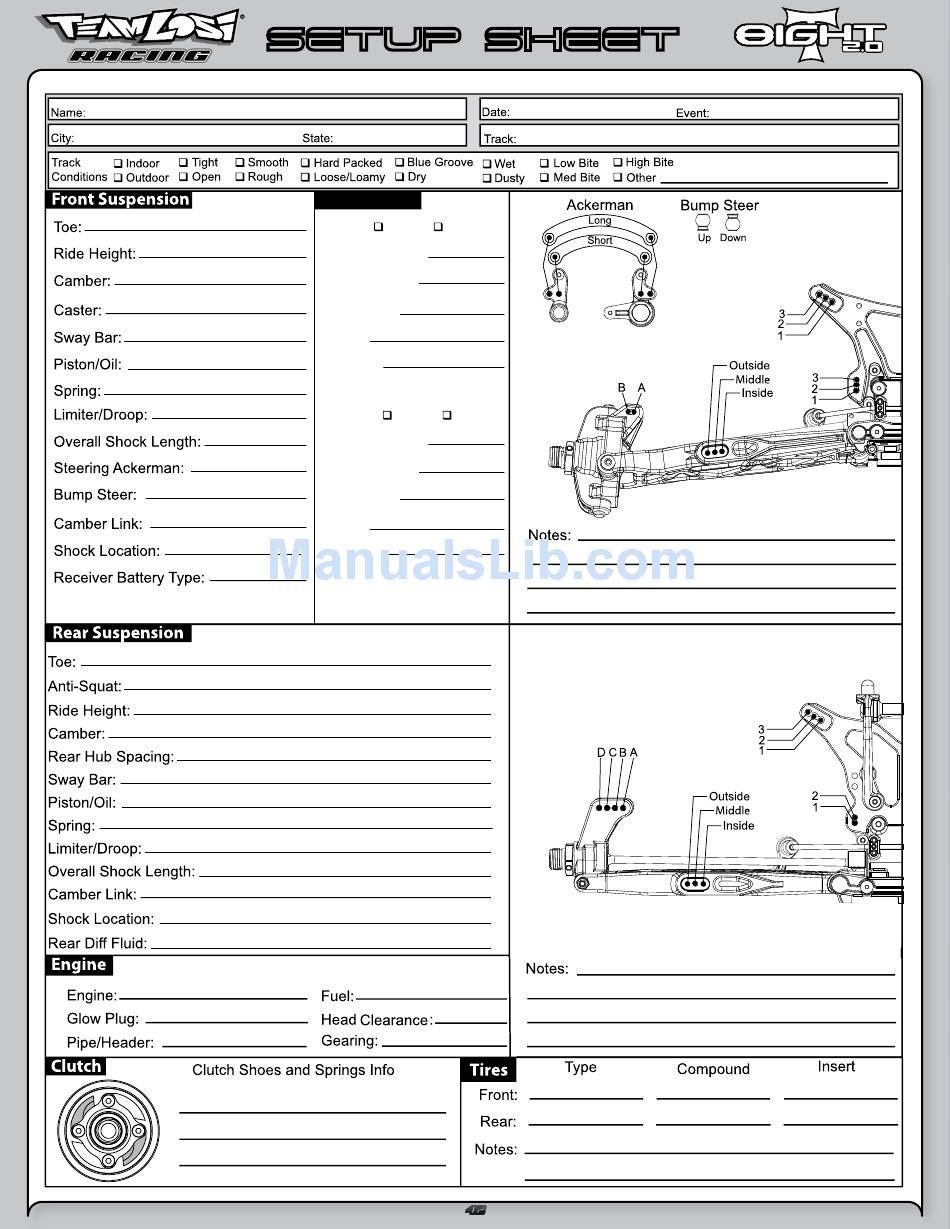

8IGHT-T 2.0 Race Roller Vehicle Setup
2 degrees of toe-out
39mm
-1 degree
Stock
2.3mm
55/35 wt
Black 3.4 lbs
110mm
Long
Down
2/A
2/Middle
Losi LiPo
3.5 degrees
3 degrees
42mm
-2 degrees
1 spacer foward
2.3mm
56/30 wt
Grey 4 0 lbs
130mm
1/B
3/Middle
2000 wt Losi
4 Aluminum Shoes
2 Gold and 2 Green Springs
Aluminum Flywheel
setup sheet
Differentials
Front:
x
Standard
Smart
Spring Wire Dia:
Qty of Springs:
Ramp Plate:
Grease:
Diff Fluid: 7000 wt Losi
x
Center
:
Standard
Spring Wire Dia:
Qty of Springs:
Ramp Plate:
Grease:
Diff Fluid: 10000 wt Losi
Nitrotane 30%
13/50
Smart
XTT
XTT
42
42
Blue
Losi
Blue
Losi

Advertisement

Table of Contents
loading

Related Manuals for Team Losi 8IGHT-T 2.0

Summary of Contents for Team Losi 8IGHT-T 2.0

  • Page 1 8IGHT-T 2.0 Race Roller Vehicle Setup Differentials 2 degrees of toe-out Front: Standard Smart 39mm Spring Wire Dia: -1 degree Qty of Springs: Stock Ramp Plate: 2.3mm Grease: 55/35 wt Diff Fluid: 7000 wt Losi Black 3.4 lbs...

  • Page 2: Vehicle/Manual Organization

    Please take a moment to read through the following instructions. This will familiarize you with the various parts, assembly tips and descriptions as well as the tools needed. Taking an extra moment before using your vehicle will help you understand the dynamics of the 8IGHT-T 2.0 and setup tips to ensure the best possible experience.
  • Page 3 setup sheet Differentials Front: Standard Smart Spring Wire Dia: Qty of Springs: Ramp Plate: Grease: Diff Fluid: Center Standard Smart Spring Wire Dia: Qty of Springs: Ramp Plate: Grease: Diff Fluid:...

  • Page 4: Ball Bearings

    HARDWARE Cap Head Flat Head 1 Flat Head 2 Button Head 2-56 x 1/4" (A6255) 2-56 x 1/4" (A6232) 3 x 8mm (A9106) 8-32 x 3/8" (A6264) 2-56 x 1/2" (A6254) 4-40 x 1/4" (A6234) 3 x 12mm (A3500) 4-40 x 3/8" (A6206) 4-40 x 1/2"...

  • Page 5: Table Of Contents

    13. Filled-out 8IGHT-T 2.0 Vehicle Setup Sheet ..42 Team Losi Racing is continually changing and improving designs; therefore, the actual part may appear slightly different than the illustrated part. Illustrations of parts and assemblies may be slightly distorted to enhance pertinent details.
  • Page 6 STEP A STEP A-01 STEP A-02 Steering Link Assembly Servo Saver Assembly 4-40 x 1/2" A4407 A9168 A6256 L 4-40 x 3/16" Servo Saver Tube Steering Servo Arm A6306 Maintenance Tip A6044 Rod End Ball A6044 Rod End LOSI-LOK L 4-40 x 3/16" A6306 A4406 A4412...

  • Page 7: Step A: Steering Assembly

    STEP A STEP A-04 Steering/Top Plate Assembly 5-40 x 1/2" LOSI-LOK A6271 A4413 Front Chassis Brace LOSI-LOK 5-40 x 1/2" A6278 6x10x3mm A6946 STEP A-05 Completed Steering Assembly...
  • Page 8 STEP B STEP B-01 STEP B-03 Ring Gear Assembly Complete Diff Assembly A3503 Outdrive Cup Solid Fill with 7000 wt oil just above the 2.5 x 12.80mm planetary gear A3503 3x12mm A3500 F 8x14x4mm A6948 A3511 Ring Gear A3505 O-ring A3502 Sun Gear A3505...
  • Page 9 STEP B STEP B-04 Front Diff Install F 8-32 x 1/8" To prevent fine dust from entering the A6296 gearbox, apply a thin bead of grease along the edge of the case as pictured. LOSI-LOK A3514 Drive Adapter 5x11x4mm A6947 A4427 Front Diff Case A3507...
  • Page 10 STEP B STEP B-06 Spindle/Carrier Assembly O 10-32 x 3/8" A6295 A1705 8-32 x 5/8" Shoulder Bushing A6501 A6266 Hinge Pin A1704 Left Front Arm 8-32 x 3/4" A6263 C 5-40 x 1/8" A6299 A1701 Arm Bushing A1709 Front Spindle Carrier STEP B-07 Front Suspension Arms Assembly A4431...
  • Page 11 STEP B STEP B-08 Sway Bar Assembly A1750 Sway Bar Link Install the Sway Bar Ball onto the Sway Bar Wire until the end of the wire is flush with the ball as pictured above. A4453 A1750 Sway Bar Ball Sway Bar Mount 4-40 x 5/8"...
  • Page 12 STEP B STEP B-10 Center CV Assembly 5-40 x 5/8" A6275 A6050 Steering Ball A6547 4mm x 114mm A6046 Turnbuckle Steering Rod End 137.20 5-40 x 1/4" A6302 STEP B-11 Steering Rod Assembly Be sure to install the assembled Tie Rod onto the car with the groove (next to the center square section) on the driver’s left side for easier...

  • Page 13: Step B: Front Clip

    STEP B STEP B-12 Front Clip Assembly 5-40 x 3/4" 5-40 x 3/4" A6279 A6272 A4453 Front Bulkhead Spacer 8-32 x 1/2" A6262 A4422 Front Bumper STEP B-13 Completed Front Assembly...
  • Page 14 STEP C STEP C-01 STEP C-03 Ring Gear Assembly Complete Diff Assembly Fill with 10000 wt Solid oil just above the planetary gear. 2.5 x 12.80mm A3503 A3502 Sun Gear 3x12mm A3500 A3506 Center Outdrive 6x11x0.2mm A3501 A3505 F 8x14x4mm O-ring A6948 A3515...
  • Page 15 STEP C STEP C-04 STEP C-05 Center Top Brace Assembly Linkage Assembly (.5mm)(.020”) A9168 Threaded Servo Rod F 5-40 x 1/8" A9168 A6297 A9168 Rear Brake Rod Front Brake Actuator 5mm E-clip A6109 LOSI-LOK A9168 2-56 x 1/2" Throttle Rod End A6254 LOSI-LOK .250x.094x020"...
  • Page 16 STEP C STEP C-08 Brake Caliper Assembly A3546 Front Brake Pad A3546 Rear Brake Pad .307” 7.80mm A4420 Center Diff Mount A3546 Brake Shoulder Screw A4420 Rear Center Diff Mount STEP C-09 Center Diff/Brake Rotor Assembly 5-40 x 3/8" A6277 A3545 Front Brake Disk A3545...
  • Page 17 STEP C STEP C-10 Center Diff Installation Caution! Ensure that the driveshaft is inserted into the slot of the center outdrive while installing the Center Diff assembly. 8-32 x 1/2" A6262 STEP C-11 Completed Center Diff Assembly...
  • Page 18 STEP D STEP D-01 STEP D-03 Ring Gear Assembly Complete Diff Assembly Solid Fill with 2000 wt oil just above the 2.5 x 12.80mm planetary gear. A3503 A3502 Sun Gear 3x12mm A3500 A3503 Outdrive Cup A3505 Diff Seal A3505 F 8x14x4mm O-ring A6948 A3502...
  • Page 19 STEP D STEP D-04 Rear Diff Installation A4414 F 8-32 x 1/8" Rear Chassis Support A6296 5-40 x 7/8" A3514 A4414 Drive Adapter LOSI-LOK A4451 Rear Gearbox Locking Insert 14x17x0.25mm 14x17x0.10mm A4452 A4452 5x11x4mm A6947 L 5-40 x 1/4" A6302 A3507 Pinion Gear A4450...
  • Page 20 STEP D STEP D-06 Rear Suspension Arm Assembly A1743 Rear Outer Hinge Pin Brace 3.5T/3A 5-40 x 1-7/8" A6273 A4431 Rear Outer Pivot Brace Cap O 10-32 x 3/8" A6295 A1726 Left Rear Arm Solid 4 x 66mm 5/40 x 3/4" A6500 A6272 A1745...
  • Page 21 STEP D STEP D-08 Wing Mount Assembly A4435 Wing Mount Brace A4435 Right Wing Mount 5-40 x 1/2" A6240 L 5-40 x 1/4" 5-40 x 3/4" 5-40 x 1/2" A6302 A6279 A6278 A4435 Left Wing Mount A4433 A5438 Rear Body Mount Shock Stand-Off L 8-32 x 11/32"...
  • Page 22 STEP D STEP D-10 Tie Rod Installation A6048 A6545 A6047 5-40 x 3/4" A6047 A6279 A6049 L 5-40 x 1/4" A6302 5-40 x 1/4" A6302 5-40 x 1" A6280 STEP D-11 Center CV Assembly Solid 2.5mm x 14mm A3525 F 5-40 x 1/8" A6297 LOSI-LOK A3525...

  • Page 23: Step D: Rear Clip

    STEP D STEP D-12 Rear Clip Assembly L 5-40 x 1/4" A6302 Caution! Ensure that the driveshaft is inserted into the slot of the center outdrive while installing the Rear Clip assembly. 8-32 x 1/2" A6262 5-40 x 1/2" A6271 STEP D-13 Completed Rear Assembly...

  • Page 24: Step E: Shocks

    STEP E STEP E-01 Shock Assembly • Clean the 2-56 x 1/4" Button Head Screw and apply Losi-Lok to the threads. • Install the #55 Shock Piston on the front shock shaft and a #56 Shock Piston on the rear shock shaft using the 2-56 x 1/4" Button Screw into the Shock Shaft with a .050" Allen Wrench. • Place a drop of Shock Oil into the bottom of the Shock Body to lubricate the Shock Seals. • Thread the Shock Shaft into the Shock End using pliers. Use caution when threading the Shock Ends onto the Shafts. Avoid gouging or scratching the Shock Shaft while gripping the Shock Shaft with pliers by placing the edge of a towel over the shaft, then gripping the portion of the shaft covered by the towel.
  • Page 25 STEP E STEP E-02 Shock Boot & Spring Assembly x2 x2 Front Rear Rear Front A5426 Shock Boot A5427 Shock Boot A5459 Black Front Spring A5461 Gray Front Spring A5435 Spring Cup A5435 Spring Cup STEP E-03 Front Shock Installation A5435 Shock Mount Bushing L 5-40 x 1/4"...
  • Page 26 STEP E STEP E-04 Rear Shock Installation A5435 Shock Mount Bushing L 5-40 x 1/4" A6302 5-40 x 7/8" A6282 STEP E-05 Completed Shock Assembly...

  • Page 27: Step F: Radio Tray

    STEP F STEP F-01 Chassis Guard Installation A4438 Chassis Guard A4438 Chassis Guard 5-40 x 3/8" A6270 STEP F-02 Switch Installation Supplied with switch 4-40 x 3/8" Optional Blank Switch Mount Plate (not included) A6206 If not using a switch, install the optional Blank Switch Mount Plate in place of the Switch Plate.
  • Page 28 STEP F STEP F-03 Servo Chart/Wiring Diagram Servo Servo Servo Manufacturer, Make/Model Spacer Horn Steering Servo Wires All (DZ9100T/S Needs Spacer) 94357Z, 94358Z, 94649Z, 94360Z, 94452Z, 94758Z, 94737Z, 94738Z 94102Z, 94112Z Throttle Switch Servo All (S9102 DOES NOT FIT) Wires Wires PDS-2123, 2344, 2363, 2365, 2366 Table2: Servo assembly and installation...
  • Page 29 STEP F STEP F-05 Steering Servo Installation A9168 Horn Insert 4-40 x 1/2" A6204 #4 x .030" A6350 A4453 Servo Spacer See Table #2 A4421 Servo Mounting Backplate STEP F-06 Receiver/Antenna Tube Assembly A4003 Antenna Cap A8313 Losi Nameplate A4002 Antenna Tube A4421 Receiver Cover...
  • Page 30 STEP F STEP F-07 Receiver Battery Door Optional Battery Covers 4-40 x 1/2" High Profile Cover should be used with A6256 the Hump pack type receiver packs. Low Profile Cover should be used with A4421 the LiPo type receiver packs. Battery Cover, High Profile A4421...
  • Page 31 STEP F STEP F-09 Servo Horn Installation Supplied with servo (Not Included) Ensure the servo gear is centered before attaching the Servo Horns. This is best accomplished by connecting the servos to the radio system and setting the trim to center. STEP F-10 Completed Radio Tray Installation...
  • Page 32 STEP G STEP G-01 Clutch Assembly A9108 Aluminum Clutch Shoe A9114 LOSI-LOK Clutch Spring Gold A9105 Aluminum Aluminum Flywheel A9105 Shoe Flywheel Collet A9113 Aluminum Clutch Spring Green Shoe A9108 A9103 Aluminum Clutch Shoe Clutch Nut A9106 Clutch Pins STEP G-02 Clutch Bell Assembly Use the appropriate number of shims to achieve proper...
  • Page 33 STEP G STEP G-03 Engine Mount Assembly LOSI-LOK 5-40 x 1/2" A6240 Ball Stud A6215 Pipe/Header (Not supplied) A9154 Right Engine A9154 Mount Left Engine Mount STEP G-04 Air Filter Assembly Tech Tip With a clean rag or paper towel take the air filter and squeeze it between the rag to remove any excess air filter oil.
  • Page 34 STEP G STEP G-05 Air Filter Installation STEP G-06 Pipe Mount Assembly Trim pipe mount in small 8-32 x 1/8" A6298 increments as needed to A9165 Pipe Wire mount pipe. Ensure that the wire clears all steering components. LOSI-LOK A9165 Pipe Wire Mount LOSI-LOK 8-32 x 3/8"...

  • Page 35: Step G: Engine Installation

    STEP G STEP G-07 Engine Installation • Adjust the gear mesh between the Clutch Bell and the Spur gear by sliding the engine mounts in the slots of the chassis. In order to Body Clip A8200 function properly, the Gears should be as close as possilbe, but still have a small amount of backlash (space between the Gear teeth).
  • Page 36 STEP H STEP H-01 Tire Mounting A7780B , Blue ™ 1/8 Truggy Foam Insert. Only sold with Tires. A7747 1/8 Truggy Wheel STEP H-02 Tire Gluing • The tires are already glued to the wheels. Here are the steps to show you how to complete this process. This can be done by using a fast-curing super glue or cyanoacrylate glue (LOSA7880, LOSA7881), available at your local hobby shop.
  • Page 37 STEP H STEP H-03 Tire Installation A3531 Wheel Hex LOSI-LOK A3531 Wheel Hex LOSI-LOK STEP H-04 Wing Installation A8130 Wing Button Body Clip A8200 A8130 Rear Wing...
  • Page 38 STEP H STEP H-05 Completed Chassis Assembly...
  • Page 39 BEFORE RUNNING YOUR NEW 8IGHT-T 2.0 OFF-ROAD RACING Truggy for the first time, you should run down the following checklist in order and complete the listed tasks. We’re sure you’re anxious to get out and run your new 8IGHT-T 2.0 now that it’s built, but please note that fine-tuning of the initial setup is an essential part of building a high-performance racing truggy such as your new 8IGHT-T 2.0.

  • Page 40: Setup Guide

    The 8IGHT-T 2.0 now has only two camber locations on the rear tower, however, we have added another inside hole on the rear hub. The stock camber link setup for the 8IGHT-T 2.0 is location #1 on the tower and B in the hub. By using the #2 hole on the tower you will have less roll and improve stability and traction. Using the #1 hole will have more steering. Running “A” in the rear hub will generate more corner rotation entering the turn, but...
  • Page 41 Plastic vs. Aluminum Clutch Shoes: We have found the four aluminum clutch setup to work best on most tracks for the 8IGHT-T 2.0 but if the track is very loose, rough, and doesn’t have jumps that are difficult to get over, two plastic and two aluminum shoes will allow more slip and smoother acceleration. Running four aluminum shoes will have the most punch, but isn’t as good on slick tracks.
  • Page 42 Outdrives and Traction: When your 8IGHT-T 2.0 is new it will have a lot of chassis roll and be a little loose on throttle due to lack of friction in the out drives and crossbones. After about 45-60 minutes of running, the 8IGHT-T 2.0 will gain traction and stability. Once your 8IGHT-T 2.0 is broken in, replacing the out drives and crossbones with new parts will have more corner speed.
  • Page 43 warranty Warranty Period Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. Limited Warranty (a) This warranty is limited to the original Purchaser (“Purchaser”) and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This warranty covers only those Products purchased from an authorized Horizon dealer. Third party transactions are not covered by this warranty. Proof of purchase is required for warranty claims. Further, Horizon reserves the right to change or modify this warranty without notice and disclaims all other warranties, express or implied.
  • Page 44 warranty United States: Electronics and engines requiring inspection or repair should be shipped to the following address: Horizon Service Center 4105 Fieldstone Road Champaign, Illinois 61822 All other Products requiring warranty inspection or repair should be shipped to the following address: Horizon Product Support 4105 Fieldstone Road Champaign, Illinois 61822...
