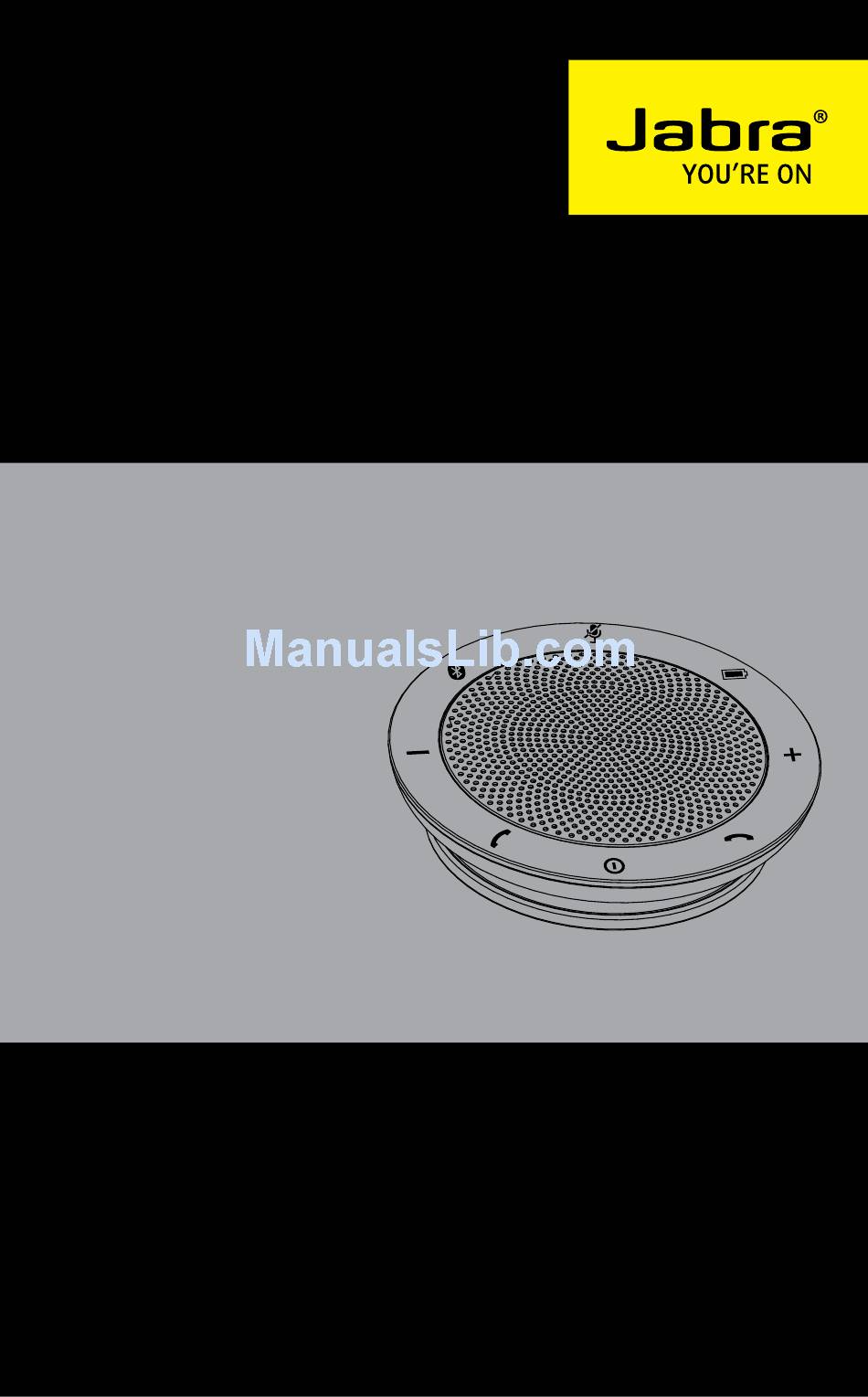

- Page 1 JABRA speak 510™ User Manual jabra.com/speak510 http://www.ochimp.com...
- Page 2 For More Info Click Here ===> ® © 2013 GN Netcom a/s. all rights reserved. Jabra is a registered trademark of GN Netcom a/s. all other trademarks included herein ® are the property of their respective owners. The Bluetooth word mark and logos are owned by the Bluetooth sIG, Inc.
-
Page 3: Table Of Contents
4.2 swITCh BeTweeN BLUeTOOTh DeVICes 4.3 VOICe GUIDaNCe ON/Off 4.4 VOICe GUIDaNCe 5. sOfTwaRe ........16 5.1 JaBRa pC sUITe 5.2 UpDaTe JaBRa speak 510 fIRMwaRe 6. sUppORT ..........17 6.1 faq 6.2 hOw TO CaRe fOR yOUR JaBRa speak 510 7. TeChNICaL speCIfICaTIONs ...19 http://www.ochimp.com... -
Page 4: For More Info
1. weLCOMe Thank you for purchasing the Jabra Speak 510. We hope you will enjoy it! Jabra speak 510 features ƒ Answer, end, reject and mute calls. ƒ Connect to PC via USB or Jabra Link 360. ƒ Connect wirelessly to mobile device via Bluetooth. -
Page 5: Speaker Overview
2. speakeR OVeRVIew Mute microphone Bluetooth Battery level Volume Volume up down End/reject call Answer call On/Off Headset port USB cable Supplied with Jabra Speak 510+ only Jabra Link 360 For More Info Click Here ===> http://www.ochimp.com... -
Page 6: Turn On The Jabra Speak 510
2.1 TURn On THE JABRA SPEAk 510 ƒ Plug the Jabra Speak 510 USB cable into any available USB port on your PC, or ƒ Press and hold (2 secs) the On/Off button to turn the Jabra Speak 510 on or off. -
Page 7: Connecting
3. CONNeCTING 1. Plug the Jabra Speak 510 USB cable into any available USB port on your PC. 2. Select the Jabra Speak 510 as the default audio device in Windows Control Panel sound settings, and in your softphone audio settings. -
Page 8: Connect To Jabra Link 360
3.1 COnnECT TO JABRA Link 360 The speakerphone and Jabra Link 360 are pre- paired and ready to use out of the box (Jabra speak 510+ only). to ConneCt the speaker anD Jabra Link 360: 1. Press and hold (2 secs) the Bluetooth button on the Jabra Speak 510 until the Bluetooth light flashes blue. -
Page 9: Connect To Mobile Device (Bluetooth)
Release the button when you hear the connection instructions. 2. Enable Bluetooth on your mobile device, and select the Jabra Speak 510 from the list of available Bluetooth devices. if prompted for a password enter 0000. For More Info Click Here ===>... -
Page 10: Connect To Bluetooth Headset
3.3 COnnECT TO BLUETOOTH HEADSET For privacy, a bluetooth headset can be connected to the Jabra Speak 510. 1. Plug the Jabra Speak 510 into any available USB port on your PC. 2. Put the Bluetooth headset into pairing mode (refer to your headset manual for instructions). -
Page 11: Connect To Corded Headset
3.4 COnnECT TO CORDED HEADSET For privacy, a corded headset can be plugged into the Jabra Speak 510 headset port. For More Info Click Here ===> http://www.ochimp.com... -
Page 12: How To Use The Jabra Speak 510
4. hOw TO Use The JaBRa speak 510 Mute microphone Bluetooth Battery level Volume Volume up down Answer call End/reject call On/Off Press and hold (2 secs) the on/ On/Off off button until the lights flash Answer call Tap the answer call button... -
Page 13: Multiple Call Handling
Bluetooth device device Mute Tap the Mute microphone microphone button 4.1 MULTiPLE CALL HAnDLing The Jabra Speak 510 can accept and handle multiple calls simultaneously. Put current call on Tap the Answer call button hold and answer incoming call Switch between... -
Page 14: Switch Between Bluetooth Devices
The connected devices will be announced. 2. Release the Bluetooth button when the correct device is announced. The Jabra Speak 510 will establish a connection with the device(s). When a connection has been established the device(s) will be announced. -
Page 15: Voice Guidance
4.4 VOiCE gUiDAnCE CLiCk to Listen what you hear go to the Bluetooth menu on your mobile device and connect to Jabra Speak 510 Connect to mobile device Connect to Jabra Link 360 Connect to headset Connect to two mobile devices... -
Page 16: Software
5. sOfTwaRe 5.1 JABRA PC SUiTE Jabra PC Suite is a collection of software designed support, manage enable optimal functionality for Jabra devices. it is highly recommended to download and install Jabra PC Suite. Download the latest version - jabra.com/pcsuite 5.2 UPDATE JABRA SPEAk 510 FiRMWARE... -
Page 17: Support
(up to 100 meters or 300 feet). Q i cannot hear anything A - increase the speaker volume. - Ensure that the Jabra Speak 510 is connected to a device. Q i am having bluetooth connection problems A Check your mobile device’s Bluetooth menu and delete/forget the Jabra Speak 510. -
Page 18: How To Care For Your Jabra Speak 510
ƒ Avoid storage at extreme temperatures (above 70°C/158°F or below -40°C/-40°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance. ƒ Do not expose the Jabra Speak 510 to rain or other liquids. For More Info Click Here ===> http://www.ochimp.com... -
Page 19: Technical Specifications
7. TeChNICaL speCIfICaTIONs Jabra speak 510 speCifiCation Weight 195 g Dimensions D 120 mm x H 33 mm Microphones Omni-directional Speaker Dynamic, 50 mm Up to 100 m (300 ft), Class 1 Bluetooth range Up to 10 m (30 ft), Class 2... - Page 20 Jabra Link 360 DesCription W 15.8 mm x L 21.2 mm x H Dimensions 4.7 mm Up to 100 m (300 ft), Class 1 Bluetooth range Up to 10 m (30 ft), Class 2 Bluetooth version Paired devices Up to 8 trusted devices Supported Bluetooth A2DP (v 1.2), Hands free profile...
- Page 21 http://www.ochimp.com For More Info Click Here ===> http://www.ochimp.com...
- Page 22 http://www.ochimp.com...
