GRE-2 Genesis Room Expander Connections

The Genesis Room Expander (GRE-2) offers independent room on/off control for two rooms,
each with their own keypad, that are connect to a single room's output on the back of the
Genesis. The use of the device is quite simple.

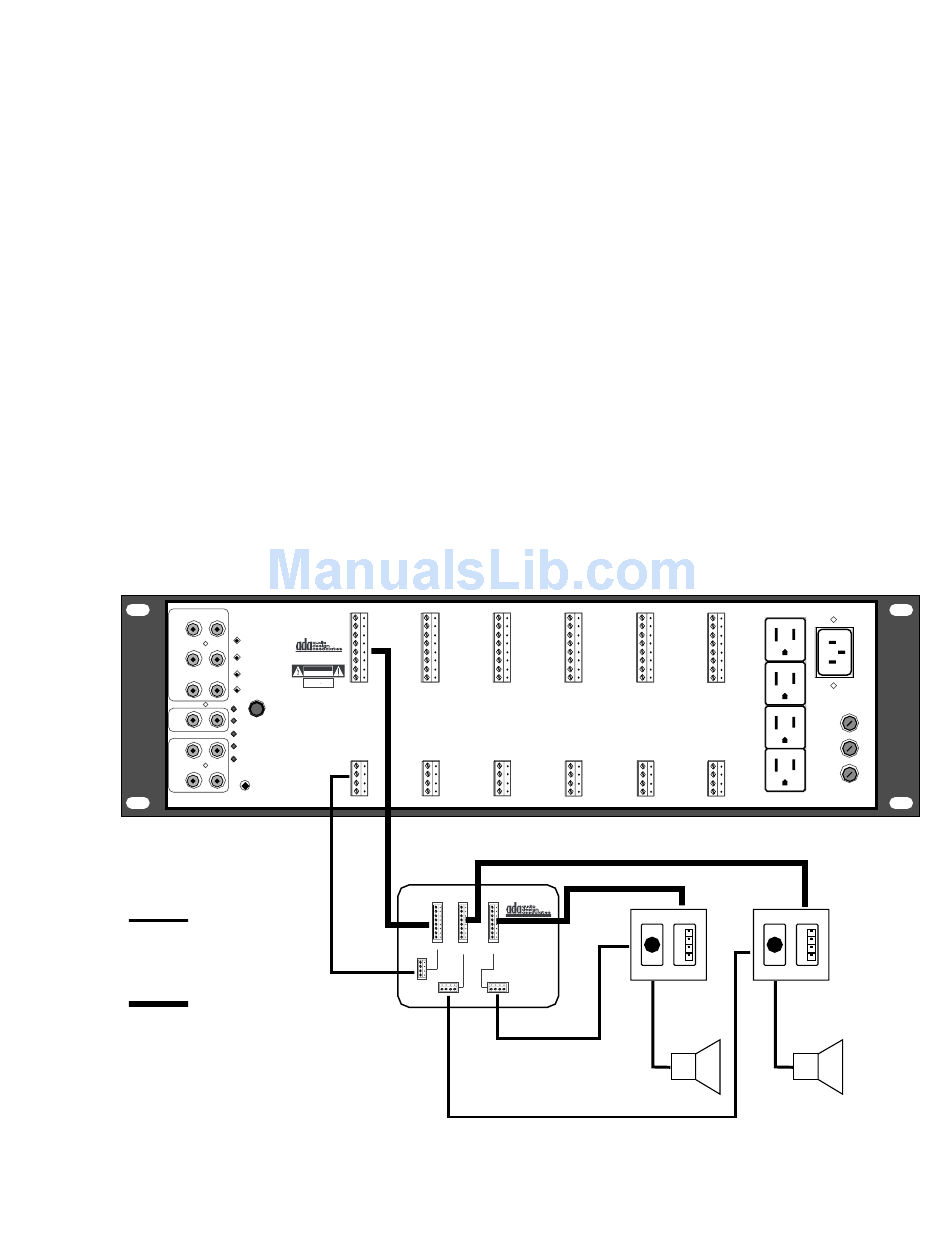

Connect a four conductor speaker cable and eight wires of the 12 conductor (recommended)
control cable directly to the GRE-2's inputs. Connect each rooms speaker cable to the GRE-
2 and each room's home run control cable to the GRE-2. That is all that is required.
When one of the two rooms selects a source, only its speakers turn on. The second room will
remain completely off. Furthermore, these two rooms cannot be turned on from the front of the
Genesis. If front panel control of remote rooms is essential for a particular room in the home,
do not put that room on a GRE-2. However, for areas such as bedrooms and outdoor areas,
where turning these rooms on inadvertently might be problem, the GRE-2 offers a unique
function as it will defeat the front panel control for that room.
Please note, the Genesis provides the power to the GRE-2. As such, too many GRE-2's (or
ZS-3s, they use the same power) will cause the Genesis to malfunction. ADA suggests using
no more than six of these devices on any single Genesis. You could for example use two GRE-
2s and four ZS-3s or six GRE-2s or four GRE-2s and two ZS-3s, etc.
CAUTION: DISCONNECT SUPPLY CORD
AUDIO INPUTS BEFORE SERVICING.
ATTENTION: DEBRANCHER AVANTE
1
LE DEPANNAGE.
PROGRAM
GENESIS
2ND FUNCTION
2
1ST FUNCTION
3 POWER ON
IR
IR
SENSOR
REC
ERROR
OUT
WARNING! RISK OF
HAZARDOUS ENERGY!
MAKE PROPER SPEAKER
CONNECTIONS.
OK
VAR
AVERTISSEMENT! ENERGIE
OUT
ELECTRIQUE DANGEREUSE!
PGM
FAIRE DES CONNEXIONS PROPRES
LOOP
POUR L'HAUTPARLEUR. VOIR LA
NOTICE DE FONCTIONNEMENT.
AMP
IN
IR OUTPUT
4 COND.
SPEAKER
CABLE
12 COND./22G
W/SHIELD
CONTROL
CABLE
1 1
2 2
3 3
4 4
5 5
6 6
7 7
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN 8 8
ATTENTION!
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR
CONTROL CONTROL
MADE IN U.S.A.
INPUT INPUT
ROOM 1 ROOM 2
SPEAKER
SPEAKER
OUTPUT
OUTPUT
Ω Ω Ω Ω
2 -16
2 -16
1 + 1 +
R R
2 - 2 -
3 - 3 -
L L
4 + 4 +
From To
Genesis Keypad
Control Input Control
Output 1
Speaker Input
Speaker
Output 1
From Genesis
To VC/Speakers
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
6 6 6
7 7 7
8 8 8
CONTROL CONTROL CONTROL
INPUT INPUT INPUT
ROOM 3 ROOM 4 ROOM 5
SPEAKER SPEAKER SPEAKER
OUTPUT OUTPUT OUTPUT
Ω Ω Ω Ω Ω Ω
2 -16 2 -16 2 -16
1 + 1 + 1 +
R R
2 - 2 - 2 -
3 - 3 - 3 -
L L
4 + 4 + 4 +
To
Keypad
Control
Output 2 GRE-2
Genesis Room
Expander
Speaker
Output 2
To VC/Speakers
- 19 -
SWITCHED AC
SOURCE
ONE
SOURCE
TWO
CONTROL
INPUT
ROOM 6
STANDBY
SOURCE
2/10A S.B.
THREE
SPEAKER
OUTPUT
AMP
Ω Ω
2 -16
5A S.B.
MAIN
OUTLET
MAIN
R
7.5A S.B.
L
SW AC - 2.5A MAX
FM FM
DISC DISC
1 1
AUX AUX
ROOM ROOM
OFF OFF
Living Entry
Room Hall
A
C
I
N
P
U
T
