Control Options (cont.)

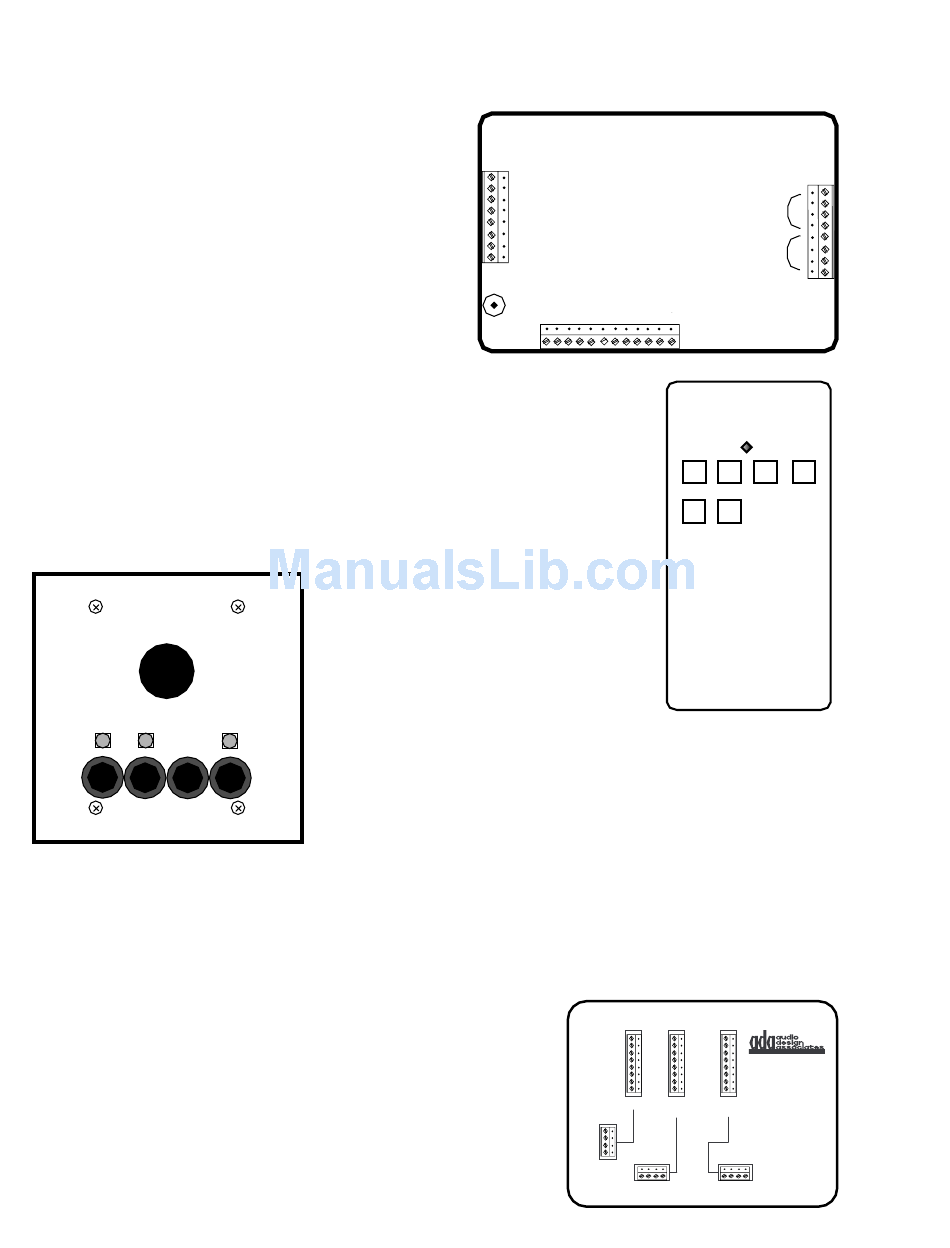

7 The ZS-3 is used exclusively with the MC-
11.5 and will operate as 50 watt stereo
autoformer, and IR decoder (for the MC-
0011 IR Remote). The ZS-3 is typically
located near the Genesis and one ZS-3 is
required for every Genesis Room. No
more than four ZS-3s or GRE-2s can be
used on any one Genesis.
8. The MC-0011 is a light-weight plastic re-
mote control that sends infrared commands
to the MC-11.5. These IR signals are decoded inside the ZS-3.
The MC-11.5 has the same functions as the MC-11.5 Keypad.
9. MC-100 OD All Weather Outdoor Control with Volume Control -
The MC-100 OD is designed to be mounted and left outside
without a box cover. The MC-100 OD should be mounted in a
Waterproof double-gang electrical box. The MC-100 OD incorpo-
rates rubber button caps and is mounted on an all-metal wall plate
FM
CD CASS
10. GRE-2 Genesis Room Expander - The GRE-2 is used to break a particular Genesis
room area into two rooms which turn on and off independently. This would permit you
to take a single Genesis area (i.e. Room 6) and break into the Master Bedroom and
Master Bath. Each room would have its own home-run keypad and volume control and
turning on one room will not turn on both rooms. Also, rooms connected to the GRE-
2 are not capable of being turned on from the front of the Genesis. Again, this may be
beneficial for bedrooms where inadvertently turning on
the bedroom from the front of the Genesis might wake
someone up. Please note, that a single Genesis should
hold no more than six GRE-2s or ZS-3s in any combi-
nation.
in white. Sources and keypad func-
tions are silk-screened in black on the
white plate which is then coated for
protection of the screening. The stan-
dard format for the MC-100 OD is:
OFF
If your source format differs from the above format, a custom
silk-screened plate will need to be created. Each custom
plate carries a surcharge.
1
2
TO
3
GENESIS
4
(PINS 1-8
5
TO
6
PINS 1-8)
7
8
TO MC-11.5 KEYPAD
GND
(PINS 1-12 TO PINS 1-12)
1 2 3 4
FM, CD, AUX
Speaker Input
From Genesis
- 10 -
ZS-3
GENESIS
ZONE SPLITTER
OUT TO
SPEAKER
IN FROM
AMPLIFIER
5 6 7 8 9 10 11 12
FM CD CASS
VOL VOL
DN UP
From To To
Genesis Keypad Keypad
Control Input Control Control
Output 1 Output 2 GRE-2
Genesis Room
Expander
Speaker Speaker
Output 1 Output 2
To VC/Speakers To VC/Speakers
+
-
-
+
+
-
-
+
ROOM
OFF
