Special Features - ProTek R/C Prodigy 610 Instruction Manual

SPECIAL FEATURES

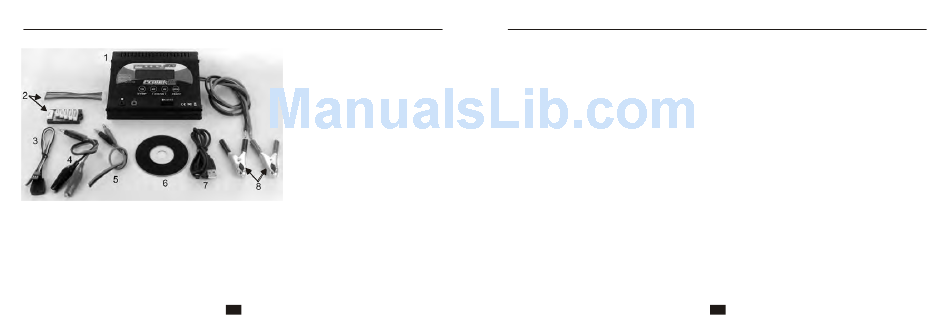

Set contents
1
2
3
4
5
6
Special Features
Optimized Operating Software
The ProTek R/C Prodigy 610 features an AUTO function that sets the feed current during the process
of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may
lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once
detecting any malfunction. All the programs of this product were controlled through two-way linkage
and communication, to achieve the maximum safety and minimize trouble. All the settings can be
configured by users!
1. Prodigy 610 Charger
2. XH Adaptor
3. Temperature Probe
4. Crocodile Clip Charging Cable
5. 18AWG Wire Charging Cable
6. Charger Monitor Program Disk
7. USB Cable
8. Plug-in Battery Clamps
7
8
05
Internal independent lithium battery balancer
The Prodigy 610 employs an individual-cell-voltage balancer. It isn't necessary to connect an
external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, the Prodigy 610 can monitor and balance each cell of the
battery individually. Error message will be indicated and the process will be ended automatically
if the voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
The Prodigy 610 is adaptable to various types of lithium batteries, such as Li-ion, LiPo and the
LiFe series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, 'fast' charge reduce the duration of charging, whereas
'store' state can control the final voltage of your battery, so as to store for a long time and protect
useful life of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of
the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the
process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery;
it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.
SPECIAL FEATURES
06
