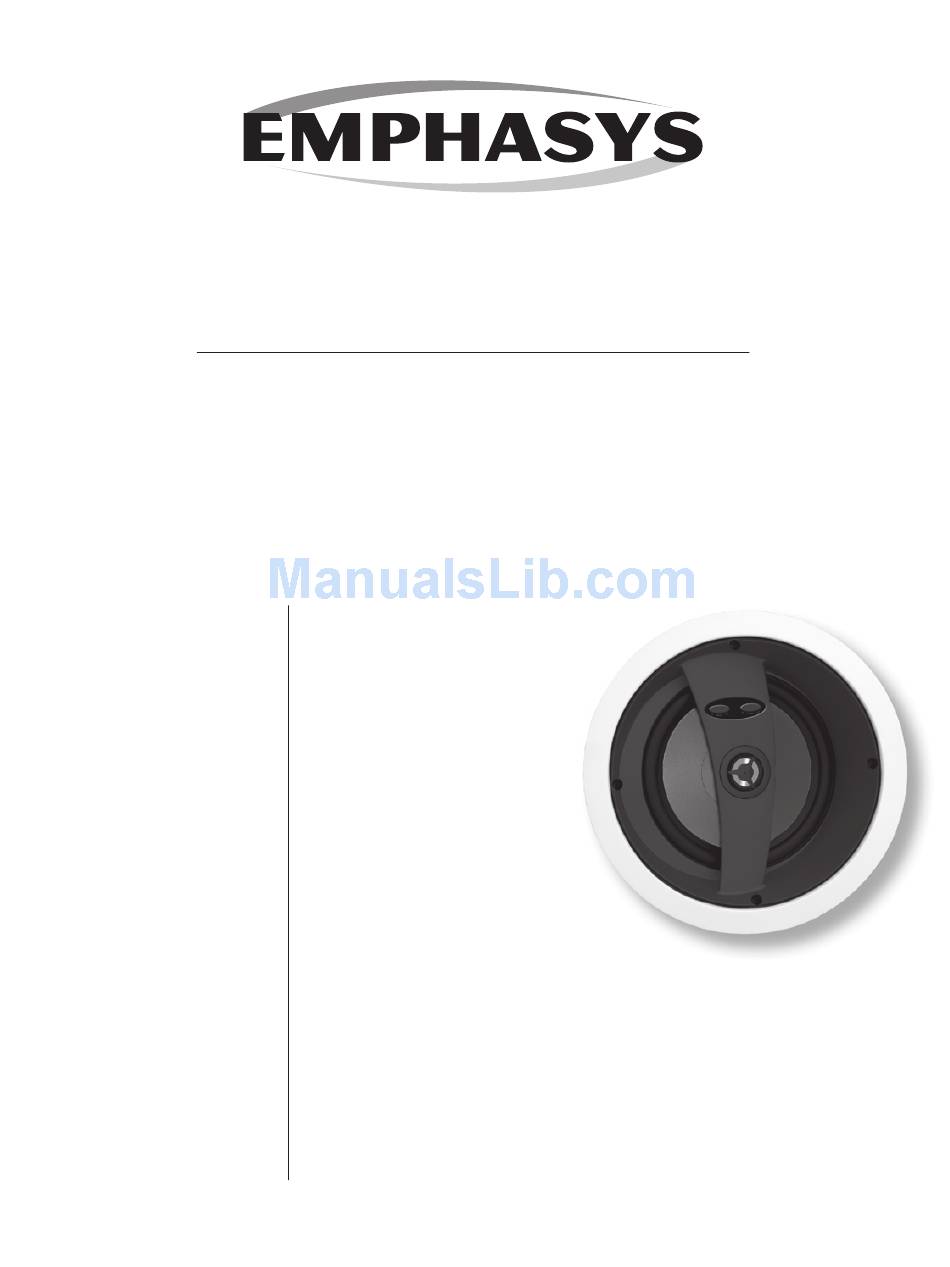

In-Ceiling LCR Speakers
from EMPHASYS have been created to
meet the needs of today's discriminat-
ing listener, offering a blend of clarity
and output that's equal to the needs
of a high-performance home theater
or distributed audio system. In fact,
an EMPHASYS In-Ceiling LCR can
be just as appropriate as the center
channel speaker as it is in a left/right
pairing. The In-Ceiling LCR Series re-
ally delivers, with superb components
and great sound in a range of sizes.
This manual is designed to facilitate
easy installation and adjustment of
the EMPHASYS In-Ceiling LCR speak-
ers. To ensure the best performance,
please follow the instructions carefully.
CL85 CL65 CL60
Installer's Guide
Positioning the Speakers
EMPHASYS In-Ceiling LCR speak-
ers, with their superior clarity and
power handling, provide excep-
tional versatility for the home
theater environment. A single
LCR speaker can be used for the
front center channel, or a pair
can be used for left and right in
the front or rear of the system.
The In-Ceiling LCR Speaker as a Center Channel
In-Ceiling LCR speakers are designed to blend seamlessly with other EMPHASYS speak-
ers and accessories, and will satisfy almost any installation. However, if the LCR is to be
used as a center channel speaker, it should be placed directly above the TV. Additionally,
system performance can be enhanced if the center channel speaker is aligned as closely
as possible with the horizontal plane of the front left and right speakers.

Advertisement

Table of Contents

   Also See for Emphasys CL85

   Summary of Contents for Emphasys CL85

  • Page 1 This manual is designed to facilitate In-Ceiling LCR speakers are designed to blend seamlessly with other EMPHASYS speak- easy installation and adjustment of ers and accessories, and will satisfy almost any installation. However, if the LCR is to be the EMPHASYS In-Ceiling LCR speak- used as a center channel speaker, it should be placed directly above the TV.
  • Page 2: Speaker Adjustments

    2. Find the joists nearest the desired location for the speaker. ceiling. EMPHASYS recommends the use of a good stud finder for this procedure. If you are lining up the speakers to some other object 5. If the area in the ceiling isn’t already insulated, add insulation or molding in the room, be sure to allow for the size of the baffle material sufficient to fill the cavity.
  • Page 3: Installing The Speakers

    The paint masks provided in the carton must be installed between EMPHASYS recommends only light spray painting using five parts the grille and flange while they are being painted. Be sure to remove the white plastic blanket from beneath the grille before thinning agent to one part paint.
  • Page 4 Vendor’s to the terms of this standard warranty. Purchaser agrees that EMPHASYS shall expense or refund the purchase price. Replacement of any item hereunder...
