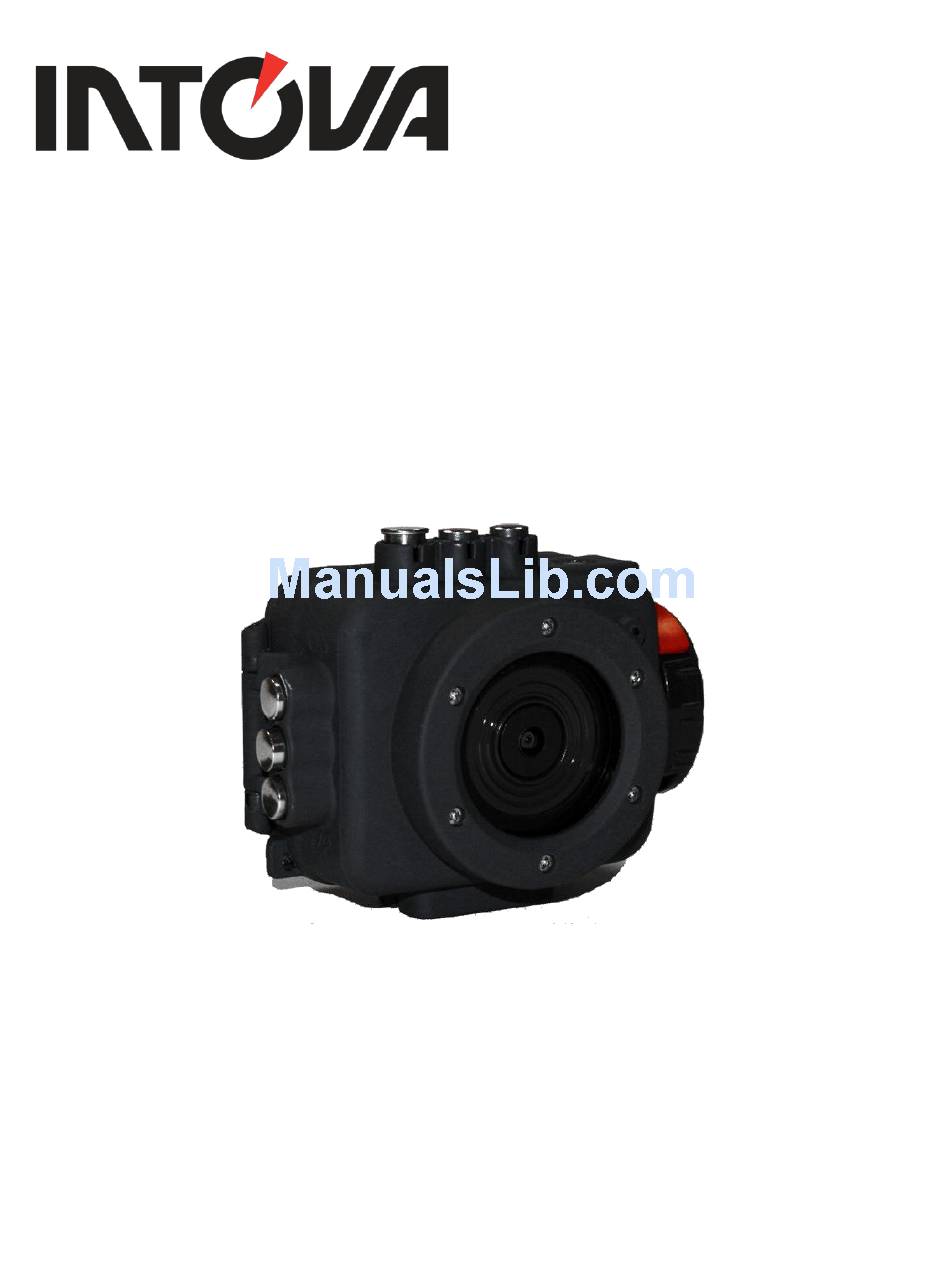

- Page 1 Born in Hawaii – Built for the World Sport HD EDGE Waterproof HD Video Sports Camera User’s Manual...
-
Page 2: Table Of Contents
Table of Contents: P r e f a c e … … … … … … … … … … … … … … … … … … … … … … … . 2 System requirements for 1080P HD video ……………………3 Getting to know your camera …………………………………..4 G e t t i n g S t a r te d …... -
Page 3: Preface
PREFACE Thank you for purchasing the Intova Sport HD EDGE waterproof sports camera! The rugged, durable and waterproof Sport HDE will help you capture high quality video and photos in many different venues and environments. Visit www.intova.net to view the wide range of mount and system options available. -
Page 4: System Requirements For 1080P Hd Video
Important notice: Do not attempt to take apart the camera as there are high voltage parts and dangerous electric shock can occur. If the camera is dropped or smashed and internal parts are exposed, do not touch as there is a danger of electric shock. -
Page 5: Getting To Know Your Camera
GETTING TO KNOW YOUR CAMERA ITEM FUNCTION ITEM FUNCTION POWER ON/OFF, MODE, MENU Secure Cam-Lock knob SCROLLING button Slave strobe sync light Removable anti-glare LCD hood Port for rear video recording in progress Video recording in progress light light Lens port ring O-ring Water repellant glass lens port Microphone... -
Page 6: Getting Started
Push down until card clicks into place. To remove, press down on inserted card to click and then release... Sport HD EDGE uses Micro SD card up to 32 GB, speed class 6 or 10. For HD video, speed class 10 is recommended. - Page 7 To remove, lift LCD screen, pull battery tag and lift out carefully. USB charging and transferring: Connect your computer to Sport HD EDGE with USB cable. After connection, camera will turn on, use UP / DOWN buttons to select MSDC / CHARGE / OPEN.
-
Page 8: Using Sp Hde
USING SP HDE Insert Micro SD memory card (class 6 minimum, class 10 recommended for HD video) before turning on. SP HDE cannot be used if a properly inserted card is not present. . To turn camera on, press and hold power ON/OFF button for 2 seconds and then release (if camera is in sleep mode, short press once to waken) Camera Default Settings: The SP HDE camera powers up with the following default settings:... -
Page 9: Basic Operations Of Sp Hde Camera
Photo Mode LCD Monitor Display To switch to photo mode, press and quickly release MODE - Power ON/OFF button. To take a photo, hold camera steady while pressing and releasing SHUTTER button. Photo Mode Screen Manual White Resolution Micro SD card inserted Balance icon Photo Mode icon WiFi icon... -
Page 10: Camera Settings
CAMERA SETTINGS To access camera settings, press the MENU button and press UP or DOWN button to scroll through main menu selections and press OK button to enter sub-menu selections. Shown below are the five main menu selections screens. Video Menu: With VIDEO menu icon highlighted, press OK button to enter video settings sub-menu. - Page 11 960p 30/25 High resolution 4:3 video @ 1280x960 pixels produces largest vertical viewing area. 30/25 frames per second rate for action shooting, when mounted on stable object and for lower light conditions. 480p 60/50 Standard resolution video @ 848x480 pixels produces small file size. 60/50 frames per second rate for hand held, action shooting and slow motion effect*.
-
Page 12: Photo Menu
3) PHOTO BURST: This feature allows 3, 5 or 10 “burst” photos per shutter button press. 4) PHOTO FLASH: This sets the slave strobe sync light to ON or OFF. Sport HD EDGE is the only “point of view” camera that allows flash photography. -
Page 13: Wifi Menu
Features include camera control, live preview, playback and transfer files. Follow these steps to install and use the Intova HD Edge App: a) Go to either the Apple Store or Google Play and type “Intova HD Edge” in search to find and install the app on your smartphone or tablet. -
Page 14: System Menu
DHCP_IP_START=192.168.42.2 # IP pool end address of DHCP server DHCP_IP_END=192.168.42.6 # Wifi channel number, set 0 to use Auto Channel Selection AP_CHANNEL=0 # Maximum number of stations allowed in station table AP_MAXSTA=5 # If you say yes here, all WPA/WEP settings will be ignored AP_PUBLIC=no # WPA Passphrase (8 ~ 63 characters) AP_PASSWD=HDE012345... -
Page 15: Image Quality Menu
11) RESET SYSTEM: This feature allows camera settings to be reset to factory default. 12) AUTO POWER OFF: This setting allows camera to stay on (when OFF is selected) or turns camera off when either 3 or 5 minutes is selected. Use this feature to conserve battery power. Image Quality Menu: With IMAGE QUALITY menu icon highlighted, press OK button to enter photo settings sub-menu. -
Page 16: View Photos Or Playback Videos
4. To reset manual white balance for a new ambient light situation, turn camera off and on to reactivate blinking manual white balance icon and repeat step 2. 4) IMAGE EFFECTS: This setting allows selection of image altering effects as shown below. EFFECT DESCRIPTION Changes background sharpness and contrast... -
Page 17: Deleting Files
Playback using High Definition TV Output: To view HD videos on a High Definition TV, use a mini High Definition TV cable to connect camera to the TV. Plug the High Definition mini plug into the camera’s HD output port and the other end with USB plug into the HDTV. - Page 18 QUALITY： Mode of Video QUALITY：High QUALITY：Low Super Fine About 84 min About 100 min About 126 min 1080p 30fps (8GB) (8GB) (8GB) Video Resolution About 100 min About 112 min About 168min & possible 720P 60fps (8GB) (8GB) (8GB) recording time About 126min About 168 min About 254 min...
- Page 19 NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging. © 2014 Intova • All Rights Reserved 1100 Alakea St., 18th Floor Honolulu, Hawaii 96813 USA...
