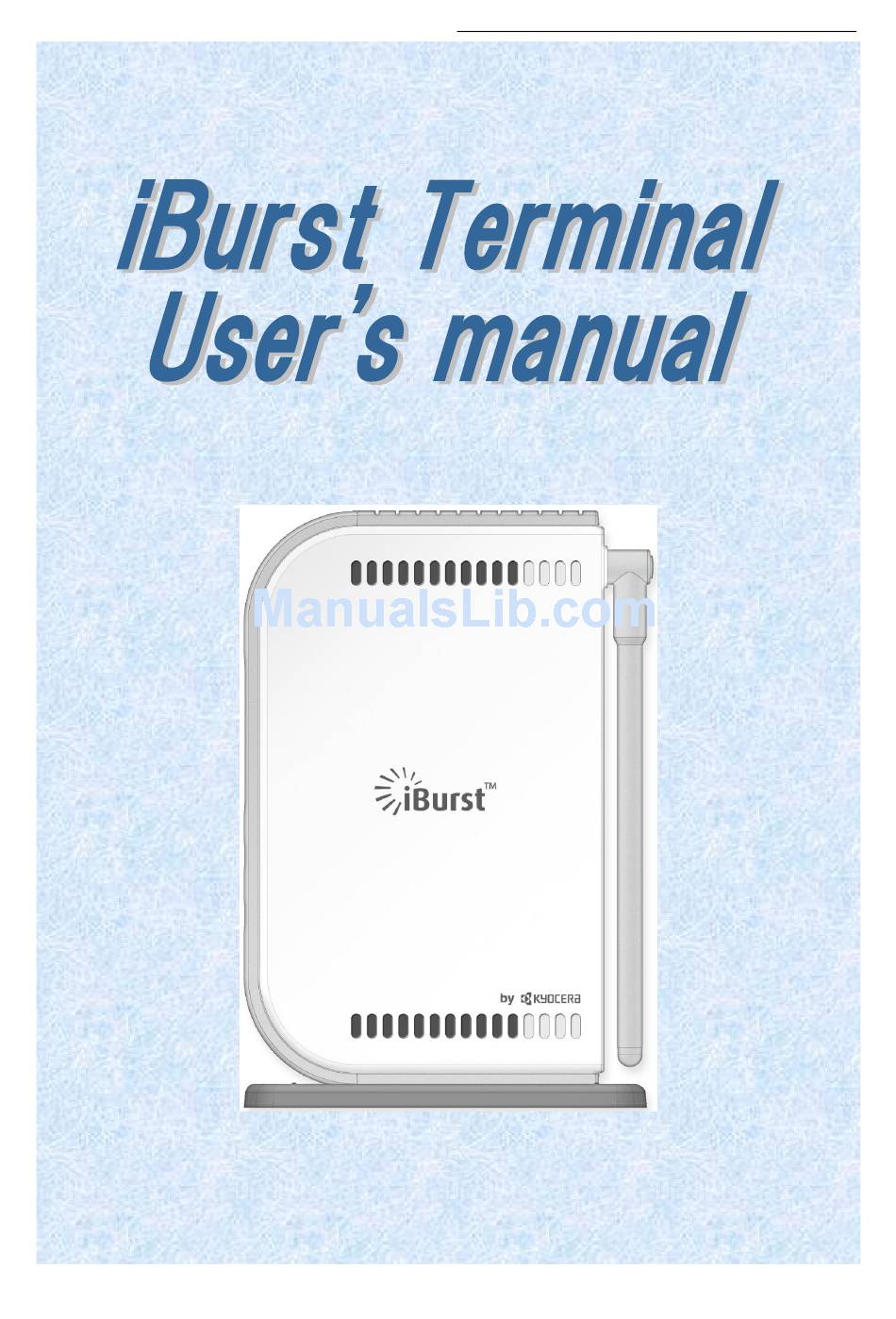

iBurst Terminal Desktop Type(UTD) Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBurst UTD and is the answer not in the manual?

Questions and answers

Related Manuals for Kyocera iBurst UTD

Summary of Contents for Kyocera iBurst UTD

  • Page 1 iBurst Terminal Desktop Type(UTD) Manual - 1 -...

  • Page 2: Table Of Contents

    iBurst Terminal Desktop Type(UTD) Manual CONTENTS Safety Precautions on iBurst Terminal ................3 Chapter 1 Contents of the package.................. 7 Components list...........................8 Chapter 2 Setup Procedure....................9 iBurst Software Installation ......................10 Installation for Windows XP ......................10 Installation for Windows 2000 ......................14 Installation for Windows Me ......................17 Installation for Windows 98SE .....................36 Installation for Mac OS X......................55...

  • Page 3: Safety Precautions On Iburst Terminal

    iBurst Terminal Desktop Type(UTD) Manual Safety Precautions on iBurst Terminal ● Things you must know ・ When using this product, use it correctly according to the safety precautions. ・ The specification of this product has become 1.9GHz frequency bands. It cannot use on the other frequency.
  • Page 4 iBurst Terminal Desktop Type(UTD) Manual ● For your safety ―― Danger ―― ( If used improperly, may cause death or serious injury. ) ・ Do not use with an abnormal condition, such as with emission of smoke or odor. It may cause fire or electric shock.
  • Page 5 iBurst Terminal Desktop Type(UTD) Manual ―― Warning ―― ( If used improperly, may cause disability or physical damage. ) ・ Do not give a shock strong against this product, such as dropping and throwing. It becomes the cause of failure. Moreover, do not ride on this product. It may become the cause of an injury when a case is damaged.
  • Page 6 iBurst Terminal Desktop Type(UTD) Manual ―― Caution ―― ( If treated improperly, the equipment may not perform or work properly. ) ・ Do not put the product at low temperature. The product may not function properly. ・ Do not put the product on the top of magnetic obejects and places where electromagnetic waves occur.

  • Page 7: Chapter 1 Contents Of The Package

    iBurst Terminal Desktop Type(UTD) Manual Chapter 1 Contents of the package This chapter describes contents of the package. - 7 -...

  • Page 8: Components List

    iBurst Terminal Desktop Type(UTD) Manual Components list The following table is components list. Table. 1 Components list Item Component Spec Q’TY UT Desktop (Set Assy.) Dimensions: 39mm (W) x 186mm (H) x 132mm (L) Weight: Approx. 310g (Without AC/DC Adapter) Power consumption: Max 6W Stand Assy.

  • Page 9: Chapter 2 Setup Procedure

    iBurst Terminal Desktop Type(UTD) Manual Chapter 2 Setup Procedure This chapter describes how to install iBurst software, then guides you how to make a network connection so as to use data communication service. - 9 -...

  • Page 10: Iburst Software Installation

    iBurst Terminal Desktop Type(UTD) Manual iBurst Software Installation It is necessary to run iBurst software installation only when iBurst Terminal is to be used on your personal computer the first time. Once it has been installed, there is no necessity for this installation operation from the next connection.
  • Page 11 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Next >] button after appearing dialog window as shown below. 6 Click the [Next >] button. 7 The following dialog window will appear, and installation of software begins. - 11 -...
  • Page 12 iBurst Terminal Desktop Type(UTD) Manual 8 When the installing process finishes, the dialog window shown below will appear. Select “Yes, I want to restart my computer now” and click the [Finish] button in the dialog window. 9 After the restart, insert iBurst Terminal into your PC’s USB port. 10 If the operating system is able to recognize the inserted iBurst Terminal as a new installed hardware, [Found New Hardware Wizard] will begin and the dialog window as shown below will appear.
  • Page 13 iBurst Terminal Desktop Type(UTD) Manual 11 The driver is installed on your PC. 12 After installation of the driver, the dialog window shown below will appear, click the [Finish] button. - 13 -...

  • Page 14: Installation For Windows 2000

    iBurst Terminal Desktop Type(UTD) Manual Installation for Windows 2000 1 Turn on the power to the computer. 2 Insert the provided Software Utility CD into your CD-ROM drive. Don’t insert iBurst Terminal into your PC’s USB port when installation is running. 3 iBurst Setup starts, click the [Next >] button.
  • Page 15 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Next >] button after appearing dialog window as shown below. 6 Click the [Next >] button. 7 The following dialog window will appear, and installation of software begins. - 15 -...
  • Page 16 iBurst Terminal Desktop Type(UTD) Manual 8 When the installing process finishes, the dialog window shown below will appear. Select [Yes, I want to restart my computer now] and click the [Finish] button in the dialog window. 9 After the restart, insert iBurst Terminal into your PC’s USB port. - 16 -...

  • Page 17: Installation For Windows Me

    iBurst Terminal Desktop Type(UTD) Manual Installation for Windows Me 1 Turn on the power to the computer. 2 Insert the provided Software Utility CD into your CD-ROM drive. Don't insert iBurst Terminal into your PC’s USB port when installation is running. 3 iBurst Setup starts, click the [Next >] button.
  • Page 18 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Next >] button after appearing dialog window as shown below. 6 Click the [Next >] button. 7 The following dialog window will appear, and installation of software begins. - 18 -...
  • Page 19 iBurst Terminal Desktop Type(UTD) Manual 8 Click the [Finish] button. 9 Click the [OK] button. 10 After software installation is finished, insert iBurst Terminal into your PC’s USB port. 11 If the operating system is able to recognize the inserted iBurst Terminal as a new installed hardware, [Add New Hardware Wizard] will begin and the dialog window as shown below will appear.
  • Page 20 iBurst Terminal Desktop Type(UTD) Manual Select [Search for the best driver for your device.(Recommended)], then check [Specify a location] and click the [Browse] button. 13 Select [C:¥Program Files¥iBurst Terminal¥bin], and click the [OK] button. - 20 -...
  • Page 21 iBurst Terminal Desktop Type(UTD) Manual 14 Click the [Next >] button. 15 Make sure that the device name [iBurst Terminal] is displayed in the dialog window, then click the [Next >] button. - 21 -...
  • Page 22 iBurst Terminal Desktop Type(UTD) Manual 16 Click the [Finish] button. 17 The dialog window shown below will appear, click the [Yes] button, and restart your PC. 18 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Add New Hardware]. - 22 -...
  • Page 23 iBurst Terminal Desktop Type(UTD) Manual 19 Click the [Next >] button. 20 Click the [Next >] button. - 23 -...
  • Page 24 iBurst Terminal Desktop Type(UTD) Manual 21 If the dialog window shown below appears, select [No, the device isn’t in the list] and click the [Next >] button. 22 Select [No, I want to select the hardware from a list], and click the [Next >] button. - 24 -...
  • Page 25 iBurst Terminal Desktop Type(UTD) Manual 23 Select [Ports [COM & LPT]], and click the [Next >] button. 24 Click the [Have Disk..] button. 25 Click the [Browse..] button. - 25 -...
  • Page 26 iBurst Terminal Desktop Type(UTD) Manual 26 Select [C:¥Program Files¥iBurst Terminal¥bin¥ibvcm9xu.inf],and click the [OK] button. 27 Click the [OK] button. 28 Select [iBurst Terminal Virtual COM Port], and click the [Next >] button. - 26 -...
  • Page 27 iBurst Terminal Desktop Type(UTD) Manual 29 Click the [Next >] button. 30 Click the [Finish] button. 31 The dialog window shown below will appear, click the [Yes] button, and restart your PC. - 27 -...
  • Page 28 iBurst Terminal Desktop Type(UTD) Manual 32 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Modems]. 33 If the dialog window shown below appears, click the [Add] button.(If your computer has never had a modem, skip this step and go to next step [Install New Modem].) - 28 -...
  • Page 29 iBurst Terminal Desktop Type(UTD) Manual 34 Check [Don’t detect my modem; I will select it from a list], and click the [Next >] button. 35 Click the [Have Disk..] button. 36 Click the [Browse] button. - 29 -...
  • Page 30 iBurst Terminal Desktop Type(UTD) Manual 37 Select [C:¥Program Files¥iBurst Terminal¥bin¥ibvmd9xu.inf],and click the [OK] button. 38 Click the [OK] button. 39 Select [iBurst Terminal Virtual MODEM], and click the [Next >] button. - 30 -...
  • Page 31 iBurst Terminal Desktop Type(UTD) Manual 40 Select [iBurst Terminal Virtual COM Port (COM X)], and click the [Next >] button. 41 Click the [Finish] button. 42 Click the [OK] button. - 31 -...
  • Page 32 iBurst Terminal Desktop Type(UTD) Manual 43 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Network]. 44 Click the [Add] button on [Configuration] tab. - 32 -...
  • Page 33 iBurst Terminal Desktop Type(UTD) Manual 45 Select [Protocol] and click the [Add…] button. 46 Click the [Have Disk…] button. 47 Click the [Browse] button. - 33 -...
  • Page 34 iBurst Terminal Desktop Type(UTD) Manual 48 Select [C:¥Program Files¥iBurst Terminal¥bin¥nipoe9xu.inf], and click the [OK] button. 49 Click the [OK] button. 50 Select [NDIS[PPPoE] Usermode I/O Protocol for iBurst Terminal], click the [OK] button. - 34 -...
  • Page 35 iBurst Terminal Desktop Type(UTD) Manual 51 Click the [OK] button. 52 The dialog window shown below will appear, click the [Yes] button, and restart your PC. - 35 -...

  • Page 36: Installation For Windows 98Se

    iBurst Terminal Desktop Type(UTD) Manual Installation for Windows 98SE Since the installation disk of WINDOWS 98SE may be needed at the time of driver installation, please prepare for it. 1 Turn on the power to the computer. 2 Insert the provided Software Utility CD into your CD-ROM drive. Don't insert iBurst Terminal into your PC’s USB port when installation is running.
  • Page 37 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Next >] button after appearing dialog window as shown below. 6 Click the [Next >] button. 7 The following dialog window will appear, and installation of software begins. - 37 -...
  • Page 38 iBurst Terminal Desktop Type(UTD) Manual 8 Click the [Finish] button. 9 Click the [OK] button. 10 After software installation is finished, insert iBurst Terminal into your PC’s USB port. 11 If the operating system is able to recognize the inserted iBurst Terminal as a new installed hardware, [Add New Hardware Wizard] will begin and the dialog window as shown below will appear.
  • Page 39 iBurst Terminal Desktop Type(UTD) Manual 12 Select [Search for the best driver for your device.(Recommended)], and click the [Next >] button. 13 Then, check [Specify a location] and click the [Browse] button. - 39 -...
  • Page 40 iBurst Terminal Desktop Type(UTD) Manual 14 Select [C:¥Program Files¥iBurst Terminal¥bin], and click the [OK] button. 15 Click the [Next >] button. 16 Make sure that the device name [iBurst Terminal] is displayed in the dialog window, then click the [Next >] button. 17 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and click the [OK] button.
  • Page 41 iBurst Terminal Desktop Type(UTD) Manual 18 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and enter the directory of your [Windows 98SE CD-ROM],click the [OK] button.(xxxxxxxx is a file name that can not be found) 19 Click the [Finish] button.
  • Page 42 iBurst Terminal Desktop Type(UTD) Manual 21 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Add New Hardware]. 22 Click the [Next >] button. 23 Click the [Next >] button. - 42 -...
  • Page 43 iBurst Terminal Desktop Type(UTD) Manual 24 If the dialog window shown below appears, select [No, the device isn’t in the list] and click the [Next >] button. 25 Select [No, I want to select the hardware from a list.], and click the [Next >] button. 26 Select [Ports [COM &...
  • Page 44 iBurst Terminal Desktop Type(UTD) Manual 27 Click the [Have Disk..] button. 28 Click the [Browse..] button. 29 Select [C:¥Program Files¥iBurst Terminal¥bin¥ibvcom9xu.inf],and click the [OK] button. - 44 -...
  • Page 45 iBurst Terminal Desktop Type(UTD) Manual 30 Click the [OK] button. 31 Select [iBurst Terminal Virtual COM Port], and click the [Next >] button. 32 Click the [Next >] button. - 45 -...
  • Page 46 iBurst Terminal Desktop Type(UTD) Manual 33 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and click the [OK] button. 34 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and enter the directory of your [Windows 98SE CD-ROM], click the [OK] button.(xxxxxxxx is a file name that can not be found) 35 Click the [Finish] button.
  • Page 47 iBurst Terminal Desktop Type(UTD) Manual 37 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Modems]. 38 If the dialog window shown below appears, click the [Add] button.(If your computer has never had a modem, skip this step and go to next step [Install New Modem].) - 47 -...
  • Page 48 iBurst Terminal Desktop Type(UTD) Manual 39 Select [Other], and click the [Next >] button. 40 Check [Don’t detect my modem, I will select it from a list] and click the [Next >] button. 41 Click the [Have Disk…] button. - 48 -...
  • Page 49 iBurst Terminal Desktop Type(UTD) Manual 42 Click the [Browse] button. 43 Select [C:¥Program Files¥iBurst Terminal¥bin¥ibvmd9xu.inf],and click the [OK] button. 44 Click the [OK] button. 45 Select [iBurst Terminal Virtual MODEM], and click the [Next >] button. - 49 -...
  • Page 50 iBurst Terminal Desktop Type(UTD) Manual 46 Select [iBurst Terminal Virtual COM Port (COM X)], and click the [Next >] button. 47 Click the [Finish] button. 48 Click the [OK] button. - 50 -...
  • Page 51 iBurst Terminal Desktop Type(UTD) Manual 49 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Network]. 50 Click the [Add] button on [Configuration] tab. - 51 -...
  • Page 52 iBurst Terminal Desktop Type(UTD) Manual 51 Select [Protocol] and click the [Add…] button. 52 Click the [Have Disk…] button. 53 Click the [Browse] button. - 52 -...
  • Page 53 iBurst Terminal Desktop Type(UTD) Manual 54 Select [C:¥Program Files¥iBurst Terminal¥bin¥nipoe9xu.inf], and click the [OK] button. 55 Click the [OK] button. 56 Select [NDIS[PPPoE] Usermode I/O Protocol for iBurst Terminal], click the [OK] button. - 53 -...
  • Page 54 iBurst Terminal Desktop Type(UTD) Manual 57 Click the [OK] button. 58 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and click the [OK] button. 59 If the dialog window shown below appears, then insert [Windows 98SE CD-ROM] into your PC and enter the directory of your [Windows 98SE CD-ROM], click the [OK] button.(xxxxxxxx is a file name that can not be found) 60 The dialog window shown below will appear, click the [Yes] button, and shut down your PC,...

  • Page 55: Installation For Mac Os X

    iBurst Terminal Desktop Type(UTD) Manual Installation for Mac OS X 1 Turn on the power to the computer. 2 Insert the provided Software Utility CD into your CD-ROM drive. Don’t insert iBurst Terminal into your PC’s USB port when installation is running. 3 iBurst Setup starts, enter user name and password.
  • Page 56 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Continue] button. 6 The following dialog window will appear, click the [Agree] button. 7 Select a destination disk, then click the [Continue] button. - 56 -...
  • Page 57 iBurst Terminal Desktop Type(UTD) Manual 8 Click the [Install] button after appearing dialog window as shown below. 9 Click the [Continue installation] button. 10 When the installing process finishes, the dialog window shown below will appear. Click the [Restart] button in the dialog window. - 57 -...

  • Page 58: Connection Establishment

    iBurst Terminal Desktop Type(UTD) Manual Connection Establishment Connection Establishment for Windows XP As Windows XP operating system supports PPPoE protocol, we don’t use connection application for iBurst to configure network connection. 1 Click the [Start] button, followed by selecting [Control Panel] as shown below. 2 Click [Network and Internet Connections] in the [Control Panel] display.
  • Page 59 iBurst Terminal Desktop Type(UTD) Manual 4 When the [Internet Properties] dialog window appears, click the [Setup] button. 5 [New Connection Wizard] will begin and the dialog window as shown below will appear. Click the [Next >] button in the dialog window. 6 Select [Connect to the Internet] and click the [Next >] button.
  • Page 60 iBurst Terminal Desktop Type(UTD) Manual 7 Select [Set up my connection manually] and click the [Next >] button. 8 Select [Connect using a broadband connection that requires a user name and password] and click the [Next >] button. 9 Fill in [ISP Name] edit box with an ISP Name, followed by clicking the [Next >] button. Note that any ISP name is acceptable.
  • Page 61 iBurst Terminal Desktop Type(UTD) Manual Enter user name and password and make sure that the [Make this the default Internet connection] check box is checked. Click the [Next >] button. 11 Click the [Finish] button. When the [Network and Internet Connection] window pane appears again, click [Set up change your Internet Connection].
  • Page 62 iBurst Terminal Desktop Type(UTD) Manual When the [Internet Properties] dialog window appears and the [Connections] pane is displayed, confirm the connection name and make sure that the [Always dial my default connection] radio button is checked, followed by clicking the [Apply] button. Then, click the [OK] button to close the dialog window.

  • Page 63: Connection Establishment For Windows 2000/Me/98Se

    iBurst Terminal Desktop Type(UTD) Manual Connection Establishment for Windows 2000/Me/98SE For Windows 2000、Windows Me and Windows 98SE,a connection application for iBurst is used. 1 Double click the shortcut on the computer's desktop which was created by iBurst connection application. 2 Enter user name and password and click the [Connect] button. 3 While connecting to network, the following connection status window is displayed.

  • Page 64: Connection Establishment For Mac Os X

    iBurst Terminal Desktop Type(UTD) Manual Connection Establishment for Mac OS X As Mac OS X operating system supports PPPoE protocol, we don’t use connection application for iBurst to configure network connection. 1 Select [System Preferences…] on the Apple menu. 2 Double click [Network] in the [System Preferences] window. - 64 -...
  • Page 65 iBurst Terminal Desktop Type(UTD) Manual 3 Click on drop down [Show] menu, and select [Ethernet Adaptor (enX)] in the [Network] window. ・Click on the [PPPoE] tab. ・Check [Connect using PPPoE]. ・Enter [Account Name] as provided by your ISP. ・Enter [Password] as provided by your ISP. ・Check [Save password] If you require the computer to remember your password.
  • Page 66 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [Apply Now] button. 6 Click the <･･･> icon at top right of screen, select [Open Internet Connect…]. 7 Click on drop down [Configuration] menu, and select [Ethernet Adaptor (enX)]. The configuration of [Ethernet Adaptor (enX)] will be displayed, click the [Connect] button. - 66 -...
  • Page 67 iBurst Terminal Desktop Type(UTD) Manual 8 When the box [Show PPPoE status in menu bar] is checked, PPPoE Status [Connected to xxx.xxx.xxx.xxx] will be displayed after having finished connection. - 67 -...

  • Page 68: Chapter 3 Utility Software

    iBurst Terminal Desktop Type(UTD) Manual Chapter 3 Utility Software This chapter describes the features and usage of the Utility Software for iBurst Terminal. - 68 -...

  • Page 69: Using Utility Software

    iBurst Terminal Desktop Type(UTD) Manual Using Utility Software Using Utility Software for Windows How to display utility dialog window 1 To open the utility dialog window, click the icon on the computer’s task tray. When the window opens, the [Link Info] pane will be displayed as shown below. 2 To close the utility dialog window, click the [OK] button or the [Cancel] button or the X mark at upper-right corner of the dialog window.
  • Page 70 iBurst Terminal Desktop Type(UTD) Manual Link Info Pane [Link Info] pane can be displayed in the main dialog window by clicking the [Link Info] tab. Generally, the elements in the [Link Info] pane give information about the communication link between iBurst Terminal and the access point to the network. The following describes each item of the [Link Info] pane.
  • Page 71 iBurst Terminal Desktop Type(UTD) Manual (4) Frame Error Rate Frame Error Rate indicates the FER of the received data. (5) Signal Strength Signal Strength indicates the signal strength of the received signal. Here, two kinds of indicators, percentage indicator and 5-step indicator, are used to indicate the received signal strength. The percentage indicator is the RSSI value in percent.
  • Page 72 iBurst Terminal Desktop Type(UTD) Manual Setup Pane [Setup] pane can be displayed in the main dialog window by clicking the [Setup] tab. [Setup] pane is used to configure the display items in the [Link Info] pane. The following describes usage of each item of the above figure. Check the [ON] radio buttons at the right hand side of the items you want to display in the Link Info pane.
  • Page 73 iBurst Terminal Desktop Type(UTD) Manual About Pane [About] pane is used to display the version numbers of Utility Software and hardware and show copyright notice. The following describes the function of each item of the [About] pane. This shows the version number and the release date of the Utility Software. (2) This shows the firmware version and the build date of iBurst Terminal in use.
  • Page 74 iBurst Terminal Desktop Type(UTD) Manual Icon Display in task tray When the Utility Software for iBurst Terminal is active, an icon of the Utility Software will be displayed in the task tray of the computer monitor according to communication activities on iBurst Terminal.

  • Page 75: Using Utility Software For Mac Os X

    iBurst Terminal Desktop Type(UTD) Manual Using Utility Software for Mac OS X How to display utility dialog window. １ Double click the iBurst Terminal icon from the Dock. ２ The Link display window appears, and the status of iBurst terminal will be displayed. - 75 -...
  • Page 76 iBurst Terminal Desktop Type(UTD) Manual Link Info Link Info pane can be displayed in the main dialog window by clicking the [Link Info] tab. Generally, the elements in the Link Info pane give information about the communication link between iBurst Terminal and the access point to the network.
  • Page 77 iBurst Terminal Desktop Type(UTD) Manual (5) Signal Strength Signal Strength indicates the signal strength of the received signal. Here, two kinds of indicators, percentage indicator and 5-step indicator, are used to indicate the received signal strength. The percentage indicator is the RSSI value in percent. On the other hand, the 5-step indicator shows performance of the received signal in words as follows.
  • Page 78 iBurst Terminal Desktop Type(UTD) Manual Setup Pane Setup pane can be displayed in the main dialog window by clicking the [Setup] tab. Setup pane is used to configure the display items in the Link Info pane. (1) Check the [ON] radio buttons at the right hand side of the items you want to display in the Link Info pane.
  • Page 79 iBurst Terminal Desktop Type(UTD) Manual About Pane About pane is used to display the version numbers of Utility Software and hardware and show copyright notice. The following describes the function of each item of the About pane. (1) This shows the version number and the release date of the Utility Software. (2) This shows the firmware version and the build date of iBurst Terminal in use.
  • Page 80 iBurst Terminal Desktop Type(UTD) Manual Menu Bar It will be displayed when the iBurst utility starts. (1) iBurst_Terminal UTL menu The menu is used to quit iBurst Terminal utility or to perform other operations. (2) DisplaySetup menu The menu is used to select displaying or undisplaying status information in the [Link Info] window.
  • Page 81 iBurst Terminal Desktop Type(UTD) Manual Icon Display in the Dock When the Utility Software for iBurst Terminal is active, an icon of the Utility Software will be displayed in the Dock of the computer monitor according to communication activities on iBurst Terminal.

  • Page 82: Chapter 4 Mtu Optimizer Software & Network Property

    iBurst Terminal Desktop Type(UTD) Manual Chapter 4 MTU Optimizer Software & Network Property This chapter describes the features and usage of the MTU Optimizer Software for iBurst Terminal. - 82 -...

  • Page 83: Mtu Optimizer Software & Network Property

    Terminal Desktop Type(UTD) Manual MTU Optimizer Software & Network Property This feature is the part of Kyocera PPPoE dialer and performs on Windows 98SE, ME and 2000. 1 When UT maintains a session, double click the iBurst connection application icon It shows main window of iBurst connect utility which has the [Connect], [Cancel] and [Property] button.
  • Page 84 iBurst Terminal Desktop Type(UTD) Manual 4 MTU optimizer software window has 2 text boxes which are MTU value modified by spin button and ten key and HOST address, also 4 buttons optimized MTU value at when MTU optimizer software finishes. 5 MTU value of text boxes shows current MTU value before MTU optimizer software runs.
  • Page 85 iBurst Terminal Desktop Type(UTD) Manual The measuring optimize packet size is shown in the [MTU] text box while MTU optimizer software is running. Also the [STATUS] text box shows the status by [Measuring]. If click the [Cancel] button, then the running MTU optimizer software stops. The [STATUS] text box changes to Measured and the [MTU] text box shows the measured MTU size.

  • Page 86: Chapter 5 Uninstallation

    iBurst Terminal Desktop Type(UTD) Manual Chapter 5 Uninstallation This chapter describes how to uninstall iBurst software. - 86 -...

  • Page 87: Ibusrt Software Uninstallation

    iBurst Terminal Desktop Type(UTD) Manual iBusrt Software Uninstallation Uninstallation for Windows XP/2000 1 Close all programs that are currently running. 2 Remove the iBurst Terminal from the computer. 3 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Add or Remove Programs].
  • Page 88 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [OK] button after appearing dialog window as shown below. The following dialog window will appear, and select to delete or not to delete installation history files before uninstallation, then click the [Next >] button. 7 The following dialog window will appear, and uninstallation of software begins.
  • Page 89 iBurst Terminal Desktop Type(UTD) Manual 8 Click the [Finish] button after appearing dialog window as shown below. - 89 -...

  • Page 90: Uninstallation For Windows Me/98Se

    iBurst Terminal Desktop Type(UTD) Manual Uninstallation for Windows Me/98SE 1 Close all programs that are currently running. 2 Remove the iBurst Terminal from the computer. 3 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Add/Remove Programs]. 4 Select [iBurst Terminal] software,and click the [Add/Remove] button.
  • Page 91 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [OK] button after appearing dialog window as shown below. The following dialog window will appear, and select to delete or not to delete installation history files before uninstallation, then click the [Next >] button. 7 The following dialog window will appear, and uninstallation of software begins.
  • Page 92 iBurst Terminal Desktop Type(UTD) Manual 8 Click the [Finish] button after appearing dialog window as shown below. 9 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [System]. - 92 -...
  • Page 93 iBurst Terminal Desktop Type(UTD) Manual 10 Select [iBurst Terminal Virtual MODEM] on [Device Manager] tab, then click the [Remove] button. 11 Click the [OK] button. - 93 -...
  • Page 94 iBurst Terminal Desktop Type(UTD) Manual 12 Select [iBurst Terminal Virtual COM Port(COMx)] on [Device Manager] tab, then click the [Remove] button. 13 Click the [OK] button. - 94 -...
  • Page 95 iBurst Terminal Desktop Type(UTD) Manual 14 Click the [Close] button. 15 Click the [Start] button, followed by selecting [Control Panel] as shown below. Click [Network]. - 95 -...
  • Page 96 iBurst Terminal Desktop Type(UTD) Manual 16 Select [NDIS(PPPoE)Usermode I/O Protocol for iBurst Terminal-> xxxxxx] on [Configuration] tab, then click the [Remove] button.(Repeat the above steps if the other [NDIS(PPPoE)Usermode I/O Protocol for iBurst Terminal] components are installed.) 17 Click the [OK] button. - 96 -...
  • Page 97 iBurst Terminal Desktop Type(UTD) Manual 18 The dialog window shown below will appear, click the [Yes] button, and restart your PC. - 97 -...

  • Page 98: Uninstallation For Mac Os X

    iBurst Terminal Desktop Type(UTD) Manual Uninstallation for Mac OS X 1 Close all programs that are currently running. 2 Remove the iBurst Terminal from the computer. 3 Open the folder [Applications¥iBurst Terminal¥Uninstall], then double click the script file [uninst_iburst_terminal.command]. 4 The terminal window shown below will appear, enter user’s [password] and [Enter] key. - 98 -...
  • Page 99 iBurst Terminal Desktop Type(UTD) Manual 5 Enter [y] or [n] key, and enter [Enter] key. 6 Enter [y] and [Enter] key to restart your computer. Note You would have a problem for iBurst Terminal uninstallation, if you will change MAC Terminal property during uninstallation. Please do not change MAC Terminal property during uninstallation.

  • Page 100: Chapter 6 Trouble Shooting

    iBurst Terminal Desktop Type(UTD) Manual Chapter 6 Trouble shooting This chapter describes how to solve the trouble when you use iBurst. - 100 -...

  • Page 101: Windows

    iBurst Terminal Desktop Type(UTD) Manual Windows USB connection with Windows Me. Windows Me may need a couple seconds or maximally 1 minute to detect iBurst Terminal through USB connection. If you find this phenomenon, you can avoid it by following procedure. 1 Open Network property [Start] →...
  • Page 102 iBurst Terminal Desktop Type(UTD) Manual 3 Open the [IP Address] tab. 4 Select the [Specify an IP address] then type a private IP address (for example: 192.168.250.11) and type 255.255.255.0 on Subnet Mask. - 102 -...
  • Page 103 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [OK] button. 6 Click the [Yes] button, and restart your PC. - 103 -...

  • Page 104: Usb Connection With Windows 98Se

    iBurst Terminal Desktop Type(UTD) Manual USB connection with Windows 98SE Windows 98SE may need a couple seconds or maximally 1 minute to detect iBurst Terminal through USB connection. If you find this phenomenon, you can avoid it by following procedure. 1 Open Network property [Start] →...
  • Page 105 iBurst Terminal Desktop Type(UTD) Manual 3 Open the [IP Address] tab. 4 Select the [Specify an IP address] then type a private IP address (for example: 192.168.250.11) and type 255.255.255.0 on Subnet Mask. - 105 -...
  • Page 106 iBurst Terminal Desktop Type(UTD) Manual 5 Click the [OK] button. 6 Click the [Yes] button and restart your PC. - 106 -...

  • Page 107: Illegal Hang-Up When Install Iburst Terminal

    iBurst Terminal Desktop Type(UTD) Manual Illegal hang-up when install iBurst Terminal. Windows 98SE may need a couple minutes to shutdown itself, or may hang-up in worst case after iBurst Terminal device driver installation. This case is from Windows OS and competition with other devices. The following gives you the procedure to fix this problem.
  • Page 108 iBurst Terminal Desktop Type(UTD) Manual 3 On the [General] tab, check the box labeled the [Disable in this hardware profile], and then click the [OK] button. 4 Connect iBurst Terminal to USB port. 5 On the [General] tab, uncheck the box labeled the [Disable in this hardware profile], and then click the [OK] button.

  • Page 109: Illegal Hang-Up When Set Up Dialler

    iBurst Terminal Desktop Type(UTD) Manual Illegal hang-up when set up dialler Windows 98SE may need a couple minutes to shutdown itself, or may hang-up in worst case after iBurst Terminal Virtual COM Port driver installation. This case is from Windows OS and competition with other devices. The following gives you the procedure to fix this problem.
  • Page 110 iBurst Terminal Desktop Type(UTD) Manual 3 On the [General] tab, check the box labeled the [Disable in this hardware profile], and then click the [OK] button. Re-install iBurst Terminal Virtual COM Port driver according to installation procedure, chapter 2 "Installation for Windows 98SE" step 21. 5 On the [General] tab, uncheck the box labeled the [Disable in this hardware profile], and then click the [OK] button.

  • Page 111: Pc Hang-Up When Eject Iburst Terminal From Win98 Usb Port

    iBurst Terminal Desktop Type(UTD) Manual PC hang-up when eject iBurst Terminal from Win98 USB port. Windows 98SE basically does not support hot plug-out for USB interface. You might find a problem that your PC hang-up itself when you eject iBurst Terminal from USB port during PC running.

  • Page 112: Mac

    iBurst Terminal Desktop Type(UTD) Manual Data rate iBurst Terminal would not perform maximum data rate when it connects with Mac PC. This is obviously caused by Mac OS. And typical data rate connecting with Mac is 800Kbps at downlink and 240Kbps at uplink. - 112 -...
