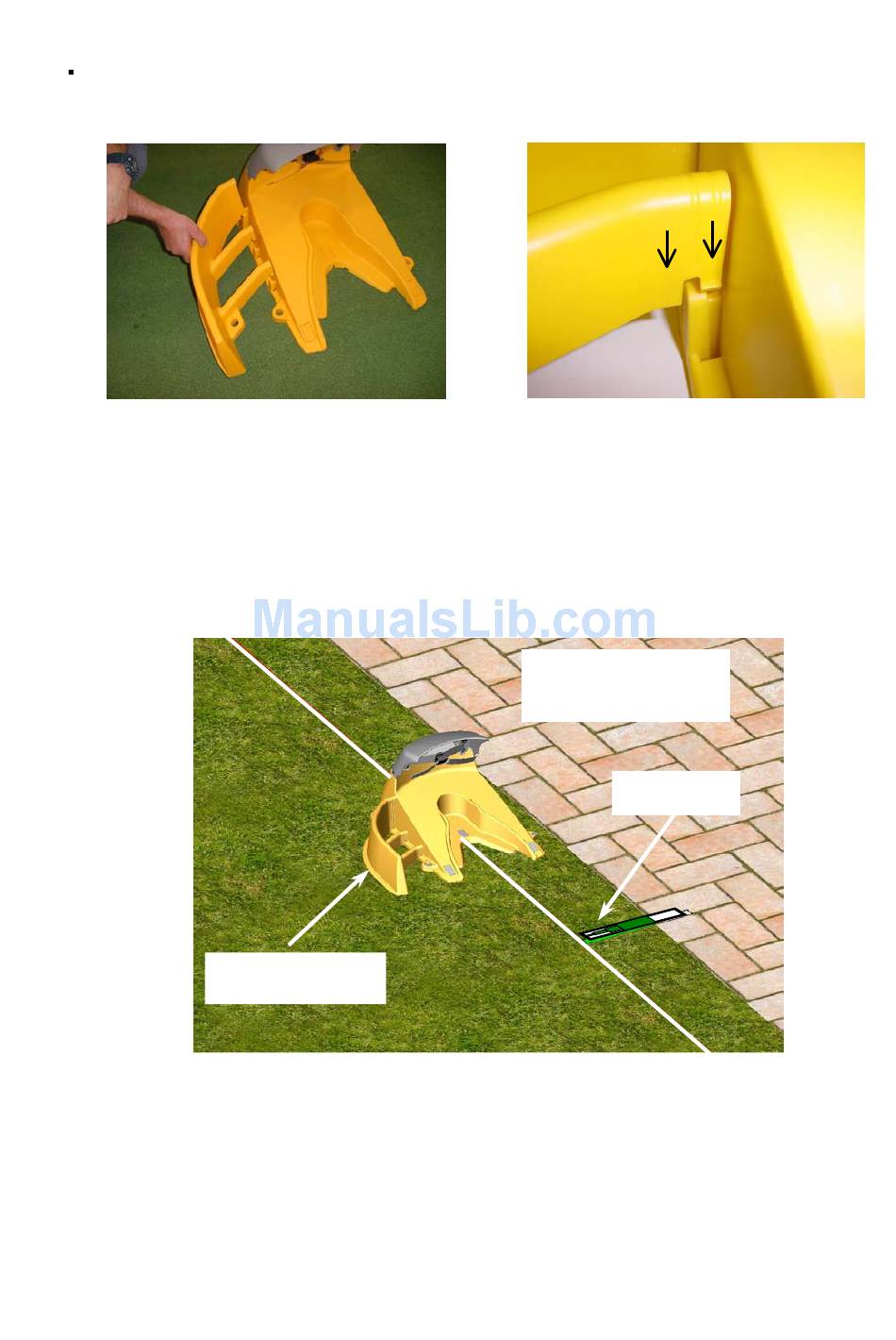

Carefully align the three slots on the fence with the three tabs on the base. See figure 1.23. Once
aligned, push the fence firmly down onto the base until it has snapped into place.
Base
Fence
Figure 1.23 – Fence Alignment
1.14 Placing and testing the Docking Station
•
Use the RoboRuler to place the Docking Station on the perimeter. The shorter distance (12 inches
/ 30 cm) is used where the area outside the immediate perimeter of the Docking Station is free of
obstacles and is the same relative height as the perimeter edge (See Figure 1.24).
Area outside perimeter:
Same basic level and
free of obstacles.
RoboRuler
Short distance
Fence facing inside
of lawn area
Figure 1.24 – Using Short Distance of RoboRuler to Place Docking Station
