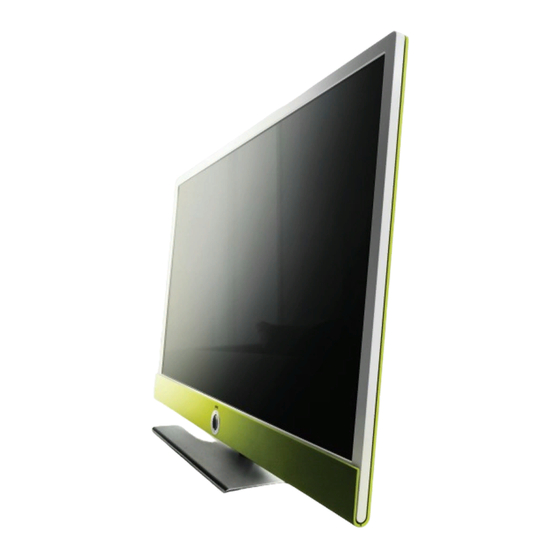

- Page 1 Connect ID Connect ID 55 Connect ID 46 Connect ID 40 Quick guide...
-
Page 2: Table Of Contents
Connect ID 40-55 - 2 - Quick guide Table of contents Welcome! ..................3 Video ....................25 Scope of delivery ..................3 Video playback ....................26 About this quick guide ................. 3 Additional functions for DR+ archive playback ........27 Imprint ......................3 Audio/Radio ................28 For your safety ................4 Audio playback ...................29... -
Page 3: Welcome
Loewe Sound + Terms which you will find in the menus or printed on the remote control Audio competence on the highest level - this is for what Loewe is unique: or TV set are written in bold type. an integrated multichannel decoder provides 5.1. Home Entertainment The necessary control elements are shown in the descriptions to the of outstanding quality without any external devices. -
Page 4: For Your Safety
Connect ID 40-55 - 4 - Quick guide For your safety For your safety, and to avoid unnecessary damage to your unit, Air circulation and high temperatures please read and follow the safety instructions below: The vent slots on the rear panel of the set must always be kept unobstructed. -
Page 5: Technical Information (Connect Id Dr + )
TV set. Clean the TV set, the screen, and the remote control unit with a soft, Please use the Loewe 3D TV sets only with the Loewe 3D glasses which moist, clean and colour-neutral cloth only, without any aggressive can be purchased as an accessory from your Loewe dealer. -
Page 6: Basic Functions
Connect ID 40-55 - 6 - Quick guide Basic functions On/Off of the TV set Key functions Switching the TV set ON / switching it OFF in Standby TV operation mode (Mains switch must be switched ON) Call radio mode (standard assignment) With the TV set being switched on: Press key long: TV set and all CEC-enabled devices Call Home view,... -
Page 7: Remote Control
Connect ID 40-55 - 7 - Quick guide Remote control Sound mute/on LED display for currently operated device Switching to TV mode Reassign remote control to SetTop-Box (PACE DS440N) DR+ archive on/off Define active object as favourite Electronic Programme Guide on/off Teletext/MediaText on/off Call function list... -
Page 8: Functions Of The Operating Controls
(EPG data updating, software update or DR + streaming server func- tion ) Infrared transmitter: When showing 3D content, the 3D glasses Loewe Active Glasses 3D are controlled via the infrared sensor. only for TV sets with DR + . -
Page 9: Switching The Tv Set On/Off
Connect ID 40-55 - 9 - Quick guide Switching TV set on/off / General information on the operation Switching the TV set ON/OFF General information on the operation Switching TV set to the standby mode Some keys of the remote control for operating the TV set you will use more often than others. - Page 10 Connect ID 40-55 - 10 - Quick guide General information on the operation Structure of the Menu screen Screen structure: Setup (example: picture) Basically, the structure of the different menu screens is similar, regard- less of whether it is e.g. a wizard, rendering media content or a setup Picture If your desired display format has not been automatically menu.
- Page 11 Enter/change internet address Back Please specify whether you want to search for scrambled stations too. Note: Scrambled stations can only be received with an integrated CA module and additional card. http://www.loewe.de Scrambled stations Search method Network search Frequency search Symbol rate...
-
Page 12: Info Display
Connect ID 40-55 - 12 - Quick guide Info display / Operation without remote control Info display Operation without remote control The info display provides an info text appropriate to the on-screen Changing Volume display that can assist you further with the operation of your TV set. + / –... -
Page 13: Home View / Home - Favourites
You can create favourites in the operating modes of the TV set. In this way you get a collection of your favourite music titles, your preferred Video Loewe KeinOhrHasen DasErste HD Aupeo stations and often visited Internet sites on a single overview page. -
Page 14: Setting The Volume
Connect ID 40-55 - 14 - Quick guide Volume / Station Selecting a station out of the station list In normal TV mode, without other displays: In TV mode that can be selected via the Home overview, you can use the basic TV functions of your TV set. - Page 15 Connect ID 40-55 - 15 - Quick guide Stations Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in up to six personal lists (e.g., In normal TV mode, without other displays: for several users).
-
Page 16: Status Display
Connect ID 40-55 - 16 - Quick guide Status display Status display Explanations of the symbols in the status display (continued): Transmitted audio signal: In normal TV mode, without other displays. Mono Mono audio transmission analogue INFO: Show status display. Dual Dual channel sound transmission (Sound1/Sound2) channel... -
Page 17: Function List
Connect ID 40-55 - 17 - Quick guide Function list / AV selection Function list Explanations of the symbols in the function list (continued): Switch screen off The function list contains settings and additional options. Die individual The menu item is only shown when DVB radio or an AV List items will be briefly explained as follows: source is active. -
Page 18: Electronic Programme Guide - Epg
Connect ID 40-55 - 18 - Quick guide Electronic Programme Guide Electronic Programme Guide – EPG Adapting the EPG Overview The options to be selected are in the header, EPG stands for Electronic Programme Guide and provides you with if not, press MENU key. on-screen programme details. -
Page 19: Picture In Picture (Pip)
Connect ID 40-55 - 19 - Quick guide Electronic Programme Guide / PIP Explanation of the symbols in the programme information: Picture in Picture (PIP) The concurrent display of two different images is referred to as Picture Programme in 16:9 picture format in Picture. -
Page 20: Teletext
Connect ID 40-55 - 20 - Quick guide Teletext Teletext Additional page selection possibilities First possibility: Your TV set supports the two operating systems TOP text and FLOF. Up to 1,000 / 2,000 pages are stored so that you have quick access. INFO: Call overview page 100. -
Page 21: Hbbtv / Mediatext
Under certain circumstances, the recording and bookmarking functions of the applications may not be supported. Loewe do not guarantee the accessibility, functionality or content of HbbTV applications. Hide / Close HbbTV application BACK: Hide / Close HbbTV application. -
Page 22: Digital Recorder
Digital Recorder Archive recording Using the Digital Recorder of your Loewe TV set you can record pro- Movies that you wish to watch at a later date can be recorded in the grammes onto the integrated hard disc (for TV sets with DR + ), or Digital Recorder Archive (DR+ archive). -
Page 23: Dr+ Archive
Connect ID 40-55 - 23 - Quick guide Digital Recorder Watching other stations during archive recording DR+ archive After you have started the recording, you can switch to another station. With the DR+ archive you have access to all the recorded programmes The second channel can be watched in time-shift TV whilst a re- and and you can start their playback. -
Page 24: Media
PowerLine) or via a wireless radio connection (WLAN or WI-FI). OK call function. For wireless connections, the TV set has an internal WLAN antenna. Video: see section Video. Your Loewe TV set supports the UPnP AV standard for data playback in the home network. Audio/Radio: see section Audio/Radio. Photo: see section Photo. -
Page 25: Video
Connect ID 40-55 - 25 - Quick guide Video Video Video function list MENU: Call function list. The item Video gives you access to videos from local (USB, home network) and online sources. The individual subitems are described in detail in the following. Sorting High definition movie material (HD movies) from format 720p Favourite... -
Page 26: Video Playback
Connect ID 40-55 - 26 - Quick guide Video Video playback Symbol Remote Description (icon) control key The description of the following functions applies to the playback of videos from the DR+ archive as well as for videos from USB storage Only for playback from DR+ archive: media or from media servers in the home network. -
Page 27: Additional Functions For Dr+ Archive Playback
Connect ID 40-55 - 27 - Quick guide Video Pause playback (freeze picture) Additional functions for DR+ archive playback PAUSE key: Switch to freeze picture. There are additional editing and playback functions for playback of recorded programmes from the DR+ archive. These are explained PLAY key: Continue playback. -
Page 28: Audio/Radio
For further information on Internet radio see Radio cal (ascending A-Z or descending Z-A) order, file size mode (Internet radio). or date (newest entries first). MediaCenter A Loewe media centre connected to your home Favourite Add marked media file to the Favourites in Home network. view. -
Page 29: Audio Playback
Connect ID 40-55 - 29 - Quick guide Audio/Radio Audio playback Pause playback PAUSE key: Halt current playback. Description of the symbols in the status display for audio playback PLAY key: Continue playback. Snow Patrol / Eyes Open Back Winding You can fast forward music titles at four different speeds. -
Page 30: Radio Mode (Dvb Radio)
Connect ID 40-55 - 30 - Quick guide Audio/Radio Radio mode (DVB radio) Station switching The radio mode is switched on and a radio station The TV set can receive digital radio stations via DVB. has been selected (see above). In addition you can play the sound from an external device through the TV set via the audio/AV inputs of the TV set. -
Page 31: Radio Mode (Internet Radio)
Connect ID 40-55 - 31 - Quick guide Audio/Radio Radio mode (Internet radio) Station switching The TV set can receive digital radio stations via the Internet. BACK: call station list. In addition you can play the sound from an external device through Select stations as described above. -
Page 32: Photo
Connect ID 40-55 - 32 - Quick guide Photo Photo Photo function list MENU: Call function list. Via menu item Photo you can view photos from your local media and from online sources on your TV screen. The individual subitems are described in detail in the following. -
Page 33: Photo Display
Connect ID 40-55 - 33 - Quick guide Photo Photo display Full-screen mode A photo is marked. Description of the symbols in the status display for photos OK View photo in full-screen mode. USB1 -> CRW_7266b Back USB1 -> CRW_7266b Back Display previous / next photo. -
Page 34: Web
Internet. The lower portion of the MediaNet home screen All applications are optimised for use on the TV. contains Recommendations given by Loewe. The given content may change from time to time Browser Call Web browser of the TV set. -
Page 35: Browser
Internet site, interface (e.g., router, home control, home network server). OK Open address entry box. Calling the Web browser Enter/change internet address Back HOME: Calling the Home view. http://www.loewe.de Select Web, OK call. Select Browser, OK call. Space Delete... -
Page 36: Extras
Connect ID 40-55 - 36 - Quick guide Extras Extras Timer Extras contains additional functions and settings (e.g., Timer list, CA Timer list module settings). All programmed recordings, earmarked programmes and copy jobs are listed in the timer list. Call Extras You can also programme new recordings, earmark other program- mes and copy pre-recorded programmes from the DR+ archive to an HOME: Calling the Home view. -
Page 37: Conditional Access Module (Ca Module)
Mark Stations, ment supplied with the TV set. They are usually available from your go to next column. dealer. Loewe does not provide any guarantee for the functioning of the CA module. Automatic scan TV+Radio, The TV set must first recognise and set up the CA module during initial go to next column. -
Page 38: Connections Rear Side Of The Device
Connect ID 40-55 - 38 - Quick guide Connections rear side of the device Connect ID 40-55 DR + 11 12 13 ANT SAT - Satellite antenna (sat tuner 1) SPDIF OUT - Digital audio output ANT SAT 2 - Satellite antenna (sat tuner 2) SPDIF IN - Digital audio input CI-COMMON INTERFACE - Common Interface (CI slot) CENTER IN - Centre audio input (analogue) -
Page 39: Function Of The Connections (Connect Id Dr + )
Connect ID 40-55 - 39 - Quick guide Connections rear side of the device Connect ID 40-55 DR + Function of the connections (Connect ID DR + ) The following table shows the name, type and function of the ports. Designation Type Function / Signal... -
Page 40: Connect Id 40-55
Connect ID 40-55 - 40 - Quick guide Connections rear side of the device Connect ID 40-55 USB - USB connection LAN - Network connection RS-232C - Serial interface CI-COMMON INTERFACE - Common Interface (CI slot) PC IN - Mini AV socket - Headphone connection / Audio output (analogue) L/R HDMI 1 - HDMI input 1 (with HDMI ARC support) HDMI 4 - HDMI input 4... -
Page 41: Function Of The Connections (Connect Id)
Connect ID 40-55 - 41 - Quick guide Connections rear side of the device Connect ID 40-55 Function of the connections (Connect ID) The following table shows the name, type and function of the ports. Designation Type Function / Signal Mains socket 220-240 V ~ 50 / 60 Hz Supply voltage... -
Page 42: Technical Data
Connect ID 40-55 - 42 - Quick guide Technical data Connect ID 40-55 DR + Technical data Connect ID 55 DR + Connect ID 46 DR + Connect ID 40 DR + Type Part number 52465x44 52464x44 52463x44 Device dimensions without mounting option (W x H x D) 125.8 x 78.4 x 8.8 cm... - Page 43 Connect ID 40-55 - 43 - Quick guide Technical data Connect ID 40-55 Technical data Type Connect ID 55 Connect ID 46 Connect ID 40 Part number 52465x85 52464x85 52463x85 Device dimensions without mounting option (W x H x D) 125.8 x 78.4 x 8.8 cm...
-
Page 44: Environment
Free Software Foundation. The batteries supplied as initial equipment do not con- The publication of this programme by Loewe is carried out WITHOUT tain any pollutants such as cadmium, lead, or mercury. ANY GUARANTEE OR SUPPORT, particularly without an implicit... -
Page 45: Miscellaneous
In France and Italy it may only be used indoors. USB stick - requirements USB sticks tested by Loewe and compatible in type and format can be ordered from the Loewe dealer using the article no. 90456.990. If you would like to use your own USB stick, please follow these tips/ conditions: •... -
Page 46: Index
Connect ID 40-55 - 46 - Quick guide Index Alarm ....................36 Network connections ARC ....................38, 40 Wired .....................24 Archive recording ................22 Wireless ..................24 Audio playback ................29 Numerical keys ................9, 14 Audio/Radio ................13, 28 Audio Return Channel ..............38, 40 Automatic shutdown .................5 One Touch Recording .............. -
Page 47: Service
