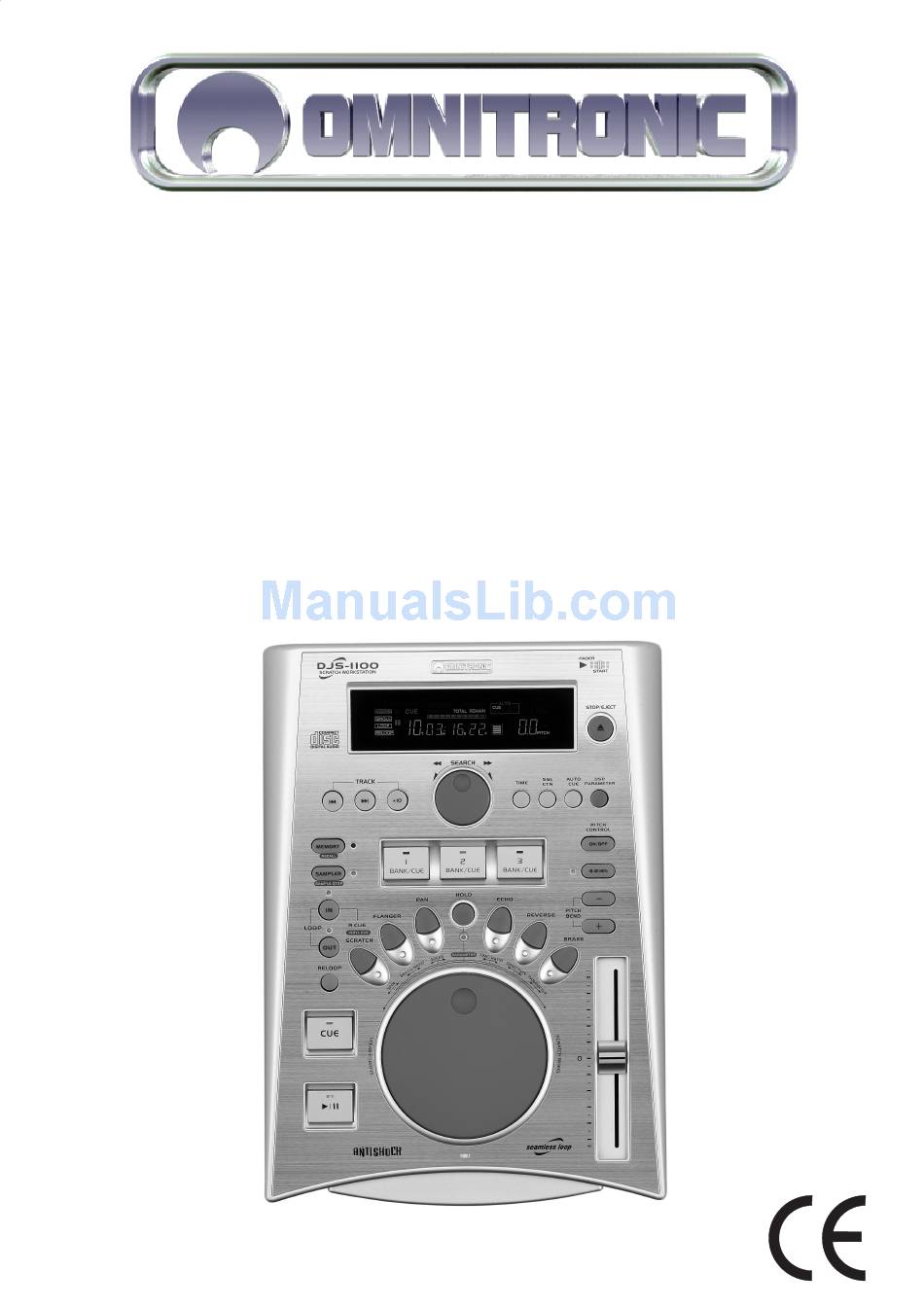

Scratch-Workstation
©
COPYRIGHT
Nachdruck verboten!
All rights reserved!
Réproduction interdite!
Prohibida toda reproducción!
Riproduzione vietata!
Bedienungsanleitung
Bedienungsanleitung
Bedienungsanleitung
Bedienungsanleitung
Operating instructions
Operating instructions
Operating instructions
Operating instructions
Mode d'emploi
Mode d'emploi
Mode d'emploi
Mode d'emploi
Manual del usuario
Manual del usuario
Manual del usuario
Manual del usuario
Manuale d'instruzione
Manuale d'instruzione
Manuale d'instruzione
Manuale d'instruzione
DJS-1100
Für weiteren Gebrauch aufbewahren!
Keep this manual for further needs!
Gardez ces instructions pour des utilisations ultérieurs!
Guarde este manual para posteriores usos.
Tenere il manuale per utlizazioni ulteriori!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJS-1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omnitronic DJS-1100

  • Page 1: Play/Pause

    Manual del usuario Manual del usuario Manual del usuario Manual del usuario Manuale d'instruzione Manuale d'instruzione Manuale d'instruzione Manuale d'instruzione DJS-1100 Scratch-Workstation © COPYRIGHT Für weiteren Gebrauch aufbewahren! Nachdruck verboten! Keep this manual for further needs! All rights reserved! Gardez ces instructions pour des utilisations ultérieurs! Réproduction interdite!
  • Page 2 OMNITRONIC 1 2 3 4 5 6 7 8 9 0 AUTO EFFECT ELAPSED TOTAL REMAIN SINGLE LOOP RELOOP PITCH seamless loop 15 16 17 18 19...
  • Page 3: Vinyl Cue-Funktion

    VOLUME 1 2 3 4 5 6 7 8 9 0 AUTO EFFECT ELAPSED TOTAL REMAIN SINGLE LOOP RELOOP PITCH...
  • Page 4: Table Of Contents

    MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis/Table of contents Sommaire/Contenido/Indice 1. EINFÜHRUNG ............................... 7 2. SICHERHEITSHINWEISE ..........................7 3. BESTIMMUNGSGEMÄSSE VERWENDUNG ....................8 4. GERÄTEBESCHREIBUNG ........................... 9 4.1 Features ..............................9 4.2 Vorderseite ............................. 10 4.3 Rückseite..............................13 5. INSTALLATION............................14 6. BEDIENUNGSHINWEISE ........................... 14 6.1 Inbetriebnahme............................
  • Page 5: Ende Der Benutzung

    1. INTRODUCTION............................35 2. INSTRUCTIONS DE SÉCURITÉ......................... 35 3. EMPLOI SELON LES PRÉSCRIPTIONS ....................36 4. DESCRIPTION............................. 37 4.1 Features ..............................37 4.2 Face avant.............................. 38 5. INSTALLATION............................42 6. INSTRUCTIONS D’UTILISATION....................... 42 6.1 Mise en service............................42 6.2 CD Slot In ............................... 42 6.3 Affichage LCD ............................
  • Page 6: Reinigung Und Wartung

    Italiano 1. INTRODUZIONE............................64 2. NORME DI SICUREZZA..........................64 3. UTILIZZO CONFORME DELL‘APPARECCHIO..................65 4. DESCRIZIONE DELL‘APPARECCHIO ...................... 66 4.1 Caratteristiche ............................66 4.2 Lato frontale............................67 4.3 Retro............................... 70 5. ISTALLAZIONE ............................71 6. INDICAZIONI PER L‘USO........................... 71 6.1 Messa in funzione........................... 71 6.2 CD Slot In ...............................
  • Page 7: Introduction

    - follow the instructions of this manual 1. INTRODUCTION Thank you for having chosen a OMNITRONIC DJS-1100 Scratch-Workstation. You have acquired a reliable and powerful device. If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many years.
  • Page 8: Operating Determinations

    Always plug in the power plug least. Make sure that the power-switch is set to OFF position before you connect the device to the mains. Keep away from heaters and other heating sources! If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately.
  • Page 9: Features

    Please use the original packaging if the device is to be transported. Never remove the serial barcode from the device as this would make the guarantee void. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.
  • Page 10: Lcd-Display

    4.2 Frontpanel OMNITRONIC 1 2 3 4 5 6 7 8 9 0 AUTO EFFECT ELAPSED TOTAL REMAIN SINGLE LOOP RELOOP PITCH seamless loop 15 16 17 18 19 1. DISPLAY LCD-display for displaying the different modes and functions. Please refer to the explanations under 6.3 LCD-display.
  • Page 11 3. SEARCH-WHEEL Via the Search-wheel, you can quickly scan forwards and backwards. Turn the Search-wheel to the right in order to scan forwards and turn it to the right in order to scan backwards. The further you turn the Search- wheel the higher the scanning-speed.
  • Page 12: Cueing

    13. SCRATCH/VINYL CUE-BUTTON With the Scratch-button, you can activate the Scratch-function. Please refer to the explanations under6.8 Vinyl Cue-function and 6.11 Effects. 14. FLANGER-BUTTON With the Flanger-button, you can activate the Flanger-effect. Please refer to the explanations under 6.11 Effects. 15.
  • Page 13: Faderstart

    27. 8/12/16 %-BUTTON With this button, you can select the speed-adjusting range between +/- 8 % (LED green), +/- 12 % (LED yellow) or +/- 16 % (LED red). Please refer to 6.6 Adjusting the playback-speed. 28. PITCH BEND-BUTTONS With the Pitch Bend-buttons, you can adjust the playback-speed temporarily by +/- 16 %. Please refer to 6.6 Adjusting the playback-speed.
  • Page 14: Installation

    5. INSTALLATION Install the CD-player on a plane surface. Make sure that the inclination angle will not exceed 15°, as the CD cannot be read correctly otherwise. Connect the CD-player with the RCA-cable to your mixer via the Audio Out-sockets. Make sure that the right/left occupation (plug-colour red/white) is the same at both devices.
  • Page 15: Play/Pause

    Above the time-indication, 10 bars are displayed showing the remaining track-time visually. The shorter the track remain time becomes, the less bars are displayed. 15 seconds before the track-end, the bars in the display start flashing. By pressing the Single-button, the CD-player is put into Single-mode and the display shows "SINGLE". The indication "0.0"...
  • Page 16: Vinyl Cue-Function

    Memorizing several Cue-points: With the DJS-1100, you can memorize up to 4 different Cue-points of different tracks and recall them via the Bank/Cue-button or the Cue-button, respectively. Press the Memory/Recall-button (LED on) and the desired Bank/Cue-button in order to memorize the current Cue-point on the Bank/Cue-button.
  • Page 17: Sampler-Mode

    Bank/Cue-button, only the first 7 seconds will be memorized. Memorizing several samples: With the DJS-1100, you can memorize up to 3 different samples of different tracks and recall them via the Bank/Cue-button. Press the Memory/Recall-button (LED on) and the desired Bank/Cue-button in order to memorize the current sample on the Bank/Cue-button.
  • Page 18: Faderstart

    1000 ms 6.12 Faderstart With the DJS-1100, you have the possibility to start the CD-player directly from the mixer. Make sure that the Faderstart-socket is connected with the respective socket on the mixer. Additionally, the Audio Out-sockets have to be connected with the Line-input sockets of your mixer. Please note that the Faderstart-function only...
  • Page 19: End Of Operation

    works with the appropriate mixers. Insert the CD and select the desired track (Pause-mode). Start playback from your mixer. Please note that the Faderstart-function is a Cue-point Faderstart-function. This means that the CD-player starts playback after activating the respective channel of the mixer and goes into Pause-mode and returns to the Cue-point after activating the channel again.
  • Page 20: Technical Specifications

    There are no servicable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Should you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it has to be replaced by a special power supply cable available at your dealer.
