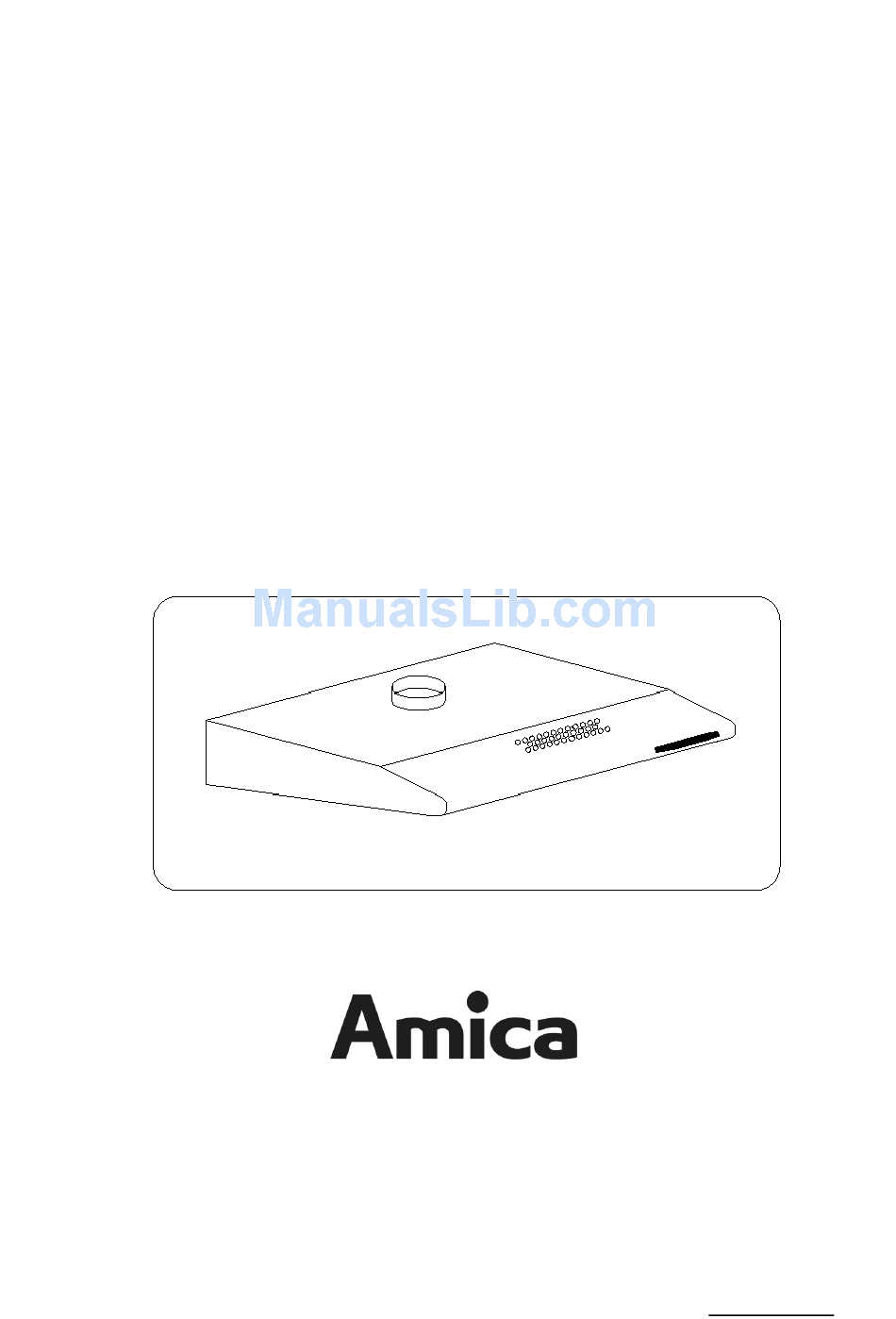

- Page 1 OPERATING AND MAINTENANCE MANUAL COOKER HOOD OSC 6468 W, OSC 5468 W OSC 6458 I, OSC 5458 I IO 00150 /2...
- Page 2 IO 00150 /2...
-
Page 3: Technical Description
Technical description The function of the OSC 6468 W, OSC 5468 W, OSC 6458 I, OSC 5458 I is to extract or neutralise kitchen fumes, and it is designed to be permanently mounted over a gas or electric cooker. -
Page 4: Usage Conditions
Air outlet (ø mm) Output (m Power consumption (W) max. 115 Noise level (dBA) max. 50 Net weight (kg) 4 (50 cm); 4,9 (60 cm) III Fittings and Construction The kitchen hood consists of the following elements (fig.1): - the hood case A, equipped with a ventilator exhaust B (as an extractor) and F (as an absorber), - a set of switches D,... - Page 5 8. Check that the voltage (230V ~50 Hz) stated on the rating plate is consistent with the parameters your house’s electricity supply, and that the supply is marked as ~ (AC). ATTENTION: before connecting the cooker hood to the power supply, always check that the power lead is correctly attached and has NOT been crushed by the hood during installation.
-
Page 6: Operation And Maintenance
2. Connecting to the mains electricity and checking the function. After connecting to the mains electricity supply, (in line with the instructions above) check that the motor and lighting of the hood are functioning correctly. 3. Setting the cooker hood’s operating mode 3.1 Setting the hood in extraction mode When the hood is operating in extraction mode, the air is removed outside using a special pipe. - Page 7 - switch „O” controls the lighting. Sliding it to the left switches the lighting on, while sliding it to the right switches it off. - switch „W” activates the hood’s motor. Sliding it to the left activates the motor’s series of three operating settings.
- Page 8 c) Replace mesh „A”. 3.4 Cleaning When cleaning the cooker hood, do not use: - solvents or alcohol, as they may tarnish lacquered surfaces - corrosive or abrasive substances, particularly when cleaning stainless steel surfaces It is best to use a damp cloth or neutral liquid cleaning agents. IO 00150 /2...
-
Page 9: Disposing Of The Device
Disposing of the device When disposing of the device, do not bring it to regular municipal waste containers. Instead, bring it to electrical and electronic waste recycling and reuse center. A relevant label has been put on the device, its instructions manual, or on the package. The device has been manufactured of recyclable materials.
