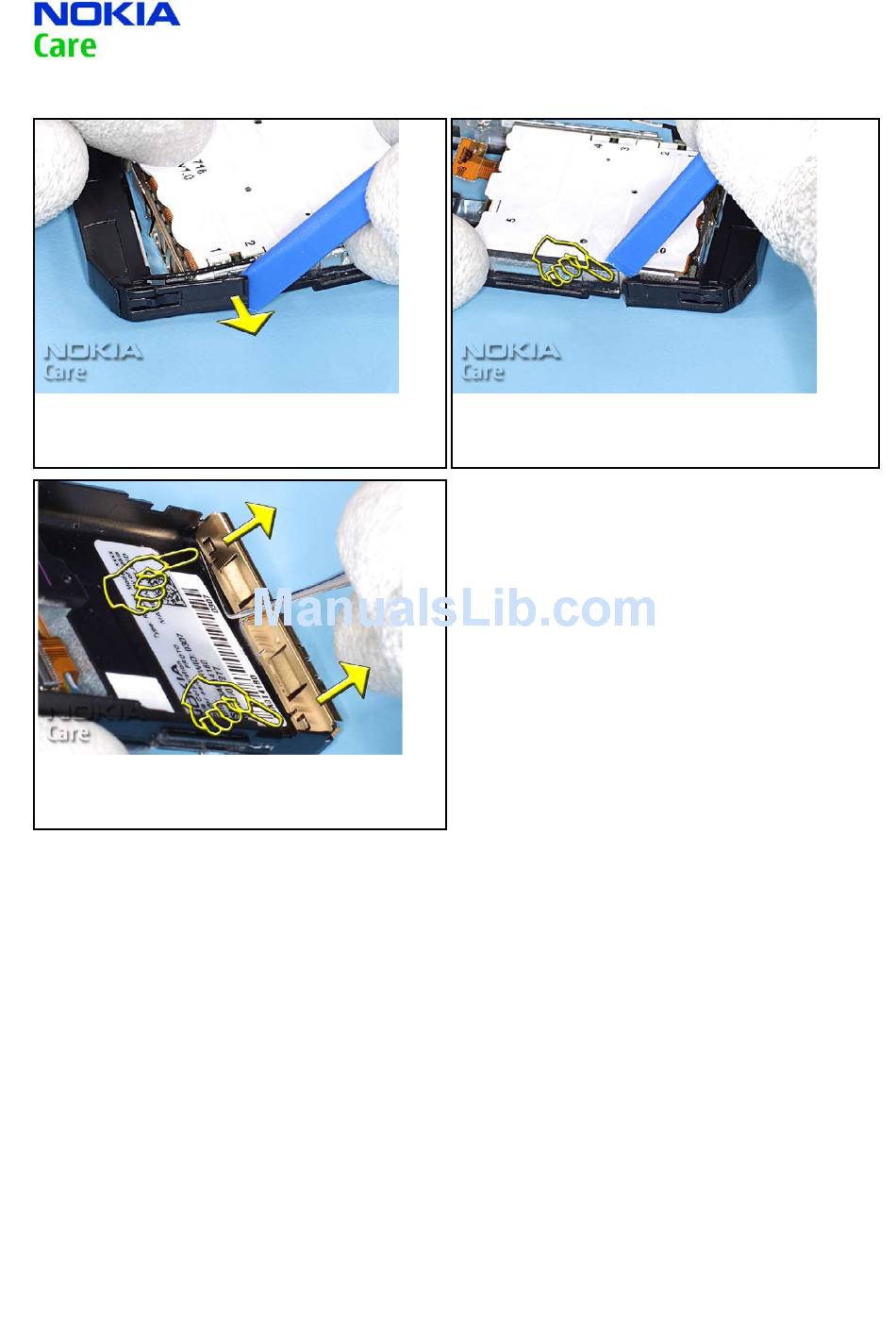

31. Unlock the clip of the ANTENNA ASSEMBLY.
33. Unlock and remove the ANTENNA GROUNDING. The
disassembly procedure is now finished.
Page
5
(8)
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
32. Do the same at the other side and remove the ANTENNA
ASSEMBLY.
7900 Prism RM-264
Service Manual Level &2
ISSUE
