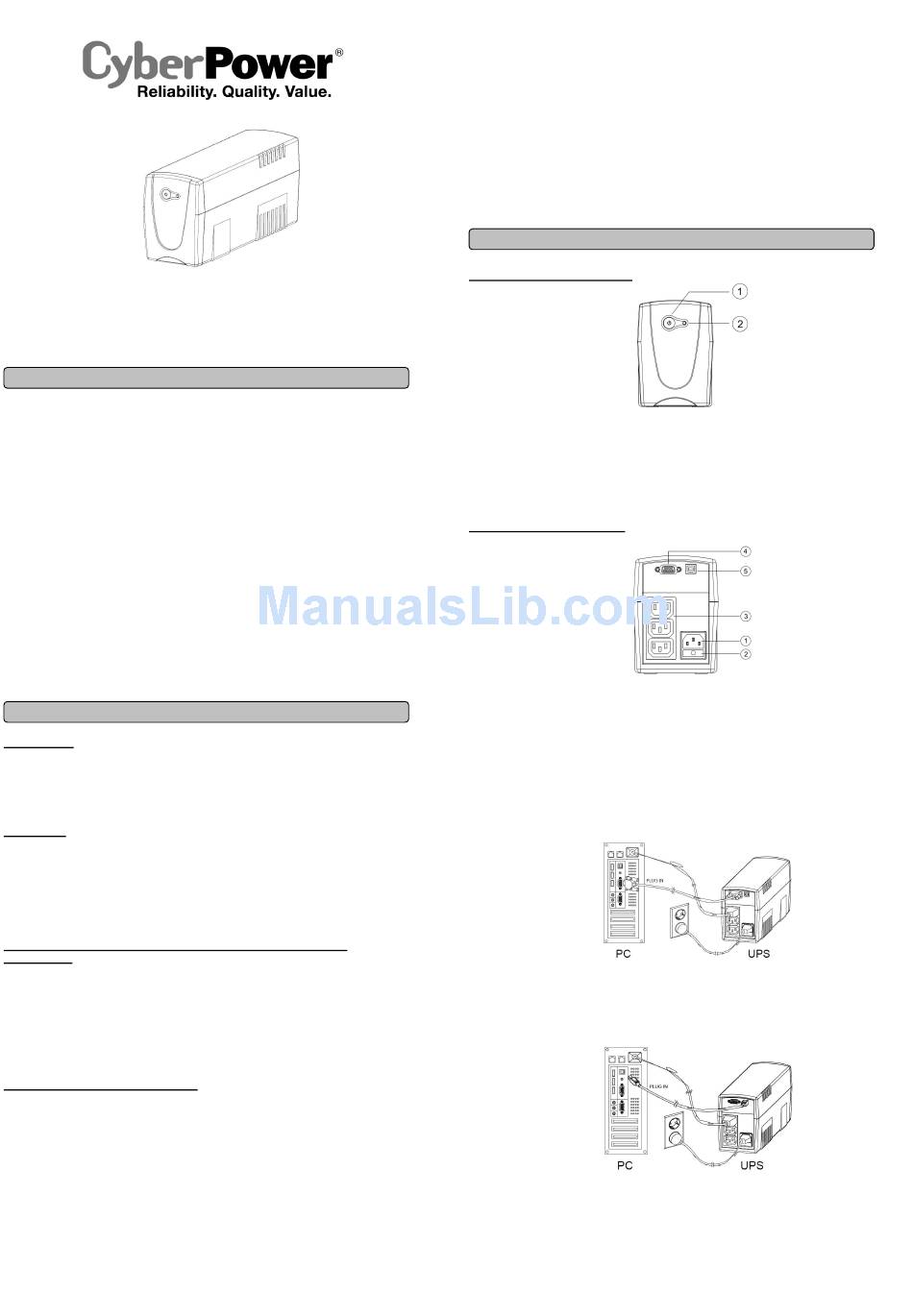

CyberPower 400E-GP User Manual

Value 400E-GP/600E-GP/800E-GP/1000E-GP
User's Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important instructions that should be followed during installation and maintenance of
the UPS and batteries. Please read and follow all instructions carefully during installation and operation of
the unit. Read this manual thoroughly before attempting to unpack, install, or operate.
CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker
protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this
equipment, turn off and unplug the UPS.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does
not sell products for life support or medical applications. DO NOT use in any circumstance that would affect
the operation or safety of any life support equipment, with any medical applications, or patient care.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is
disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor
area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity
range).
CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery. There
are no user serviceable parts inside, except for the battery.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before
servicing the battery or installing a computer component.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near
aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause
the machine to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING
The box should contain the following:
(1) UPS Unit x 1; (2) IEC Power Cord x 1; (3) USB Cable x 1; (4) User Manual x 1; (5) Management Software
Disk x 1
OVERVIEW
The Value 400E-GP/600E-GP/800E-GP/1000E-GP provides automatic voltage regulation for inconsistent
utility power. The Value 400E-GP/600E-GP/800E-GP/1000E-GP features 405 Joules of surge protection,
and provides battery backup during power outages. The Value 400E-GP/600E-GP/800E-GP/1000E-GP
ensures consistent power to your computer system and its included software will automatically save your
open files and shut down your computer system during a utility power loss.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR
EQUIPMENT
1. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the
UPS unit's rated capacity (400VA/240W for Value 400E-GP, 600VA/360W for Value 600E-GP,
800VA/480W for Value 800E -GP, 1000VA/530W for Value 1000E-GP). If the rated unit capacities are
exceeded, an overload condition may occur and cause the UPS unit to shut down or the fuse blow.
2. There are many factors that can affect the amount of power that your computer system will require. For
optimal system performance keep the load below 80% of the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8
hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss
may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC
outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data
storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT
plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device
into the battery power supplied outlets. The power demands of these devices will overload and
possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g.
air conditioner, refrigerator, copier, etc. Avoid using extension cords.
4. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will
"beep".
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this,
turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait
10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the
battery every three months to ensure battery life.
FRONT PANEL DESCRIPTION
K01-0000185-00
Power On/Off Switch
ƒ [ ƒ [ ƒ [ ƒ [
Press the power switch to turn the UPS ON or OFF.
ƒ \ ƒ \ ƒ \ ƒ \ Power On Indicator
This LED is illuminated when the utility condition is normal and the UPS outlets are providing "clean
power", free of surges and spikes.
REAR PANEL DESCRIPTION
ƒ [ ƒ [ ƒ [ ƒ [ AC Inlet
Connect to utility power through the input power cord.
ƒ \ ƒ \ ƒ \ ƒ \ Input Fuse
The fuse provides optimal overload protection.
ƒ ] ƒ ] ƒ ] ƒ ] AC Outlet
The UPS provides 3 outlets for connected equipment to insure temporary uninterrupted operation during
a power failure and against surges and spikes.
ƒ ^ ƒ ^ ƒ ^ ƒ ^ Serial Port to PC
This port allows connection and communication from the DB9 serial on the computer to the UPS unit.
The UPS communicates its status to the PowerPanel
ƒ _ ƒ _ ƒ _ ƒ _ USB Port to PC
This port allows connection and communication from the USB port on the computer to the UPS unit. The
UPS communicates its status to the PowerPanel
NOTE: Only one of these two ports can be used as communication and control of the UPS unit at one time.

BASIC OPERATION

®
Personal Edition software.
®
Personal Edition software.
