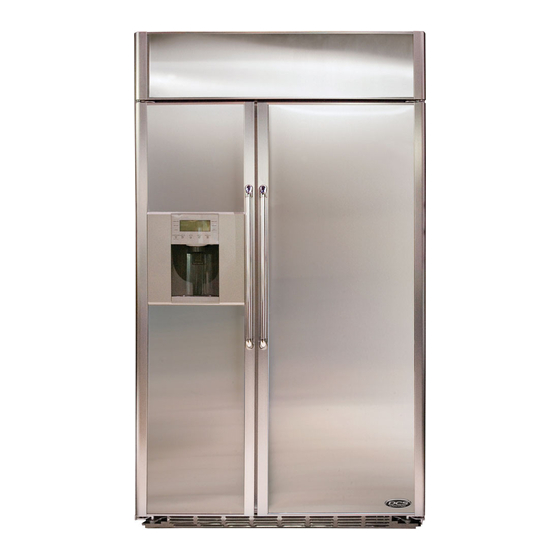

THE DCS REFRIGERATOR
Use and Care Manual
MODEL:
RF48SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF48SS and is the answer not in the manual?

Questions and answers

Related Manuals for DCS RF48SS

Summary of Contents for DCS RF48SS

  • Page 1 THE DCS REFRIGERATOR Use and Care Manual MODEL: RF48SS...
  • Page 2 GOURMET refrigerators feature the following functions. Its TDM cycle makes it possible to extend storage of food for longer periods. TWIN Cooling TDM By monitoring the states of the freezer and the fridge Condenser compartments on a real time basis, it runs both of the Compr evaporators in optimal conditions and makes it essor...

  • Page 3: Table Of Contents

    SAFETY PRECAUTIONS PREPARATION NAME OF EACH COMPONENT PRECAUTIONS BEFORE INSTALLATION CHECKPOINTS BEFORE USE USAGE CHECK THE FOLLOWING BEFORE USE. BUTTON & DISPLAY PANEL FUNCTION OF EACH BUTTON HOW TO STORE FOOD HOW TO CONTROL TEMP TO ADJUST TEMPERATURES HOW TO USE DISPENSER HOW TO REPLACE WATER-PURIFYING FILTER FRESH ISLAND WISDOM FOR LIFE...
  • Page 4 Make sure to follow the The following instructions are to prevent personal injuries and property damage. Please read all the instructions to use the product properly. instructions for your safety. ■ SAFETY WARNIINGS • Before operating the appliance, please read this manual thoroughly and retain it for your reference. •...
  • Page 5 WARNINGS under the appliance. This product has 360。 rotating casters. So, if you take your hands off the product on a slant, it • Any sharp edges may cause personal injury. will skid on the slant and fall over. To prevent lt, make Never put fingers or other objects into the dispenser hole sure to hold the product firmly.

  • Page 6: Preparation

    Remember each part name. Grill Panel Button & Display Panel Show the set functions. PREPARATION Freezer Door Dispenser supplies drink water via a water filter and ice cubes made with the ice maker.
  • Page 7 Remember each part name. Filter PREPARATION Door Handle Fridge Door...

  • Page 8: Precautions Before Installation

    Make sure to check before installation. ■ Select an installation place Please check the followings before installing the product. Check if the product can clear the doors on its way to the installation position. ▶If the product is not able to clear the doors, it is not possible to install. Model GSE4820SS 48"...
  • Page 9 ■ Select an installation place Check if the floor is flat. ▶If the refrigerator is installed on an uneven floor, it will cause vibration and noise. Check if the floor can support the weight of the refrigerator and the food inside (1102lb or 500kg total). ▶...

  • Page 10: Checkpoints Before Use

    Check the following before use. Before using the refrigerator, make sure to check the followings. It will show ways to use the product safely and efficiently. When plastic smells are coming from the refrigerator ▶Open the refrigerator doors and air the inside. - With a new product, there could be plastic smells inside the refrigerator.

  • Page 11: Button & Display Panel

    Function of Each Button Basic functions of each button and the display. QUICK ICE LOCK SOUND You can lock all the buttons You can select or cancel it. with this function. FRE. TEMP Button & REF. TEMP Display Panel The freezer compartment temperature The fridge compartment temperature can be set at between -6℉(-21℃) and 8℉(-13℃)by pressing this button.

  • Page 12: How To Store Food

    Let's figure out the correct Each storage space provides its own storage conditions for different kinds of food. You can enjoy the optimum taste of food by storing it in a selected place. use of each storage space. Ice Bin Store ice cubes made by the ice maker.

  • Page 13: Dairy Bin

    Dairy Bin You can store dairy products such as butter and cheese. Fridge Compartment Shelf Please put dishes or refrigerated foods with enough space between items. Fridge Door Bin You can store small packaged refrigerated food and beverages such as milk, fruit juice and beer. Veggie/Fruit Drawer USAGE You can store vegetables and fruits in...

  • Page 14: How To Control Temp

    To adjust temperature Learn how to control the fridge & the freezer temperatures. Power can be saved by keeping food in appropriate temperatures. ■ How to control freezer temperature To control the freezer temperature, follow the procedures below. QUICK ICE Press the [ FRE.
  • Page 15 ■ How to control fridge temperature To control the fridge temperature, follow the procedures below. Press the [ REF. TEMP ] button. ▶ Fridge temperatures can be adjusted between 34℉ and 46℉ with an interval of 2℉. At this time, the temperature indication bars will be illuminating, showing the temperature range (MAX, MID or MIN).

  • Page 16: How To Use Dispenser

    Let's figure out how to Enjoy high quality ice cubes and drinking water with the dispenser of the GOURMET refrigerator. use the dispenser. ■ HOW TO USE DISPENSER Brandsource refrigerators have embeded water filters.' QUICK ICE So, please use a supplied water filter when using it. Ice cubes and water first made or supplied after the installation could send out plastic smells.
  • Page 17 ■ To get ice Press the CUBED ICE/CRUSHED ICE button and select the QUICK ICE WATER CUBED ICE CRUSHED ICE shape of ice. Press the glass gently against the middle of the dispenser pad. ▶ Take the glass closer to the chute to prevent ice from bouncing out of the cup. QUICK ICE If you get ice with a thin glass cup or ceramic ware, it could get ●...

  • Page 18: How To Replace Water-Purifying Filter

    Have a knowledge of water-purifying filter. ■ What is Water-Purifying Filter? It is a parts filtering impurities that are bad for human being such as chlorine and its smell and offensive taste contained in tap water. ■ Filtrate and Purifying Effect Filtrate of water-purifying filter is made from vegetable active carbon.

  • Page 19: Fresh Island

    You can speed up cooling or make frozen food soft enough to cut easily with this Let's figure out the function. Also, by adjusting the temperature of each compartment, you can store Fresh Island function. customize the storage of different kinds of food. ■...
  • Page 20 ■ Function selection When Chill is selected ▶ When Chill is selected, the temperature of the Fresh Island will be set to 31℉ and the temperature of the fridge compartment will be maintained at 31℉ regardless of its temperature setting. ▶...

  • Page 21: Others

    Here is some information to keep food in a fresh condition. ■ How to use the refrigerator effectively To make cold air to flow freely To maintain the fridge compartment temperature to 39℉, it sends out cold air near 32℉ . So, when food containing water is placed deep inside, it could become frozen.
  • Page 22 To frost the surface of beer cup After pouring warm water into the cup, empty the cup when it gets warmed up. And, turn it upside down and put it in the freezer compartment for about 30 minutes When you take it out later, you will find frosts sitting on the surface of the cup. To keep tropical fruits It is not a good idea keeping tropical fruits in the refrigerator tropical fruits do not reguire low temp.
  • Page 23 ■ How to store food To store spices in the freezer or fridge compartment When storing spices, you need to prevent their flavors from escaping. Store it in a dry place out of reach of direct sunlight. The freezer or fridge compartment is the best suitable place to store spices.

  • Page 24: How To Clean And Take Care Of The Product

    How to clean and take care of the product. ■ HOW TO CLEAN AND TAKE CARE OF THE PRODUCT Inside refrigerator/Accessories ▶ Wipe with a clean cloth lightly dampened with water or mild liquid dish detergent. Door gasket ▶ Wipe with a clean cloth lightly dampened with mild liquid dish detergent and clean the grooves with cotton balls.
  • Page 25 ■ Disassembling for cleaning Before cleaning the refrigerator, flip the grille panel up as shown in the figure and set the power switch to the O (OFF). To prevent electric shock then, disassemble when turned off. Water tends to gather inside and flow down on the bottom. So, wipe dry the components inside with a dry cloth and re-assemble.
  • Page 26 Dairy Bin ▶ Flip up the dairy bin cover and remove it while pushing it back. ▶ Hold the dairy bin with both hands and lift it up and out of the door. Freezer/Fridge Door Bin ▶ Hold it with both hands and lift it up and out of the door. Freezer/Fridge Shelves ▶...

  • Page 27: Checkpoints Before Service Calls

    Make sure to check before calling for service. Problem Possible Causes What To Do Master power control set to O ( OFF ). Switch on the power ( "I" pressed ). Fridge or freezer compartment too warm. (Low cooling power) Refrigerator is unplugged.
  • Page 28 Problem Possible Causes What To Do Water could contain chlorine sending Ice cubes are made with tap water. out odors. Make ice with filtered water. Interior of refrigerator needs Clean the interior of the refrigerator cleaning. frequently to remove food smells. Ice cubes have odor.
  • Page 29 Problem Possible Causes What To Do If you open the door again within 5~10 seconds, it could be hard to open due to the pressure difference Door hard to open! It has just closed after being opened. between the inside and the outside of the refrigerator.

  • Page 30: Product Spec

    GSE4820SS Model Name 48" Total 28.7 cu * ft GROSS Freezer Room 11.1cu * ft vo/ume Fridge Room 17.6cu * ft Weight 573lb Width 48in Dimension Height 84in 27.8in Depth 115V/60Hz Rated Voltage/Frequency ▶ Design & specifications can be changed to improve quality without any notice in advance. OTHERS Height Depth...
  • Page 31 DA99-01375A REV(0.0)
