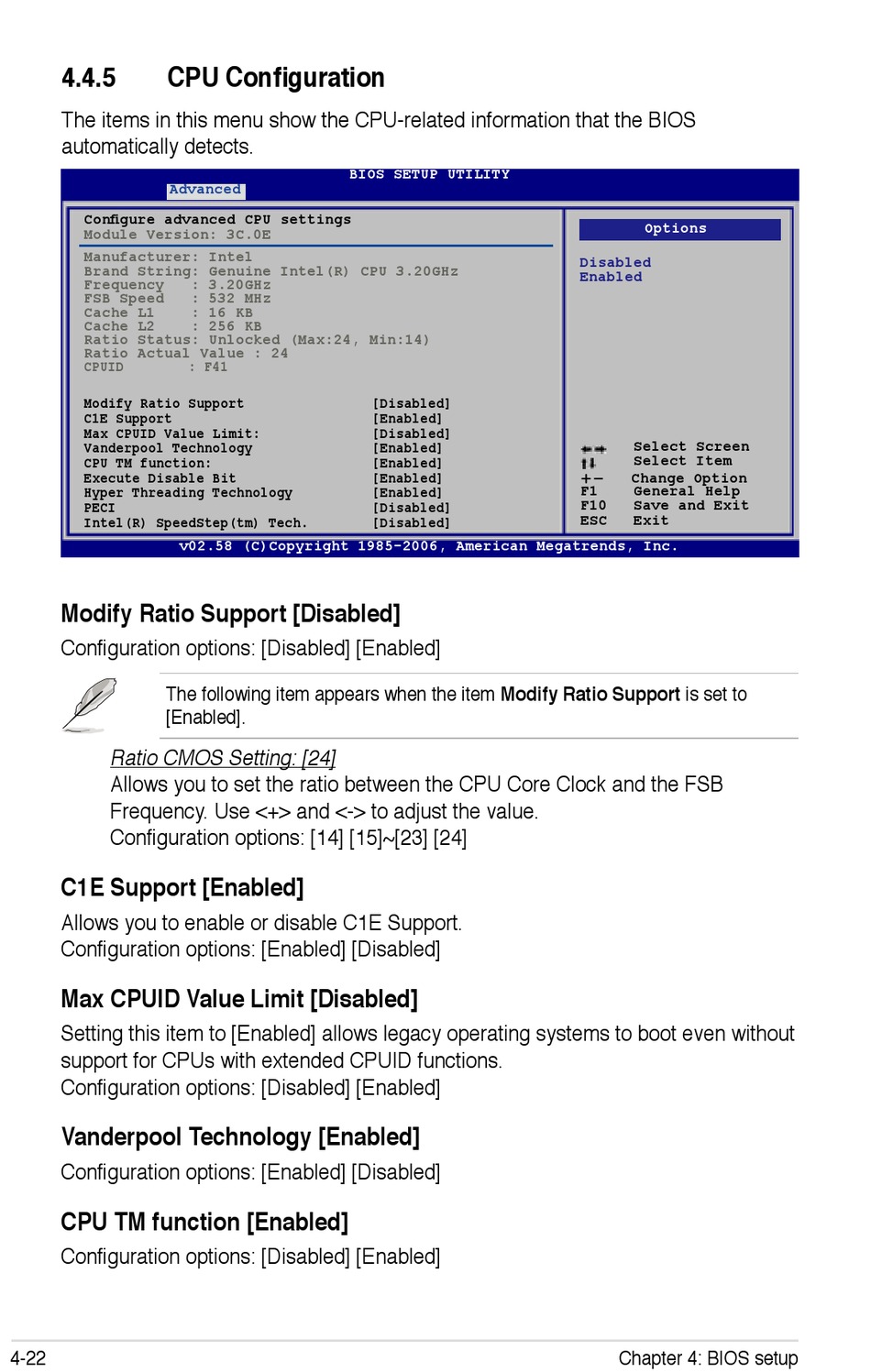

4.4.5

CPU Configuration

The items in this menu show the CPU-related information that the BIOS
automatically detects.
Advanced
Configure advanced CPU settings
Module Version: 3C.0E
Manufacturer: Intel
Brand String: Genuine Intel(R) CPU 3.20GHz
Frequency
FSB Speed
Cache L1
Cache L2
Ratio Status: Unlocked (Max:24, Min:14)
Ratio Actual Value : 24
CPUID
Modify Ratio Support
C1E Support
Max CPUID Value Limit:
Vanderpool Technology
CPU TM function:
Execute Disable Bit
Hyper Threading Technology
PECI
Intel(R) SpeedStep(tm) Tech.
Modify Ratio Support [Disabled]
Configuration options: [Disabled] [Enabled]
The following item appears when the item Modify Ratio Support is set to
[Enabled].
Ratio CMOS Setting: [24]
Allows you to set the ratio between the CPU Core Clock and the FSB
Frequency. Use <+> and <-> to adjust the value.
Configuration options: [14] [15]~[23] [24]
C1E Support [Enabled]
Allows you to enable or disable C1E Support.
Configuration options: [Enabled] [Disabled]
Max CPUID Value Limit [Disabled]
Setting this item to [Enabled] allows legacy operating systems to boot even without
support for CPUs with extended CPUID functions.
Configuration options: [Disabled] [Enabled]
Vanderpool Technology [Enabled]
Configuration options: [Enabled] [Disabled]
CPU TM function [Enabled]
Configuration options: [Disabled] [Enabled]
4-22
: 3.20GHz
: 532 MHz
: 16 KB
: 256 KB
: F41
v02.58 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled]
[Enabled]
[Disabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Disabled]
[Disabled]
Options
Disabled
Enabled
Select Screen
Select Item
+-
Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Chapter 4: BIOS setup
