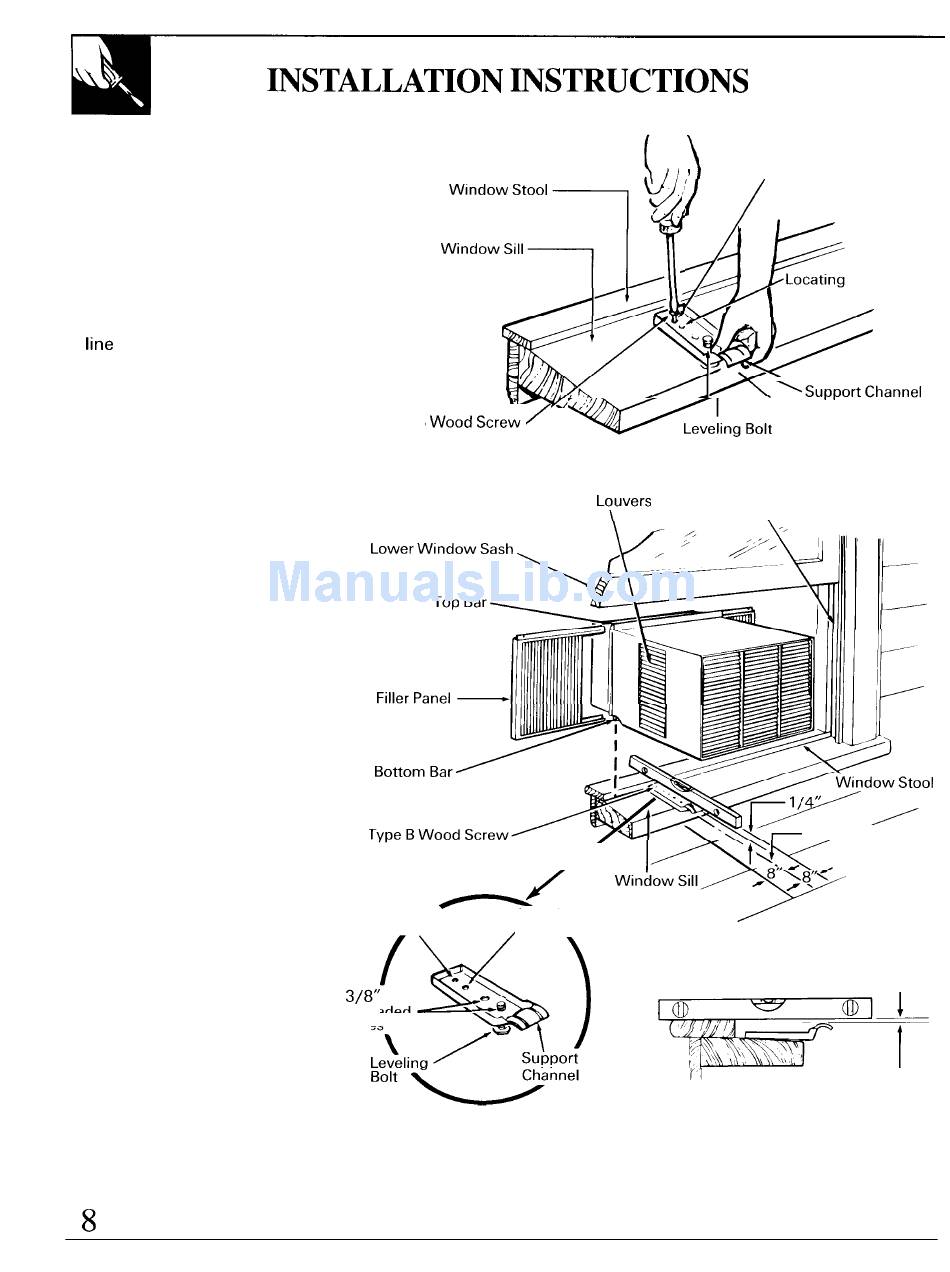

1. Open window. Locate and
mark centerline of window. Mark
two lines 8" to left and 8" to right
of centerline.
2. Screw leveling bolt in correct
3/8" threaded hole of support
channel. Depth of window sill will
determine which 3/8" threaded
hole to use.
3. Place support channel over 8"
of window sill with end
against window stool. Mark
window sill through Locating
Hole A in support channel.
4. Move support channel
away from window stool until
Mounting Hole B is over the mark
on the window sill. Secure the
support channel by driving a Type
B wood screw into the window
sill through Mounting Hole B.
5. Adjust leveling bolt so curved
top of support channel is 1 /4"
below the top of the window
stool. This downward tilt toward
the outside prevents water from
entering the room.
Caution: Do not drill a hole in the
base pan. Unit is designed to
operate with approximately 1/2"
of water in the base pan.
6. Repeat steps 2 through 5 for
second support channel.
7. Center the air conditioner in
the window opening with the
bottom bar setting behind the
window stool.
Do not cover side louvers.
(continued)
Type B
Mounting Locating
Hole B
Hole A
.
Threaded
Holes
Mounting Hole B
/'
\
Side L:uvers
Sash Tracks
/
OUTSIDE
Locating Hole A
'\
\
– Centerline
1 4
' "1
