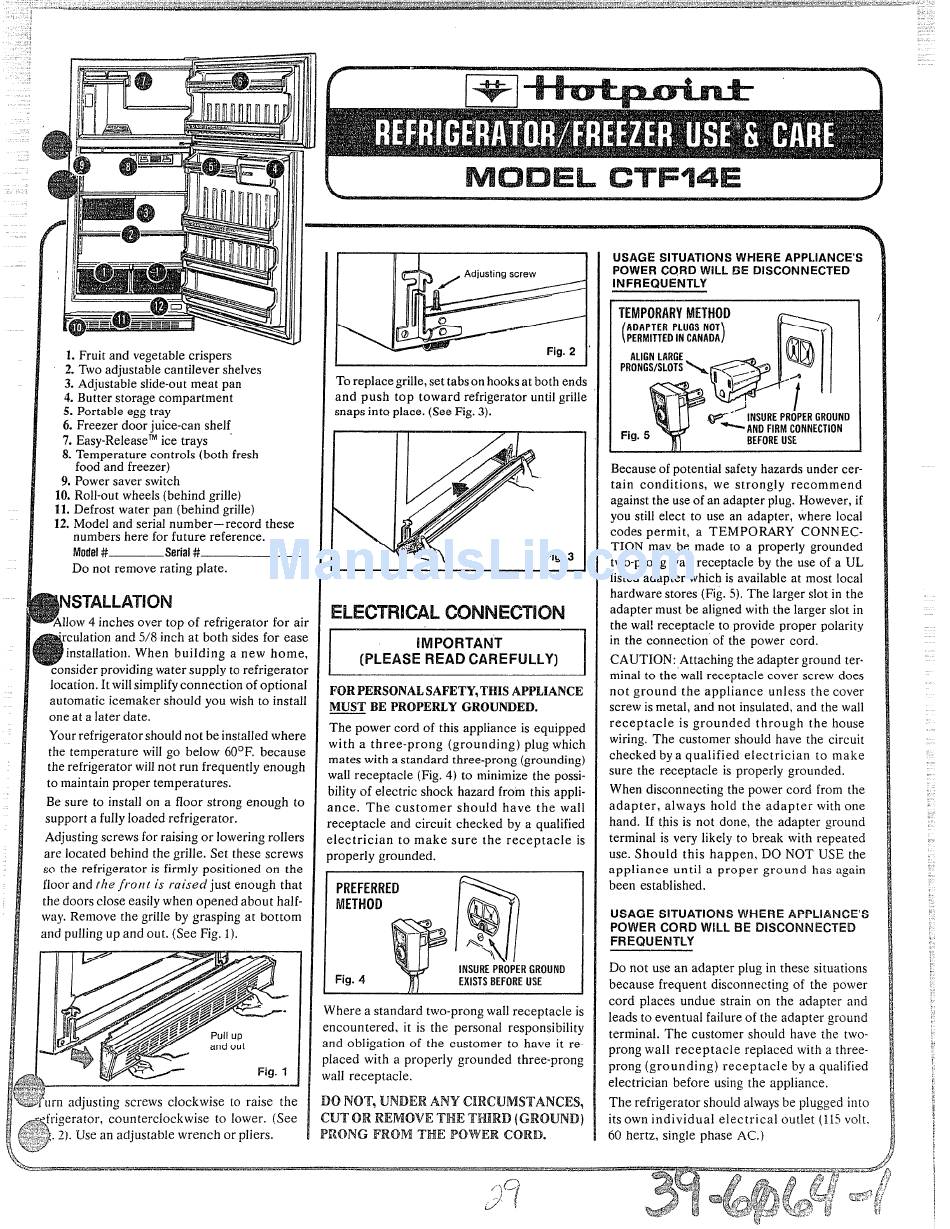

L Fruit and vegetable crispers
2. Twoadjustable cantilever shelves
3. Adjustable slide-out meat pan
4. Butter storage compartment
5. Portable egg tray
6. Freezer door juice-can shelf
7. Easy-Releasemice trays
"
8. Temperature controls (both fresh
food and freezer)
9. Power saver switch
10. Roll-out wheels (behind grille)
11. Defrost water pan (behind grille)
12. Model and serial number– record these
numbers here for future reference.
Model #——
Serial #
Do not remove rating plate.
WSTALLATION
MODEL
CTFfi4E
WAI1OW
4 inches over top of refrigerator for air
D
"rculation and 5/8 inch at both sides for ease
installation. When building a new home,
consider providingwater supply to refrigerator
location. It willsimplifyconnection of optional
automatic icemaker should you wish to install '
one at a later date.
Yourrefrigerator should not be installed where
the temperature will go below 60°F. because
the refrigerator will not run frequently enough
to maintain proper temperatures.
Be sure to instal~on a floor strong enough to
support a fully loaded refrigerator.
Adjusting screws for raising or lowering rollers
are located behind the grille. Set these screws
so the refrigerator is firmly positioned on the
floor and the
front is raised
just enough that
[he doors close easily when opened about half-
way, Remove the grille by grasping at bottom
and pulling up and out. (See Fig. 1).
?
I]rn adjus[ing screws clockwise to raise the
~frigerator, counterclockwise to lower. (See
]. 2). Use an adjustable wrench or pliers.
1
Adiusting screw
1
I
Toreplace grille, set tabs on hooksat both ends
and push top toward refrigerator until grille
snaps into place. (See Fig. 3).
Fig.
3
ELECTRICAL CONNECTION
I
IMPORTANT
(PLEASE READ CAREFULLY)
I
FORPERSONAL SAFETY,'I'HIS APPLIANCE
MUST BE PROPERLYGROUNDED.
The power cord of this appliance is equipped
with a three-prong (grounding) plug which
mates with a standard three-prong (grounding)
wall receptacle (Fig. 4) to minimize the possi-
bility of electric shock hazard fro"mthis appli-
ance. The customer should have the wall
receptacle and circuit checked by a qualified
electrician
to make sure the receptacle
is
properly grounded.
PFMFEW?ED
METHOD
n
Q
Q
%
63
\
-ii
Fig. 4
INSURE PROPER GROUND
EXISTSBEFOREUSE
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility
and obligation of the customer to have it re-
placed with a properly grounded three-prong
wall receptacle.
D() NOT,
ILHWIIER
ANY CKXJMSTAJWES,
cur
OR REMOVE
'n-m THIRD
(GROUND)
PRONG
FROM
TIMEPOWER
ICORD.
U!3JWE
$31 T UATKWJS
WHEF?IE AfWJAFdW$
POWER CORD WitJ. DE DISCONNECTED
1NFREQUENTL%
TEMPORARY
METHOD
~
(
&l
ADAPTER PLUGS NOT
)
1>
PERMITTED IN CANADA
ALIGN LARGE
~ --0
Q
Pt'tONGS/SLOTS >
~Q$---_
~>
..)
/
w'
INSUREPROPERGROUND
-
AND FIRMCONNECTION
Fig. 5
BEFOREUSE
Because of potential safety hazards under cer-
tain conditions, we strongly recommend
against the use of an adapter plug. However, if
you still elect to use an adapter, where local
codes permit, a TEMPORARY C(?NNEC-
TION may be made to a properly grounded
two-prongwall receptacle by the use of a UL
listed adapter which is available at most local
hardware stores (Fig. 5). The larger slot in the
adapter must be aligned with the larger slot in
the wall receptacle to provide proper polarity
in the connection of the power cord.
CAUTION: Attaching the adapter ground ter-
minal to the"wall receptacle cover screw does
not ground the appliance unless the cover
screw is metal, and not insulated, and the wall
receptacle
is grounded through the house
wiring. The customer shouid have the circuit
checked bya qualified electrician to make
sure the receptacle is properly grounded.
When disconnecting the power cord from the
adapter, always hold the adapter with one
hand. If this is not done, the adapter ground
terminal is very likely to break with repeated
use. Should this happen, DO NOT USE the
appliance until a proper ground has again
been established.
USAGE SITLJATIONSWHERE APPLIANCE'S
PC?WER CORD WILL BE DISCONNECTED
FREQUENTLY
Do not use an adapter plug in these situations
because frequent disconnecting of the power
cord places undue strain on the adapter and
leads to eventual failure of the adapter ground
terminal. The customer should have the two-
prong wall receptacle replaced with a three-
prong (grounding) receptacle by a qualified
electrician before using the appliance.
The refrigerator should alwaysbe plugged into
its own individual electrical outlet (115volt.
60 hertz, single phase
AC.)
/f2
