VOI-8001
VOI-8002
VOI-8003

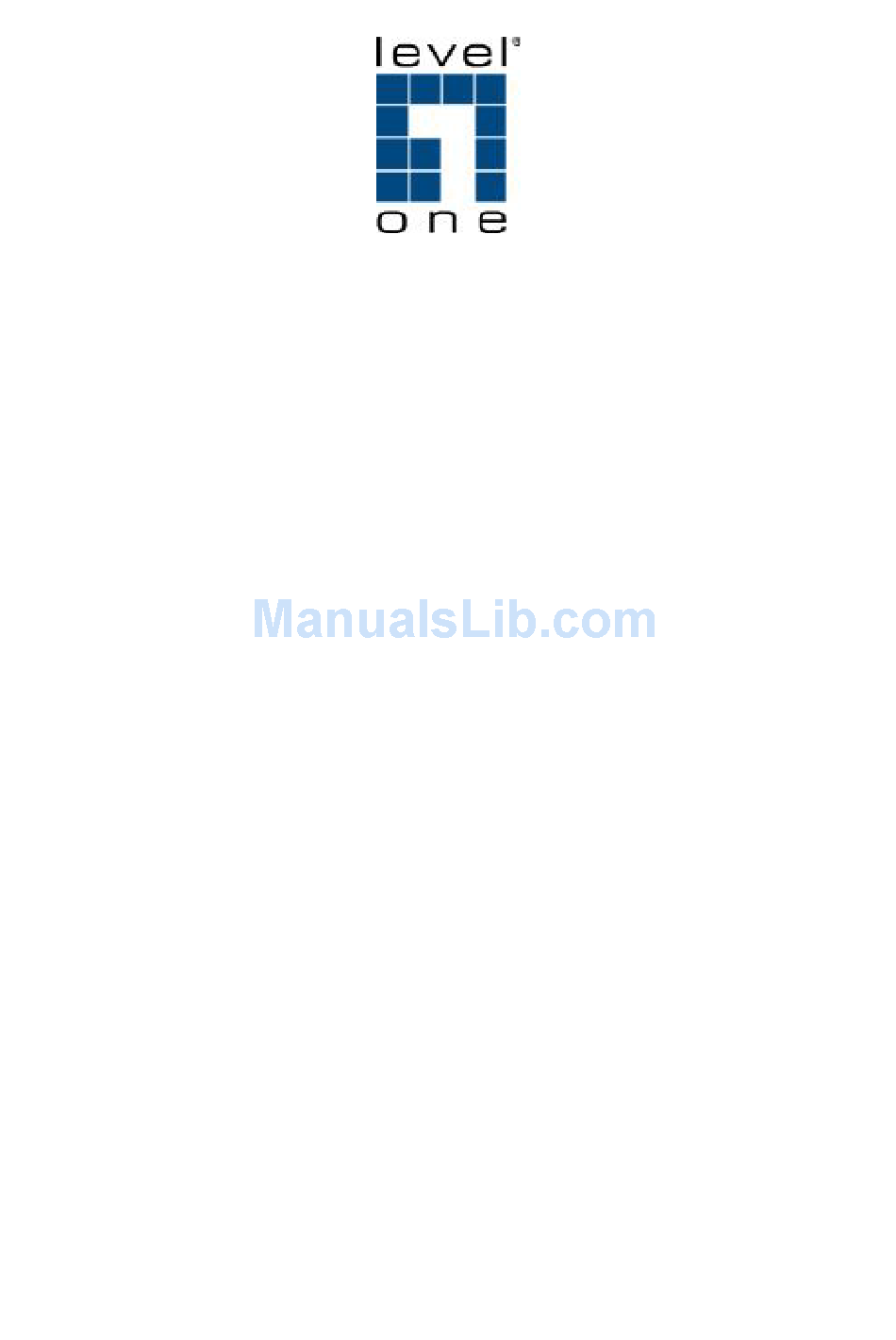

8-Port H.323/SIP VoIP Gateway

User Manual

1
Ver. 1.01-0610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOI-8001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LevelOne VOI-8001

Summary of Contents for LevelOne VOI-8001

  • Page 1: User Manual

    VOI-8001 VOI-8002 VOI-8003 8-Port H.323/SIP VoIP Gateway User Manual Ver. 1.01-0610...

  • Page 2: Table Of Contents

    Table of contents CHAPTER 1. INTRODUCTION ...............3 1.1 O ..............................3 VERVIEW 1.2 P .............................3 ACKAGE ONTENTS 1.3 K ..............................4 EATURE CHAPTER 2 GETTING STARTED ............5 2.1 F ..............................5 RONT ANEL CHAPTER 3 CONFIGURATION.............7 3.1 C ..............................8 ONNECTION 3.2 S ............................10 YSTEM STATUS 3.3 R ............................11...

  • Page 3: Chapter 1. Introduction

    DHCP Client, MAC Address Cloning, PPPoE and multiple auto-provisioning methods. 1.2 Package Contents 8-Port VoIP Gateway CD User Manual Cat.5 Cable Power Adapter, 12VDC / 2A Model No List VOI-8001 8-Port FXS VoIP Gateway VOI-8002 8-Port FXO VoIP Gateway VOI-8003 4FXS+4FXO VoIP Gateway...

  • Page 4: Key Feature

    1.3 Key Feature VoIP  Support 8 simultaneous VoIP calls  Support T.38 FAX relay  Support QoS(ToS) for VoIP  Compliant with H.323 / SIP VoIP standard protocol  Extensible by external IVR/CDR/Billing servers for value- added application  Support register up to 4 Gatekeepers / Proxy servers ...

  • Page 5: Chapter 2 Getting Started

    (LAN): The LED light on when LAN port was connected, flash quick when LAN port transmission Voice or data. (Only for VOI-8002, VOI-8003) Note: VOI-8001 displays 1~8 Phone LED only VOI-8002 displays 1~8 Line LED only VOI-8003 displays 1~4 Line and 5~8 Phone LED only...

  • Page 6: Rear Panel

    2.2 Rear Panel VOI-8001 VOI-8002 VOI-8003 DC12V: For the included power adapter. Be sure to use only the 12VDC/2A power adapter included with the product. Using the wrong power adapter can damage the product and void the warranty. Reset: Clear all settings and restore them to the initial values present when the device was purchased.

  • Page 7: Chapter 3 Configuration

    Chapter 3 Configuration The default setting of DHCP Server inside VoIP Gateway is turn ON, So please set up your PC TCP/IP network as “Get IP Automatically” from DHCP to get internal IP from VoIP Gateway. By default, The VoIP Gateway will become the network gateway and default IP is 192.168.22.1 and will assign your PC IP as 192.168.22.X.

  • Page 8: Connection

    3.1 Connection Click “Connected Type” option below “System Setup\Wan” item: Please select the type of Internet connection you have and set up the VoIP Gateway to use the Dynamic IP Address, Static IP Address, PPPoE, PPTP or L2TP connection. If your ISP has not given you an IP address, select Dynamic IP Address (default).
  • Page 9 To use PPPoE ADSL connection, please select Yes in use “PPPoE” ADSL service and enter the “username” and “password” in the PPPoE setup section. Most of ADSL ISPs assign dynamic-IP settings to the VoIP Gateway when using PPPoE. Please select Obtain IP Address Automatically(default setting).

  • Page 10: System Status

    3.2 System status This page reveals the status of the VoIP Gateway including WAN, LAN and some hardware/firmware information.

  • Page 11: Register Server

    3.3 Register Server If this VoIP Gateway wants to use SIP Proxy or GateKeeper service to transfer the VoIP call, you can input the server information here. The VoIP Gateway can register to up to four servers simultaneously. This page reveals the status of the server registration information. Here is the server configuration page, please ask the information form your ITSP.

  • Page 12: Oip Call Out

    3.4 VoIP Call Out User key in the phone number through phone set dial pad, then VoIP Gateway translate the phone number by the routing table setting here to destination IP & dial out number then Call out via network protocol Remark: For Notify remark for this rule.
  • Page 13  IP address, for example: 168.56.9.22  URL, route via URL. For example: www.inphonex.com .This VoIP Gateway can setup to register to DDNS service (/System Setup /Advanced/ Dynamic DNS/) to let user call out to another VoIP Gateway with dynamic IP by URL. ...

  • Page 14: Chapter 4 Web Ui Management

    Chapter 4 Web UI Management 4.1 Access to Web UI The VoIP Gateway provide user friendly Web interface to let you configure your VoIP Gateway function The default setting of DHCP Server inside VoIP Gateway is turn ON, So please set up your PC TCP/IP network as “Get IP Automatically”...

  • Page 15: Web Ui Management

    4.2 Web UI Management The VoIP Gateway provide user friendly Web interface to let you configure your VoIP Gateway function and VoIP function. There are a help on line content within each setting page. Please press Help hyperlink to view the on line help. There are 3 main functions for web, VoIP, System Setup (VoIP Gateway) &...
  • Page 16 System Maintenance function Configurations Backup/Restore  VoIP Module Backup/Restore  Reboot System  Save Modification  Gateway Manual overview...
  • Page 17 4.2.2 VoIP Function 4.4.2.1 VoIP Setup/ Port Status/ This page will display the current and last time VoIP call status & result. The PC time : will show the date & time that your connected PC now. The VoIP Gateway time : will show the date & time on this VoIP Gateway, the date&...
  • Page 18  Out: There is a phone call made from Network VoIP and pick up by phone set. Connected IP: The remotely party IP of this VoIP call. Caller ID: Caller ID received from telephone line port. Start Time: Date & time of this VoIP call begin on this port. End Time: Date &...
  • Page 19 4.2.2.2 VoIP/Line Configure/ Line Setting /VoIP Setup/Line Configure/Line Setting/ This page will setup the phone line information each port. Port: display the port number, e.g. 1 or 2. Interface: Telephone interface type:  FXO: for connect to telephone line or PBX extension line. ...
  • Page 20 when you off hook the phone connected to the line 1, it will directly call to another VoIP gateway location at 168.56.09.22 and dial 601. You can enable the line 1 as hot line, and add a routing rule on the routing table on /VoIP Setup/Routing Setup/VoIP Call Out/ to assign the...
  • Page 21 4.2.2.3 Line configure/ Tone Setting /VoIP Setup/Line Configure/ Tone Setting A.Call Progress Tone This page defines the tones generated to the phone connected to the phone port. The cadence of CPT is been defined here also. All lines use same tone save modify parameters.
  • Page 22  Busy: Define the busy tone for generate.  Ring: Define the ring back tone for generate Low freq: Lower frequency for defined tone High freq: Higher frequency for defined tone. Each tone can define two frequencies, if only one frequency needed, please leave High Frequency to T_ON_1, T_OFF_1, T_ON_2, T_OFF_2: ...
  • Page 23 4.2.2.4 Line configure/ Line Feature /VoIP Setup/Line Configure/ Line Feature This page defines the feature on the phone port of the VoIP Gateway. A. Dial Pause signal length(as ,)[100~3000] ms: Define the pause time (ms) of the “,” on the /Routing Setting/VoIP Call Out/.
  • Page 24  Current Drop-> 3 S: Enable FXS interface to generate three seconds Current Drop signal. C. Called Number Relay on FXS ： Define when use the FXS interface to outbound call, resend or Drop out the dialed number. Drop out: Do not send the dialed number. When use the FXS port ...
  • Page 25 Line number Priority: The 1 line has high priority; it will always ring  the 1 line if it is available. When 1 line is busy, it will try to ring 2 line if it is free. Rotation: 1 line ring first, then 2 line ring next time, when the ...
  • Page 26 4.2.2.5 Line configure/ Line Polarity /VoIP Setup/Line Configure/ Line Polarity This page defines the Polarity on the phone port of the VoIP Gateway. If use the normal phone set to connect gateway, please select “Normal”. If use PBX or special PSTN line (support polarity invert), then please select “Invert”.
  • Page 27 4.2.2.6 Routing Setup/ VoIP Call Out Setting /VoIP Setup/Routing Setup/VoIP Call Out This page let you define the routing rule for Call out to VoIP. (User press the phone number through phone set dial pad, then VoIP Gateway translate the phone number by the routing table setting here to destination IP &...
  • Page 28 translate for call out rule without needed to press # key. FirstDigitTime: Define the waiting time (seconds) for user press phone number first digit. User need to press first digits before the setting time (seconds) defined here, if VoIP Gateway wait for the defined seconds and there is no any digits press, the VoIP Gateway will stop to wait and feedback the user busy tone.
  • Page 29 Remark: Remark for this routing rule. Please use UNDERLINE to replace the SPACE due to HTTP protocol limitation. Area Code: Define the Prefix number fit this rule, any phone number prefix digits matched with the rule will call out by this rule define. Please Notify there is a compare order rule on this routing table.
  • Page 30 for gatekeeper 1. gk2 for gatekeeper 2. gk for all the gatekeepers available ( search sequence: gk1 > gk2 > gk3 > gk4). Gk3_2_1 will try gk3 first, then gk2, then gk1. All the setting above can be added by port number, for examples: 168.56.9.22:8495 will call to 8495 port.
  • Page 31 user press the number is 886212345678 and the STRIP field is setting to 4, the first 4 digits 8862 will be truncated and actually call out number will be 12345678. Prefix: The numbers will be added on the prefix of the user press number. For examples, if user press the number is 12345678 and the PREFIX field setting 0028862,...
  • Page 32 C.Setting Examples Here is some VoIP call out routing table setting examples below: Define wait time and digits for destination phone number MaxDigits: FirstDigitTime(Sec): OtherDigitTime(Sec): In this case, when user picks up the phone, the VoIP Gateway will generate 30 seconds (defined on FirstDigitTime) dial tone for user press DTMF for destination phone number, After user press first digit DTMF from phone set (for example, 0, the VoIP Gateway will wait 5 seconds (defined on OtherDigitTime)
  • Page 33 Port Message Display Talking Port Type Status Connected IP Caller ID Start Time End Time Dialed number Release by name 2004/02/19 2004/02/19 Idle 172.16.7.1 (146)onHangup 13:55:10 13:55:43 Idle Call by Domain name: Index Remark Area Code Min Digits Max Digits IP Address Strip Prefix...
  • Page 34 Index Remark Area Code Min Digits Max Digits IP Address Strip Prefix Profile Delete Take_All 10.1.1.1 Never_Used 8621 20.1.1.1 NEVER Strip and Prefix User is easy to combine using Strip and Prefix define to modify the phone number from phone to real call out phone number, for example, if the VoIP Gateway is installed on Taipei and use another Gatekeeper to service global service.
  • Page 35 Via_GK2 Delete 35H35H 35H GK2_3_1 gk2_3_1 Delete 36H36H 36H GK_ALL Delete 37H37H 37H By Index 1, if user input any phone number with prefix code is 1, The VoIP Gateway will call out via Gatekeeper 2. By Index 2, if user input any phone number with prefix code is 2, The VoIP Gateway will try to call out by Gatekeeper 2 ( if register to Gatekeeper 2 is successful), if Gatekeeper 2 is not available, it will check Gatekeeper 3, then check Gatekeeper 1.That mean if register to gk2 is failure and register to gk3 &...
  • Page 36 UsePF2 10.1.1.2 Delete 41H41H 41H UseDefaultPF Gate.proxy.com Delete 42H42H 42H Q.931 H.245 DTMF T.38 Package Index Name CODEC Fast Tunneling Relay FAX Relay Frame Start Delete G.723.1 Out band 00001 H.323 1001 E.164 Delete 43H43H 43H G.723.1 In band 00002 H.323 1002 E.164...
  • Page 37 4.2.2.7 VoIP Call In Routing Table Setting /VoIP Setup/Routing Setup/VoIP Call In/ This page let you define the routing rule for Call in from VoIP. (VoIP Gateway got a VoIP call required form Network, and then translates the phone number passed from remote side VoIP Gateway to the real dial out number &...
  • Page 38 b. Auth：Authorization IP check enable. Enable IP range authorization function. When Enable, the gateway will check the remote caller IP range setting on , if it is /VoIP Setup/Routing Setup/Authorization/ within the authorization, the gateway will allow the call out, but if the remote caller’s IP is not in the range, it will refuse to call out and terminate this call.
  • Page 39 Index Area Code Strip Prefix Maximum Minimum From LineNo Gatekeeper Alert Profile Forward Delete 2 0,12345678 Delete 51H51H 51H Ex: VoIP Call in number is 90 and real dial out number is 0,12345678 by stripe 2 digits and add 0,12345678 prefix, so the real dial out number is 0,12345678.
  • Page 40 To: Define the ending line number for service this area code VoIP call. Index Area Code Strip Prefix Maximum Minimum From To LineNo Gatekeeper Alert Profile Forward Delete Delete 54H54H 54H Delete 55H55H 55H Delete 56H56H 56H Ex. Any VoIP Call in number with prefix 601 will ring the line 1, and Any VoIP Call in number with prefix Call in number 602 will ring the line 2.
  • Page 41 k. Call Waiting：Enable or Disable the call waiting function。  Enable: During Talk, you can answer another phone call and hold the original conversation. When some one call in when you are busy on another phone call , you will hear a du-du call waiting signal, please use flash key on your phone to hold the original call and answer the incoming call, press again flask key will switch back the original call party.
  • Page 42 Delete G.723.1 Out band 00001 H.323 1001 E.164 Delete 66H66H 66H G.723.1 In band 00002 H.323 1002 E.164 Delete 67H67H 67H When VoIP call in number with prefix 1 will use the Profile named PF1 ( H.323 ID1 = 0001, E.164 ID=1001, DTMF Relay=Out band, Q.931 Fast Start=ON) to answer the VoIP Call in.
  • Page 43 10.1.1.1/104, it mean it will forward this call to IP 10.1.1.1 and calling number will change to 104). When the line 1 user is going to have a tour to another location with same VoIP Gateway equipment, user setup the called prefix number 601 forward to profile name CF1, and in CF1 profile, the Always field is set to hk.big.com/301, that mean any call number with prefix 601 will always be forward to another VoIP Gateway locate at hk.big.com and dial out number...
  • Page 44 4.2.2.8 VoIP Call In IVR Setting /VoIP Setup/Routing Setup/VoIP Call In IVR/ When Enable the [Prompt Voice for VoIP Call In function on /VoIP , all the remote party of VoIP caller will Setup/Advance Setup/Prompt Voice/ hear the customization upload voice file and need press the destination number.
  • Page 45 A. Time & Digits wait for user The VoIP Gateway wait user input the number digits & time parameters as below: Time & Digits wait for user Press. MaxDigits: Define the maximum digits wait for user press for all VoIP Call Out, if user press digits match the number defined here.
  • Page 46 Min Digits: define the minimum digits wait for user press for number fit this rule, if user press digits less the number defined here. It will keep waiting for input until exceed the FirstDigitTime defined time. If user press digits more then Min Digits here, the VoIP Gateway will wait time defined on OtherDigitTime then go to translate for call out rule without needed to press # key.
  • Page 47 4.2.2.9 VoIP Routing Profile Setting /VoIP Setup/Routing Setup/Routing Profile/ This page defines the optional special VoIP parameters when making/received a VoIP call. For define some special parameters for different VoIP equipment or authorize purpose, please add a profile at /VoIP Setup/Routing Setup/ Routing Profile/ and use the same name as the profile on the Call in Routing Table...
  • Page 48  When select In band to transfer the DTMF during VoIP, the user pressed DTMF tone will be treat as general voice and been compressed then transmit to remote side to decompress play back, it maybe cause some problem on duplicate or missing DTMF receive. ...
  • Page 49 Please remember to press the modify button to take it effect. For store back to flash memory, please press Save Modification (/System Maintenance/Save Modification/). Here is VoIP Routing Profile setting examples below: Q.931 H.245 DTMF T.38 Package Index Name CODEC Fast Tunneling Relay...
  • Page 50 4.2.2.10 VoIP Forwarding Profile Setting /VoIP Setup/Routing Setup/Forwarding/ This page defines the forwarding behavior include:  get an unmatched prefix number for VoIP call in,  Line busy  No answer Please add a profile at /VoIP Setup/Routing Setup/Routing Profile/ put the name of profile on the Call out Routing table /VoIP Setup/Routing Setup/VoIP Call Out/...
  • Page 51 No Answer Sec. Defined the wait seconds for redirect forward to another IP(or URL). Delete: Delete this rule item on routing table. To add new rule item on routing table, please assign the item number you want to insert before, input AREA CODE then press ADD button to add it on the list.
  • Page 52 mean any call number with prefix 601 will always be forward to another VoIP Gateway locate at hk.big.com and dial out number is 301. When the line 2 is busy and another VoIP with prefix 602 Call in, it will forward it to the assist.big.com with same number (defined on OnBusy).
  • Page 53 1.4.2.11 VoIP Authorization Setting /VoIP Setup/Routing Setup/Authorization/ When this gateway has been used for outbound call, it can enable to check the remote caller gateway’s IP to decide accept or refuse the call. If define the IP range /VoIP Setup/Routing Setup/VoIP here and enable the [Auth] option on the Call In/ , only the IP in range will allow to call out by this gateway.

  • Page 54: Register Server Setting

    4.2.3 Register Server Setting 4.2.3.1 Register Status /VoIP Setup/Register Server/Register Status You Can check the register status of this gateway on this page. a. MAC: this gateway’ MAC Address。 b. RS1-4: Indicate the status of 4 server register.  SIP&H323: The protocol used for registering the server, this gateway supports both H.323 and SIP protocol.
  • Page 55 4.2.3.2 Setup the Register Server—SIP Protocol /VoIP Setup/Register Server/Server If you need use this gateway to register to the H.323 gatekeeper or SIP register/proxy server, you can setup the account for register here. This gateway can register up to four Servers simultaneously. a.
  • Page 56   Disable Register SIP Proxy server function. d. SIP Proxy URL: Please input the IP/URL of the SIP proxy server. e. Port [1~65535]: Port number used for register to server. The SIP protocol default is 5060, please make sure you have same port number setting on the gateway and server.
  • Page 57 q. Conference ID: Some SIP Server requires an ID to enable the conference function, please input the ID here to enable that. r. Enable: Enable or disable independently each line for register.
  • Page 58 4.2.3.4 Setup the Register Server—H.323 Protocol /VoIP Setup/Register Server/Server When Select use H.323 to register gatekeeper, please input the flow information for register: Register Method:  Global: All the lines of the gateway share same account to register.  Independent: Each line different/same...
  • Page 59  FXO: Analog phone interface for connect to PSTN or PBX extension line  FXS: Analog phone interface for connect to phone set or PBX Co. line. Remark : Remark for this routing rule. Please use UNDERLINE to replace the SPACE due to HTTP protocol limitation. h.

  • Page 60: Auto Provision Function

    4.2.4 Auto Provision function To use the auto provision function, the system have to install a dedicate Auto Provision Server for keep all parameters for installed gateways. When Enable the Auto Provision function, the System administer can modify all the Parameters of each gateway on the local Provision Server, and remote gateway will automatic download all the parameters from Provision Server.
  • Page 61 It will indicate the status of linking to each Provision Servers. The gateway will link to one of the five setting Provision Server each time. If successful link, it will display green indicator. If failure link, it will display red indicator. The yellow indicator means it is disable. Last link time: Display the Date &...

  • Page 62: Advance Setup

    4.2.5 Advance Setup 4.2.5.1 NAT Traversal /VoIP Setup/Advance Setup/NAT Traversal If your VoIP gateway is installed behind NAT, you may need a special configuration and server to establish the VoIP communication, this gateway support several method for NAT Traversal as below: ...
  • Page 63 4.2.5.2 Listen Port /VoIP Setup/Advance Setup/Listen Port In this page, user can define the usage port for setup the VoIP communication. Both side of gateways need use the same port for begin VoIP communication. a. SIP Listen Port : Define the listen port for SIP protocol, the default port is 5060, input range from 1024 to 65535.
  • Page 64 4.2.5.3 VoIP Package /VoIP Setup/Advance Setup/VoIP Package User can define the parameters relative about VoIP package on this page.  Jitter Buffer(ms): Define the Jitter buffer size, input range is from 20 to 200ms.  VoIP DTMF Relay Mode: Define the relay mode for DTMF signal: ...
  • Page 65  RFC2833: Payload number for DTMF[96~127]: Define the DTMF token on RFC2833, input range form 96 to 127.  RTP Packet NAT Detect By: User can select the packet transmit method when under the NAT network environment, by IP (NAT 255 fake IP), or transmit by TCP port, usually suggest select the option “By IP or By Port”.
  • Page 66 4.2.5.4 RTP Packet Summary /VoIP Setup/Advance Setup/RTP Packet Summary On this page, user will know the RTP package summary about last VoIP call.  Line#: number of line  Using CODEC: ex.: G.723.1, G.729a  Source IP: Remote side IP ...
  • Page 67 4.2.5.5 Flash & Call waiting /VoIP Setup/Advance Setup/Flash & Call waiting On this page, user can define the parameters relative to the FLASH key and Call Waiting function. These functions usually work with PBX  Token for flash key on VoIP(!): Define the token for flash key during VoIP protocol ( use “! “...
  • Page 68 4.2.5.6 Gain /VoIP Setup/Advance Setup/Gain This page defines different function gain on the gateway.  Gain when Dial tone phase： When phone off hook, user will hear the dial tone generated from the gateway, sser can adjust the play/record gain during this phase for stable DTMF detection.
  • Page 69 This item allows user to adjust the talking volume of the device, which means it will affects all ports of this device, User can select the db value of Play and Record, it will increase or decrease the talking and listen volume. User can adjust individual port talking or listen volume in page Line Configure ...
  • Page 70 4.2.5.7 QoS /VoIP Setup/Advance Setup/QoS User can define the ToS field on the VoIP packet for Quality of Service control. The ToS field is included these 2 parameters:  Precedence: bit 0,1,2  DSCP(Diffserv Code Point): bit 3~7 User can select input either IP Precedence or DSCP value. Or input the ToS binary code directly.
  • Page 71 4.2.5.8 CDR /VoIP Setup/Advance Setup/CDR The Gateway can export all the CDR (Call detail Record) to external CDR server by HTTP protocol. The gateway supports up to 2 CDR servers for keep the record.  Export to CDR Server: Please install and enable this function if you want to keep CDR of this gateway.
  • Page 72 4.2.5.9 FoIP /VoIP Setup/Advance Setup/FoIP User can define the parameters relative FAX Over IP function.  FAX Mode Appoint the FAX mode during FoIP:  Disable: Only the VoIP function is supported on the gateway. FoIP is disabled. By default was disable. ...
  • Page 73 Enable or Disable to send the double packet function during high speed T.38 FoIP.
  • Page 74 4.2.5.10 Prompt Voice&Beep /VoIP Setup/Advance Setup/Prompt Voice & Beep This gateway can use voice or beep to prompt the user different situation. User can download/upload their own prompt voice wave files also. For prompt beep enable function, it can be enable by: ...
  • Page 75  Prompt voice for replace dial tone: Use a customize voice file to replace the dial tone  Warming Prompt after VoIP out failure: Annunciate a customize voice file when VoIP call failure.  No PSTN Line Connected : Annunciate a customize voice file when there is no trunk connected to the PSTN port and failure to call via PSTN line.

  • Page 76: Application

    4.2.6 Application 4.2.6.1 Ping test /VoIP Setup/Application/Ping Test User can use the Ping Test function to test the network status or remote device  Ping Destination:Ping: Target device IP for ping test.  Number of Ping[1-100]Ping: Number of ping test, maximum is 100. ...
  • Page 77 4.2.6.2 Telnet & SNMP /VoIP Setup/Application/Telnet & SNMP User can enable and set the user account for the SNMP and Telnet function of this gateway on this page. a. Enable telnet server  Enable: Enable telnet service function, user can telnet this gateway.
  • Page 78 4.2.6.3 Call Timer /VoIP Setup/Application/Call Timer The gateway can enable to set the limit communication time to Line port by Area Code rule issue on this page.  Pre Alarm: Set the Call time limit before the arrival, to issued the warning sound of few seconds down, default is disable, you can choose for four options(Disable, 10Sec, 20Sec, 30Sec).
  • Page 79 4.2.7 System  4.2.7.1 System Status This page reveals the status of the gateway including WAN, LAN and some hardware information. Internet This sub-block shows the Internet information of your home gateway. It depends on the WAN mode connecting to your ISP. The different items correspond to each WAN mode will be revealed after the common part of the Internet status sub-block.
  • Page 80 Cable/DSL This field indicates the Internet connection status. Its value is Connected , Disconnected or Connecting. WAN IP Connected to the Internet through Cable or ADSL modem, the ISP will offer the home gateway a WAN IP address to communicate with other hosts in the Internet.
  • Page 81 Connection Type There are five ways to get the WAN IP address. They are DHCP, STATIC, PPPoE, PPTP and L2TP. This field indicates the way to get the WAN IP address. Through Figure 3-2 to 3-6 detail all specific items of each mode. Gateway IP Address This field is the LAN IP address of the home gateway.
  • Page 82 Short for Media Access Control address, a hardware address that uniquely identifies each 96H96H 96H node of a network. This field indicates gateway’s LAN MAC address. 97H97H 97H WAN MAC Address This field indicates gateway’s WAN MAC address. Hardware Version Tells the version of hardware of the gateway.

  • Page 83: System Settings

    4.2.7.2 System Settings This page is used to configure the names given by the ISP, if any, to represent the gateway, and also to set the local time zone. Host Name Some ISPs request the host name to represent the home gateway. Fill the host name given by the ISP, or you may not be able to access the Internet successfully.
  • Page 84 4.2.7.3 Date & Time This page is used to setting the system time of VoIP gateway; it can define the correct time by which ways.
  • Page 85 4.2.7.4 Administrator Setting This page allows you to change the user and administration password used to manage this VoIP Gateway for security reasons.

  • Page 86: System Log

    4.2.7.5 System Log The system log page shows the gateway’s activity logs such as the Internet connectivity, hacker attack, intrusion detection and the wireless association. The log helps you to do fault analysis or regular statistics. Download Save the log to a local file. Clear Clear the log.
  • Page 87 Remote Log Settings Remote Log Check this file and the gateway will send the log message to the “Send Log to” remote host. Send Log to Set the IP address to send log. Email Log When the log buffer is full, the gateway will check whether this item is enabled. If enabled, the gateway will send all the log messages to the “Send Email to”...

  • Page 88: Route Function(/System Setup)

    4.2.8 Route Function(/System Setup) 4.2.8.1 Setting WAN connection: System Setup/Connection /System Setup/WAN/Connected Type Connection Type There are five ways to connect to the Internet. They are Dynamic IP, Static IP, PPPoE, PPTP and L2TP. The cable modem ISP usually requests you to obtain the WAN IP dynamically.
  • Page 89 Request IP address You can specify the IP address you desired. But the ISP has the right to neglect it and provides you a different one. MTU (576-1500) You can specify the MTU (maximum transmission unit) of your home gateway. The default value is 1500 bytes and in normal case, you don’t have to change.
  • Page 90 IP address assigned by your ISP Set the IP address that assigned by the ISP. Subnet Mask Set the subnet mask of the network. ISP Gateway Address Set the ISP’s gateway IP address. This address routes packets to Internet. C. PPPoE...
  • Page 91 This page is the PPPoE configuration page. Most of the ISPs request the user to connect to central office (CO) side via PPPoE, acronym of Point-to-Point Protocol over Ethernet, which provides authentication, authorization and accounting. User Name Enter the user name provided by your ISP to identify the computer using PPPoE.
  • Page 92 that the user does not have to worry about the MTU size, the gateway routing engine will handle the MTU differences between PPP and the LAN Ethernet side. But for some old PPPoE server, you have to make the MTU size of the PPPoE side smaller than the default value, or some Web side is not able to access.
  • Page 93 User can set this device work as a bridge, set the necessary information. A network bridge connects multiple network segments at the data link layer (layer 2) of the OSI model, and the term layer 2 switch is often used interchangeably with bridge. Bridging group IP address Enter the bridging IP address in this column.
  • Page 94 Static DNS Server Check this item to make the primary and secondary DNS server at the next two rows active. If this field is not enabled, the statically configured DNS server will not take effect. Domain Name Server (DNS) Address Set your primary DNS in this field.
  • Page 95 4.2.8.2 LAN Settings /S/System Setup/LAN/LAN Settings/ The home gateway is an IP sharing device, which provides the home users share the same public IP address. While in the LAN side, each network device must have one private IP address to do network communication. This page is to set the configuration of the LAN interface of the gateway.
  • Page 96 IP Pool Ending Address The ending address provided by DHCP service. Lease Time Set the lease time of the IP address to renew. Local Domain Name Set the gateway’s local Domain Name. DNS Proxy The home gateway acts as a DNS Proxy. In this case, the DHCP service will set LAN interface IP address as the DNS server address, and inform the clients in the DHCP renew process.
  • Page 97 This column shows the host name of the DHCP clients. IP Address This column shows the IP Address of the DHCP clients. MAC Address This column shows the MAC Address of the DHCP clients. Static Check this item to make the IP address static, and every time the client connect to the home gateway, it will get the same IP address all the way.
  • Page 98 4.2.8.3 NAT Virtual Server This is the virtual server page, which set the rules translate the private IP/private port pairs to the public ports. Private IP Set the IP address of the virtual server. Private Port Set the port of the virtual server to connect to Internet. Type Set the protocol of the virtual server.
  • Page 99 Special Application Trigger Port To define the TCP/UDP port range to monitor, when initiating from the home network, the public ports configured in this entry will be activated. Trigger Type Defines the protocol type: TCP, UDP or both of the trigger ports. Public Port This column defines the public ports opened when the trigger ports were seen.
  • Page 100 The Port Mapping page does a port range mapping. Server IP Set one of LAN client’s IP address to do port mapping. Mapping Ports Set the ports to mapping from WAN to LAN. You can enter multiple ports, delimited by comma, or a range of port by dash. White space will be neglect. Public Type Defines the protocol type, TCP/UDP/Both, of the public ports.
  • Page 101 Some applications have to do Application Level Gateway (ALG) to monitor the transaction or monitor the payload of the packet. This page let you setup them. We use mnemonic nouns to describe the specific ALGs. The checked entries will be enabled by the ALG processing. For the Non-Standard FTP Port, you have to set the port number to let the ALG take it as an FTP session.
  • Page 102 Check this item to enable DMZ service. DMZ table This table lets you configure the DMZ hosts. If you have more than one public IP Addresses, you can specify each one with an associated DMZ host. Public IP MZ table Address Select among the WAN IP addresses of the home gateway.
  • Page 103 4.2.8.4 Firewall Firewall Options Enable Hacker Attack Protect The hackers always try to break into you system or crack down your network. The gateway provides hacker attack protect modules to protect your home network. Discard PING from WAN side “Ping” is the most widely used tool to diagnose the network. Hackers use “ping”...
  • Page 104 scans all the TCP/UDP port of a station to find out the opened ports. After confirmed, the hackers try to connect to the listened ports to attack your computer. Check this option, the home gateway will drop the port scan packets to protect your system.
  • Page 105 Client Filtering Enable Client Filter Check this box and all the entries below will take effect. Block the IP addresses ranged to connect to Internet. Port Set the port range, within which is not allowed to connect to Internet. Type Set which protocol, TCP/IP/Both, of this entry to inhibit.
  • Page 106 URL Filtering Enable URL Filter Check this box and all the entries below will take effect. The IP addresses ranged will be the candidate to check the URL when they use web browser to access the Internet. URL filter string The specific URL string to block.
  • Page 107 MAC Control MAC Control MAC Address Control Check this item to enable MAC control service. Filter out or only accept the following MAC address connect to Internet Select “Filter out”, the MAC addresses list in the following table will be block out to access the Internet.
  • Page 108 4.2.8.5 Routing Routing Table This field indicates the destination IP of this route entry. Subnet Mask This field indicates the Subnet Mask of this route. Gateway If a packet’s destination IP address do “bit and” operation with the “Subnet Mask” equals to the “Destination LAN IP”, the packet will send to the Gateway.
  • Page 109 Static Routing Destination LAN IP This field indicates the destination IP of this route entry. Subnet Mask This field indicates the Subnet Mask of this route. Gateway If a packet’s destination IP address do “bit and” operation with the “Subnet Mask”...
  • Page 110 4.2.8.6 UPnP Settings UPnP Enable UPnP Check this item to enable UPnP. UPnP Port Number Set UPnP port number to announce to the UPnP control points. The UPnP control points use this TCP port to send request to the home gateway. Advertise Time (60-1800) Set the time interval after which the home gateway sends advertisement packets.
  • Page 111 Port Mapping Remote Host This field lists remote host that connect to LAN client. External Port This field lists the port of the remote host connect to LAN client. Internal Client This field lists LAN client connect to the Internet. Internal Port This field lists port of LAN client connect to the Internet.
  • Page 112 4.2.8.7 DDNS Enabled Check this item to enable the DDNS settings Disabled Check this item to disable the DDNS settings Host Name Set your host name that need to do DDNS update. DDNS Server Set the DDNS server that updates your IP address. User Name The DDNS server requires you to supply a name and password to update your IP address.

  • Page 113: Bandwidth & Vlan

    4.2.9 Bandwidth & VLAN 4.2.9.1 Bandwidth Control You can enable WAN or LAN bandwidth control in this configuring page, so far only the Upsteam Bandwidth is workable, you can fill in the limit value in Upstream Bandwith to make limiytation. 4.2.9.2 VLAN This function is used for special purpose of application.

  • Page 114: Backup/Restore

    4.2.10 Backup/Restore 4.2.10.1 Configuration /Backup-Restore/Configurations/ This page let you backup / Restore all of your configuration parameters on the VoIP Gateway. It is very good idea to back up all of your VoIP Gateway configuration parameters after install. To Backup, press Download setting backup file, and input the file name you want and file location to save.
  • Page 115 4.2.10.2 VoIP Module /System Maintenance/Backup-Restore/Configurations/ This page displays the current firmware module version and let you backup / Restore all of your VoIP firmware module on the VoIP Gateway. Please use this page to update the VoIP module firmware if necessary. To Restore from local file, press the Browse button the select the VoIP module file to upload then press Restore .
  • Page 116 4.2.10.3 Reboot System /Reboot System Use the Reboot button on this page to reboot your VoIP Gateway, before you reboot, please make sure you have to press the Saved modification to save your current configuration to Flash ROM, otherwise all the change will be disappear after reboot.

  • Page 117: Save Modification

    4.2.11 Save Modification /Save Modification/ Most of the VoIP Gateway parameters will take effective after you modify, but it is just temporary stored on RAM only, it will disappear after your reboot or power off the VoIP Gateway, to save the parameters into Flash ROM and let it take effective forever, please remember to press the Save Modification button after you modify the parameters.
