3.3.2.7

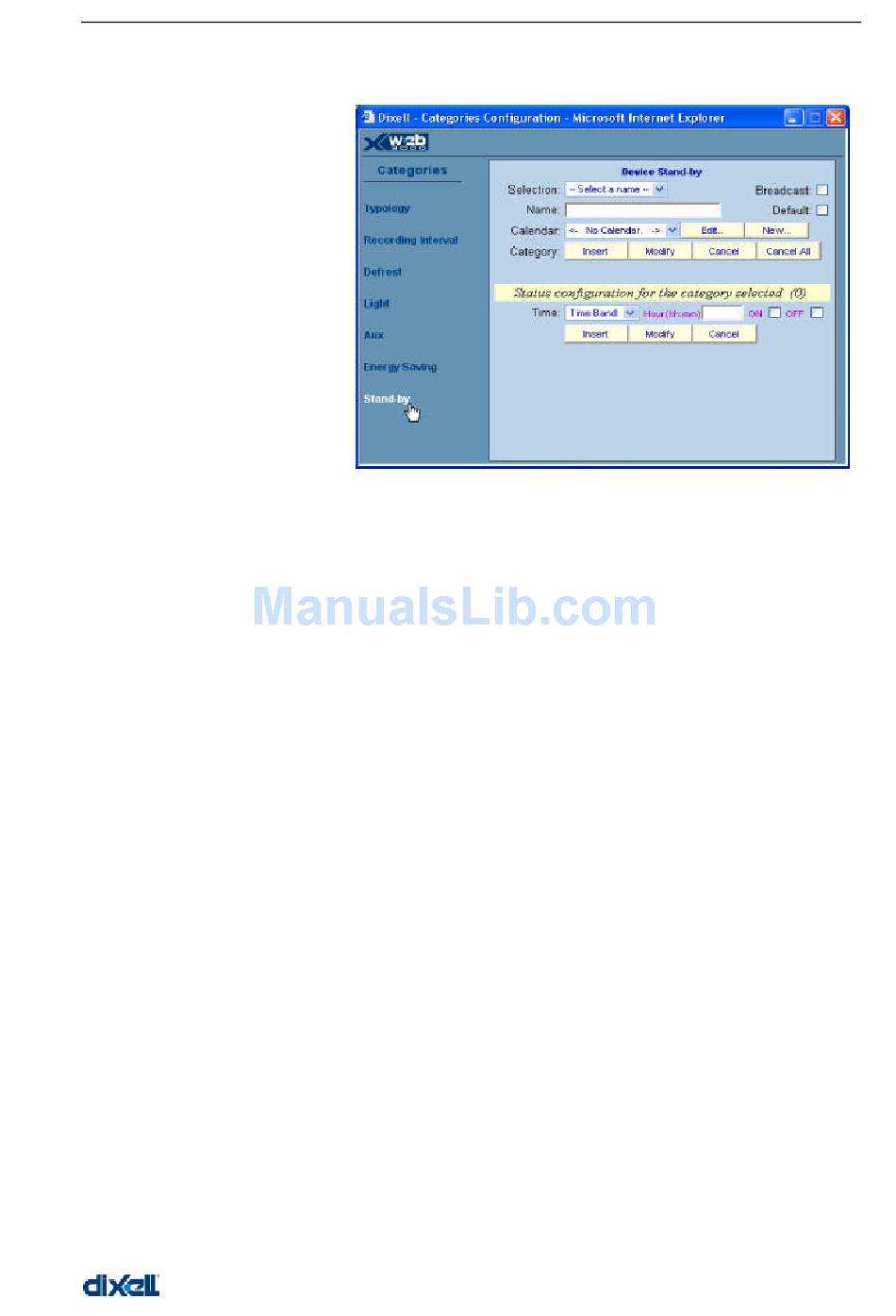

DEVICE STAND-BY COMMAND

It defines the time table to send to
the instrument a
command. The display of the
instruments shows
Regulation and alarms are off,
too. Xweb 3000 continues to
monitoring probe inputs, but alarm
reporting is turn off. Please pay
attention that "Time Band"
means that a Stand-By command
is send to the instruments, so the
instruments turns Off. On the
contrary "Time Band"
means that a Device
command is send
instruments, so the instruments
turns On.
Eg: define a "Standard Stand-by"
Then "Time Band" 23:30 ON, the
instrument turns OFF. Add "Time
Band" 04:30 OFF, the instruments
turns ON.
•
To insert a new item
Click into the field "Name" and insert the word or the words that more represents the application;
The most common category should be set as "Default" by clicking into its box; It helps to save time
for most part of the instruments.
Click on "Insert".
•
To modify an existing item
Select the item from the "Selection" list;
Change the "Name" description;
Click the " Default " if necessary;
Click on "Modify". Wait the screen refresh.
•
To delete one of the item of the list
Select the item from the "Selection" list;
Click on "Cancel";
Confirm the operation if necessary. Wait the screen refresh.
•
To reset all the items of the list
Click on "new";
Wait the screen refresh.
•
To delete all the items of the list
Click on "Cancel All";
Confirm the operation if necessary. Wait the screen refresh.
•
How to program the list of the Stand-by events
Click into " Hour (hh:mm)" and then insert the hour and the minutes: then select "ON" or "OFF" to
switch on or off the instrument in that time.
Select the Calendar function if you need to schedule the events by calendar filtering.
If no Calendar function selected the operation is daily repeated.
Click on "Insert" to add the new event.
Repeat the procedure to fill the list of the daily events.
•
To change the time of the event
From the "Selection" menu find the appropriate item.
Then select from the "Time Band" the appropriate time.
Click into " Hour (hh:mm)" and then insert the new hour and minutes
Click on "Modify".
Stand-By
"OFF".
ON
OFF,
ON
to the
