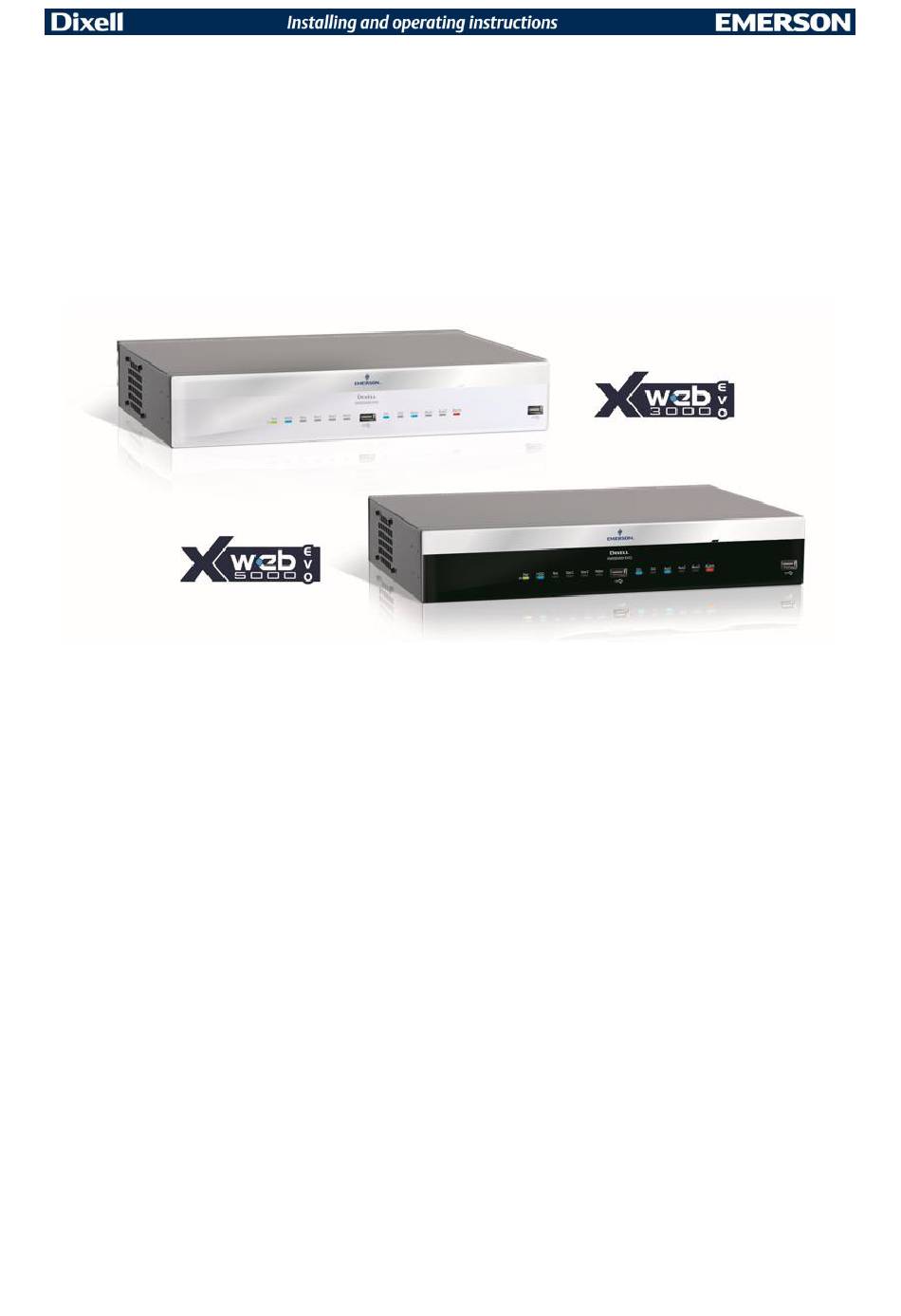

- Page 1 XWEB3000/5000 EVO (V.1.6) INSTALLATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT DISPOSAL (WEEE) ....................... 4 THE RECIPIENTS OF THIS MANUAL ..................... 4 PACKAGE ..............................5 INSTALLATION ............................6 CONTROLLER INSTALLATION PROCEDURE ..................9 CONTROLLER CONFIGURATION ......................10 4.2.1 CONFIGURATION FOR XC400/600/800/900 and XH200/300/400 SERIES ......... 10 4.2.2 CONFIGURATION FOR XJA/XJP/XJM MODELS ................ - Page 3 CAUTION Dixell srl reserves the right to amend this manual without prior notice. The latest available version can be downloaded from the internet site. CAUTION instructions...
-
Page 4: Product Disposal (Weee)
CAUTION Since Dixell products form part of a very high level of technology, a qualification/configuration/programming/commissioning stage is required to use them as best as possible. Otherwise, these products may malfunction and Dixell cannot be held responsible. -
Page 5: Package
Dixell-approved model; accordingly, Dixell will not be held responsible for the poor operation of devices that are not expressly approved. The user manual, in the "manuals" section of the Dixell site, contains a list of supported models. -
Page 6: Installation
INSTALLATION For installation, the XWEB-EVO system must not be opened in any way. If the box is opened, the warranty will lapse. XWEB-EVO can be installed in various ways based on the type of user interface access that you wish to provide for the final user. - Page 7 Technical features Power supply 100-230 V Power 60 W Voltages and maximum current applicable to the AUX AUX1-2-3 terminals 1-2-3 AUX1 AUX2-3 Operating conditions (temperature, humidity, special 0/45°C R.H.5÷95% (non-condensing) conditions) Electrical safety (reference standards) Standard EN 60950-1 Electromagnetic compatibility (reference standards) Immunity EN 61000-6-2:2005 EN 55024:1998 + /A1:2001 +/A2:2003...
- Page 8 Colour Description Green On when the system is powered Blue On when the disc executes physical writing operations Blue On when the system is recording data Ser1/Ser2 Blue On when the system is reading and/or writing on serial port 485 Blue On when the system runs operations with the analogue modem DI1/DI2...
-
Page 9: Controller Installation Procedure
XWEB-EVO has two RS485 serial ports that the line for the controller devices need to be connected to. Most Dixell controller devices are supplied with RS485 serial outputs, to connect the instrument to XWEB-EVO without requiring an external module or connecting cable. To check whether this feature is provided, read through the characteristics of the controller in the device manual. -
Page 10: Controller Configuration
Incorrect connection • Keep the serial cable away from power cables and from any possible source of electromagnetic disturbance • Do not connect the serial cable shielding to the earth connection of the electrical system • Do not connect the "Gnd" terminal. •... -
Page 11: Energy Meters And Third Party Instrument Configuration
4.2.3 ENERGY METERS AND THIRD PARTY INSTRUMENT CONFIGURATION For non-Dixell instruments it will be necessary to configure the serial to work with baudrate 9600bps, 8bit, No Parity and 1 Stop bit (aka “9600,8,N,1). The use of another serial configuration may not be recognised by XWEB-EVO and this would lead to incorrect device operation. -
Page 12: Local Connectivity
LOCAL CONNECTIVITY The most common and frequently used user interface access is local access through a screen, mouse and keyboard, directly connected to XWEB-EVO. The system can also operate without having these peripheral devices connected, for example, use these modes for the initial system configuration;... -
Page 13: Remote Connectivity
REMOTE CONNECTIVITY GENERAL RULES, AND MINIMUM REQUIREMENTS The XWEB-EVO user or installer can access his/her user interface either locally from the screen, keyboard or mouse, or from a PC which must be connected and configured to communicate with the XWEB-EVO network. The XWEB-EVO Ethernet port that needs to be used for remote connectivity must be the LAN port, shown below Attention: For the technical characteristics and maintenance of the quality of the electrical signal, it is recommended to use shielded cables also on the connection cables... -
Page 14: Desktop
The PC that you wish to use for the connection must fulfil and support the minimum characteristics for installation and use: DESKTOP Browser Support Minimum Version Microsoft Internet Explorer (IE) SUPPORTED Microsoft Edge SUPPORTED Mozilla Firefox SUPPORTED Google Chrome SUPPORTED Apple Safari SUPPORTED Opera... -
Page 15: Connectivity With Cross Cable
CONNECTIVITY WITH CROSS CABLE Local access from the PC is the fastest way to manage setup. It is possible to connect a PC to XWEB-EVO through the network interface supplied with an ‘RJ45 Ethernet connector’. The connection between the two must be set up using a cross network cable (aka 'cross cable'). - Page 16 To configure the network interface of your PC, it is normally necessary to access the administrator level. Refer to the documents for your computer's operating system. The figure below illustrates the steps that need to be taken to configure a network interface on a computer with WINDOWS 7. 1592010870 XWEB3000-5000 EVO STP GB r1.6 12.10.2018.doc XWEB3000/5000 EVO 16/22...
-
Page 17: Modem Connectivity ("Or Point-To-Point Connection")
230/100 or 24V XWEBMODEM. Do not buy any type of modem other than the listed ones. Dixell cannot be held responsible for any damage caused by the use of non-recommended modems. Connect the modem to the serial port on the back of the unit, using the cable supplied with the modem. -
Page 18: Making The Remote Access Call
Enter the telephone number of the line that XWEB-EVO is connected to. If there is a switchboard and the number that needs to be dialled for the external line is 0, enter: 0,04379833. Enter ‘dixell’ as the user name and password connection parameters. Enter a name to identify the XWEB-EVO that you wish to contact with the call. -
Page 19: Intranet ("Or Lan Connection") And Vpn Connectivity
INTRANET (“OR LAN CONNECTION”) AND VPN CONNECTIVITY This type of connection allows you to access XWEB-EVO from any PC connected to the local network. This type of connection must also be used to configure XWEB-EVO for internet connection through VPN (Virtual Private Network). -
Page 20: Internet Connectivity On Public Ip
Provide your XWEBEVO ports (LAN side) to your ISP and/or network administrator. • 80 (used for HTTP access) • 22 (used for SSH access) OPERATION For operating procedures, please refer to http://www.dixell.com where you can find the updated version. 1592010870 XWEB3000-5000 EVO STP GB r1.6 12.10.2018.doc XWEB3000/5000 EVO 20/22... -
Page 21: System Data
SYSTEM DATA Fill in the table below, make a xerox copy and keep it near the XWEB. HostName ___________________________ [example: myXWEB001 ] IP Address ___________________________ [example: 192.168.0.123 ] Gateway ___________________________ [example: 192.168.0.1 ] ___________________________ [example: 8.8.8.8 ] SMTP ___________________________ [example: 192.168.0.14 ] E-mail Address ___________________________ [example: myXWEB001@company.com... -
Page 22: Notes
10. NOTES ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ 1592010870 XWEB3000-5000 EVO STP GB r1.6 12.10.2018.doc XWEB3000/5000 EVO 22/22...
