2) Keyboard Wake Up (3 pin KBPWR1)
This allows you to disable or enable the keyboard power up function. Retain
the default setting of [1-2] to use your keyboard by pressing <Spacebar> to
power up your computer. This feature requires an ATX power supply that
can supply at least 720mA on the +5VSB lead. (The computer will not power
ON if you set to [1-2] but do not have the correct ATX power supply.)

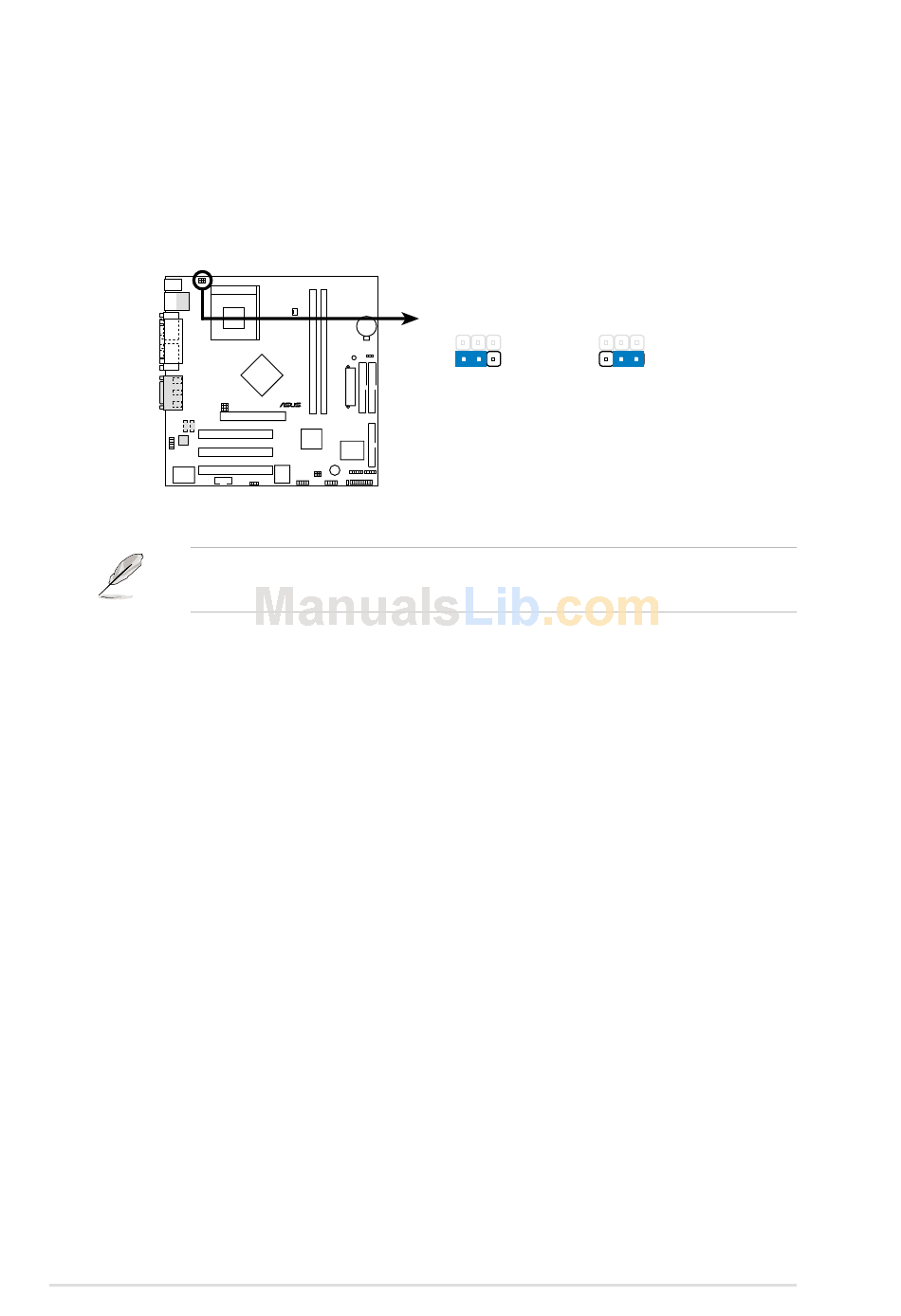

A7N266-VM Keyboard Power Setting
NOTE!
PS2 Mouse in 4.5.1 Power Up Control.
20
A7N266-VM
®
This jumper must be set in conjunction with Wake On PS2 KB/
KBPWR1
1 2
2 3
+5V
+5VSB
(Default)
