2.5.2 Memory configurations

Install DIMMs in any of the following combinations.
DIMM Location
Socket 1 (Rows 0&1)
Socket 2 (Rows 2&3)
Total system memory (Max. 1GB)

2.5.3 Installing a DIMM

CAUTION!
removing DIMMs or other system components. Failure to do so may cause
severe damage to both the motherboard and the components.

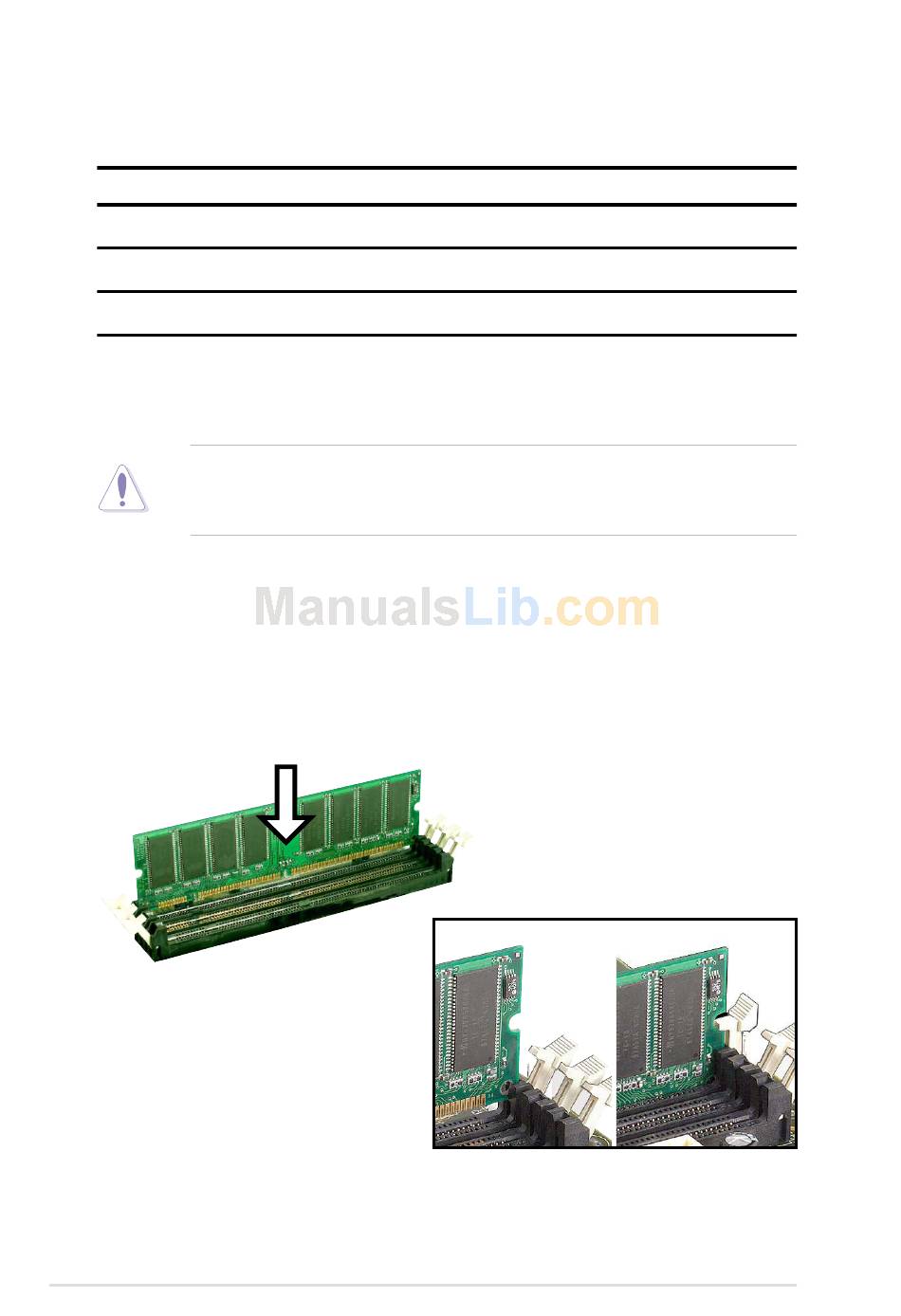

Installing a DIMM:
1. Unlock a DIMM socket by pressing the retaining clips outward.
2. Align a DIMM on the socket such that the notches on the DIMM exactly
match the notches in the socket.
3. Firmly insert the DIMM into the socket until the retaining clips snap back
in place.
14
184-pin DIMM (DDR)
64MB, 128MB, 256MB, 512MB
64MB, 128MB, 256MB, 512MB
Make sure to unplug the power supply before adding or
Unlocked Retaining Clip
Chapter 2: Hardware information
Total Memory
x1
x1
=
Locked Retaining Clip
