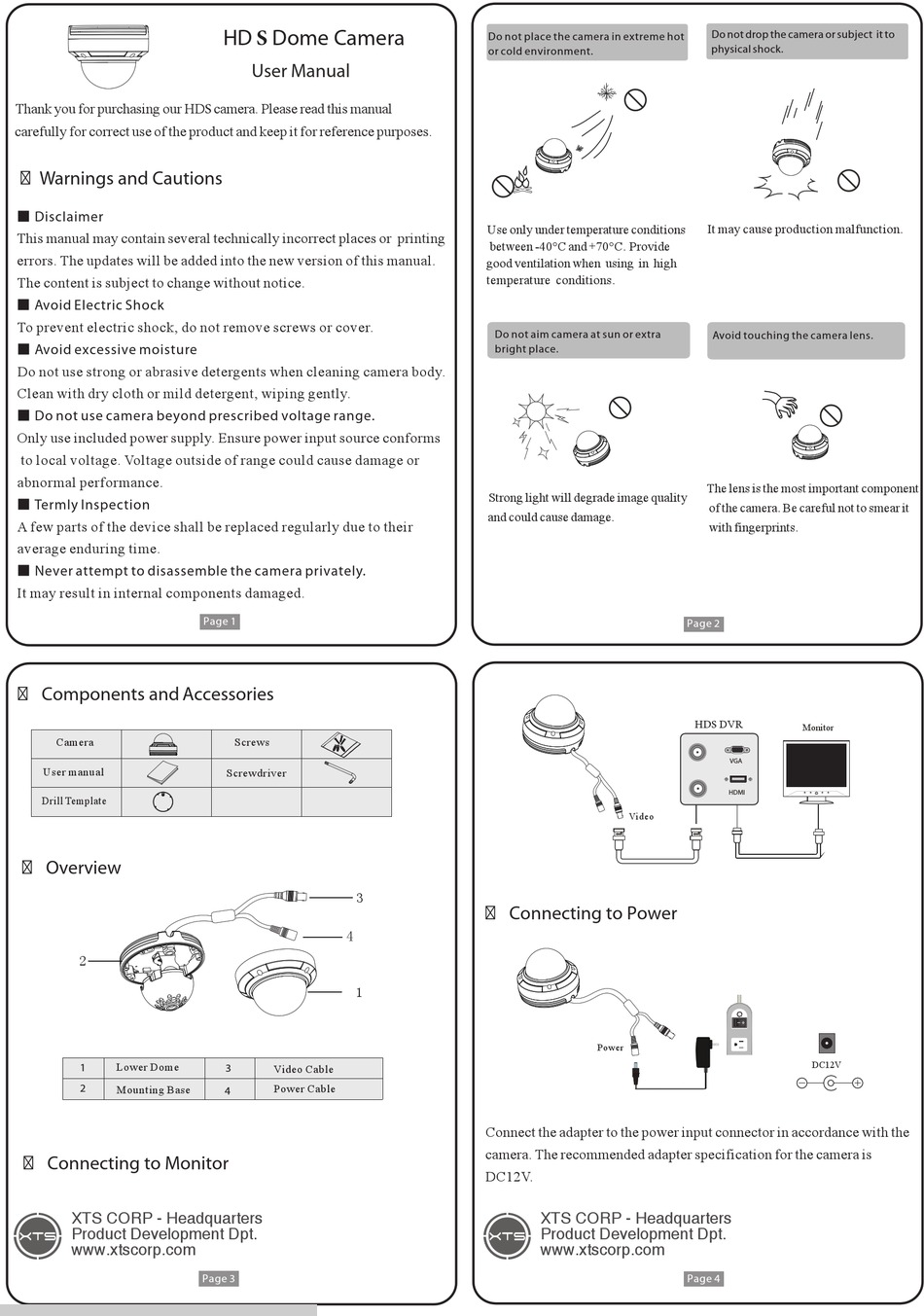

XTS MD1080PF-HDS User Manual

Thank you for purchasing our HDS camera. Please read this manual
carefully for correct use of the product and keep it for reference purposes.

Warnings and Cautions

■ Disclaimer
This manual may contain several technically incorrect places or printing
errors. The updates will be added into the new version of this manual.
The content is subject to change without notice.
■ Avoid Electric Shock
To prevent electric shock, do not remove screws or cover.
■ Avoid excessive moisture
Do not use strong or abrasive detergents when cleaning camera body.
Clean with dry cloth or mild detergent, wiping gently.
■ Do not use camera beyond prescribed voltage range.
Only use included power supply. Ensure power input source conforms
to local voltage. Voltage outside of range could cause damage or
abnormal performance.
■ Termly Inspection
A few parts of the device shall be replaced regularly due to their
average enduring time.
■ Never attempt to disassemble the camera privately.
It may result in internal components damaged.

Components and Accessories

Camera

User manual

Drill Template
Overview
2
Lower Dome
1
2
Mounting Base

Connecting to Monitor

XTS CORP - Headquarters
Product Development Dpt.
www.xtscorp.com
HD S Dome Camera
User Manual
Page 1
Screws
Screwdriver
3
4
1
3
Video Cable
Power Cable
4
Page 3
Do not place the camera in extreme hot
or cold environment.
Use only under temperature conditions
between -40°C and +70°C.Provide
good ventilation when using in high
temperature conditions.
Do not aim camera at sun or extra
bright place.
Strong light will degrade image quality
and could cause damage.
Video

Connecting to Power

Power
Connect the adapter to the power input connector in accordance with the
camera. The recommended adapter specification for the camera is
DC12V.
XTS CORP - Headquarters
Product Development Dpt.
www.xtscorp.com
Do not drop the camera or subject it to
physical shock.
It may cause production malfunction.
Avoid touching the camera lens.
The lens is the most important component
of the camera. Be careful not to smear it
with fingerprints.
Page 2
HDS DVR
Monitor
VGA
HDMI
DC12V
Page 4
