REMOTE CONTROL
®
ENGINE STARTER
U S E R M A N U A L
MODEL RSS-2524
For all hybrid, gas-
and diesel-powered
vehicles.
This model may
be equipped with an
optional security system.
(FRANÇAIS AU VERSO)
C
S
P
ONSULT
AFETY
RECAUTION SECTION
.
BEFORE USING THIS PRODUCT
S
OME FEATURES MAY REQUIRE
(N
).
ADDITIONAL MATERIAL
OT INCLUDED
PATENT NOS
CAN 1.130.426
USA 4.345.554 - 5.614.883
- 5.617.819 - 5.673.017
AND OTHER PATENTS PENDING
All rights reserved © Astroflex Electronics 2007
September 2007
UBRSS2524
Advertisement
Table of Contents
Related Manuals for AstroStart RSS-2524
Summary of Contents for AstroStart RSS-2524
-
Page 1: Remote Control
REMOTE CONTROL ® ENGINE STARTER U S E R M A N U A L MODEL RSS-2524 For all hybrid, gas- and diesel-powered vehicles. This model may be equipped with an optional security system. (FRANÇAIS AU VERSO) ONSULT AFETY RECAUTION SECTION... -
Page 2: Government Regulations
GOVERNMENT REGULATIONS This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device. -
Page 3: Table Of Contents
We wish you an excellent journey with your remote engine starter! The RSS-2524 is a remote engine starter system that provides unlocks features allowing remote control of door locks and trunk. These features are optional and may require additional material and/or wiring during installation. -
Page 4: Safety Precautions
Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is unattended in a public place. • To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system. •... -
Page 5: Safety Sequence For Manual Transmission Vehicles
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in neutral position when you exit the vehicle. This series of actions is called a "safety sequence" and is aimed at preventing any remote start in situations where remote starting the engine would not be safe. -
Page 6: The Remote Control

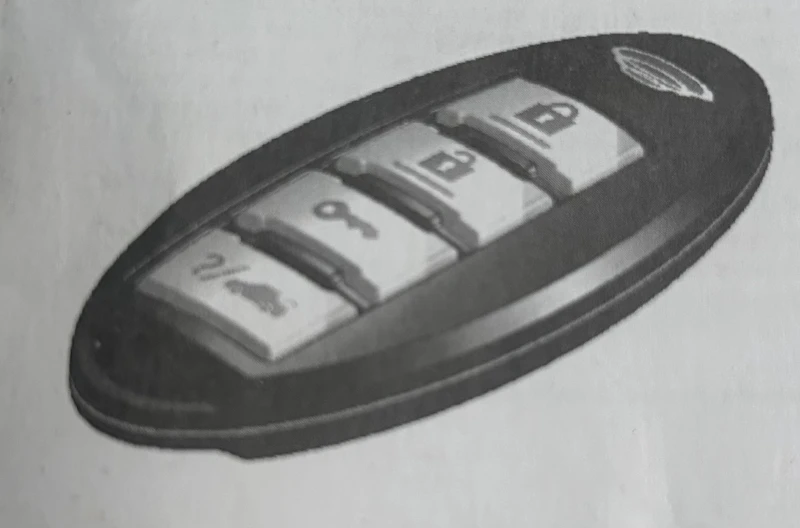

THE REMOTE CONTROL Your remote control can transmit on two different channels, allowing control of two separate vehicles. Up to four remote controls can be assigned to your vehicle. NOTE: The range of your remote control can be affected by a weak battery, interference from nearby metal structures, hydro poles, or crowded parking lots. -
