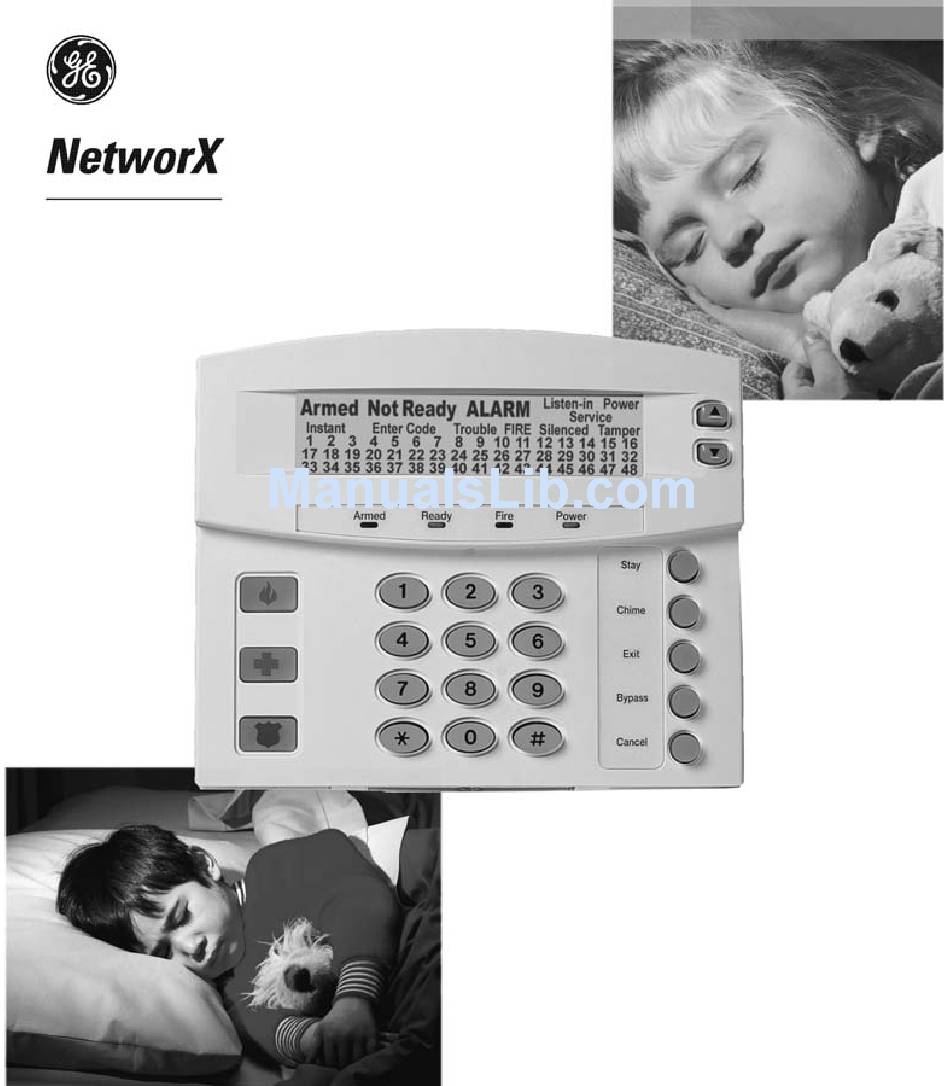

  • Page 1 NX-1348E Fixed English Keypad User’s Manual...
  • Page 2 Page 2 NX1348E Icon Keypad...
  • Page 3 NX-1348E ICON KEYPAD DIAGRAM (For further details, please refer to page 13) SERVICE icon is “on” ARMED icon is “on” to indicate a trouble when armed; “off” when condition with your disarmed; flashes to system. indicate a previous alarm. ZONE icons (numbers) are “on”...
  • Page 4 SECURITY SYSTEM NOTES Installing/Service Company _________________________________ For Service Call __________________________________________ Central Station ___________________________________________ Duress Code ____________________ This system is not partitioned. EMERGENCY ACTIVATION KEYS (check if enabled) Fire Auxiliary Emergency Police PROGRAMMED FUNCTIONS Abort Delay (s) Cancel Alarm Forced Arming (s) Auto Bypass (s) Change Partitions Group Bypass (s)
  • Page 5 ZONE DESCRIPTIONS 01 _________________________ 25 _________________________ 02 _________________________ 26 _________________________ 03 _________________________ 27 _________________________ 04 _________________________ 28 _________________________ 05 _________________________ 29 _________________________ 06 _________________________ 30 _________________________ 07 _________________________ 31 _________________________ 08 _________________________ 32 _________________________ 09 _________________________ 33 _________________________ 10 _________________________ 34 _________________________ 11 _________________________ 35 _________________________...
  • Page 6 INTRODUCTION This manual is furnished to help you understand your security system and become proficient in its operation. All users of your security system should read and follow the instructions in this booklet and, if possible, practice on the keypad control while your professional installer is on site.
  • Page 7 It may be possible to arm the security system without the backup battery connected. Your periodic test should be done with AC Power removed to verify the battery is connected and adequately charged. Care should be taken to plug in and restrain the AC Transformer after testing. Please read the following information and instructions carefully before operating your security control system.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS GLOSSARY OF TERMS......................10 ICON KEYPAD DISPLAY......................11 EMERGENCY ACTIVATION KEYS ..................12 UNDERSTANDING THE ICONS & LIGHTS ................13 ARMED ICON .........................13 BYPASS LIGHT........................13 CANCEL LIGHT........................13 CHIME LIGHT.........................13 EXIT LIGHT..........................13 FIRE ICON ..........................13 INSTANT ICON........................13 LISTEN-IN ICON........................14 POWER ICON ..........................14 READY / NOT READY ICON....................14 SILENCED ICON........................14 STAY LIGHT ...........................14...
  • Page 9 …) ABLE OF ONTENTS CONTINUED DISARMING THE SYSTEM ....................17 CANCEL / ABORT FEATURE ....................17 BYPASSING ZONES ......................18 GROUP BYPASS ........................18 UNBYPASSING........................18 TURNING THE DOOR CHIME ON AND OFF ..............18 CHANGING USER CODES.......................19 ASSIGNING USER CODE AUTHORITY LEVELS ..............19 OTHER KEYPAD FUNCTIONS....................21 SETTING THE KEYPAD TONE ....................21 CHANGE PARTITION –...

  • Page 10: Glossary Of Terms

    GLOSSARY OF TERMS Abort Delay An option that allows a delay in reporting to the central station. Authority Level The level of access an individual has when using an alarm panel. Central Station The location where alarm data is sent during an alarm report.

  • Page 11: Icon Keypad Display

    Quick Arm An option that allows you to turn on (ARM) the security system by pressing either the [STAY] or [EXIT] key on the keypad control (for ARMING only) as programmed by the installing company. User Code A four (4) or six (6) digit entry code used to arm or disarm the system.

  • Page 12: Emergency Activation Keys

    EMERGENCY ACTIVATION KEYS NOTES: You must hold these keys for 2 seconds to activate these functions. Your system may not be programmed for these activation keys (see page 1). You should press these keys only in an emergency situation that requires response by emergency personnel.

  • Page 13: Understanding The Icons & Lights

    UNDERSTANDING THE ICONS & LIGHTS ARMED ICON The armed icon is “on” when the system is armed. The armed icon is “off” when it is disarmed. The armed icon will flash when there has been an alarm during the previous arm cycle. BYPASS LIGHT The bypass light is “on”...

  • Page 14: Listen-In Icon

    LISTEN-IN ICON Listen-in icon is on when an NX-534E is active in listen-in mode. POWER ICON The power icon is on if the primary power is on. The power icon will flash if the system has a low battery condition. READY / NOT READY ICON The ready icon is “on”...

  • Page 15: Keypad Functions

    KEYPAD FUNCTIONS ARMING YOUR SYSTEM IN THE “AWAY” MODE AWAY is used when the user is away from the premise and wants the interior protected. • Step 1 Close all protected doors and windows. • Ready icon will be on or flashing when all protected zones and sensors are secure.

  • Page 16: Arming Your System In The "Stay" Mode

    ARMING YOUR SYSTEM IN THE “STAY” MODE STAY is used when the user is inside the premise and wants protection around the perimeter. • Step 1 Close all protected doors and windows. • Ready icon must be on or flashing when all protected zones and sensors are secure.

  • Page 17: Using The Quick Arm

    USING THE QUICK ARM (Optional, see page 1) The Quick Arm feature may be used if it is enabled. Quick Arm will allow the user to arm the security system in the AWAY mode by pressing the [EXIT] key, or arm in the STAY mode by pressing the [STAY] key.

  • Page 18: Bypassing Zones

    BYPASSING ZONES If you wish to bypass one or more zones, this must be done while the system is in the disarmed state. The following steps are used for bypassing zones: Step 1 Press the [BYPASS] key. Step 2 Enter user code, if required (optional). The bypass light flashes.

  • Page 19: Changing User Codes

    ADDING AND CHANGING USER CODES Your system must be Disarmed to change user codes. Step 1 Press [ ]-[5] Step 2 The Enter Code icon will display. Enter a [“Master Arm/Disarm” Code]. For partitioned systems, someone changing the code of another person must have access to all or more partitions than the user being changed.
  • Page 20 Step 3 Enter the 2 digit “user number” to be assigned authority (The ready icon is constant and the instant icon will flash). Step 4 Icons illuminated indicate the authority levels assigned to this code. An explanation of the icons is listed in the following table. You may toggle (turn on/off) the authority level by pressing the number for that authority level.

  • Page 21: Other Keypad Functions

    Step 7 When the partitions are assigned, press the [ ] key. This returns you to Step 2 previously mentioned. At this point you may enter another user number to assign authority level. Repeat Steps 3 - 7 until you have assigned authority levels to all user numbers.

  • Page 22: Test Function - Optional

    TEST FUNCTION – Optional If programmed, this function will perform a battery test, communicator test, and/or a siren test. Alarms and reports will not be sent, unless a communicator test is performed at which time a test signal will be sent. Step 1 Press [ ]-[4].

  • Page 23: Setting The System Clock

    SETTING THE SYSTEM CLOCK Step 1 Press [ ]-[9]-[7]. Enter Code icon will appear. Step 2 Enter a [“Master Code”]. Then the service icon will begin to flash. Step 3 Enter the “hour code” which must be two (2) digits. Note: The clock is a 24-hour clock.
  • Page 24 ICON PROBLEM SYSTEM FAULT - Press the [1] key. The zone icon(s) that is illuminated corresponds to the system fault(s) below: Over Current Fault Expander Low Battery Siren Trouble Expander Box Tamper Box Tamper Expander Trouble Expander Power Ground Fault Note: Faults 1 &...

  • Page 25: Keypad Control Tones (Beeps)

    KEYPAD CONTROL TONES (BEEPS) A sounder is built into the keypad. If programmed, your system keypad may sound for any of the following reasons: • Beeps for all keypresses. • Sounds a continuous tone during the Entry delay time. • Pulses when a day zone is violated while the system is disarmed.
  • Page 26 One will be the normal exit from the building. The other may be a window that opens easily. An escape ladder may have to be located near the window if there is a long drop to the ground below. Set a meeting place outdoors for a headcount of the building occupants.
  • Page 27 SYSTEM NOTES NX1348E Icon Keypad Page 27...
  • Page 28 NX1348E SERIES USER’S MANUAL NX1348EUA04 REV A (May 2004)
