Radionics D7033 Installation Instructions

General Information

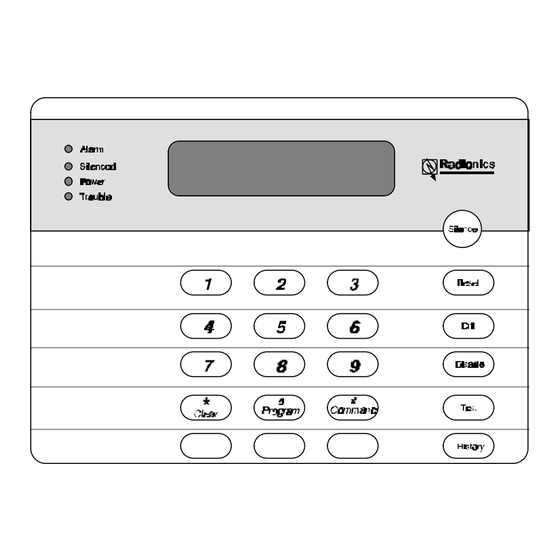

The D7033 is a 4-wire Alpha-Numeric LCD keypad. It may
be surface mounted, mounted to standard single or double
gang boxes, or to 4 inch square boxes.
The following is a chart of general wiring guidelines:
Wire Gage
Wire Type
Max number of
keypads allowed
per system
Max distance
allowed between
the control and
the keypad
Max distance of
keypad wiring per
system
Keypad Addresses
Important: Each keypad must have its address set with its
address pins. The keypads must also be
programmed at the control panel.
• Select the keypad address (1-15).
Place the shorting jumpers over the address pins as
shown at the top of the next column.
Remember: Each keypad must have its own address, and
each address can only support one device.
© 1997 Radionics, Inc.
22 AWG (0.8 mm) minimum.
18 AWG (1 mm) is required for
NEC-NFPA-70.
non-shielded, 4-wire
4
1,000 feet (304.8 m)
4,000 feet (1219.2 m)
Installation Instructions
D7033 Control Station
Mounting
The keypad should be mounted no higher than shoulder
height of the shortest person using the system.
• Remove the keypad's cover.
Insert a small flat-head screwdriver in each slot at the
bottom of the base. Press up, and pull the cover off.
• Surface Mounting:
Use the base as a template and mark the location of the
mounting holes (use any holes).
Provide an opening in the mounting surface for the wiring.
Pre-start the mounting screws.
Do not secure the base at this point.
• Electrical Box Mounting:
See the diagram on page 2 to select the mounting holes.
Do not secure the base at this point.
Page 1 of 2
for the
D7033 Control Station Installation Instructions
