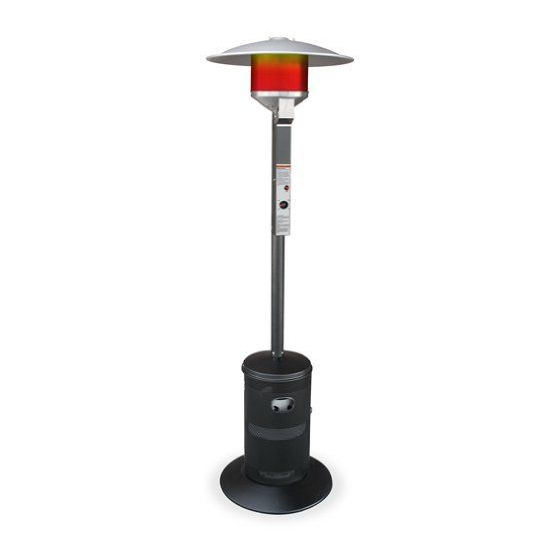

Endless Summer 153100 Owner's Manual

Outdoor
Hide thumbs Also See for 153100:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
WARNING
FOR YOUR SAFETY
For Outdoor Use Only
(Outside any enclosure)
WARNING
FOR YOUR SAFETY
Improper installation,
adjustment, alteration,
service or maintenance
can cause injury or property
damage. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
Owners Manual
Manueal d'Utilisation
Model No.
153100
U.S. Patent Number: 6,470,877
Les ETATS-UNIS font breveter
le nombre : 6,470,877
A Utiliser Uniquement a
l'Exterieur
(hors de tout abri clos)
Tout mauvais reglage ainsi que
toute installation, modification,
ou maintenance incorrecte
risque de provoquer des
blessures ou des degats
materiels. Lir completement
les instructions concernant
l'installation, le fonctionnement
et l'entretien avant d'installer ou
de proceder a la maintenance de
cet appareil.
AVERTISSEMENT
POUR VOTRE SECURITE:
AVERTISSEMENT
POUR VOTRE SECURITE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 153100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endless Summer 153100

Summary of Contents for Endless Summer 153100

  • Page 1 Owners Manual Manueal d’Utilisation Model No. 153100 U.S. Patent Number: 6,470,877 Les ETATS-UNIS font breveter le nombre : 6,470,877 AVERTISSEMENT POUR VOTRE SECURITE: A Utiliser Uniquement a WARNING l’Exterieur FOR YOUR SAFETY (hors de tout abri clos) For Outdoor Use Only...
  • Page 2 Do not store or use gasoline from areas where flammable or other flammable vapors or liquids, gasoline, vapors, or liquids in the vicinity of this or explosives are stored or used. any other appliance. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 3: Table Of Contents

    Storage and Handling of Liquid Petroleum Gases, ANSI/NFPA 58 or CSA B149.1, Natural Gas and Propane Installation Code. manual to him or her to save for future reference. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 4: Safety First

    (approximately 45 minutes after use). Notice: This product should not be used with any fuel other than liquid propane. Use of other fuels will detract from heaters performance and will void your warranty. Owner’s manual: model 153100 outdoor patio heater 2/13/04...
  • Page 5 For your nearest Blue Rhino retailer visit • Do not clean heater with combustible or corrosive cleaners. Use warm, www.bluerhino.com. soapy water. • Do not paint engine, engine access panel or dome. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 6: Components & Hardware

    Cylinder Shroud . . 56-01-173 Cylinder Access . . 56-01-177 Legs (3) ..56-01-193 Base ..56-01-197 Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 7: Assembly Instructions

    Note: Attach Leg with notches for hinges as shown at left. Secure each leg to base using (2) Large Bolts, (2) Lock Washers and (2) Large Nuts per leg. Finger tighten only. Do not fully tighten until Step 2. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 8: Step 2 Attach Cylinder Shroud To Legs

    Insert and tighten (1) Medium Screw into center leg. Insert and tighten (1) Medium Screw into each of the outer legs. Tilt base on edge and slide Gas Line up through large hole in Base, then through Cap Assembly. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 9: Step 5 Assemble Emitter Top

    Align threaded holes in Post with holes in bottom of Engine. Insert (4) Medium Screws loosely. They will be fully tightened at the end of the next step. Note: Do not replace Engine Access Panel until Step 13. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 10: Step 8 Connect Engine/Pole Assembly To Cap

    Gently tug on line to test for proper connection. If Gas Line moves you are not properly connected.Do not proceed until a proper connection has been made. After gas line is secure, fully tighten (4) screws from Step 8. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 11: Step 10 Attach Dome To Emitter

    Slide full Propane Cylinder onto Heater Base. Attach Gas Line to Cylinder by turning black plastic knob clockwise over Cylinder valve until tight. Note: Be careful not to kink flexible hose of Gas Line. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 12: Step 13 Check For Leaks

    Release Gas Line fitting from Cylinder valve and re-attach making sure connection is secure (see Step 13). If you continue to see bubbles after several attempts, contact 1-800-762-1142 for assistance. Turn Cylinder Valve OFF. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 13: Step 14 Install Cylinder Access Panel

    Position Engine Access Panel back in place. Secure Panel in place with 3 screws previously removed from side and bottom holes. Note: Once you have successfully completed assembly steps 1-15 you are ready to begin operating your heater. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 14: Operation

    • Release Control Knob after 30 seconds. Pilot Light will remain lit. If not, return to step 1. • Turn Control Knob to ON. Main Burner will light immediately. Flame is HIGH HIGH visible through Viewing Hole. If not, return to step 1. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 15: Re-Lighting

    Handle with extreme care. clockwise to OFF. Turn Cylinder Valve clockwise to OFF and disconnect Regulator when heater is not in use. Note: After use, some discoloration of the emitter screen is normal. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 16: Checklist

    After Operation q Gas control is in OFF position. q Gas tank valve is OFF q Disconnect Gas line. q Heater is upright in a secure location. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 17: Troubleshooting

    Clean burner Heater is level Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter Thick black smoke Blockage in burner Remove blockage and clean burner inside and outside Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 18: Maintenance

    Frequently check for corroded areas and repair them promptly. TIP: Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior surfaces from the pole down. Do not apply to emitter screen or domes. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 19: Storage

    Caution: Use only original equipment replacement parts. Use of unauthorized parts or modification of parts will void warranty and create an unsafe condition. Caution: Always allow heater to cool before attempting service. Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 20: Warranty

    Vendor. Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive Winston-Salem, North Carolina 27104 USA (800) 762-1142 24 Hour Fax: (336) 659-6743 CustomerService@BlueRhino.com Owner’s manual: model 153100 outdoor patio heater 2/13/04...

  • Page 21: Specifications

    Maximum – 150 PSI Minimum – 5 PSI Manifold Pressure: 11.00 in. W.C. Engine: IPP E8 Safety Features: 100% Burner shut-off Tilt Switch Manufacturer: Blue Rhino Global Sourcing, LLC Made In: China Owner’s manual: model 153100 outdoor patio heater 2/13/04...
