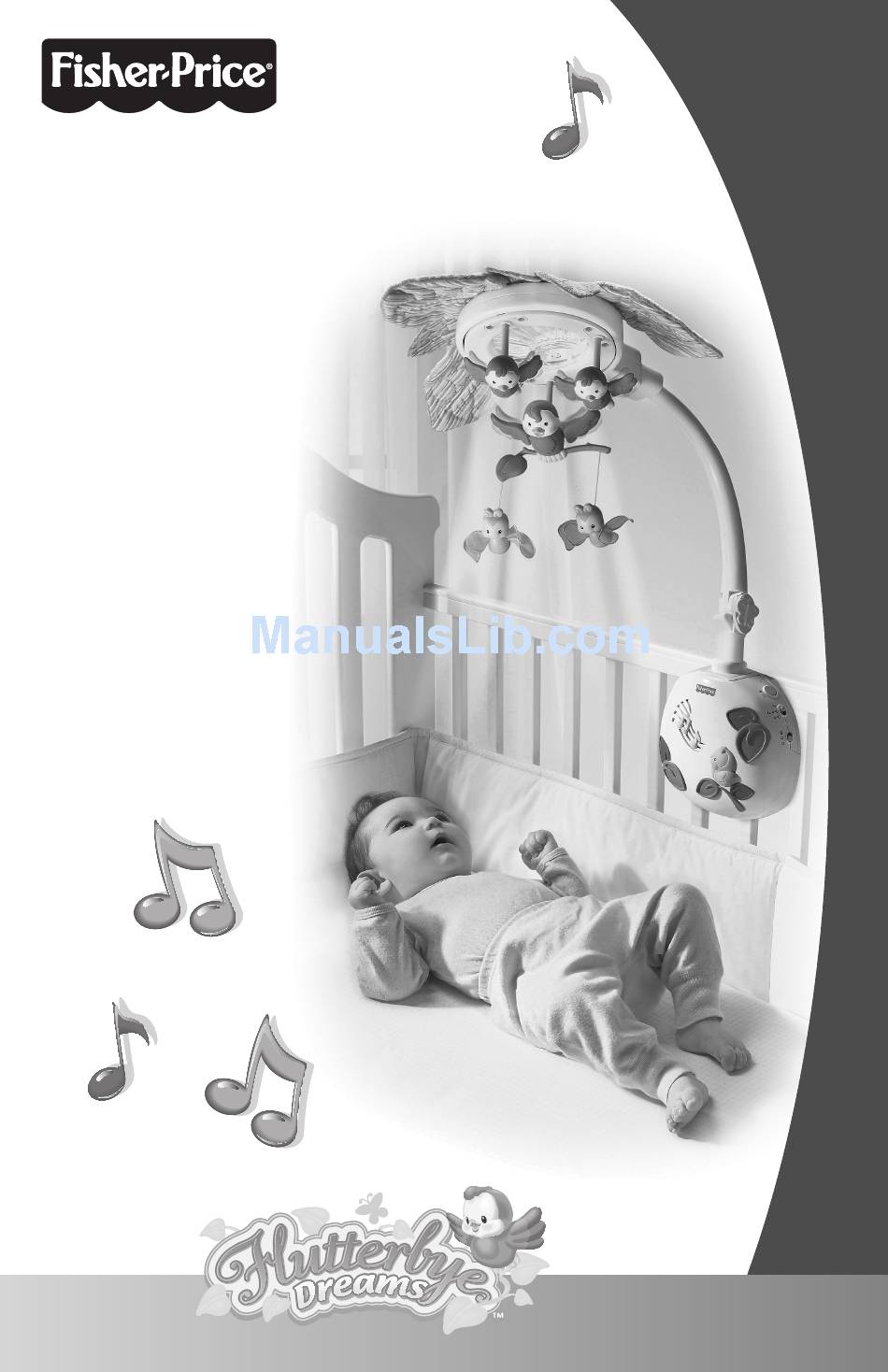

G5892
Instructions
Lullabye Birdies
™
Mobile
with Remote
Control
Please keep this instruction
sheet for future reference,
as it contains important
information.
Adult assembly is required.
Requires four "D" (LR20)
alkaline batteries for the
mobile and two "AA" (LR6)
alkaline batteries for the
remote control (batteries
not included).
Tool required for assembly:
Phillips screwdriver
(not included).
www.fisher-price.com
Advertisement
Related Manuals for Fisher-Price Lullabye Birdies G5892
Summary of Contents for Fisher-Price Lullabye Birdies G5892
- Page 1 Adult assembly is required. Requires four "D" (LR20) alkaline batteries for the mobile and two “AA” (LR6) alkaline batteries for the remote control (batteries not included). Tool required for assembly: Phillips screwdriver (not included). www.fisher-price.com...
- Page 2 Parts Canopy 2 Baby Birds Clamp Base Crib Adapter Mama Bird #6 x " Screw - 1 Shown Actual Size Remote IMPORTANT! WARNING • Possible entanglement injury, keep out of baby’s reach. • Remove mobile from crib or playpen when baby begins to push up on hands or knees.
-
Page 3: Remote Control Features
Remote Control Features Rear View Front View Button - Press to activate the mobile once the mobile has been turned ON. Press again to stop the mobile. LED Signal Indicator - Lights when the button is pressed to let you know the remote has transmitted a signal to the receiver. -
Page 4: Battery Installation- Remote Control
Battery Installation- Remote Control Battery Compartment Remote Control • Locate the battery compartment door on the back of the remote control. • Loosen the screw in the battery compartment door with a Phillips screwdriver. Remove the battery compartment door. • Insert two “AA” (LR6) alkaline batteries. Hint: We recommend using alkaline batteries for longer battery life. - Page 5 Battery Installation - Mobile Base Battery Compartment Mobile Base • Locate the battery compartment door on the back of the mobile base. • Loosen the screws in the battery compartment door with a Phillips screwdriver. Remove the battery compartment door. Hint: If the crib adaptor is attached to the base, loosen the screws in the crib adaptor and remove it first.
-
Page 6: Battery Safety Information
Battery Safety Information 1,5V x 2 “AA” (LR6) Shown Actual Size 1,5V x 4 “D” (LR20) Shown Actual Size Batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). - Page 7 Assembly Base #6 x " Screw Shown Actual Size • Fit the arm into the slot in the base, as shown. • Insert the #6 x " screw through the arm and into the base. Tighten the screw with a Phillips screwdriver. Do not over-tighten. Canopy Mama Bird Baby Bird...
- Page 8 Assembly Red Line Canopy • Insert and "snap" the arm into the hole in the side of the canopy. • Make sure the arm is fully inserted and snapped into the canopy. When the arm is fully inserted, the red line on the arm should be covered by the canopy.
- Page 9 Crib Use Crib Adapter Tighten Battery Screws Compartment Door • Position the base so that the battery compartment door is facing you. • Fit the crib adapter onto the base. • Tighten the three screws in the crib adapter using a Phillips screwdriver. Do not over-tighten.
- Page 10 Crib Use Base Crib Top Rail Threaded Peg Clamp • Fit the mobile base on to the crib top rail so that the threaded peg extends outside of the crib. • Fit the clamp onto the threaded peg and turn the clamp clockwise to secure the base to the crib rail.
- Page 11 IMPORTANT! • In the unlikely event that use of the remote interferes with normal use of other remote controlled equipment, such as televisions and stereos, or use of other electric or battery powered appliances interfere with operation of the mobile, do not use both appliances at the same time. •...
- Page 12 Power/Volume Switch • Locate the switch on the side of the mobile base. Slide the switch to choose from three positions: ; on with low volume , and on with high volume • Slide the switch to the off position when not in use. Mode Select Switch •...
- Page 13 Dresser-top Use Threaded Peg Clamp • Loosen and remove the clamp from the threaded peg. • Remove the mobile from the crib. Crib Adapter Battery Loosen Compartment Screws Door • Loosen the screws in the crib adapter using a Phillips screwdriver. •...
- Page 14 Dresser-top Use Knob Locate the Knob Pull Knob Out Knob Dresser-top Use • Locate the knob on the arm. • Grasp the knob and pull it out. • Rotate the arm to an angled position as shown. • Release the knob to lock the arm in position. •...
- Page 15 Care • Wipe the toy with a clean cloth dampened with a mild soap and water solution. • Do not immerse the toy. FCC Note (United States Only) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 16: Consumer Information
ASIA: Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2004 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
