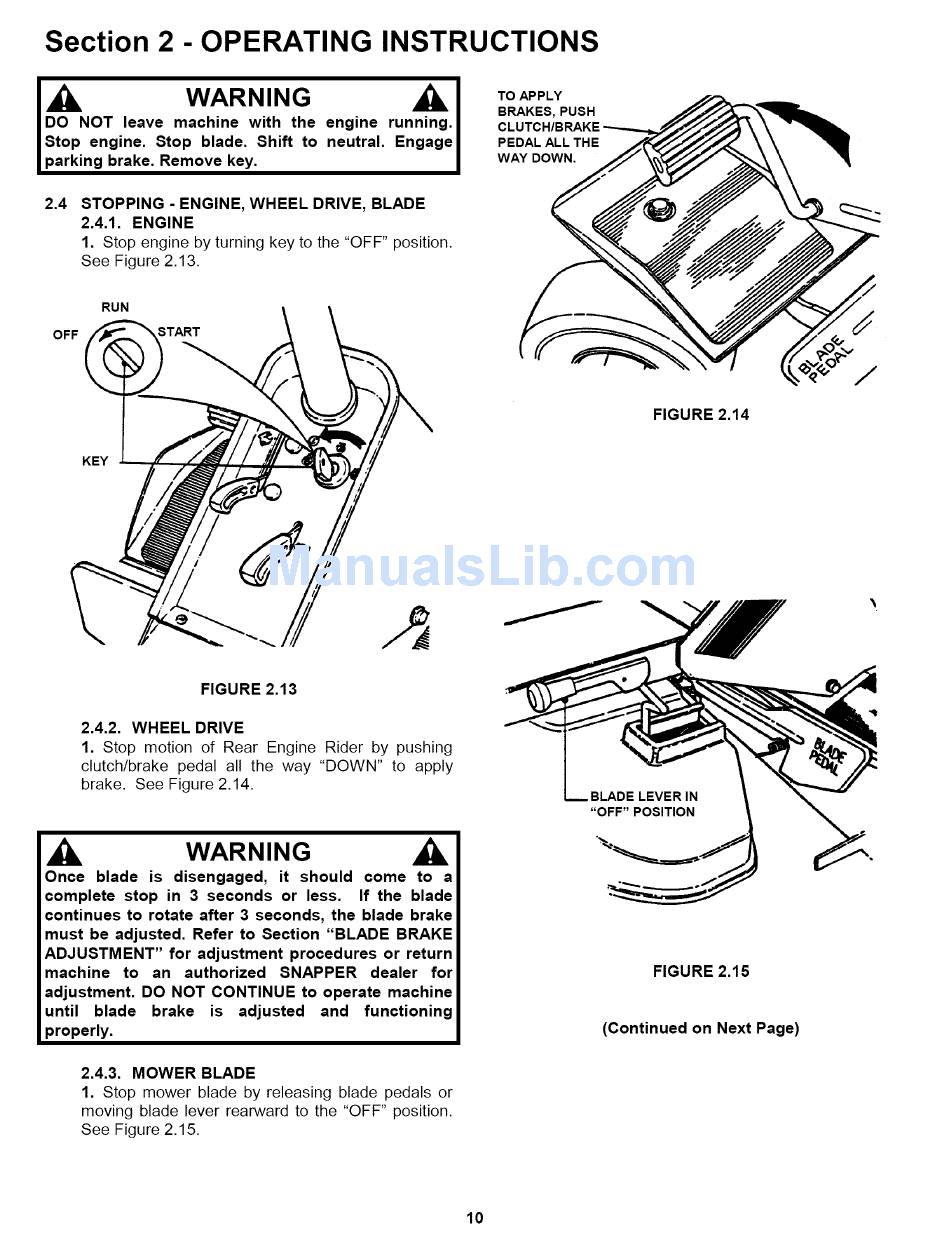

Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT leave machine with the engine running.
Stop engine. Stop blade. Shift to neutral. Engage
parking brake. Remove key.
TO APPLY
BRAKES, PUSH
PEDAL ALL THE
WAY DOWN.
2.4
STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.1. ENGINE
1. Stop engine by turning key to the "OFF" position.
See Figure 2.13.
RUN
OFF START
FIGURE 2.14
KEY
FIGURE 2.13
2.4.2. WHEEL DRIVE
1. Stop motion of Rear Engine Rider by pushing
clutch/brake pedal all the way "DOWN" to apply
brake. See Figure 2.14.
Once blade is disengaged, it should
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.
FIGURE 2.15
(Continued on Next Page)
2.4.3. MOWER BLADE
1. Stop mower blade by releasing blade pedals or
moving blade lever rearward to the "OFF" position.
See Figure 2.15.
10
