inStruCtion Manual

orion

Bt70 Binocular telescope

#9547

IP Knob (not visible)

Diopter scale

Handle

Eyepiece holders

Dovetail holder for handle

Mounting plate (not visible)

Lens shades (retracted)

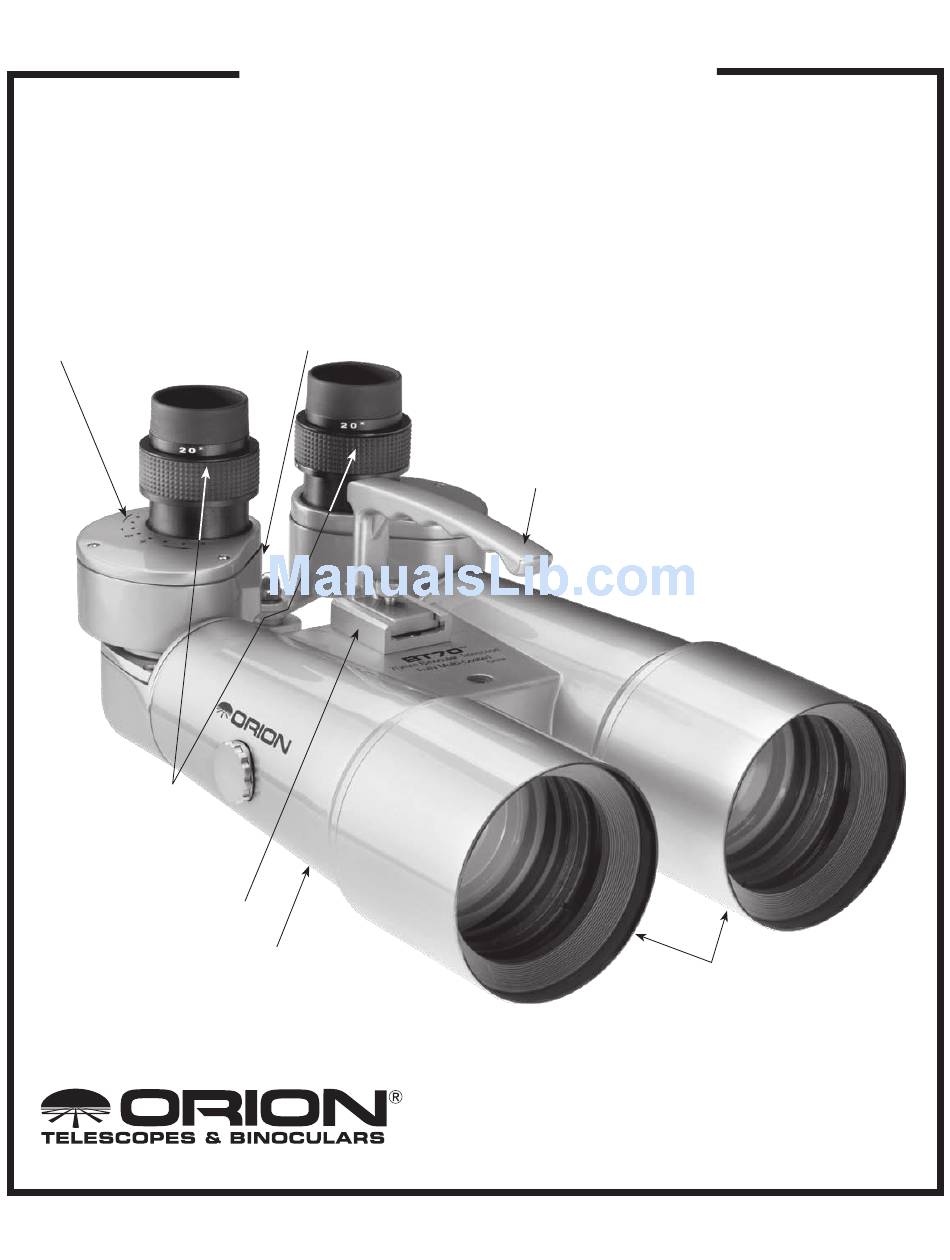

Figure 1.

The Orion BT70 Binocular Telescope.

Customer Support (800) 676-1343

E-mail: support@telescope.com

Corporate Offices (831) 763-7000

Providing Exceptional Consumer Optical Products Since 1975

89 Hangar Way, Watsonville, CA 95076

IN 307 Rev. B 02/09

Need help?

Do you have a question about the BT70 and is the answer not in the manual?

Page 1 Eyepiece holders Dovetail holder for handle Mounting plate (not visible) Lens shades (retracted) Figure 1. The Orion BT70 Binocular Telescope. Customer Support (800) 676-1343 E-mail: support@telescope.com Corporate Offices (831) 763-7000 Providing Exceptional Consumer Optical Products Since 1975 89 Hangar Way, Watsonville, CA 95076...
Page 2: Interpupillary Distance
For astronomical observation, individual To attach the BT70 to a photo tripod, simply thread the focus eyepieces are usually preferred. tripod’s 1⁄4"-20 mounting stud into the threaded hole in the Pick an object in the distance to view.
Page 3 The handle comes in quite handy when attempting to mount The BT70 is nitrogen-purged and sealed to be waterproof the BT70 onto a tripod. Before the BT70 can be placed into its and internally fogproof. While it is impervious to rain, wind, case, the handle must be removed.
Page 4 Warranty This Orion BT70 Binocular Telescope is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail pur- chaser only.
