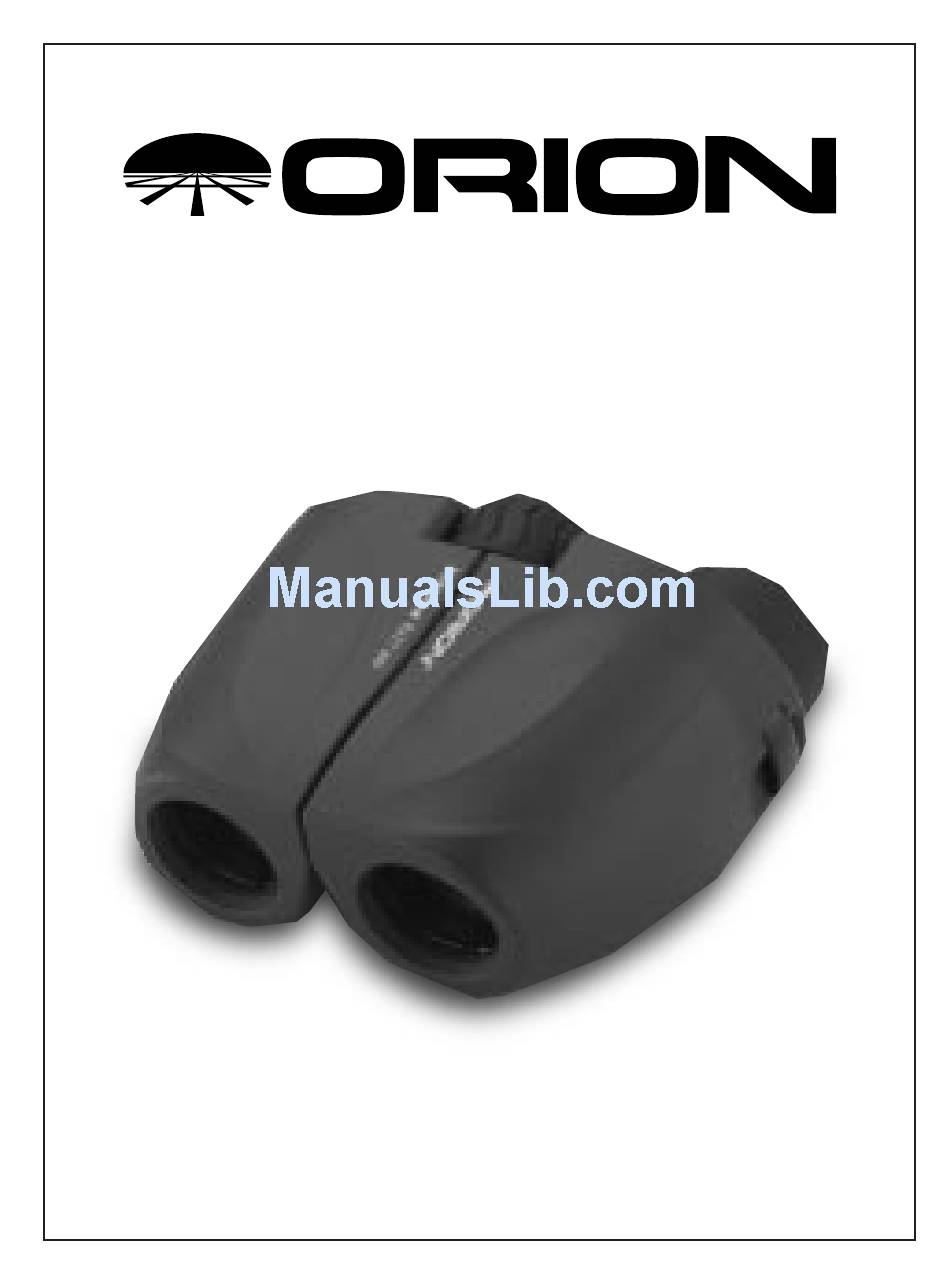

- Page 1 Ventana ™ 8x27 WP Compact Binocular Care and Use...
- Page 2 Ventana ™ 8x27 WP Binocular Congratulations on your purchase of a precision Orion binoc- ular. This rugged, ergonomically-designed compact binocular is nitrogen-purged and sealed to be completely fogproof and waterproof. It features a slightly larger aperture than a typical binocular of its class, for brighter images, while maintaining a light weight.
- Page 3 Focusing The Ventana features a convenient center focusing knob. However, because your eyes might differ slightly in their focus, the binocular also includes a right eye diopter adjust- ment. Follow this method for focusing: With both eyes open, rotate the right eyepiece to the full counterclockwise position, then sight on a distant subject.
-
Page 4: Cleaning And Care
Cleaning and Care The Ventana is nitrogen-purged and sealed to be com- pletely waterproof and internally fogproof. While it is imper- vious to rain, wind, splashing from a boat, humidity, and the like, do not immerse the binocular in water under any circumstances. - Page 5 fluid specifically designed for multi-coated lenses. Never use tissue or fluids made for regular eyeglasses or house- hold use. To clean the lenses, first puff air on their surfaces with a blower bulb or compressed air to remove any large parti- cles.
- Page 6 Storage Make sure the binocular is completely dry before storing it in its case with the lens caps on. If the binocular has got- ten wet, remove the moisture as described previously, and let the binocular air-dry overnight (out of the case and with lens caps off) before storing it in its case.
-
Page 7: Specifications
Specifications Magnification: Objective lens aperture: 27mm Waterproofing: nitrogen-purged, sealed Exit pupil: 3.4mm Eye relief: 11mm Field of view: 8.2° / 430 ft. @ 1000 yds. Close focus: 11 ft. Prisms: BAK-4, Porro Lens coatings: All air-to-glass surfaces coated, with additional multi-coatings Eyeguards: Roll-back, rubber Weight:... - Page 8 BINOCULAR LIMITED WARRANTY Orion ® Ventana 8x27 WP Binocular This binocular is warranted to be free of defects in materials and workmanship for a period of two years. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes &...
