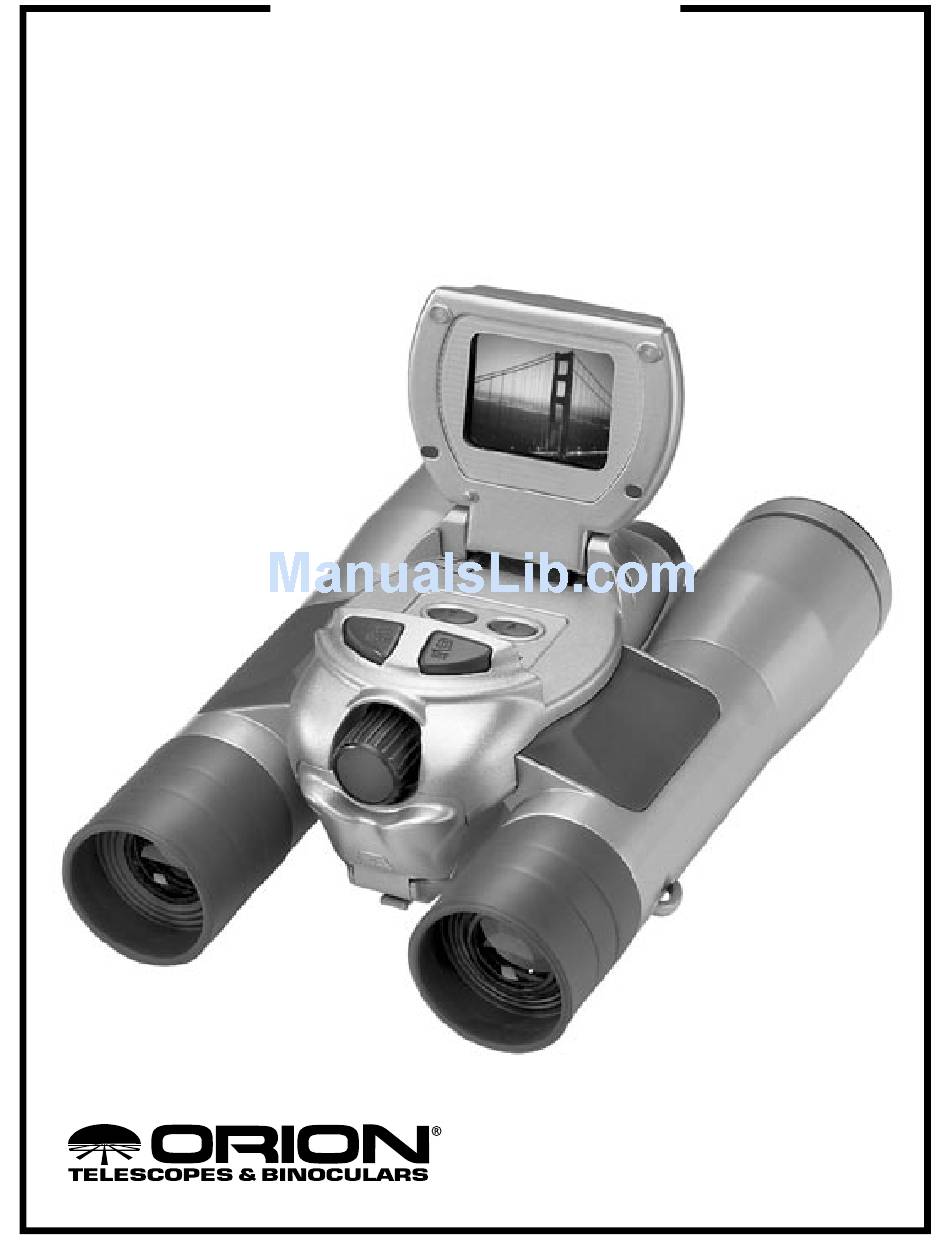

- Page 1 INSTRUCTION MANUAL Orion eView 8x32 LCD ® ™ Digital Camera-Binocular #9459 Customer Support (800)-676-1343 E-mail: support@telescope.com Corporate Offices (831)-763-7000 P.O. Box 1815, Santa Cruz, CA 95061 Providing Exceptional Consumer Optical Products Since 1975 IN 261 Rev. A 7/05...
- Page 2 ON/MODE button LCD screen Function Selection buttons (up and down) Focus knob Camera lens Binocular objective lens Rear hatch CAMERA/SET button Binocular eyepieces Figure 1. The eView 8x32 LCD digital camera-binocular.
-
Page 3: Getting Started
The eView is a full-featured binocular with an integrated digi- tal camera. The camera’s field of view matches what you see in the binoculars, so you can keep the sights and scenes for later. Great for travel, concerts/sporting events, or wildlife activities, you’ll find the eView to be an effective and fun tool... -
Page 4: Using The Camera
Using the Camera System Requirements In order to view and download images from the camera to your computer, your PC must meet the following system requirements: Windows 98SE/2000/ME/XP Pentium 233MHz or higher 128MB SDRAM Video (VGA) card with 2MB RAM for minimum 16-bit (high color) display CD-ROM USB port... -
Page 5: Other Camera Functions
framed is at least that distance away, or the focus of the image will not be sharp. Reviewing Images on the LCD Screen After you have taken several pictures, you may want to review the images stored in the SD card to determine which ones you want to discard and which ones you want to keep. -
Page 6: Selecting Resolution
When transporting the eView, common sense prevails. Avoid excessive bumping or rough handling, as the binoculars’ opti- cal alignment may be affected. Do not bring the eView out in the rain, but if water does get on the exterior, wipe it off imme- diately with a soft cloth or towel. -
Page 7: Camera Specifications
Always use lens cleaning tissue and fluid that are specifically designed for multi-coated lenses. Do not use fluids or tissue that is for eyeglasses or household use. Most binoculars and camera lenses are cared for in a similar manner. To clean the binocular and camera lenses, first make sure your hands are clean. -
Page 8: One-Year Limited Warranty
Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of purchase (such as a copy of the original invoice) is required.
