  • Page 1: Mobile Phone

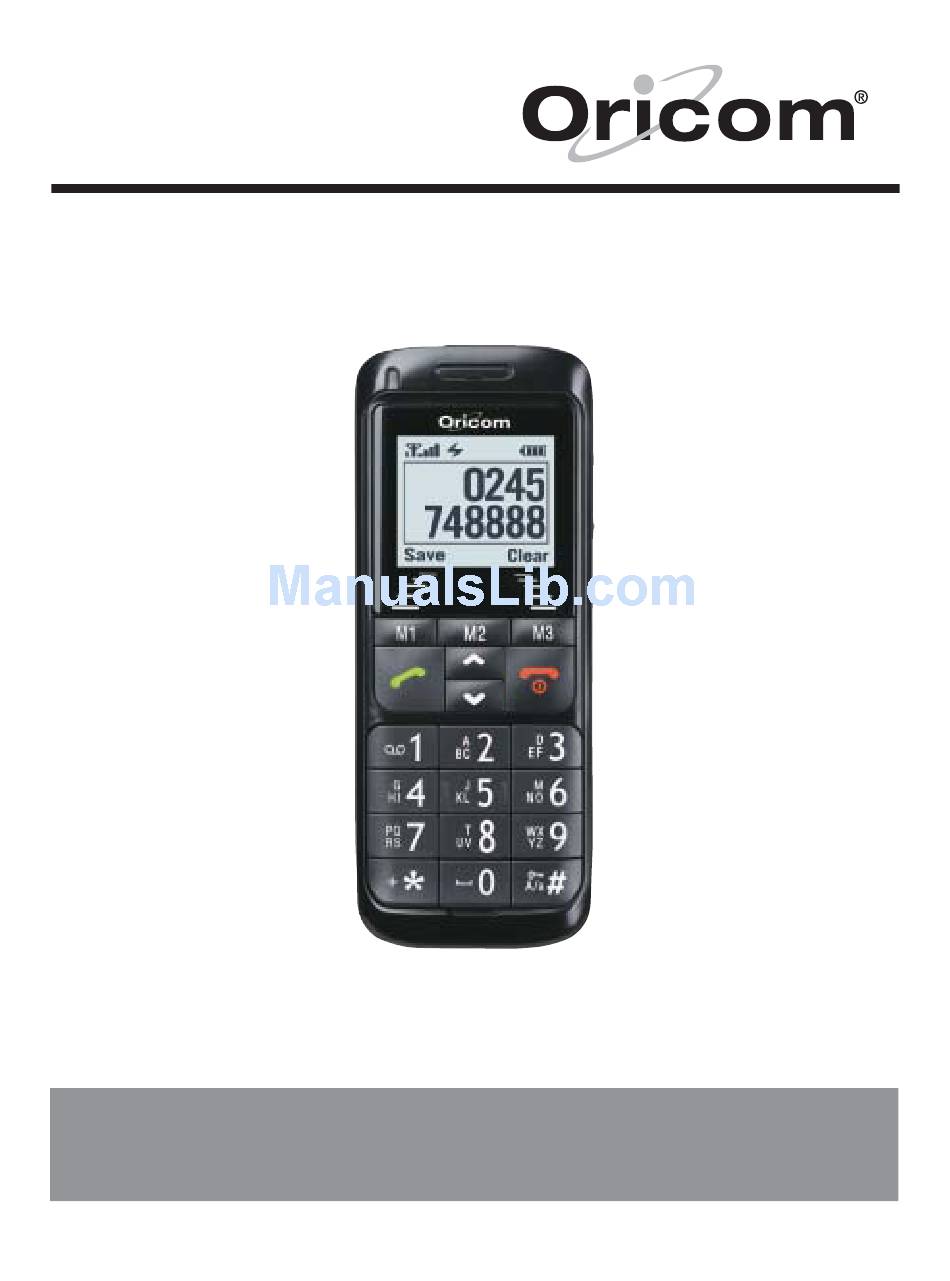

    Mobile Phone Operating Instructions ezy100 GSM Mobile Phone with Emergency Call Function...

  • Page 3: Table Of Contents

    Table of contents Safety Information and Warnings ........4 Getting Started .............. 9 Your Oricom phone and controls ........19 Telephone Operation ............ 24 Call Functions .............. 32 Emergency Call Function..........37 Emergency Call Function, Examples ......40 Starting/Ending the Emergency Call Function ....44 Phone Book ..............

  • Page 4: Safety Information And Warnings

    Safety Information and Warnings 1 Safety Information and Warnings It is very important that you read the User Guide carefully as it contains detailed information on set up and operational issues which you will need to be aware of to ensure the mobile operates properly. If you are not clear about how to use the phone or have any queries on any issue, please contact our Australian Customer Support helpline on 02 45748888.

  • Page 5: Areas Of Use

    Safety Information and Warnings YOU SHOULD NEVER RELY SOLEY ON ANY MOBILE PHONE FOR ESSENTIAL COMMUNICATIONS SUCH AS MEDICAL EMERGENCIES. Areas of use • Do not use the phone in prohibited areas such as on aircraft, in a petrol station in hospitals, or near to fuel and other fl...

  • Page 6: Warning When Used With Implanted Medical Devices

    Safety Information and Warnings • Keep the phone and accessories out of the reach of children. • The SIM card can be removed. Caution! Small children can swallow them. • The earpiece of the handset may attract small metal objects such as staples and pins. Care should be taken when placing the handset near these items.

  • Page 7: Emergency Calls

    Safety Information and Warnings possible interference. If you have had a pacemaker implanted, do not carry the phone in a breast pocket when switched on. Always hold the phone to the ear furthest away from the pacemaker during calls. Switch the phone off immediately if you notice or suspect any adverse effects.

  • Page 8: Ac Power Adaptor

    Safety Information and Warnings AC power adaptor Attention: Only use the AC power adaptor supplied. As other power supplies could damage the phone. Rechargeable batteries Attention: Never dispose of batteries into a fi re. Only use batteries of the same type. Environment At the end of its service life, in order to dispose of your device, take it to a collection point if...

  • Page 9: Getting Started

    Getting Started 2 Getting Started Safety information Attention: It is essential to read the Safety Information in Chapter 1 before starting up. Checking the package contents The package contains: 1 mobile phone 1 Li-ion battery pack 1 AC power adaptor Barcode labels on the phone The barcode label printed inside the phone contains the IMEI number and the serial number.

  • Page 10: If Your Phone Is Lost Or Stolen

    Getting Started You can verify your IMEI number by dialling *#06# on your mobile phone. If your phone is lost or stolen: Notify your network carrier and the police immediately. Tell them your IMEI number and any other identifying features on your phone. Your network carrier can use this number to block your phone from all networks in Australia once you report the phone lost or stolen, making it useless to any thief.

  • Page 11: Pin & Pin2 Codes

    Getting Started PIN & PIN2 codes The PIN (Personal Identity Number) and PIN2 codes are 4 to 8-digit numbers. The PIN and PIN2 codes are given to you, together with the SIM card, by your network provider. PUK & PUK2 codes The PUK (Personal Unblocking Key) and PUK2 codes are 4 to 8-digit numbers.

  • Page 12: Installing The Sim Card

    Getting Started Installing the SIM card Risk of swallowing small objects! The SIM card can be removed. Small children can swallow them. The emergency call number 000 can still be dialled even if there is no SIM card installed. The number is automatically dialled if the emergency call switch is activated! Switch the phone off.
  • Page 13 Getting Started Slide the SIM card with the gold coloured contacts facing down in the moulded SIM card holder. Insert the battery. The gold coloured contacts on the battery must face towards the top left. Press lightly on the bottom end of the battery until it snaps into place.

  • Page 14: Charging The Battery

    Open the protective USB cover on the phone and plug the charging unit in the mini USB port. Connect the charging unit as illustrated in the diagram. For safety Mains power reasons, only use the optional Oricom outlet approved charging unit.

  • Page 15: Charging Via The Optional Desktop Charger

    PC using an approved mini USB cable. The charging process takes longer via the PC than when using the charging unit. Only use the mini USB cable approved by Oricom. The terms of guarantee are void if a different cable is used.

  • Page 16: Battery Status Warning

    Warnings on battery usage Only use batteries, cables and charging units approved by Oricom, otherwise the battery could be damaged. Do not short circuit the battery. Always leave the battery in the phone to avoid accidentally short circuiting the...

  • Page 17: Setting The Display Language

    Replace the battery when the battery no longer holds suffi cient charge for normal use. The Oricom battery part number is KEBT- 5057, maximum talk time is up to 120 minutes and standby time is up to 170 hours.

  • Page 18: Setting The Time And Date

    Getting Started Setting the time and date 1. During standby mode, press M1 to enter the setup menu. 2. Use to select Clock & Alarm. Press M1 to confi rm. 3. Use to select Time & Date, press M1 to confi...

  • Page 19: Your Oricom Phone And Controls

    Your Oricom phone and controls 3 Your Oricom phone and controls...
  • Page 20 Your Oricom phone and controls 1 Earpiece 2 One-touch dialling buttons / Softkeys 3 On/Off button / On-hook button 4 Scroll up/down button 5 Microphone 6 Digit keys 7 Call button 8 LED 9 Loudspeaker for handsfree mode 10 Emergency call switch...
  • Page 21 Your Oricom phone and controls 1 Earpiece The voice of the caller can be heard here when no headset is being worn or the handsfree equipment has not been installed, activated and the device set to Handsfree mode. 2 M1 M2 M3...
  • Page 22 Your Oricom phone and controls 5 Microphone Is activated during a call Digit keys Enter phone numbers and names or write a text. Call button Take a call or dial a number. Open the call list. 8 LED Indicates the phone operating status.

  • Page 23: Buttons With Special Functions

    Your Oricom phone and controls Headset socket You can connect an optional headset (Part No: KESP-5185-P). The earpiece, loudspeaker and microphone are deactivated. You can only hear and speak via the headset. There is no guarantee that headsets from other manufacturers will work properly.

  • Page 24: Telephone Operation

    Telephone Operation 4 Telephone Operation Description of operating sequences in the manual Display Description Displays the contour of buttons Press the button depicted briefl y 2 sec. Press the button depicted for 2 seconds Press and hold down the button Hold depicted Enter digits or letters...

  • Page 25: Icon Description

    Telephone Operation Icons and texts in the handset display Icon Description Displays the battery capacity. Running-through segments, the battery is being charged. Signal strength of the phone connection Alarm1 and/or Alarm2 are activated A headset is connected The key lock function is activated; Page 34 A roaming call is in progress...
  • Page 26 Telephone Operation Ringing tone only is activated Vibration alert only is activated Vibration alert is activated fi rst, then ringing tone Vibration alert and ringing tone are activated Roaming calls: Outgoing or incoming international calls subject to special charges. SMS: Short Message Service = Service for sending text messages.

  • Page 27: Standby Mode

    Telephone Operation Standby mode All descriptions in this operating manual assume that the mobile phone is in Standby mode. The system switches to Standby mode by pressing the button, several times if necessary. It may be necessary to deactivate the key lock function. Energy-save mode When the phone has been in Standby mode for some time, it automatically switches to energy-save mode.

  • Page 28: Navigating In The Menu

    Telephone Operation Button In Standby mode In a menu Open the main menu Various functions Initiate release of the key Various functions lock function Navigating in the menu All the functions can be accessed via the various menus. Menu ( M1 ) Open the main menu Select the submenu required Ok ( M1 )

  • Page 29: Entering Data

    Telephone Operation Entering Data The digit keys are also labelled with letters for the entry of text. The phone provides various methods by which text can be entered. These are used when entering or editing contacts in the phone book, when searching for names in the phone book and when writing SMS text messages.

  • Page 30: Creating Phone Book Entries - Example

    Telephone Operation Multitap upper case Multitap lower case Digits To switch between the input modes, press the button. Punctuation and special characters To access Editing mode, press the button. Punctuation marks and special characters are displayed. Use the buttons to select the required character and insert it by pressing the M1.
  • Page 31 Telephone Operation 4. Use to select To SIM or To Phone, press M1 to confi rm. 5. Use to select options (Name, Phone Number, Home Number, Company Name, Email Address, Offi ce Number) and press M1 to confi rm and enter the edit mode.

  • Page 32: Call Functions

    Call Functions 5 Call Functions Taking a call When there is an incoming call, is shown on the display, press to take the call. Rejecting a call When there is an incoming call, is shown on the display, press to reject the call. Ending a call During a call, press to end the call.

  • Page 33: Quick Dialling

    Call Functions Dialling numbers from the phone book You must have already stored phone numbers in the phone book. 1. During standby mode, press to open the phone book. 2. Use buttons to select the entry and press to dial the number. If you have assigned several phone numbers to the entry, select the number required.

  • Page 34: Keypad Lock

    Call Functions Talk time display The duration of a call is displayed during a call in hours, minutes and seconds. Handsfree This function is used to listen to the caller via the loudspeaker. 1. When "H-Free" is shown on the display, the handsfree mode is activated.

  • Page 35: Options During A Call

    Call Functions Calls can still be taken in the normal way even when the keypad lock function is activated. 2. Press M3 and then to activate the keypad lock function immediately after unlock the keypad. Deactivating the ringing melody The ringing melody can be deactivated. In standby mode, press and hold for 3 seconds to activate or deactivate the ringing melody.
  • Page 36 Call Functions When a call is put on hold, the menu option changes to "Retrieve". 2. To retrieve the call put on hold, use to select Retrieve, and press M1 to resume the call. Handsfree 1. Use to select H-Free, press M1 to confi rm and set the handsfree mode on or off.

  • Page 37: Emergency Call Function

    Emergency Call Function 6 Emergency Call Function This mobile phone is equipped with a convenient emergency call function. Up to 5 phone numbers can be entered for emergency calls. When the emergency call function is activated, the phone automatically switches to "handsfree", an acoustic alarm is heard and information can appear in the display.

  • Page 38: Sending An Emergency Call

    Emergency Call Function 4. Use to select options (Help No.1 to Help No.5 ), press M1 to confi rm. 5. Use to select From Phonebook, press M1 to confi rm and open the phone book and select an entry. Select View and press M1 to confi rm and view the entry. Select Clear and press M1 to confi...
  • Page 39 Emergency Call Function 1. During standby mode, press M1 to enter the main menu. 2. Use to select Help Setting, press M1 to confi rm. 3. Use to select Help Call Duration, press M1 to confi rm. 4. Use to select Off or 1 min. to 5 min., press M1 to confi...

  • Page 40: Emergency Call Function, Examples

    Emergency Call Function, Examples 7 Emergency Call Function, Examples The emergency call function is explained here using two realistic examples. If no SIM card is installed and the emergency call switch is activated, the emergency call number 000 is automatically dialled. Emergency calls to an emergency call center The number of the emergency call center must be stored in the phone book.
  • Page 41 Emergency Call Function, Examples 6. Use to select emergency call center and press M1 to confi rm. 7. In the Set Help Numbers menu, use to select Reach Setting and press M1 to confi rm. 8. Use to select Reach One Only and press M1 to confi...

  • Page 42: Emergency Call To Several Numbers

    Emergency Call Function, Examples Emergency call to several numbers The required phone numbers must be stored in the phone book (relatives/friends). Proceed as follows: 1. During standby mode, press M1 to enter the main menu. 2. Use to select Help Setting, press M1 to confi...
  • Page 43 Emergency Call Function, Examples After max. 5 emergency numbers have been dialled 1. In the Set Help Number menu, use to select Reach Setting and press M1 to confi rm. 2. Use to select Reach All and press M1 to confi...

  • Page 44: Starting/Ending The Emergency Call Function

    Starting/Ending the Emergency Call Function 8 Starting/Ending the Emergency Call Function Starting the emergency call Slide the emergency call switch upwards. An acoustic signal is issued when the corresponding function is activated. The mobile phone dials the assigned number and switches to handsfree mode.

  • Page 45: Phone Book

    Phone Book 9 Phone Book Up to 500 entries (names with several related phone numbers) can be stored in the phone book. • Always enter the area code with all the phone numbers. • When the memory capacity is used up, the corresponding message appears when an attempt is made to store another entry.

  • Page 46: Entering Names

    Phone Book Entering names The digit keys are also labelled with letters for the entry of names. Press the corresponding button the respective number of times to enter letters. Information on ways of entering text; Page 29. 1. During entering, press 0 to enter a space. 2.

  • Page 47: Saving In Standby Mode

    Phone Book Complete any further information regarding this name according to the procedure described. When all the necessary information has been entered: 1. Press M3 to confi rm the settings. 2. Press M1 to save the entries, press M3 to reject the entries.

  • Page 48: Modifying, Editing, Deleting Phone Book Entries

    Phone Book Modifying, editing, deleting phone book entries 1. During standby mode, press M1 to enter the main menu. 2. Use to select Phonebook, press M1 to confi rm. 3. Use to select Search, press M1 to confi rm. Search for the required entry as described at the beginning of this chapter.

  • Page 49: Editing Or Deleting All Entries

    Phone Book Editing or deleting all entries 1. During standby mode, press M1 to enter the main menu. 2. Use to select Phonebook, press M1 to confi rm. 3. Use to select Delete All or Copy All, press M1 to confi rm. Select Delete All to delete all the entries from the SIM or phone.
  • Page 50 Phone Book 3. Use to select Caller Group, press M1 to confi rm. 4. Use to select Family, press M1 to confi rm. 5. Use to select Member List, press M1 to confi rm. If there are no entries in the Member List, only the Add menu option is available.
  • Page 51 Phone Book Settings 1. During standby mode, press M1 to enter the main menu. 2. Use to select Phonebook, press M1 to confi rm. 3. Use to select Settings, press M1 to confi rm. 4. The following functions are available: Select Memory Status to display the status of the SIM and phone.

  • Page 52: Call List

    Call List 10 Call List The mobile phone is equipped with a call list. Your mobile phone stores the last phone numbers dialled, taken and received but missed. If one of the phone numbers received matches an entry in the phone book, the associated name appears.
  • Page 53 Call List The following functions are available: Select Clear to delete the entry, Select Save to save the entry on the SIM or phone. Select Call to dial the entry. Select Edit to edit the entry. Select Delete All to delete the calls list. to select the above options and press M1 to confi...

  • Page 54: Sms − Text Messages

    SMS − Text Messages 11 SMS − Text Messages Writing an SMS text A text message can contain up to 612 characters, including spaces. 1. During standby mode, press M1 to enter the main menu. 2. Use to select Messages, press M1 to confi rm. 3.

  • Page 55: Sms Text Messages Sent And Received

    SMS − Text Messages 4. Select Send To Many and press M1 to confi rm. The message can be sent to several recipients selected from the phone book. 5. Select Send By Group and press M1 to confi rm. The SMS text is sent to all the members of a group.
  • Page 56 SMS − Text Messages Select Reply to reply to the number from which the text was sent. Select Forward to Forward the text to a different number. Select Send to send the SMS text. Select Edit to edit the SMS text. Select Clear to delete the SMS text.

  • Page 57: Voice Mail

    Voice Mail 12 Voice Mail It is possible that not all functions described are supported by every network service provider. Therefore, please contact your local mobile phone network service provider for details. Fees and charges may apply for network services. In order to use the "Voice Mail"...

  • Page 58: Playing The Voice Mail Messages

    Voice Mail If a number is already available, it appears instead of "Empty". 6. Use keypad to enter or edit the Voice Mail number and press M1 to confi rm and save it. The following functions are available in the "Voice Mail" menu.

  • Page 59: Network Services

    Network services 13 Network services It is possible that not all functions described are supported by every network service provider. Therefore, please contact your local mobile phone network service provider for details. Fees and charges may apply for network services. Navigating to the "Call Setting"...

  • Page 60: Call Barring

    Network services 3. Use to select the setting for which calls should be redirected: All Voice Calls, If Unreachable, If No Answer, If Busy, press M1 to confi rm. 4. Use to select Activate and press M1 to confi rm, use keypad to enter the number or select from the phone book.

  • Page 61: Call Waiting

    Network services Changing the network password This service must be requested from the telephone network provider. The provider then makes the corresponding numeric code available. Navigate to the "Call Setting" menu. 1. Use to select Call Barring, press M1 to confi...

  • Page 62: Settings

    Settings 14 Settings One−touch dialling buttons It is possible to assign phone numbers to the one-touch dialling buttons M1, M2 or M3 which are then dialled directly by pressing and holding the corresponding button. Each number you want to defi ne as a one-touch dialling number must be stored in the phone book.

  • Page 63: Clock And Alarm

    Settings Clock and alarm This menu option can be used to set and change the date, time and alarms. Open the menu: 1. During standby mode, press M1 to enter the main menu. 2. Use to select Clock & Alarm, press M1 to confi...
  • Page 64 Settings Set Alarm 1. In the Clock & Alarm menu, use to select Set Alarm, press M1 to confi rm. 2. Use keypad to enter the time, press M1 to confi rm. Show Time & Date 1. In the Clock & Alarm menu, use to select Show Time &...

  • Page 65: Navigation Buttons

    Settings Flashing keypad Use this menu to select whether the keypad back lighting should fl ash in the event of incoming calls. 1. During standby mode, press M1 to enter the main menu. 2. Use to select Phone Setting, press M1 to confi...

  • Page 66: Security Settings

    Settings 5. Use to select Calendar, press M1 to confi rm. In the example above, the calender is opened when the 4 button is pressed for longer than 3 seconds when in Standby mode. Security settings This menu is used to defi ne which functions on the phone or SIM card should be protected by a password/ PIN.

  • Page 67: Phone Settings

    Settings SIM Lock The password is supplied together with the SIM card. If you deactivate the SIM lock, you need not enter the PIN after switching the mobile phone on. It is recommended to leave the SIM lock on to prevent unauthorized persons from using the mobile phone.
  • Page 68 Settings 1. Use to select Display Setting, press M1 to confi rm. 2. Use to select options, press M1 to confi rm. Select Language to set the display language Select Greeting Text to edit the text displayed when the phone is switched on. Select Screen Saver to select and setup a screen saver.

  • Page 69: Default Settings

    Settings Select Set Volume to select specifi c volumes for the various alert ringing signals. Select Alert Type to select whether you are alerted of incoming calls via a ringing tone or vibration. Select Help Tone to select whether an acoustic alarm should be issued when an emergency call is activated Automatic key lock You can set up the mobile phone so that the key lock is...

  • Page 70: Advanced Settings

    Advanced Settings 15 Advanced Settings SMS − Text Messages It is possible that not all functions described are supported by every provider. Therefore, please contact your local mobile phone network service provider for details. 1. During standby mode, press M1 to enter the main menu.
  • Page 71 Advanced Settings 3. Use keypad to enter or edit the MSC number and press M1 to confi rm. Validity You can use this feature to defi ne how long an attempt should be made to deliver a message which you have sent.

  • Page 72: Memory Status

    Advanced Settings 1. Use to select Profi le Setting, press M1 to confi rm. 2. Use to select Common Setting, press M1 to confi rm. 3. Use to select Delivery Report or Reply Path, press M1 to confi rm and use to switch it on or off.

  • Page 73: Broadcast Messages

    Advanced Settings Broadcast messages You mobile phone supports receiving broadcast messages. You receive information on: broadcast messages, charge rates, data and offers are from your network service provider. 1. During standby mode, press M1 to enter the main menu. 2. Use to select Messages, press M1 to confi...

  • Page 74: Network Setting

    Advanced Settings Network setting Network selection: This menu can be used to select mobile telecommunication networks other than your own mobile network provider. However, the corresponding agreements must have been concluded. Preferred networks: You can select the mobile telecommunication networks prescribed on the SIM card and edit them.

  • Page 75: Troubleshooting

    Troubleshooting 16 Troubleshooting Problems and solutions Problems Solutions The mobile phone can − Insert battery, charge not be switched on. and try again. The display is "locked" − Enter the PUK to when the mobile phone "unlock" the SIM card. is switched on.
  • Page 76 Troubleshooting Keypad does not function − The operating speed of or only functions very the display is reduced slowly. in the case of low temperatures. This is normal. Use the phone in a warmer location. A message appears in − Many functions can the display for some only be used after functions, indicating...
  • Page 77 Troubleshooting No connection to the − Contact your network mobile telecommunication service provider. network. The "Insert SIM" message − Ensure that the SIM appears in the display. card has been installed correctly. Contact your network service provider, if necessary. The battery cannot be −...

  • Page 78: Technical Properties

    Technical Properties 16 Technical Properties Technical data Feature Value Standard 900, 1800 MHz Dual-band Dimensions 50 x 128 x 16.5 mm (W x H x D) Weight < 100 g incl. battery Power supply Input: 100−240 V, 50−60 Hz, 0.2 A Output: Mini-USB 5 V, 800 mA Battery Model: KEBT-5057...

  • Page 79: Sar Information

    SAR Information 17 This oricom mobile phone meets the guidelines for exposure to radio waves The Australian safety standard for electromagnetic emissions (EME) is set by the Australian Radiation Protection and Nuclear Safety Agency (ARPANSA) and regulated by the Australian Communications and Media Authority (ACMA).

  • Page 80: Guarantee

    The Warranty Card is located in the package. (b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the...
  • Page 81 (iv) Non adherence by you to the warnings in the User Guide and the User Guide generally; and (v) Modifi cation to the product or services carried out to the product by anyone other than Oricom or on Oricom's behalf. Oricom will not be liable for consequential losses including...

  • Page 82: Customer Support

    Guarantee Customer Support If you feel this product is not working correctly please consult the user guide and ensure that you are using the product in accordance with the instructions. To order spare parts and in case of any technical issues you may have with this product please consult our website for further information or send us an email for a prompt response to your enquiry.

  • Page 83: Index

    Index Index AC power adaptor ..................8 Areas of use ....................5 Automatic redialling ..................61 Barcode labels on the phone................9 Battery status warning.................16 Broadcast messages ...................73 Buttons with special functions ..............23 Calender ....................64 Call barring ....................60 Call list .......................32 Call waiting ....................61 Charging the battery ...................14 Charging via the mini USB port ..............14 Charging via the optional desktop charger ............15...
  • Page 84 Index Deactivating the ringing melody ..............35 Deactivating the ringing tone for the current call ...........35 Description of operating sequences in the manual.........24 Dialling numbers from the phone book ............33 Editing or deleting all entries ................49 Emergency call to several numbers ..............42 Emergency calls ....................7 Emergency calls to an emergency call center ..........40 Ending a call ....................32...
  • Page 85 Index Handsfree ....................34 Icons and texts in the handset display ............25 If your phone is lost or stolen ...............10 Installing the SIM card .................12 Intended use ....................4 Keypad lock ....................34 Making a call ....................32 Memory status ....................72 Modifying, editing, deleting phone book entries ..........48 Muting the microphone in the handset ............34 Navigating in the menu ................28 Navigation buttons ..................65...
  • Page 86 Index Passwords ....................10 Phone security ....................9 Phone settings ....................67 Phonebook Settings ..................51 PIN & PIN2 codes ..................11 Playing the Voice Mail messages ..............58 Problems and solutions ................75 PUK & PUK2 codes ..................11 Quick dialling ....................33 Rechargeable batteries ..................8 Rejecting a call ...................32 Saving in Standby mode ................47 Security settings ..................66 Sending an emergency call ................38...
  • Page 87 Index SIM Toolkit ....................72 SMS service center ..................70 SMS Settings ....................71 SMS text messages sent and received ............55 Softkeys .....................27 Standby mode ....................27 Starting the emergency call .................44 Switching the mobile phone off and on ............17 Taking a call ....................32 Talk time display ..................34 Technical data ....................78 Use with a hearing device ................7...
  • Page 88 Australia Oricom International Pty Ltd Locked Bag 658 South Windsor, NSW 2756 Customer Support Email: support@oricom.com.au Web: www.oricom.com.au Phone: (02) 4574 8888 Fax: (02) 4574 8898...
