Hot! Do not touch!
and surfaces of this appliance
will be hot during operation and
will retain heat for a while after
shutting
Severe burn may result.
Carefully supervise children in
the same room as appliance.
If small children are present in the home, it is
recommended that this appliance be used
with a fire screen kit.
Printed in Canada
The glass
off
the
appliance.
Rev 7 June 2010
Installation and Operating
Instructions
This installation manual will help you obtain a
safe, efficient, dependable installation for your
fireplace and chimney system. Please read and
understand
these
before beginning the installation or operating
the fireplace.
CAUTION: Do not attempt to modify or alter
the construction of the fireplace or its
components. Any modification or alteration of
construction may void the warranty, listings
and approvals of this system. In that case,
Security Chimneys International Ltd will not
be responsible for damages.
Install the fireplace only as described in these
instructions.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
We recommend a certified installation by :
2125 rue Monterey, Laval, Québec, Canada, H7L 3T6
installation
instructions
Listed to standards:
ULC-S610, UL-127
Report # 3092554
PILELAVAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE LAVAL and is the answer not in the manual?

Questions and answers

Related Manuals for Security Chimneys International LE LAVAL

Summary of Contents for Security Chimneys International LE LAVAL

  • Page 1 Any modification or alteration of construction may void the warranty, listings and approvals of this system. In that case, Security Chimneys International Ltd will not be responsible for damages. Install the fireplace only as described in these instructions.

  • Page 2: Table Of Contents

    SAFETY RULES ....................1 CERTIFICATION LABEL ................2 THE FIREPLACE ....................3 INTRODUCTION ........................3 3.1.1 Parts Required 3.1.2 Additional Equipment (optional) OPERATING THE LE LAVAL FIREPLACE ..............4 3.2.1 Fuel 3.2.2 First Fires 3.2.3 Heat Output 3.2.4 Combustion Control & Chimney Damper 3.2.5...

  • Page 3: Safety Rules

    SAFETY RULES FOR OPERATING YOUR FIREPLACE MODEL LE LAVAL Warning: The LE LAVAL fireplace must be installed with an outside air kit intake, which is included with the fireplace. Warning: The fireplace must be operated with the doors fully opened or fully closed. If the doors are left partly opened, smoke may be drawn into the room.

  • Page 4: Certification Label

    CERTIFICATION LABEL Note: the certification label is located in the lower right corner under the finishing trim. FLOOR PROTECTOR MINIMUM CLEARANCES TO COMBUSTIBLES: INSTALL WITH MINIMUM FUEL: WOOD ONLY COMBUSTIBLE: BOIS SEULEMENT LISTED FACTORY BUILT INSTALL AND USE ONLY IN DISTANCE FROM OPENING IN SIDE WALL: 24"...

  • Page 5: The Fireplace

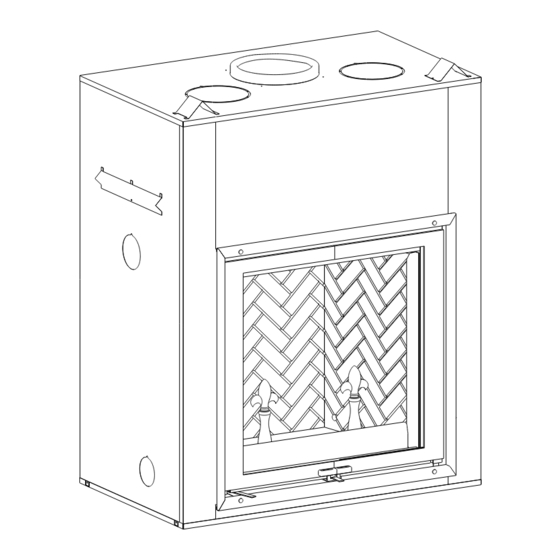

    THE FIREPLACE INTRODUCTION The LE LAVAL fireplace is a mid-efficient, heat radiating fireplace. You will receive a lifetime of comfort and enjoyment from your fireplace provided it is installed, maintained and operated properly. Please read these instructions and retain this manual for future reference.

  • Page 6: Operating The Le Laval Fireplace

    3.2.3 Heat Output The LE LAVAL fireplace is a mid-efficiency fireplace. In spite of the heat that the LE LAVAL fireplace can deliver, it should not replace the main source of heat in your home. This fireplace will bring extra warmth and ambiance to your home by distributing its heat as describe further in the manual.

  • Page 7: Combustion Control & Chimney Damper

    3.2.4 Combustion Control & Chimney Damper LE LAVAL fireplace includes a combustion air control that sets the flow of air entering the firebox and control the fire. The fireplace also includes a chimney damper that is not a combustion control. The chimney damper must always be in fully open position when the fireplace is used and should be closed only when all ashes are cold.

  • Page 8: Accelerated Combustion

    The unit should be operated with the air control fully open long enough to get the cordwood well ignited. WARNING: LE LAVAL was designed to allow a spectacular view of the fire. LE LAVAL fireplace should never be filled in excess (five big logs and more). Excessive fire could...

  • Page 9: Refuelling For Best Performance

    A fire needs air to burn. This air must be replaced through the outside air duct (sect. 3.6 p. 25). When operating the LE LAVAL fireplace, open a nearby window temporarily to check if there is adequate air supply replacement.
  • Page 10 G. Poor chimney draft With no fire, there should be sufficient draft to exhaust cigarette smoke introduced under the baffle. Chimneys installed against an outside wall without protection may generate back draft problems which will cause start-up problems. To prevent this, open a nearby window; roll up a piece of paper, light it and hold it in the upper part of the firebox to warm up the chimney.

  • Page 11: Maintaining Your Le Laval Fireplace

    MAINTAINING YOUR LE LAVAL FIREPLACE 3.3.1 Creosote When wood, especially wet wood, is burned slowly without a flame, it produces tar and other organic vapours which combine with expelled moisture to form a black deposit called creosote which accumulates on the flue lining. If ignited, this creosote makes an extremely hot fire.

  • Page 12: Ashes

    To install the new refractory bricks, follow the above steps in reverse. 3.3.7 Door Installation The doors Of the Le Laval fireplace are factory installed. To remove the doors, remove the finishing trim then simply pull them up from the hinges. The door adjustment has been set at the factory. If the fit is still not perfect, you can adjust the door using the hinge screws.

  • Page 13: Door Adjustment

    3.3.8 Door Adjustment The doors are factory adjusted for proper air tightness and fit. They may need to be re-adjusted if the alignment has shifted in freight. To readjust the door side to side position, unscrew the fireplace or the door hinges. Move the doors side to side until the top of the two doors are aligned (figure 6A).

  • Page 14: Door Opening Adjustment

    3.3.8.1 Door Opening Adjustment The doors opening angle can be adjusted. This allows the doors to slide in the fireplace without interference or friction with the finishing facing, which could damage the paint. The screws located under the bottom hinges (figure 6E)are used as door opening stops. Tightening or loosening these screws will keep the door handle from hitting the finishing facing and won‟t allow friction between door gasket and hearth when the door is fully pushed in the fireplace.

  • Page 15: Glass Care - Replacement

    3.3.10 Glass Care - Replacement The glass used for the LE LAVAL fireplace is a high temperature ceramic glass (1400°F). If the glass breaks or cracks, it must be replaced with an identical ceramic glass. Tempered glass or ordinary glass will not withstand the high temperatures of the LE LAVAL fireplace.

  • Page 16: Fireplace Installation

    The LE LAVAL fireplace may be installed directly on the floor or on a raised base but a minimum of 8' measured from the base of the appliance to the ceiling is required.

  • Page 17: Hearth Extension Requirements

    3.4.2 Hearth Extension Requirements The LE LAVAL fireplace may be installed directly on a combustible floor; however, the combustible floor in front of the fireplace must be covered with a half inch (1/2 in.) of non- combustible support material (cement board, cement block or other) before applying the finish material (tile, marble, stone, etc.) (see figure 7 &...

  • Page 18: Framing, Facing And Mantel

    3.4.3 Framing, Facing and Mantel The construction of the framing, facing, and mantel must be in accordance with the standards and the following illustrations (figures 8 to 12): A. Frame the fireplace using 2" x 3" or heavier lumber. B. WARNING: Combustible materials cannot be used in the space directly above the fireplace, except for the studs above the facade that support the facing and mantel.
  • Page 19 INSULATED CHASE CONSTRUCTION Figure 12 Nailing flange Four nailing flanges are provided to secure the fireplace to the floor (see figure beside). Bend the nailing flanges down so each flange is flush with the floor, then using Nailing flange nails or screws, secure the fireplace to the floor (2 places per side).
  • Page 20 Facing Note: The facade must be removable once installed. The facade is designed to overlap any facing material installed on the front of the fireplace. If thicker material is installed, use the facade as a template and make sure it can be easily removed for servicing. 1.
  • Page 21 Figure 15 Figure 14 3.4.4 Optional Fireplace Blower (UZY5) A heat activated blower is sold as an option. It is designed to be located in the back of the fireplace and increase the air flow around the firebox. It uses regular 120V and must be connected to the main electrical circuit by a qualified electrician.

  • Page 22: Hot Air Ducting Installation (Optional)

    Maximum length See figure 18 * The height of the louver must be measured from the base of the LE LAVAL fireplace to the middle point of the louver. WARNING: both pipe of the double hot air outlet must be installed. Any other installation can...
  • Page 23 When installing the double outlet system, the hot air outlets can be installed in the same room as the fireplace, or one or both of the outlets can be installed in adjacent or upper rooms. Installing the ducts at different elevations will tend to exhaust more heat out of the higher outlet (figure 18).
  • Page 24 LE LAVAL hot air exhaust. 7. Use only Security Chimneys International grills and components as described in this manual. Other grills or registers may be too restrictive and may overheat the fireplace or ceiling.

  • Page 25: Central Forced Air Kit

    3.5.2 Central Forced Air Kit The knock-outs provided on the back and on the sides of the LE LAVAL fireplace allow the connection of insulated flexible pipe which enables you to heat adjacent rooms up to 50 feet from the fireplace hot air outlet.

  • Page 26: Outside Air Kit

    OUTSIDE AIR It is mandatory to install an outside air connection to the LE LAVAL fireplace. The following components are required and are included with the fireplace: - Outside air kit - 4" adapter for fireplace connection The outside air assembly must be installed according to the following requirements : A) Duct length should be kept to a minimum.

  • Page 27: The Chimney

    This condensation may corrode the top of the fireplace and is not covered under warranty. For optimum performance of your fireplace, Security Chimneys International recommends the use of ASHT+ or HT6103+ chimneys. 2. The Security fireplace model LE LAVAL is listed only with Security Chimneys International ASHT+ HT6103+ Ltd 10"...

  • Page 28: Chimney Installation Instructions

    CHIMNEY INSTALLATION INSTRUCTIONS 1. Cut and frame the holes in the ceiling, floor and roof where the chimney will pass (see figure 27). Use a plumb bob to line up the centre of the holes. The sizes are indicated in table 1 for the floor and ceiling holes and table 2 (page 28) for the roof holes.
  • Page 29 CHIMNEY INSTALLATION MODEL AC Note: Outside air kits must be installed for both fireplace and AC chimney. Figure 30...
  • Page 30 CHIMNEY MODEL AC Figure 32 Figure 31 Table 2 ROOF DOWN SLOPE HOLE SIZE ASHT+ Secure Temp DEGREE OF HT6103+ Nova Temp SLOPE 10" 10" 16 3/8" (416 mm) 17" (432 mm) 2/12 16 5/8" (422 mm) 17 1/4" (438 mm) 4/12 17 1/4"...

  • Page 31: Offset Chimney Installation

    OFFSET CHIMNEY INSTALLATON The minimum chimney height when using elbows is: Fireplace Model LE LAVAL ASHT+ HT6103+ Chimney Model Secure Temp / Nova Temp / AC 4.57 m (15‟) Vertical Installation 5.49 m (18‟) Two (2) Elbows 6.10 m (20‟)
  • Page 32 Table 4...
  • Page 33 Figure 33 Figure 34 IF THE CEILING IS 9 FT OR LESS THIS INSTALLATION CAN ONLY BE ACHIEVED USING 45° ELBOWS. SINCE ONLY 30° ELBOWS ARE ALLOWED. IN THE U.S. THE OFFSET MUST BE DONE ABOVE THE CEILING.

  • Page 34: Angled Wall Radiation Shield

    4.4 ANGLED WALL RADIATION SHIELD (RSMI30, RSMI45, AC10RSMI30) When traversing a combustible wall with the chimney at a 30º or 45º angle, an angled firestop or wall radiation shield must be installed. Only one is required. Note: 45º angle for Canada only In cold climate locations, we recommend that you use the insulated wall radiation shield since it will maintain the home‟s thermal barrier.

  • Page 35: Chimney Support Installation

    CHIMNEY SUPPORT INSTALLATION UNIVERSAL ROOF SUPPORT This support has three possible uses: ASHT+ HT6103+ 1. For Secure Temp / Nova Temp , it must be used on a roof to support the chimney. 2. It may be used on a floor, ceiling or roof above an offset to support the chimney above the offset.

  • Page 36: Chimney Chase And Multiple Terminations

    CHIMNEY CHASE AND MULTIPLE TERMINATIONS For the purpose of this manual, a chimney chase is considered a part of the chimney system rather than part of a building. The termination must be placed a minimum of 18" (460 mm) above the chase. For installations where more than one chimney is located in the same chase or within the same area, we suggest that their terminations be separated by at least 16"...

  • Page 37: Parts And Components List

    PARTS AND COMPONENTS LIST AC Chimney Description Part No. Catalog No. 10” dia Lengths 10" dia. 12" length AC10L12 H3765 18" length AC10L18 H3766 36" length AC10L36 H3767 48" length AC10L48 H3768 15º elbow AC10E15 H3760 30º elbow AC10E30 H3761 Starter section AC10SB H3776...

  • Page 38: Options

    Fireplace components : Description: Part number: Outside air kit UZI outside air kit fireplace adaptor UZIAD OPTIONS Gravity kit: Part No.: Complete double ducting system including: 2 elbows 90º, 2 7B30ZK-1 telescopic lengths, 2 grill supports and 2 black grills Black grill with support 7B30ZO Brass grill for 7B30ZK-1...

  • Page 39: Appendix (Specifications, Clearances, Replacement Parts)

    APPENDIX SPECIFICATIONS Weight w/ crate 675 lbs Weight w/out crate and refractory bricks 500 lbs Height 59 in. Width 48 1/2 in. Depth 29 in. Chimney weight ASHT+ (10" dia.) : 8 1/2 lb/ft. CLEARANCE TO COMBUSTIBLES The following clearances meet the minimum requirements for a safe installation Side wall (fireplace front): 24"...
