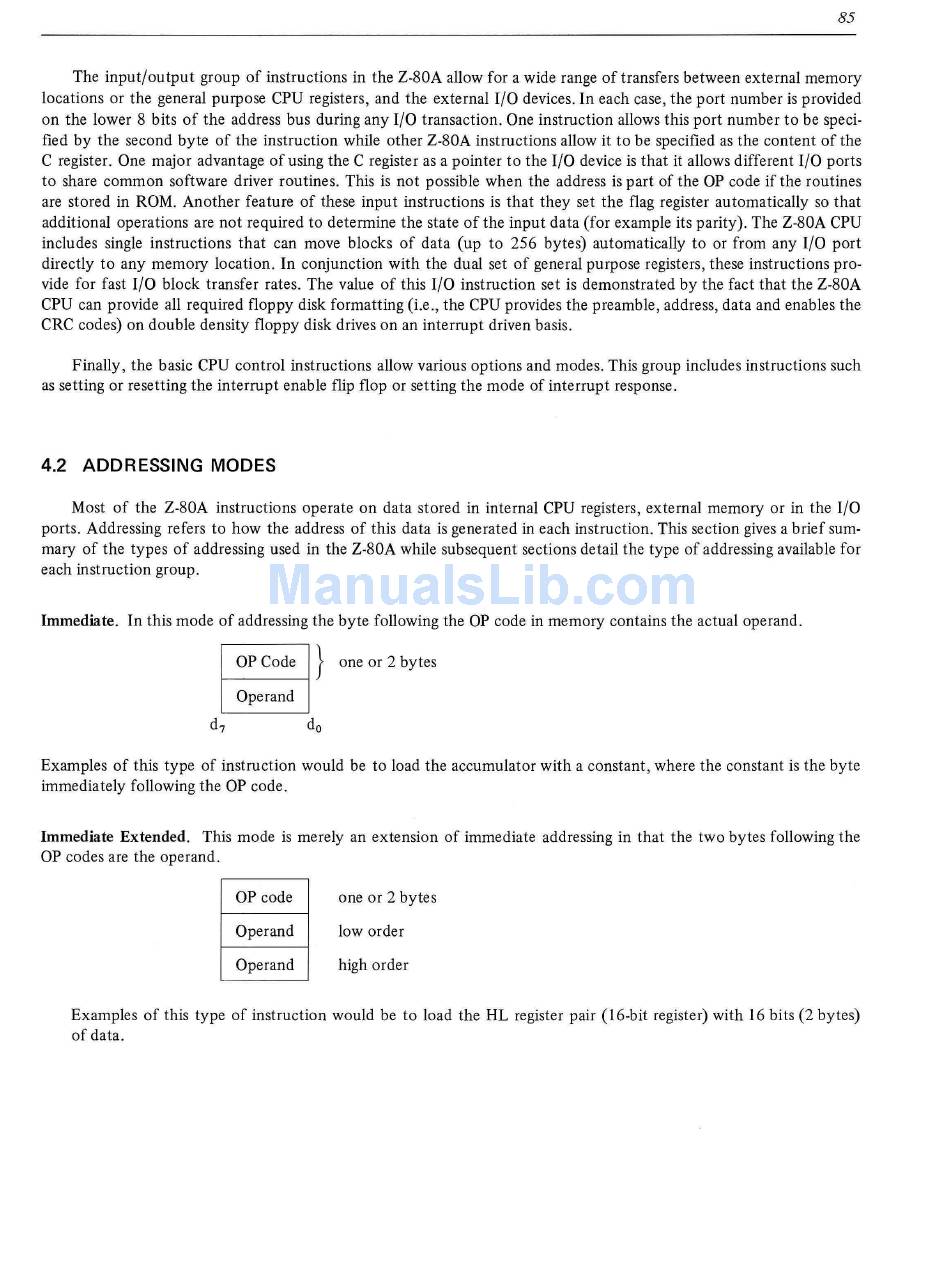

The input/output group of instructions in the Z-80A allow for a wide range of transfers between external memory
locations or the general purpose CPU registers, and the external I/0 devices. In each case, the port number is provided
on the lower 8 bits of the address bus during any I/0 transaction. One instruction allows this port number to be speci-
fied by the second byte of the instruction while other Z-80A instructions allow it to be specified as the content of the
C register. One major advantage of using the C register as a pointer to the I/0 device is that it allows different I/0 ports
to share common software driver routines. This is not possible when the address is part of the OP code if the routines
are stored in ROM. Another feature of these input instructions is that they set the flag register automatically so that
additional operations are not required to determine the state of the input data (for example its parity). The Z-80A CPU
includes single instructions that can move blocks of data (up to 256 bytes) automatically to or from any I/0 port
directly to any memory location. In conjunction with the dual set of general purpose registers, these instructions pro-
vide for fast I/0 block transfer rates. The value of this I/0 instruction set is demonstrated by the fact that the Z-80A
CPU can provide all required floppy disk formatting (i.e., the CPU provides the preamble, address, data and enables the
CRC codes) on double density floppy disk drives on an interrupt driven basis.
Finally, the basic CPU control instructions allow various options and modes. This group includes instructions such
as setting or resetting the interrupt enable flip flop or setting the mode of interrupt response.
4.2 ADDRESSING MODES
Most of the Z-80A instructions operate on data stored in internal CPU registers, external memory or in the 1/0
ports. Addressing refers to how the address of this data is generated in each instruction. This section gives a brief sum-
mary of the types of addressing used in the Z-80A while subsequent sections detail the type of addressing available for
each instruction group.
Immediate. In this mode of addressing the byte following the OP code in memory contains the actual operand.
OP Code } one or 2 bytes
Operand
Examples of this type of instruction would be to load the accumulator with a constant, where the constant is the byte
immediately following the OP code.
Immediate Extended. This mode is merely an extension of immediate addressing in that the two bytes following the
OP codes are the operand.
OP code
Operand
Operand
one or 2 bytes
low order
high order
Examples of this type of instruction would be to load the HL register pair (16-bit register) with 16 bits (2 bytes)
of data.
